| Laser Wavelength: | |
|---|---|
| Output Power: | |
| Housing Material: | |
| Fiber Core: | |
| Connector: | |
| Quantity: | |
AL-RGB60FC-BC
AIMLASER, ELITELASER
90132000.99
Red Green Blue Visible
450nm 520nm 635nm
CW Dot Fiber
AimLaser produces 445nm 520nm 635nm RGB Fiber Coupled Laser Modules with various fiber core 105um, 125um, 170um and 200um etc. The connectors are available for SMA, FC or ST together with different fiber length. The output power can be 1mW~10W.
Featured with compact size and low power consumption, our fiber coupled lasers use special designed LD drivers based on customer applications and TEC temperature control can be added to improve the reliability and stability of the lasers.

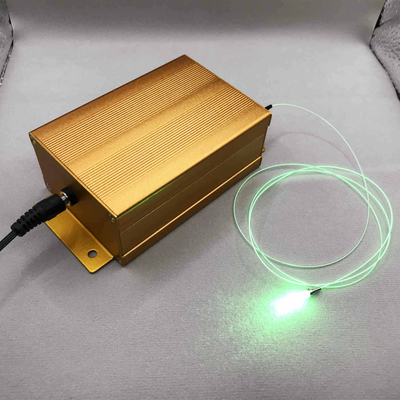

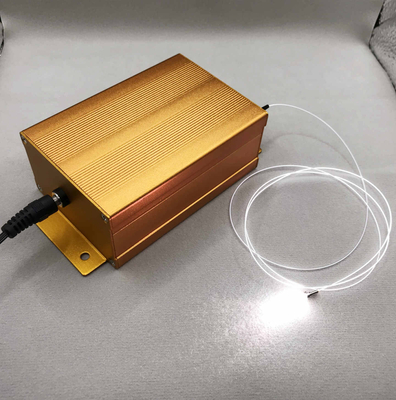

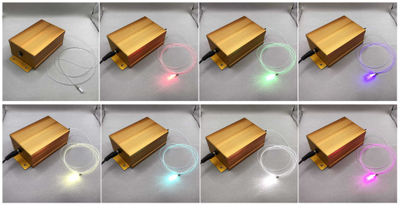

The AL-RGB60FC-BC is a 12V bluetooth controled RGB fiber coupled laser Module subassembly with FC receptable optical output. The maximum laser output power is 60.0mW at 450nm 520nm and 638nm.
| ITEM | SPECIFICATIONS |
| Model Number | AL-RGB60FC-BC RGB Fiber Coupled Laser Module |
| Wavelength | 450nm, 520nm, 638nm |
| Output Power | 60mW±5mW |
| Laser Mode | CW |
| Spectral Width | <2.0nm |
| Wavelength Shift | 0.2nm |
| Operating Current | <600mA@3VDC |
| Operating Voltage | 3.0V DC |
| Optical Lens | Optical Coating Glass Lens |
| CDRH Class | Class IIIb |
| Circuit control | Auto Constant Current (ACC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -40℃ to 80℃ |
| Dimensions | 100x97x40mm (ACC Inside) |
| Housing Material | Anodized Aluminum |
| Fiber Core Diameter | 105um multimode Fiber |
| Fiber Length | 1m with FC connector |
| Numerical Aperture | 0.22 N.A. |
| Connector | FC |
| Life Span | 8,000Hrs |
RGB illumination systems
Consumer Products
Decoration Lightings
Nightwear Sporting Products
Art Design Projects
Laser Illumination Light
Automotive Interior Ambient Light
Aiming Laser Beam
Measurement light source
Medical and cosmetic treatment
Bio-medical instrument
Flow cytometry
DNA sequencing
Confocal microscopy
Medical imaging
Raman spectroscopy
Photo finishing
Particle counting
Other OEM applications
Provide One year warranty
Offer customized solutions
Normal sample lead time: within 2~4 weeks
Conform to ROHS, FDA, IEC, SGS standards
ISO9001:2008 certified laser module manufacturer
Using original Laser Diodes from Arima, Osram, Nicha and branded chips
MOQ: 1pc
Delivery time: 3-20 days
Shipment Terms: FOB Xi'an China
Payment Terms: T/T, Western Union, PayPal
Shipment Method: DHL, UPS, FedEx or TNT
