405nm 50mW TTL Modulation Diode Laser Modules Purple Line Laser

Laser Wavelength:
Output Power:
Line Width:
Fan Angle:
Housing:
Quantity:
  • AM405D50G1M
  • AIMLASER, ELITELASER
  • 90132000.99
  • Blue  Visible
  • 450nm
  • Pulse  CW  Dot  TTL

405nm 50mW TTL Modulation Diode Laser Modules Purple Line Laser

laser wavelength chart

AimLaser provides customized Purple Line Laser Diode Modules with different output power, Line Thickness and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The purple laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser scanning and surveying instrument, medical laser instrument, image processing instrument, machine vision guidance system, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment applications and also scientific research etc.

※ 405nm 50mW Purple Line Laser Diode Module Descriptions

The AM405L50G1M is a TTL modulated purple line laser module subassembly with collimated beam. The maximum laser output power is 50.0mW at 405nm.

※ 405nm 50mW Purple Line Laser Diode Module Optical and Electrical Characteristics

ITEM SPECIFICATIONS
Model Number AM405L50G1M Purple Line Laser Diode Module
Wavelength 405nm
Output Power ≤50.0mW
Laser Mode Pulse (TTL Modulation)
Output Aperture Dia. 3mm
Line Width ≤0.1mm@150mm
Fan Angle 60°
Optics Optical Glass Lens
Operating Current <160mA
Operating Voltage 3~12V DC
CDRH Class Class IIIb
Circuit control Auto Power Control (APC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -20℃ to 60℃
Storage Temperature -40℃ to 80℃
Dimensions Φ14x50mm (Driver PCB Inside)
Housing Material Black Anodized Aluminum
Life Span 8,000Hrs

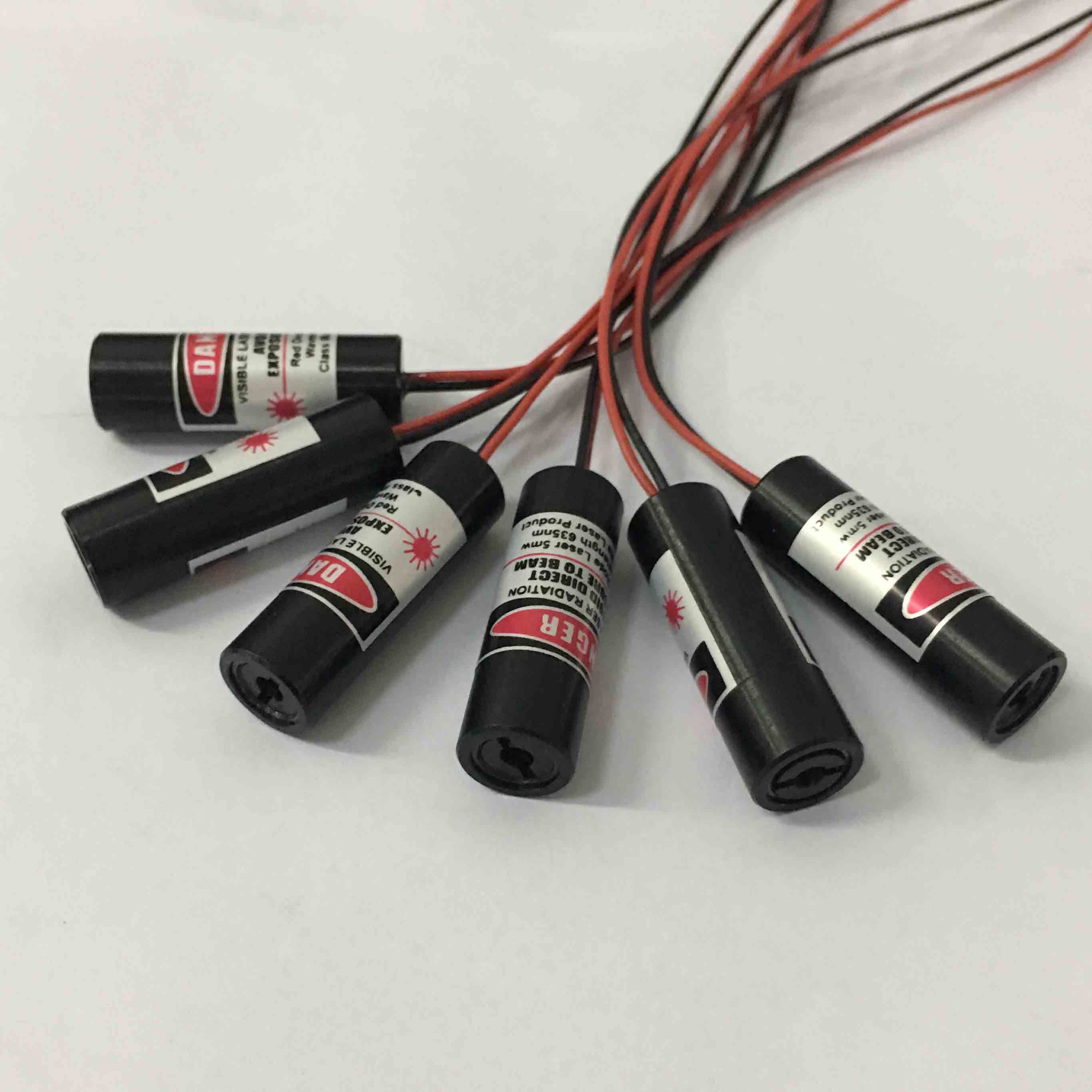

Industrial Laser Line Generator-AIMLASER

Laser Diode Modules (9)

※ 405nm Purple Laser Module Applications

  1. Scientific Research

  2. Laboratory Instrument
    Laser aiming devices

  3. Laser alignment instrument

  4. Laser pointing instrument

  5. Laser positioning devices

  6. Laser surveying instrument

  7. Laser detection equipment

  8. Medical Laser Instrument

  9. Image Processing Instrument

  10. Machine Vision Gudiance System

  11. OEM Instrumentation


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Module Production Process

※ Laser Modules Production EquipmentLaser module production equipment

※ Laser Modules Testing Equipment

Laser Module testing equipment

※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
