Line With Dot Laser Modules 635nm 3mW Construction Lasers for Wall Position Marking

Product Name:
Output Power:
Line Thickness:
Fan Angle:
Line Accuracy:
Quantity:
  • AM635M05G2
  • AIMLASER, ELITELASER
  • 90132000.99
  • Red  Visible
  • 635nm
  • CW  Dot  Line

Line With Dot Laser Modules 635nm 3mW Construction Lasers for

Wall Position Marking

laser wavelength chart

AimLaser provides customized Red and Green Dot Line Laser Modules with different output power, line width and dimensions for industrial applications, which uses optical glass lens and input voltage various from 3V to 24V DC or 110VAC.


※ What is a Line Laser Generator?

Laser line projector is a great tool for alignment and positioning of opposite sides, fixed points, and process routes.

It is widely used in laser distance measurer, self leveling laser tools, laser survey instrument by projecting a distinct red or green 360 degree laser line for alignment and positioning and surveying to guide the machine operations; therefore, solve the problems of straightness, flatness, parallelism, squareness, and leveling issues.


※ Why use a Line Laser Generator?

The laser line generator can replace rulers, stops, measuring aids or templates, which greatly enhanced the processing efficiency, helped to reduce processing costs and increased productivity; therefore, improved industrial competitiveness for traditional industries. You can use both hands for working.


※ 635nm 3mW  Red Line Laser Module Descriptions

The AM635M05G2 is a red dot line laser generator for self leveling laser tools, laser alignment tools or laser tape measure equipment. The maximum laser output power is 3.0mW at 635nm.


※ 635nm 3mW Red Line Laser Generator Optical and Electrical Characteristics

ITEM SPECIFICATIONS
Model Number AM635M05G2 (Red Dot Line Laser)
Wavelength 635nm
Output Power ≤3.0mW
Fan Angle 120°/180°
Line Width ≤2.0mm@5m
Line Accuracy <1mm@5m
DOF 1m
Optics Optical Glass Lens
Operating Current <45mA
Operating Voltage 3-5V or 12V or 24V DC
CDRH Class Class IIIa
Circuit control Auto Power Control (APC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -40℃ to 80℃
Dimensions Φ15x21mm (PCB Inside)
Case Material Black Anodized Aluminum
Life Span 8,000Hrs

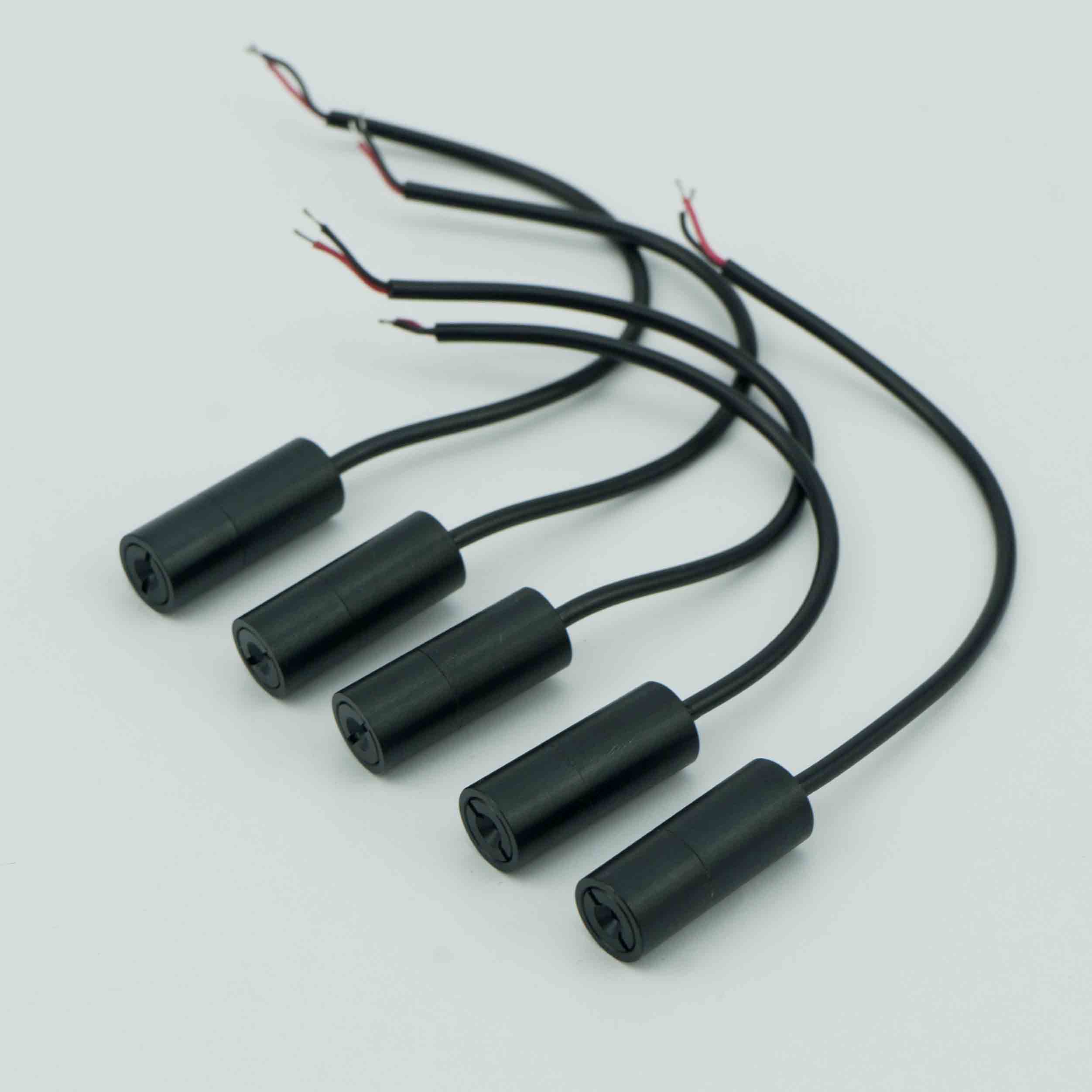

Red Line Lasers-AIMLASER Red Line Laser Modules-AIMLASER

※ AimLaser Line Laser Module Features

   Long lifetime

   Compact size

   Easy mounting

   High brightness

   Convenient adjustment

   High reliability and stability

   Wide temperature operation -10℃ to 50℃


※ Dot Line Laser Module Applications

   Laser Line Maker

   Laser Tape Measurer

   Laser Measuring Tools

   Laser Alignment Systems

   Laser Distance Measurer

   Laser Survey Instrument

   3D Laser Scanner

   Self Leveling Laser Tools etc.


※ Why buy Line Lasers from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Module Production Process


※ Laser Modules Production EquipmentLaser module production equipment


※ Laser Modules Testing Equipment

Laser Module testing equipment


※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
