Powell Lens Design Laser Module with Narrow Linewidth

Laser Wavelength:
Output Power:
Line Width:
Fan Angle:
Housing:
Quantity:
  • AM520U01G1
  • AIMLASER, ELITELASER
  • 90132000.99
  • Green
  • 520nm
  • Pulse  CW  Line  TTL

Powell Lens Design Laser Module with Narrow Linewidth

laser wavelength chart

AimLaser provides customized Uniform Line Laser Diode Modules which use high quality Powell lens and possess characteristics of compact size, narrow line width, high stability and reliability.

The thinnest line can be 10um; fan angle is optional from 10°to 90° and wavelength ranges from 405nm to 850nm. The input voltage is also various from 3V to 12V DC.

※ 520nm 1mW Powell Lens Uniform Line Laser Module Descriptions

The AM520U01G1 is a green line laser module subassembly with collimated beam. The maximum laser output power is 1.0mW at 520nm. Energy is uniformly distributed.

※ 520nm 1mW Powell Lens Uniform Line Laser Module Optical and Electrical Characteristics

ITEM SPECIFICATIONS
Model Number AM520U01G1 Powell Lens Uniform Line Laser Module
Wavelength 520nm
Output Power ≤1.0mW
Output Aperture Φ6.0mm
Line Width ≤30um@100mm
Fan Angle 60°
Divergence 0.1mrad
Optics Optical Glass Lens
Operating Current <140mA
Operating Voltage 3-12V DC
CDRH Class Class II
Circuit control Auto Power Control (APC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -40℃ to 80℃
Dimensions Φ14x55mm (PCB Inside)
Case Material Brass or Aluminum Black Anodized
Life Span 8,000Hrs

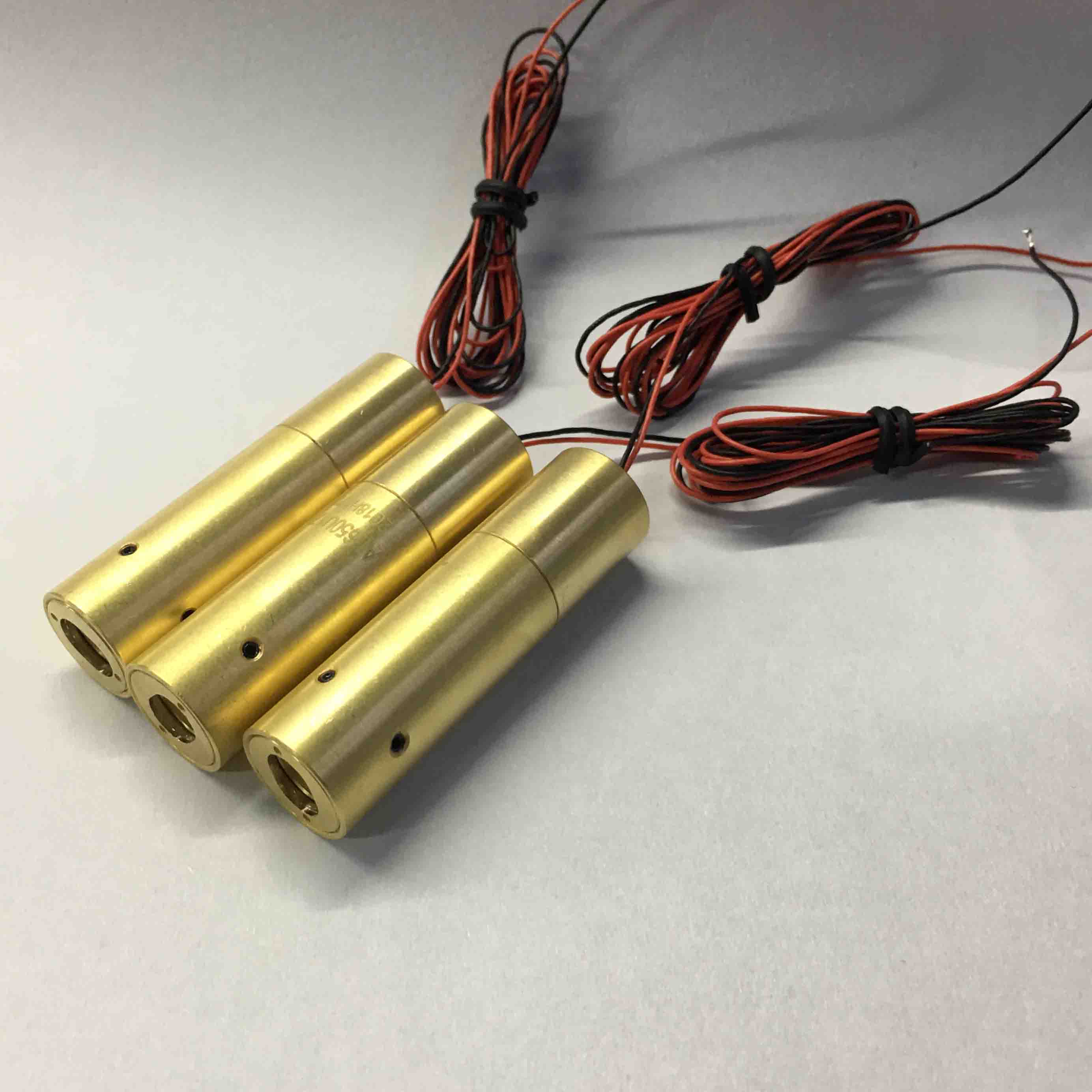

90 Degree Uniform Line Laser Modules-AIMLASER (2) Powell Lens Uniform Line Laser Modules-AIMLASER (2)

※ Powell Lens Uniform Line Laser Module Applications

  1. PPT Visions

  2. 3D Vision System

  3. Laser Profilometer

  4. Laser Contour Scanner

  5. Machine Visual Products

  6. Machine Vision Cameras

  7. Industrial Smart Cameras

  8. Laser Scanning System

  9. Laser Measuring Profilometer

  10. Laser Scribe Positioning Machines

  11. Industrial Visual Measurement System

  12. Industrial Robot Visual Guidance System

  13. Automatic Equipment Visual Positioning System


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Module Production Process

※ Laser Modules Production EquipmentLaser module production equipment

※ Laser Modules Testing Equipment

Laser Module testing equipment

※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
