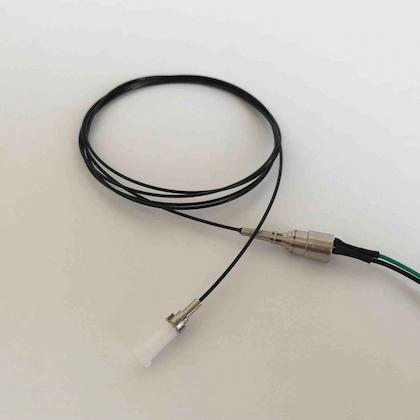

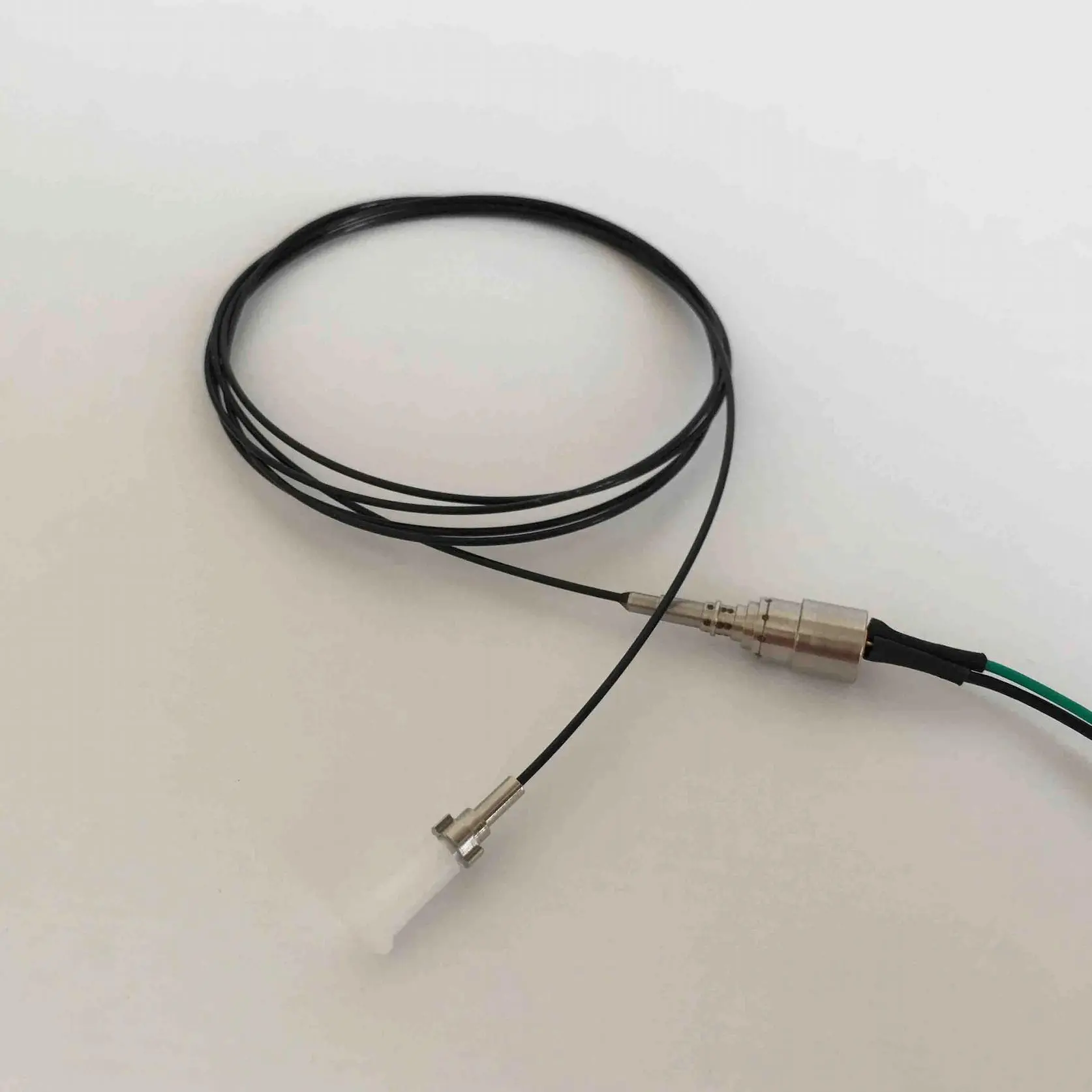

1064nm 30mW Meical Fiber Lasers Single Mode Pigtailed Fiber Laser Source

1064nm 30mW Meical Fiber Lasers Single Mode Pigtailed Fiber Laser Source 1064nm 30mW Meical Fiber Lasers Single Mode Pigtailed Fiber Laser Source

  • Laser Wavelength:
    1064nm
  • Output Power:
    30mW
  • Housing Material:
    Stainless Steel
  • Fiber Core:
    6.5um
  • Connector:
    FC/PC
  • Model: AM1064SF30FC

  • Brand: AIMLASER

  • Code: 90132000.99

  • Color: IR, Invisible

  • Wavelength: 905nm

  • Type: Fiber

Product Description

Product Description of 1064nm 30mW Meical Fiber Lasers Pigtailed Fiber Laser Source

Laser Wavelength Chart

AimLaser provides low power Pigtailed Coaxial Fiber Coupled Laser Modules whose wavelength ranges from 405nm to 1064nm and fiber core 4um, 9um, 50um, 62.5um, 105um, 125um, 170um and 200um etc. The connectors are available for SMA, FC or ST together with different fiber length.

Featured with compact size and low power consumption, our fiber coupled lasers use special designed LD drivers based on customer applications and PD feedbacks can be added to improve the reliability and stability of the lasers.


※  1064nm 30mW 6.5um Pigtailed Laser Diode Module Descriptions

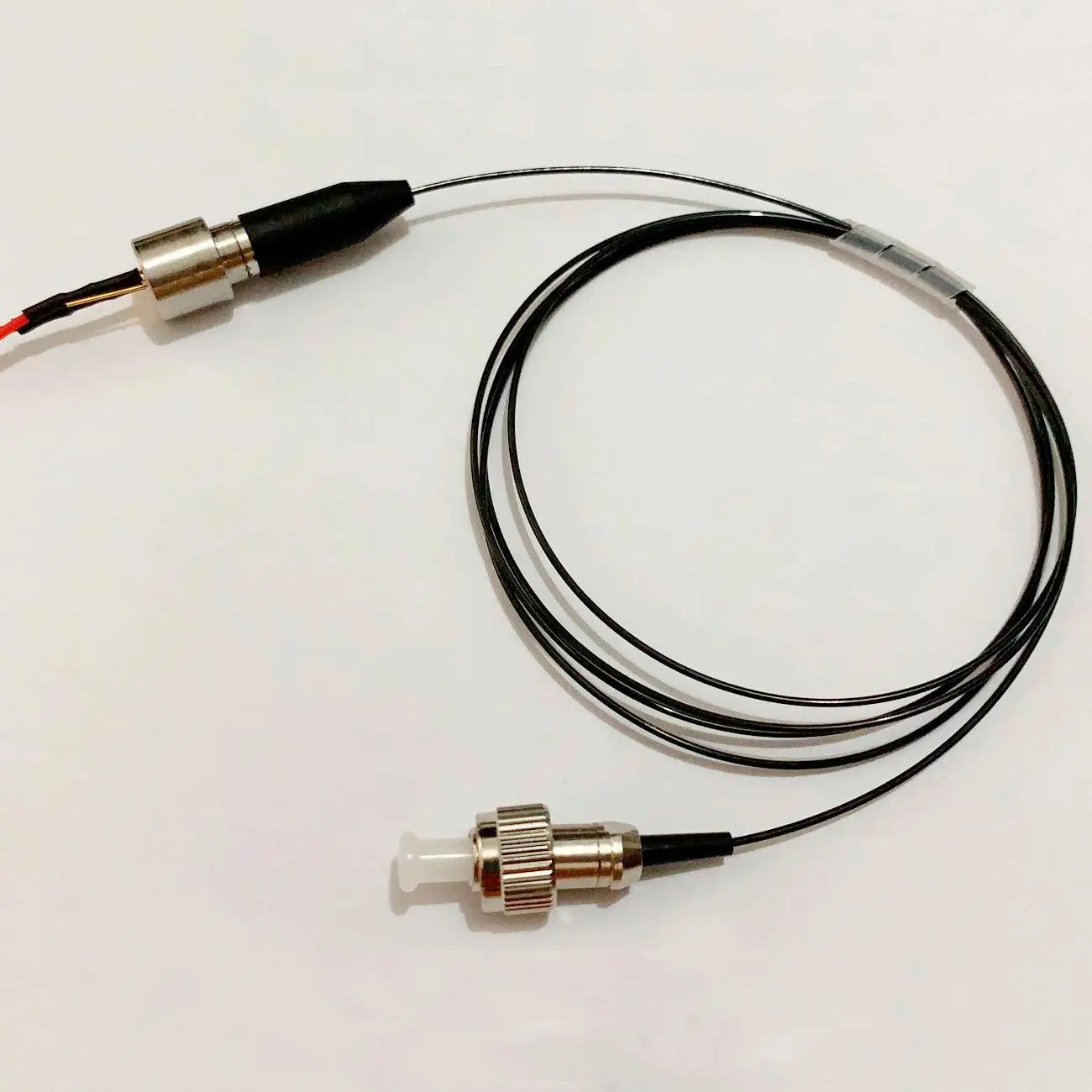

The AM1064SF30FC is an infrared single mode pigtailed laser diode module subassembly with FC/PC receptable optical output. The maximum laser output power is 30.0mW at 1064nm.


※  1064nm 30mW 6.5um Pigtailed Laser Diode Module Optical and Electrical Characteristics

ITEMSPECIFICATIONS
Model NumberAM1064SF30FC Pigtailed Fiber Coupled Laser Module
Wavelength1064nm
Output Power≥30.0mW (Customer ACC)
Laser ModeCW
Spectral Width<2.0nm
Wavelength Shift0.2nm
Operating Current<250mA (Customer ACC)
Operating Voltage3.0V DC (Customer ACC)
Optical LensOptical Coating Glass Lens
CDRH ClassClass IIIb
Circuit controlAuto Constant Current (Customer Driver)
Circuit ProtectionStatic, Surge, and Reverse Polarity Protected
Working Temperature-10℃ to 50℃
Storage Temperature-20℃ to 60℃
DimensionsΦ10x22mm (Customer ACC)
Fiber Core Diameter6.5um Singlemode Fiber
Cladding Diameter125um
Fiber Length1m
Numerical Aperture0.13 N.A.
ConnectorFC/PC
Life Span8,000Hrs


1064nm Laser1064nm Laser Diode


※  Pigtailed Coaxial Fiber Coupled Laser Modules Applications

  1. Optical Alignment Systems

  2. Medical Laser Instrument

  3. CTP Laser Printing

  4. OEM Instrumentation

  5. Laboratory Instrument

  6. Laser Test and Inspection Equipment


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※  Fiber Coupled Laser Modules Production Process

Fiber Coupled Laser Modules Production Process


※ Laser Modules Production Equipment

Laser Modules Production Equipment


※ Laser Modules Testing Equipment

Laser Modules Testing Equipment


※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
