375nm 405nm 520nm 640nm 940nm 5 Wavelengths 105um Multimode Fiber Coupled Laser TTL/CW/Analog Modulation with Collimator

375nm 405nm 520nm 640nm 940nm 5 Wavelengths 105um Multimode Fiber Coupled Laser TTL/CW/Analog Modulation with Collimator

※ Multi-Wavelength Fiber Pigtailed  Laser System Descriptions

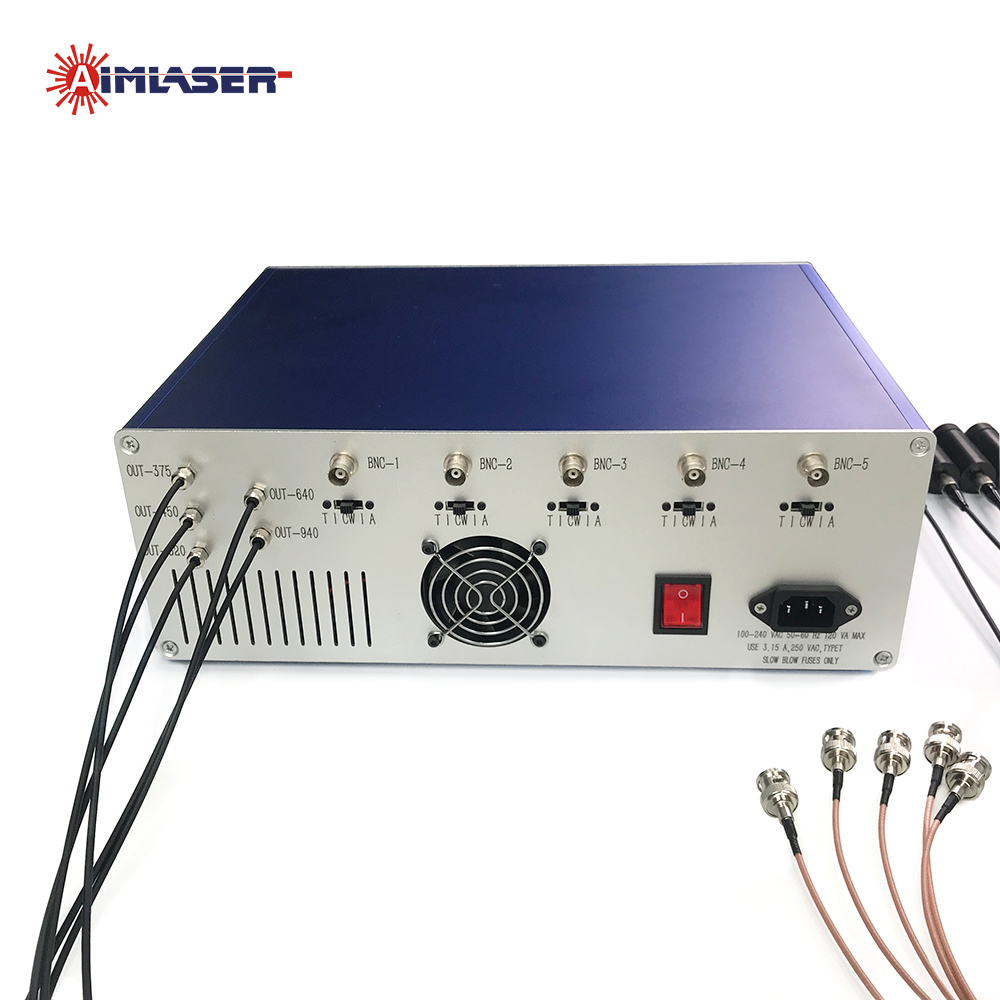

The Five-Wavelength Five-Channel Fiber Output Laser System is an integrated platform that combines five laser wavelengths—375 nm (120 mW), 405 nm (4 W), 520 nm (1.3 W), 640 nm (0.9 W), and 940 nm (3 W). It supports TTL modulation, continuous wave (CW) mode, and analog voltage modulation for precise control of each channel.

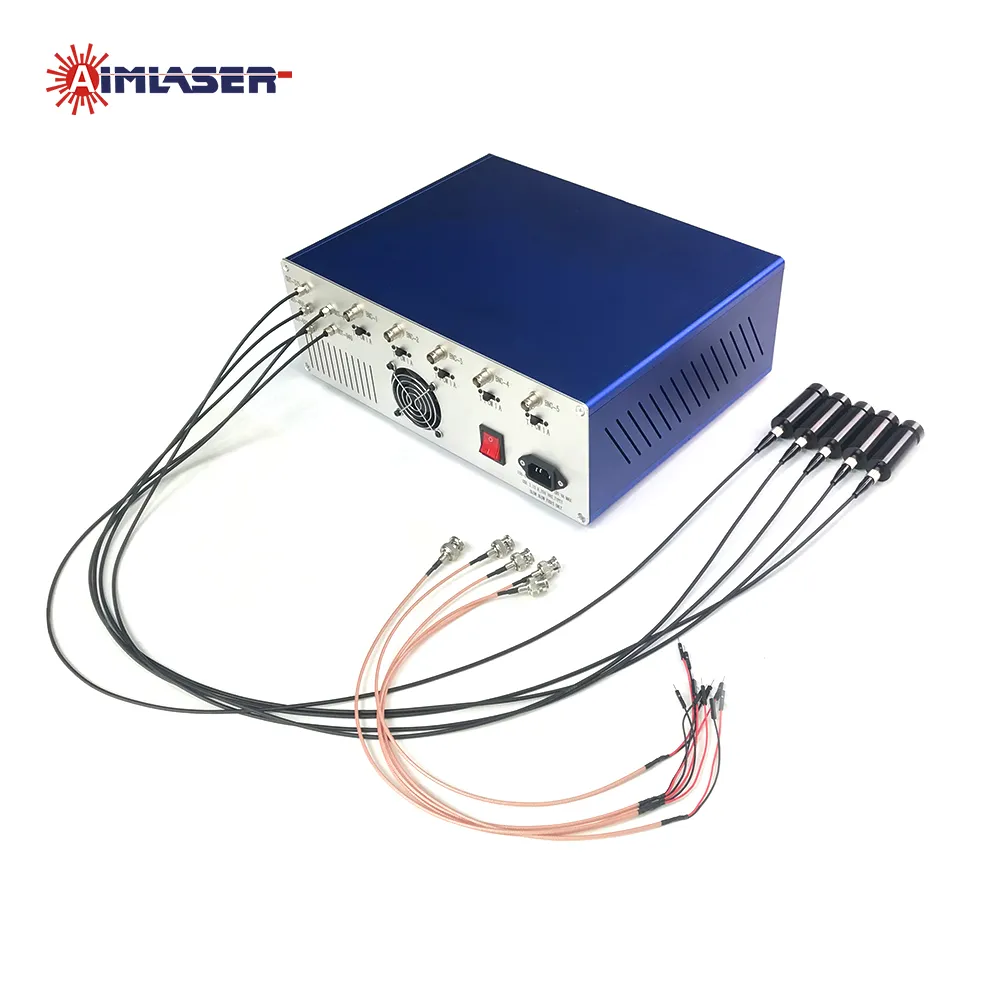

Each wavelength is independently coupled into a 105 μm multimode optical fiber with FC/PC connectors, allowing easy connection to collimators for beam shaping or focusing.

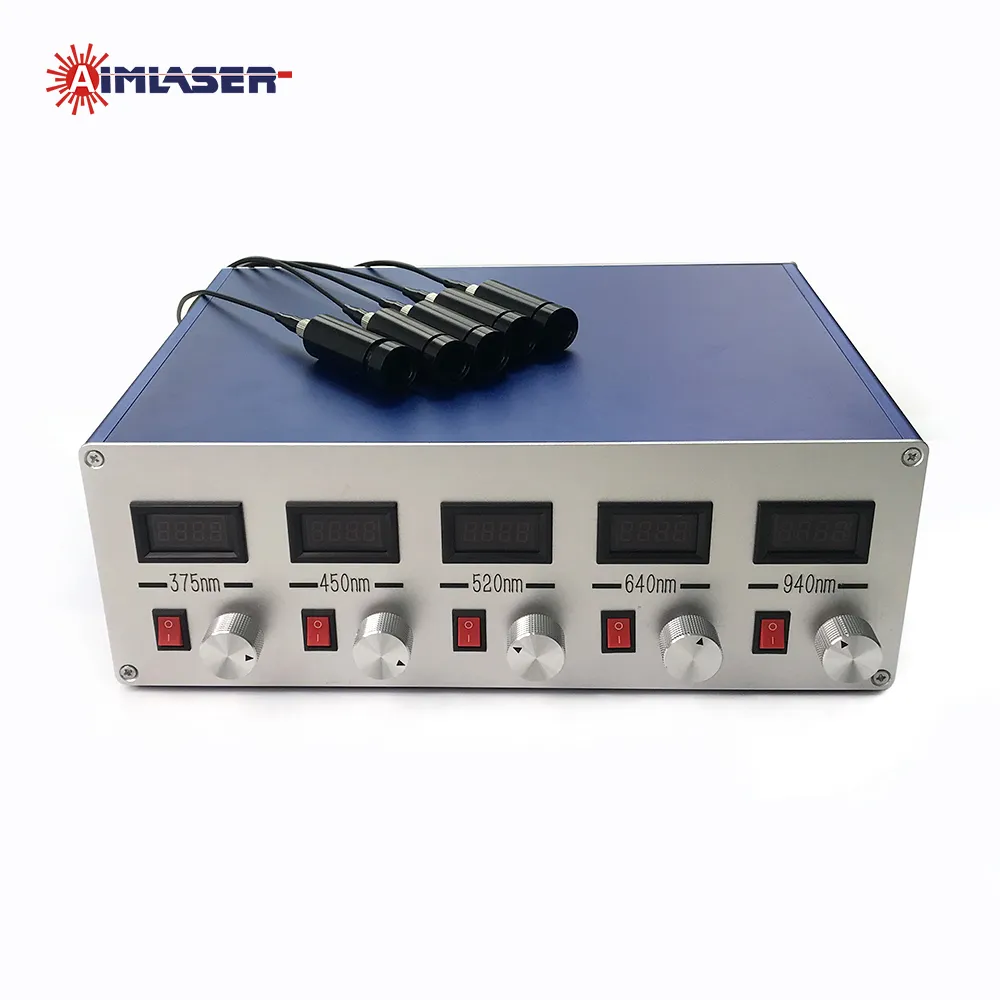

The system features dedicated on/off switches and power adjustment knobs for each wavelength channel, enabling flexible output control. An internal TEC (Thermoelectric Cooler) system ensures stable, low-noise, and long-duration operation.

※ Multi-Wavelength Fiber Pigtailed  Laser System Characteristics

• Multiple wavelength and power level options

• Each wavlength has an fiber optical output port

• On/off switching and power adjustment of each channel

• High stability and excellent signal-to-noise ratio

• Fully customizable to meet specific requirements

※  Pigtailed Coaxial Fiber Coupled Laser Modules Applications

1. Optical Alignment Systems

2. Medical Laser Instrument

3. CTP Laser Printing


4. OEM Instrumentation

5. Laboratory Instrument

6. Laser Test and Inspection Equipment

※ Why buy Laser Modules from AimLaser?

1. Provide One year warranty

2. Offer customized solutions

3. Normal sample lead time: within 2 weeks

4. Conform to ROHS, FDA, IEC, SGS standards

5. ISO9001:2008 certified laser module manufacturer

6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips

※  Fiber Coupled Laser Modules Production Process

※ Laser Modules Production Equipment

※ Laser Modules Testing Equipment

※ Laser Module Payment and Shipment

1. MOQ: 1pc

2. Delivery time: 3-20 days

3. Shipment Terms: FOB Xi'an China

4. Payment Terms: T/T, Western Union, PayPal

5. Shipment Method: DHL, UPS, FedEx or TNT
