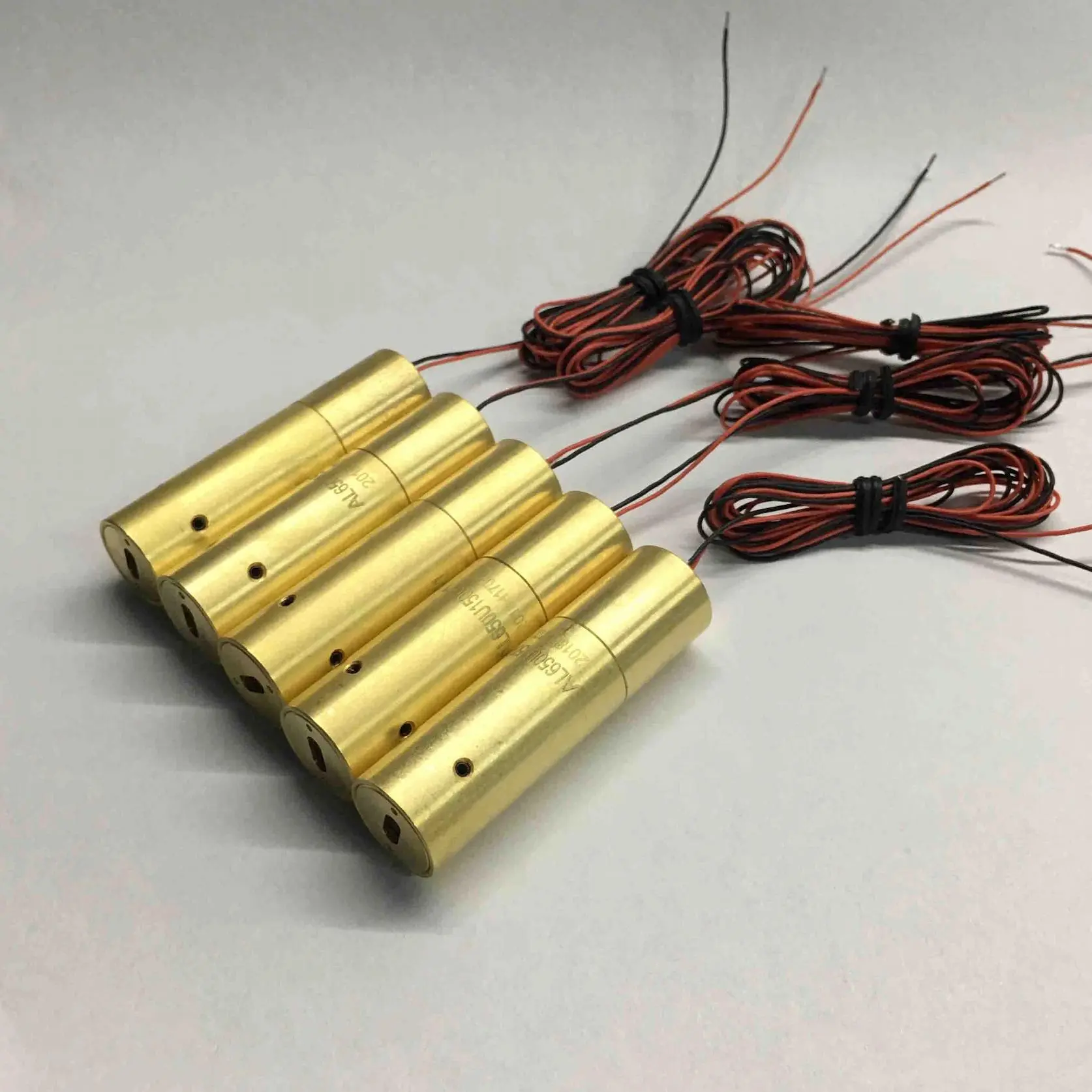

405nm 30mW 40um Narrow Linewidth Laser Modules for Machine Vision Automation

405nm 30mW 40um Narrow Linewidth Laser Modules for Machine Vision Automation 405nm 30mW 40um Narrow Linewidth Laser Modules for Machine Vision Automation

  • Laser Wavelength:
    405nm
  • Output Power:
    30mW
  • Line Width:
    ≤40um@100mm
  • Fan Angle:
    45 Degrees
  • Housing:
    14*55mm Brass or Black Anodized Aluminum
  • Model: AM405U30G1

  • Brand: AIMLASER

  • Code: 90132000.99

  • Color: Blue, Visible

  • Wavelength: 405nm, 450nm

  • Type: Pulse, CW, Line, TTL

Product Description

Product Description of 405nm 30mW 40um Narrow Linewidth Laser Modules for Machine Vision Automation

Laser Wavelength Chart

AimLaser provides customized Uniform Line Laser Diode Modules which use high quality Powell lens and possess characteristics of compact size, narrow line width, high stability and reliability.

The thinnest line can be 10um; fan angle is optional from 10°to 90° and wavelength ranges from 405nm to 850nm. The input voltage is also various from 3V to 12V DC.


※ 405nm 30mW Powell Lens Uniform Line Laser Module Descriptions

The AM405U30G1 is a violet line laser module subassembly with collimated beam. The maximum laser output power is 30.0mW at 405nm. Energy is uniformly distributed.


405nm 30mW Powell Lens Uniform Line Laser Module Optical and Electrical Characteristics

ITEMSPECIFICATIONS
Model NumberAM405U30G1 Powell Lens Uniform Line Laser Module
Wavelength405nm
Output Power≤30.0mW
Output ApertureΦ4.0mm
Line Width≤40um@100mm
Fan Angle45°
Divergence0.6mrad
OpticsOptical Glass Lens
Operating Current<80mA
Operating Voltage3-5V DC
CDRH ClassClass IIIb
Circuit controlAuto Power Control (APC)
Circuit ProtectionStatic, Surge, and Reverse Polarity Protected
Working Temperature-10℃ to 50℃
Storage Temperature-40℃ to 80℃
DimensionsΦ14x55mm (PCB Inside)
Case MaterialBrass or Aluminum Black Anodized (Insulation)
Life Span10,000Hrs

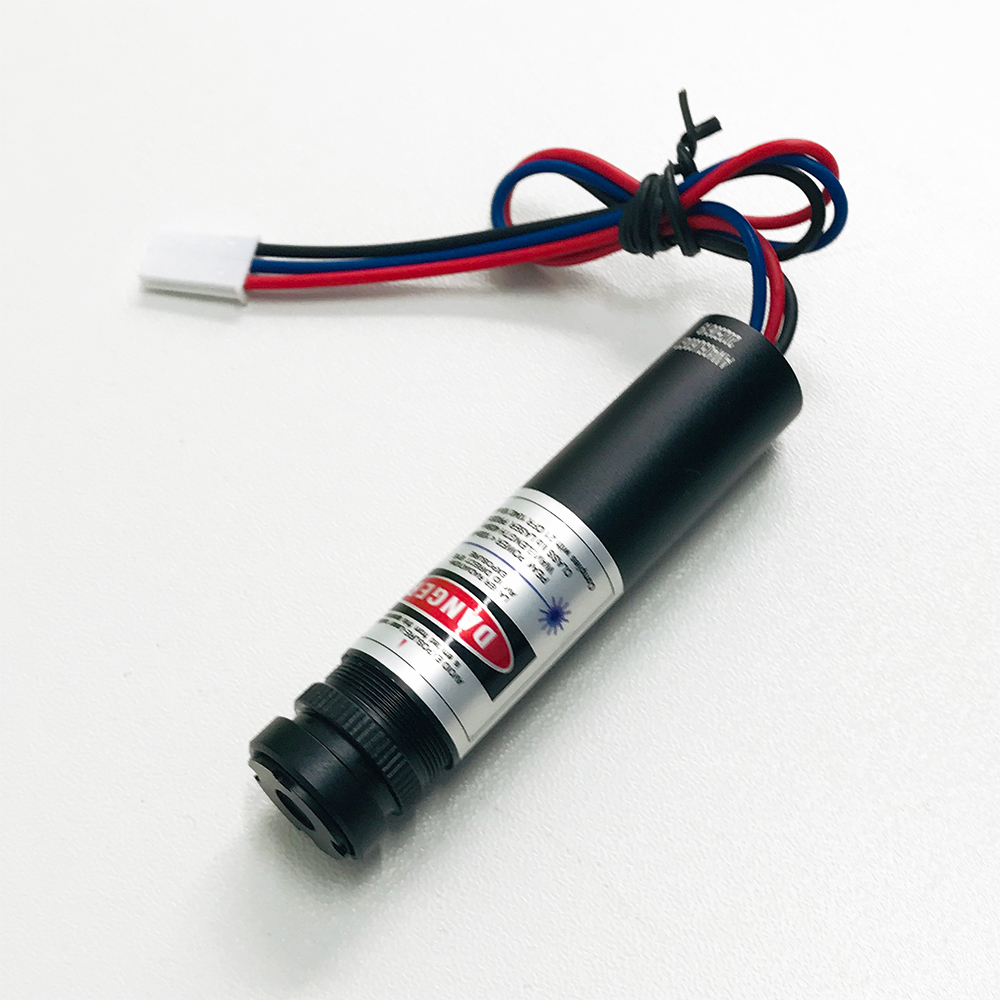

Line Laser ModueLine Laser for 3D Laser Scanner


※ Powell Lens Uniform Line Laser Module Applications

  1. PPT Visions

  2. 3D Vision System

  3. Laser Profilometer

  4. Laser Contour Scanner

  5. Machine Visual Products

  6. Machine Vision Cameras

  7. Industrial Smart Cameras

  8. Laser Scanning System

  9. Laser Measuring Profilometer

  10. Laser Scribe Positioning Machines

  11. Industrial Visual Measurement System

  12. Industrial Robot Visual Guidance System

  13. Automatic Equipment Visual Positioning System


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Modules Production Process


※ Laser Modules Production Equipment

Laser Modules Production Equipment

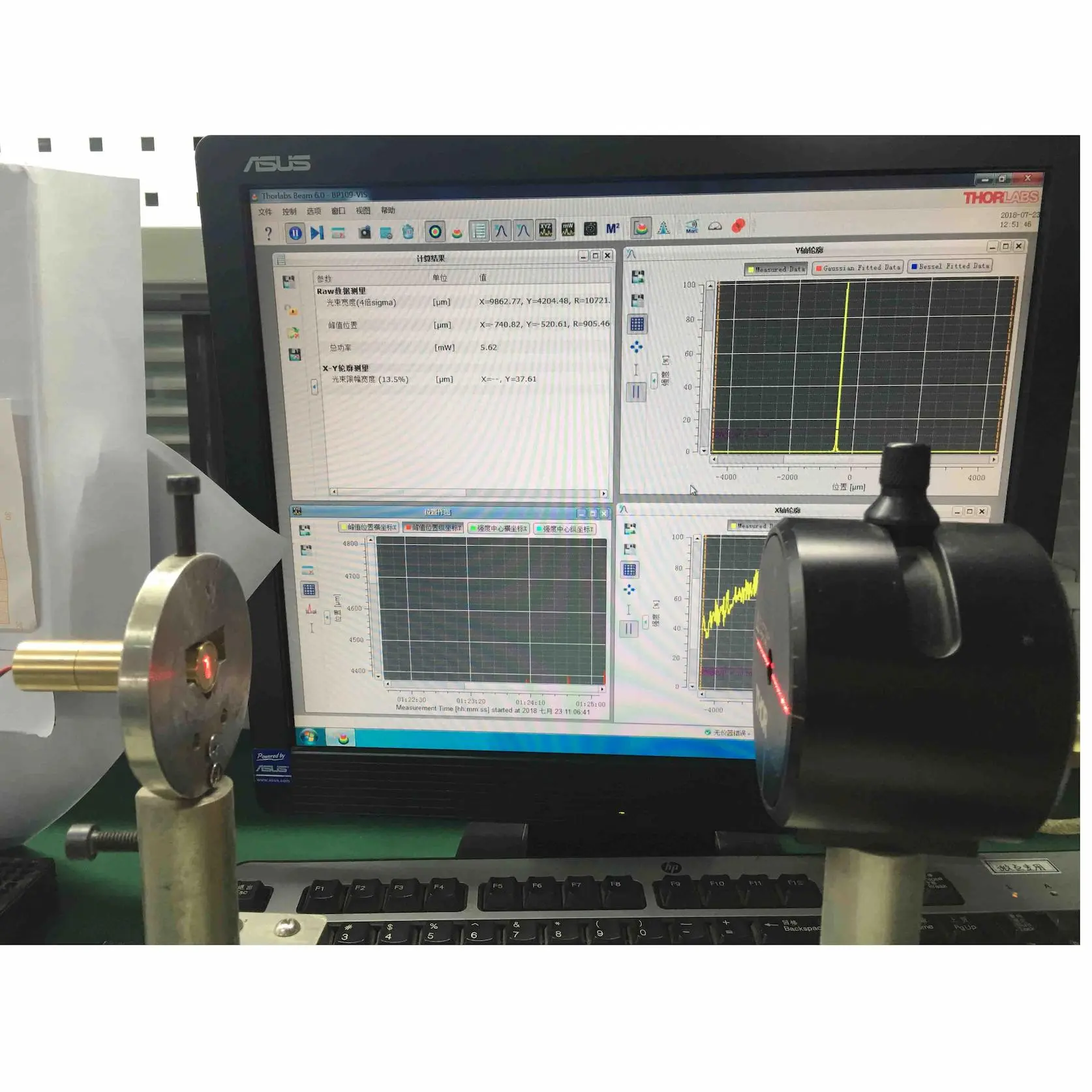

※ Laser Modules Testing Equipment

Laser Modules Testing Equipment


※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
