Powell Lens Well Distributed Line Laser Modules for Quality Inspection Vision Systems

Powell Lens Well Distributed Line Laser Modules for Quality Inspection Vision Systems Powell Lens Well Distributed Line Laser Modules for Quality Inspection Vision Systems

  • Laser Wavelength:
    635nm
  • Output Power:
    10mW
  • Line Width:
    ≤100um@200mm
  • Fan Angle:
    30 Degrees
  • Housing:
    14*55mm Insulated Black Anodized Aluminum
  • Model: AM635U10G1

  • Brand: AIMLASER

  • Code: 90132000.99

  • Color: Red, Visible

  • Wavelength: 635nm

  • Type: Pulse, CW, Line, TTL

Product Description

Product Description of Powell Lens Well Distributed Line Laser Modules for Quality Inspection Vision Systems

Laser Wavelength Chart

AimLaser provides customized Uniform Line Laser Diode Modules which use high quality Powell lens and possess characteristics of compact size, narrow line width, high stability and reliability.

The thinnest line can be 10um; fan angle is optional from 10°to 90° and wavelength ranges from 405nm to 850nm. The input voltage is also various from 3V to 12V DC.


※ 635nm 10mW Powell Lens Uniform Line Laser Module Descriptions

The AM635U10G1 is a red line laser module subassembly with collimated beam. The maximum laser output power is 10.0mW at 635nm. Energy is uniformly distributed.


635nm 10mW Powell Lens Uniform Line Laser Module Optical and Electrical Characteristics

ITEMSPECIFICATIONS
Model NumberAM635U10G1 Powell Lens Uniform Line Laser Module
Wavelength635nm
Output Power≤10.0mW
Output ApertureΦ4.0mm
Line Width≤100um@200mm
Fan Angle60°
Divergence0.6mrad
OpticsOptical Glass Lens
Operating Current<90mA
Operating Voltage3-5V DC
CDRH ClassClass IIIb
Circuit controlAuto Power Control (APC)
Circuit ProtectionStatic, Surge, and Reverse Polarity Protected
Working Temperature-10℃ to 50℃
Storage Temperature-40℃ to 80℃
DimensionsΦ14x55mm (PCB Inside)
Case MaterialAluminum Black Anodized (Insulation)
Life Span10,000Hrs


Defect Inspection LaserLaser Profile Measurement Laser Source


※ Powell Lens Uniform Line Laser Module Applications

  1. PPT Visions

  2. 3D Vision System

  3. Laser Profilometer

  4. Laser Contour Scanner

  5. Machine Visual Products

  6. Machine Vision Cameras

  7. Industrial Smart Cameras

  8. Laser Scanning System

  9. Laser Measuring Profilometer

  10. Laser Scribe Positioning Machines

  11. Industrial Visual Measurement System

  12. Industrial Robot Visual Guidance System

  13. Automatic Equipment Visual Positioning System


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Modules Production Process


※ Laser Modules Production Equipment

Laser Modules Production Equipment

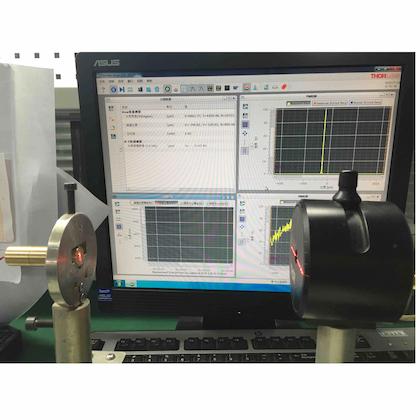

※ Laser Modules Testing Equipment

Laser Modules Testing Equipment


※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
