Super Small Laser Φ4mm 635nm 5mw Red Dot Laser Module Mini Lasers for Gun Laser Grips

Super Small Laser Φ4mm 635nm 5mw Red Dot Laser Module Mini Lasers for Gun Laser Grips Super Small Laser Φ4mm 635nm 5mw Red Dot Laser Module Mini Lasers for Gun Laser Grips

  • Laser Wavelength:
    635nm
  • Laser Color:
    Red Dot Laser Beam
  • Output Power:
    5mW
  • Housing Material:
    Full Brass
  • Dimensions:
    4x10mm
  • Model: ML635-10G2

  • Brand: AIMLASER

  • Code: 90132000.99

  • Color: Red  Visible

  • Wavelength: 635nm

  • Type: CW  Dot

Product Description

Product Description of Super Small Laser Φ4mm 635nm 5mw Red Dot Laser Module Mini Lasers for Gun Laser Grips

Laser Wavelength Chart

AimLaser provides customized Mini Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 2V to 5V DC.

The mini laser modules possess characteristics of smallest size, low power consumption, compact structure and low cost, now are widely used in gun laser sights, gun laser grips, laser aiming devices, laser barcode scanners, miniature laser tools and precision instruments for laser positioning, laser alignment and laser scanning applications.


※ 635nm 5mW Red Dot Mini Laser Diode Module Descriptions

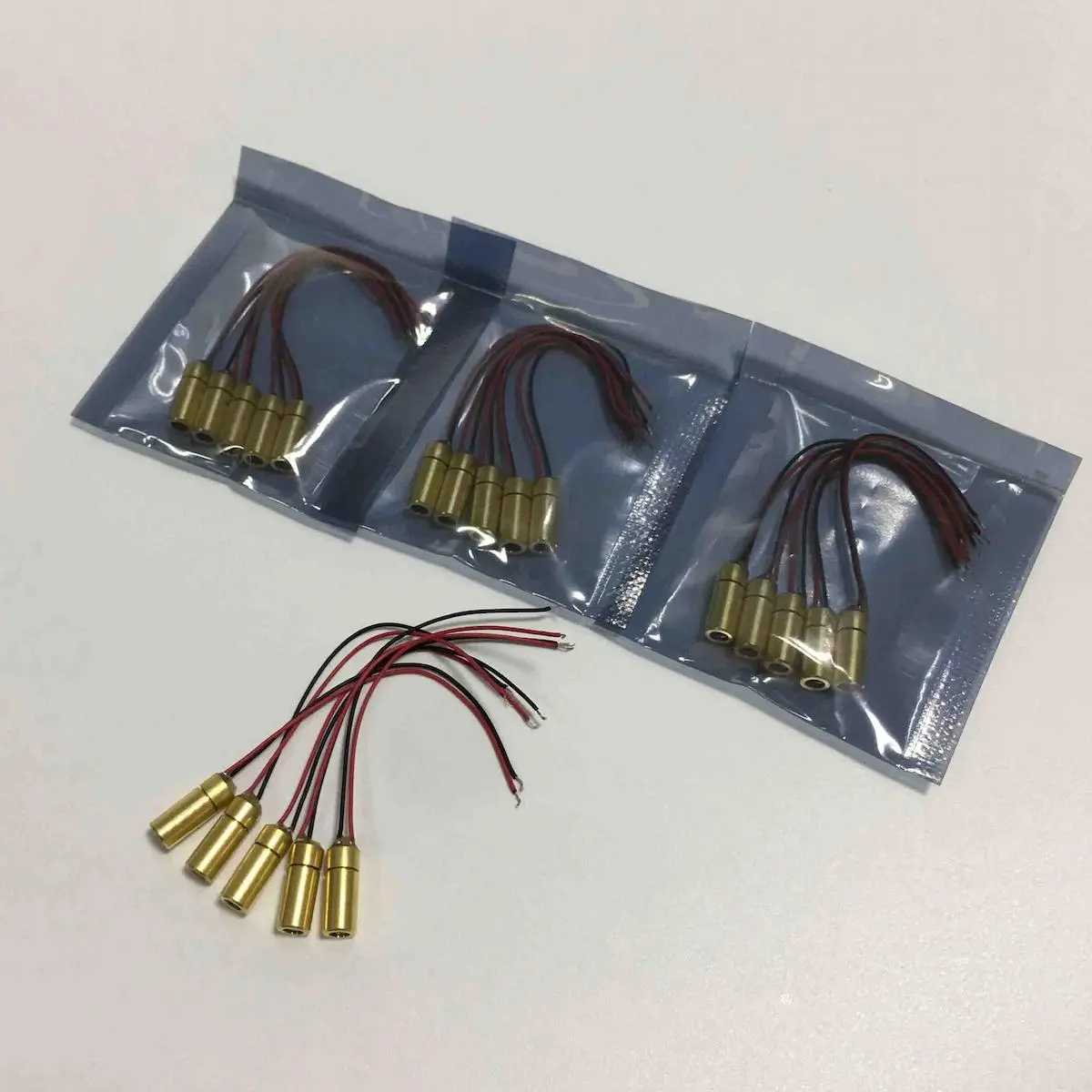

The ML635-10G2 is a mini red laser module subassembly with collimated beam. The maximum laser output power is 5.0mW at 635nm.


※ 635nm 5mW Red Dot Mini Laser Diode Module Optical and Electrical Characteristics

ITEMSPECIFICATIONS
Model NumberML635-10G2 Red Dot Mini Laser Diode Module
Wavelength635nm
Output Power≤5.0mW
Laser ModeCW
Beam Size10x22mm@20m
Divergence0.8mrad
OpticsOptical Glass Lens
Operating Current<50mA
Operating Voltage3V DC
CDRH ClassClass IIIa
Circuit controlAuto Power Control (APC)
Circuit ProtectionStatic, Surge, and Reverse Polarity Protected
Working Temperature-10℃ to 50℃
Storage Temperature-20℃ to 60℃

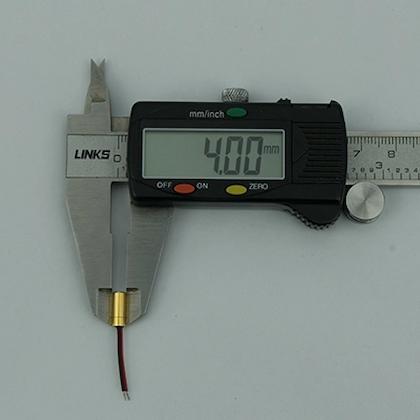

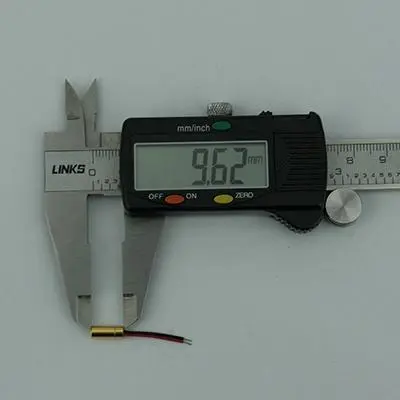

DimensionsΦ4x10mm (APC Inside)
Life Span10,000Hrs

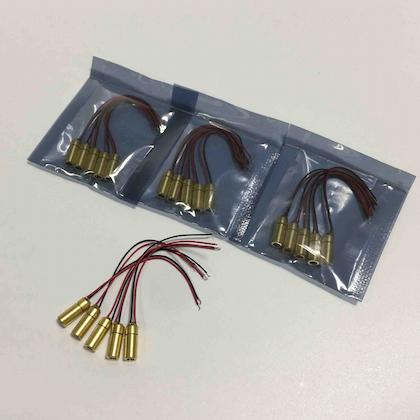

Aiming Device LaserSmallest Laser Diode Module


※ 635nm Red Laser Module Applications

  1. Gun laser sights

  2. Gun Laser Grips

  3. Laser aiming devices

  4. Laser alignment instrument

  5. Laser pointing instrument

  6. Laser positioning devices

  7. Laser surveying instrument

  8. Laser detection equipment

  9. Medical Laser Instrument

  10. Miniature Laser Tools etc.


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Modules Production Process


※ Laser Modules Production Equipment

Laser Modules Production Equipment


※ Laser Modules Testing Equipment

Laser Modules Testing Equipment


※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
