Aiming Laser Technology Co., Ltd.

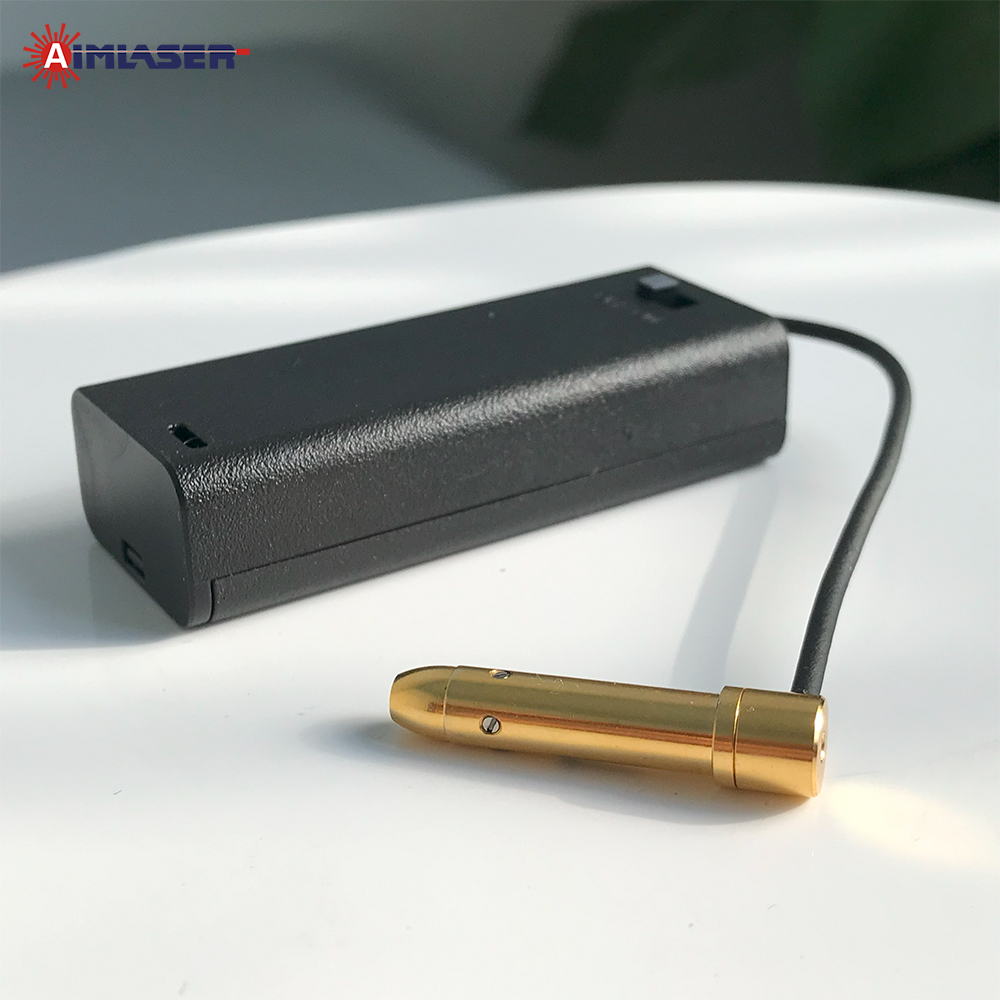

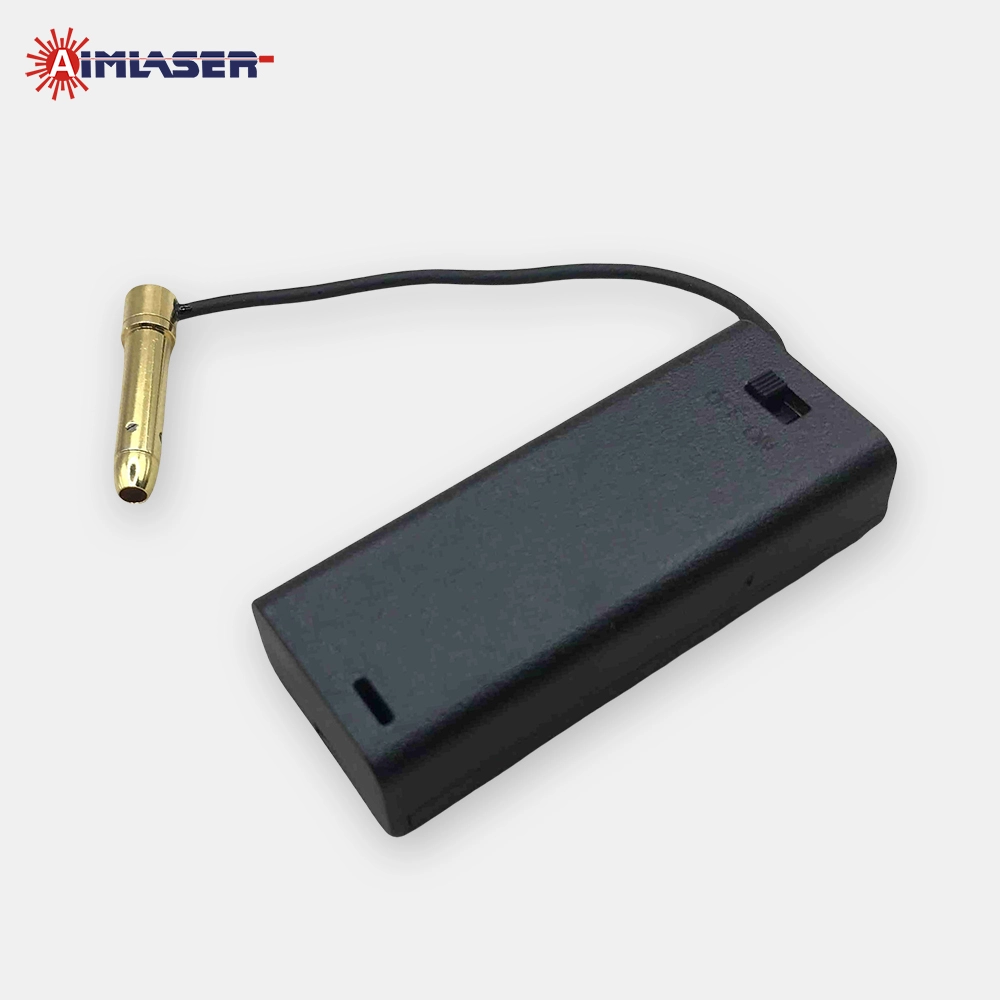

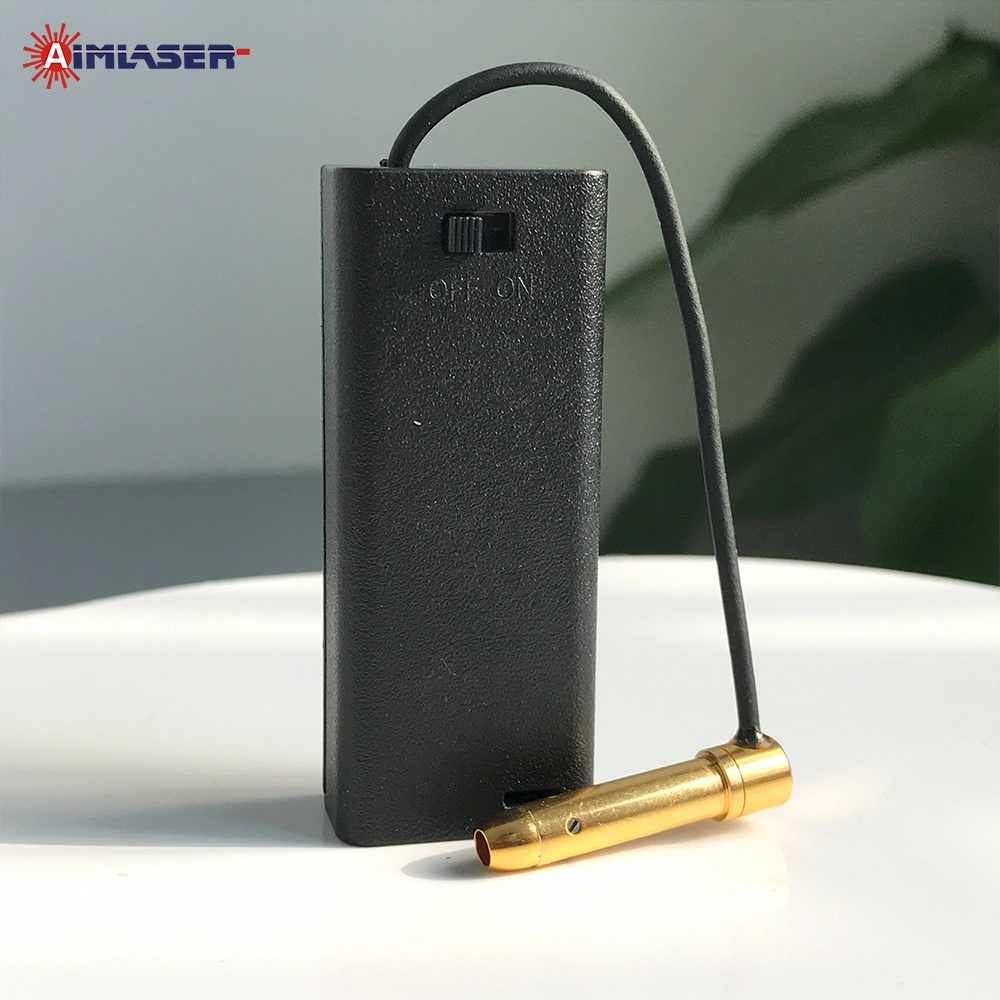

22LR Laser Bore Sighter for Iron Sight and Optics Scope Zeroing Calibration

22LR Laser Bore Sighter for Iron Sight and Optics Scope Zeroing Calibration 22LR Laser Bore Sighter for Iron Sight and Optics Scope Zeroing Calibration

  • Product Name
    22LR Laser Bore Sight
  • Material
    Gold Plated Brass
  • Laser Mode
    Red Dot
  • Sighting Range
    5-100 Yards
  • Laser Output Power
    <3mW, Class IIIA
  • Batteries
    2x AAA Batteries
  • Life Span
    Over 5,000Hrs
  • Model: .22 LR Laser Bore Sight

  • Brand: AIMLASER

  • Code: 90132000.99

  • Custom: OEM & ODM

  • MOQ: 1pc

  • Warranty: One Year


Product Description

22LR Laser Bore Sighter for Iron Sight and Optics Scope Zeroing Calibration


A laser bore sighter is used for pre-zeroing firearm iron sights and optics, significantly reducing ammunition waste and improving calibration efficiency. By projecting a precise laser beam to simulate the bullet’s trajectory, the laser bore sight allows shooters to quickly align scopes or red dot sights without repeated live-fire testing. Compatible with a wide range of firearms and calibers—including rifles, handguns, and shotguns—laser bore sighters are widely used in military and law enforcement training, pre-hunt calibration, and competitive shooting.


※ AM-.22 LR Laser Bore Sighter

AIMLASER manufactures .22 LR Laser Bore Sighter that is a precision tool designed for fast, accurate sight alignment without wasting ammunition. Crafted from gold-plated, high-precision brass, it ensures consistent performance and durability. The factory-calibrated laser emits a stable beam with an off-axis angle of just 0.1 mrad, simulating the bullet trajectory for reliable zeroing.

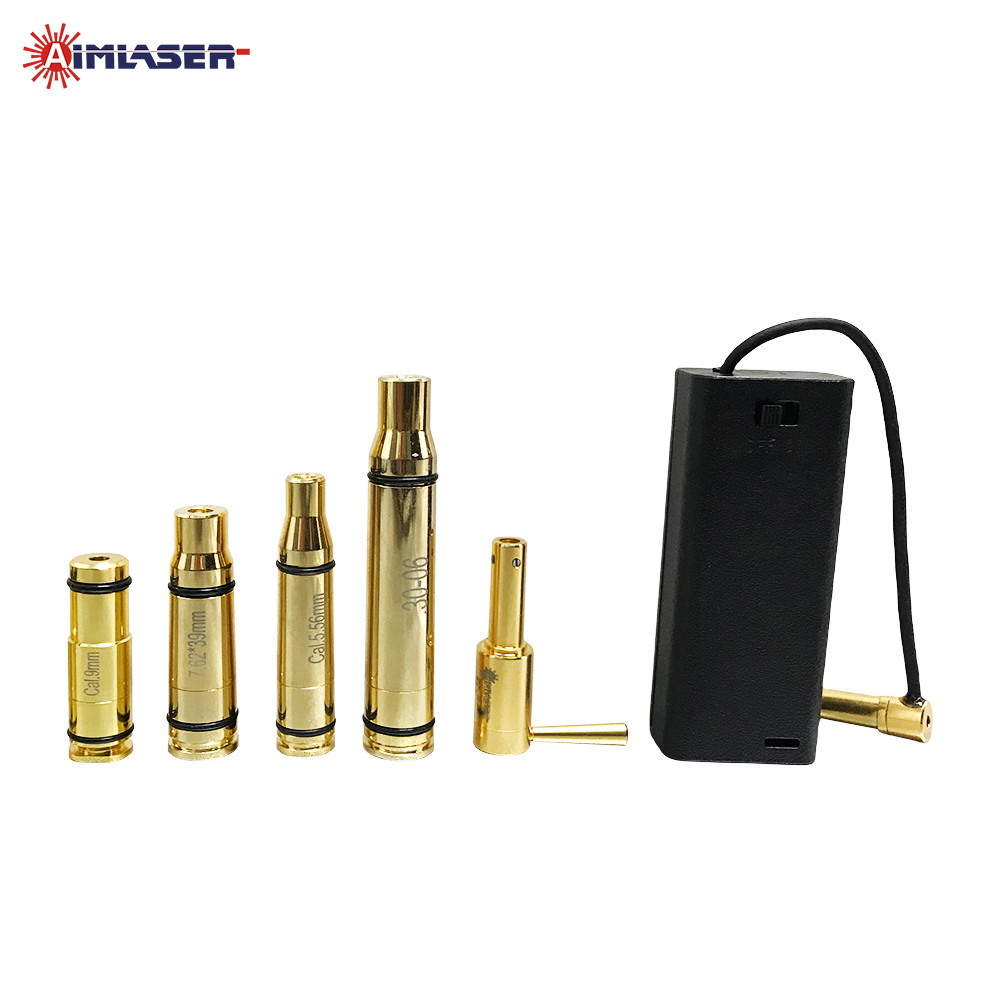

Compatible with .22 Long Rifle and Handgun chambers, it's ideal for use with rifles and pistols. The unit features low power consumption and a long-lasting laser with a service life of over 5,000 hours, making it a dependable companion for range prep, hunting setup, and tactical training. AIMLASER also offers a full range of laser bore sighters for other calibers to meet diverse shooter needs.



※ Features

  • Gold-plated brass construction for enhanced durability.

  • Factory pre-aligned laser with 0.1 mrad off-axis accuracy.

  • Compatible with .22 LR caliber rifles and pistols.

  • Low power consumption for extended battery life.

  • Laser lifetime exceeding 5,000 hours.

  • FDA-certified low-power<3mW Class IIIA laser, safe for the body.


※ .22 LR Laser Bore Sighter Parameters

ITEMSSPECIFICATIONS
Product Name.22LR Laser Bore Sighter
Laser Wavelength650nm
Laser Output Power<3mW, Class IIIA
Laser TypeVisible Red Dot Laser
Range for Sighting5-100 yards
Laser Dot Size<1 inch at 25 yards
Laser Calibrator Working Current<25mA
Operating Voltage3V DC
Laser Sight Batteries2x AAA Batteries
Divergence<0.40mrad
Bore Sight<0.10mrad
Construction MaterialGold Plated High Precision Brass
OpticsOptical Glass Lens
Temperature-10 to +40°
22LR Laser Boresighter LifetimeOver 5,000Hrs


※ Our Services

  1. Customized solution and package.

  2. After-sales service: One year warranty offered.

  3. Cooperates with Glock, Bushnell and other famous brands.

  4. Quick shipment: 3-5 working days for samples; 2-4 weeks for mass quantity.

  5. Quality guaranteed: Produced according to ISO9001:2008 quality control process.


※ Laser Bore Sighter Production Process

Aiming Laser Technology Co., Ltd.


※Laser Bore Sighter Production Equipment

Aiming Laser Technology Co., Ltd.


※ Laser Bore Sighter Testing Equipment

Aiming Laser Technology Co., Ltd.


※ Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, FedEx, UPS
