Military Optics Holographic Sight Night Vision Compatible Motion Wake-up for Tactical Hunting Precision Shooting
The holographic sight uses holographic diffraction imaging technology to project the reticle onto the viewing window, allowing the user to maintain target alignment even when viewing from different angles. It offers excellent light transmission, high aiming accuracy, and superior environmental protection. Even in bright light, smoke, or low-light conditions, it provides a clear and stable aiming image. These sights are widely used in military operations, counter-terrorism missions, and special operations, making them a top choice for special forces, law enforcement, and advanced shooters.

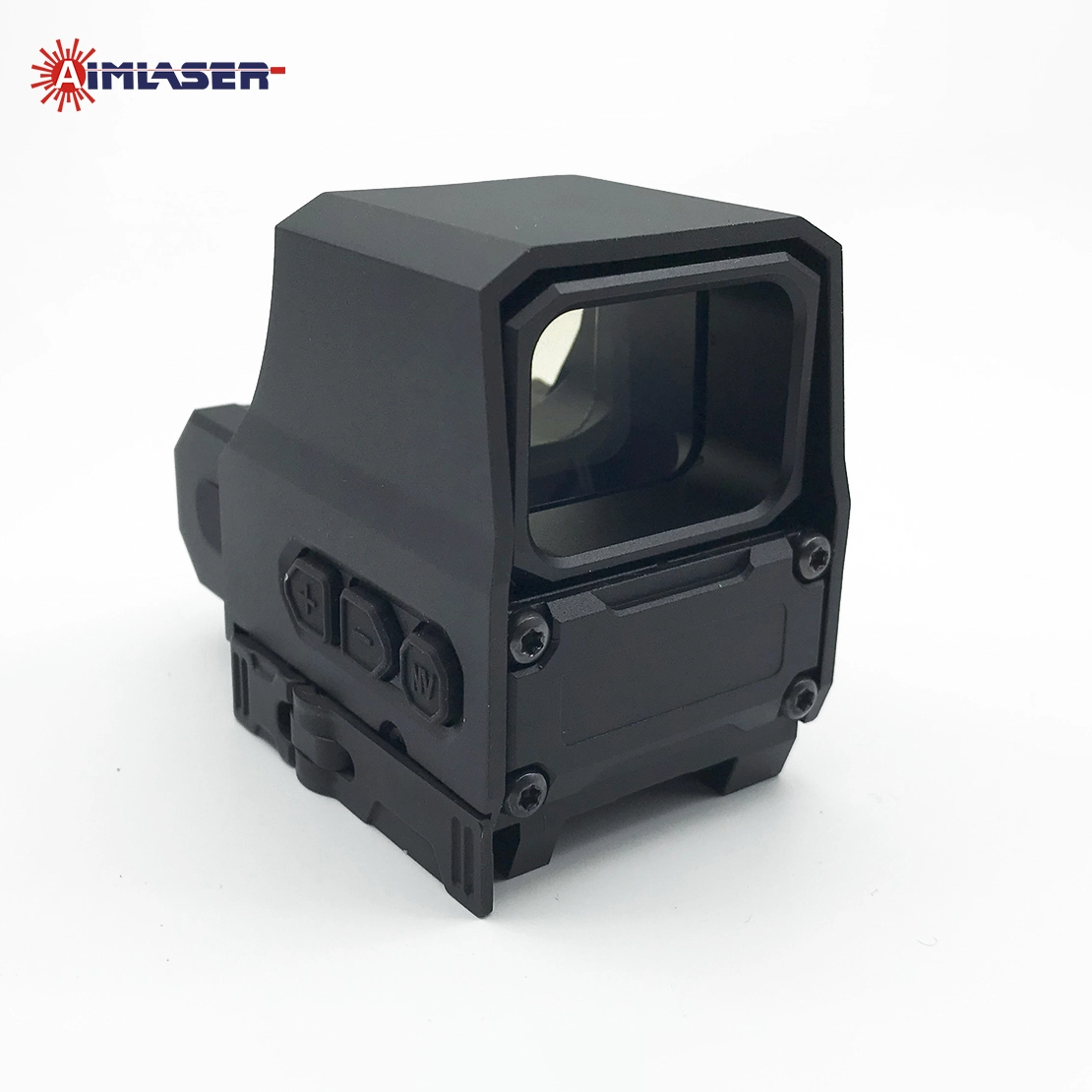

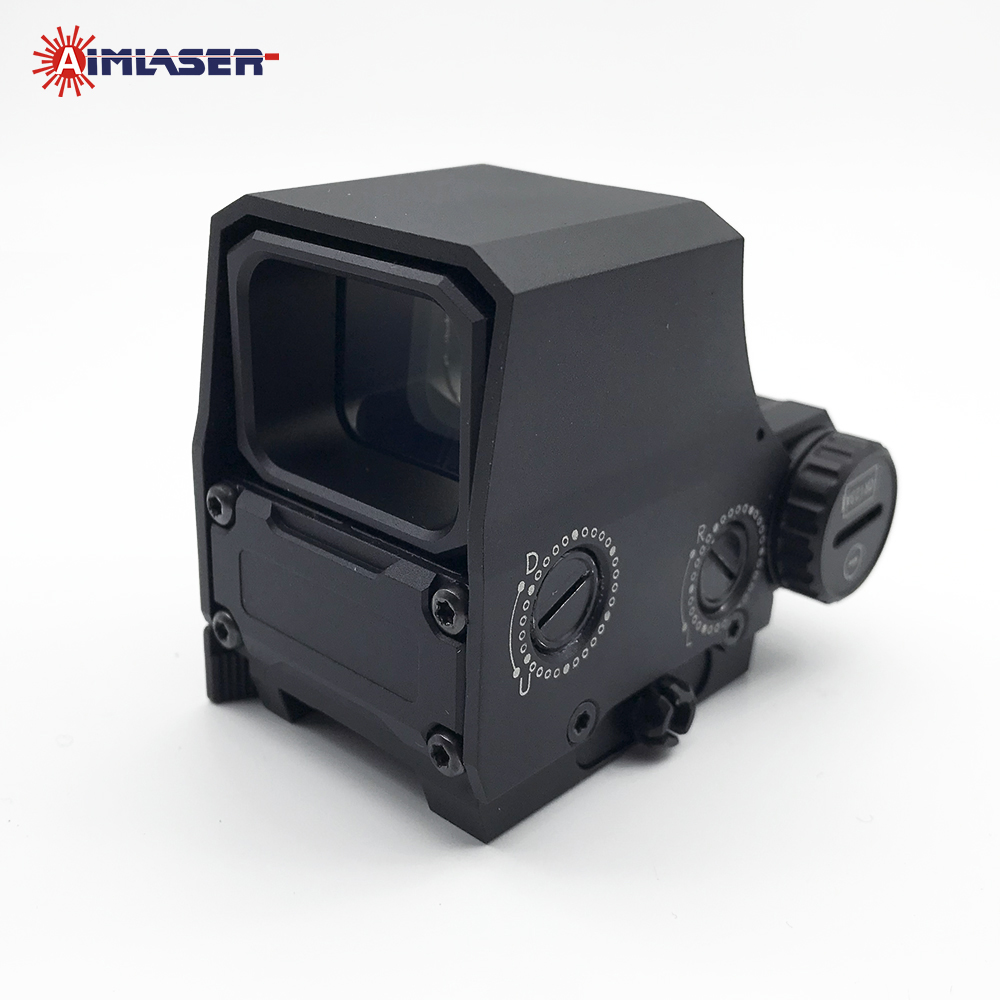

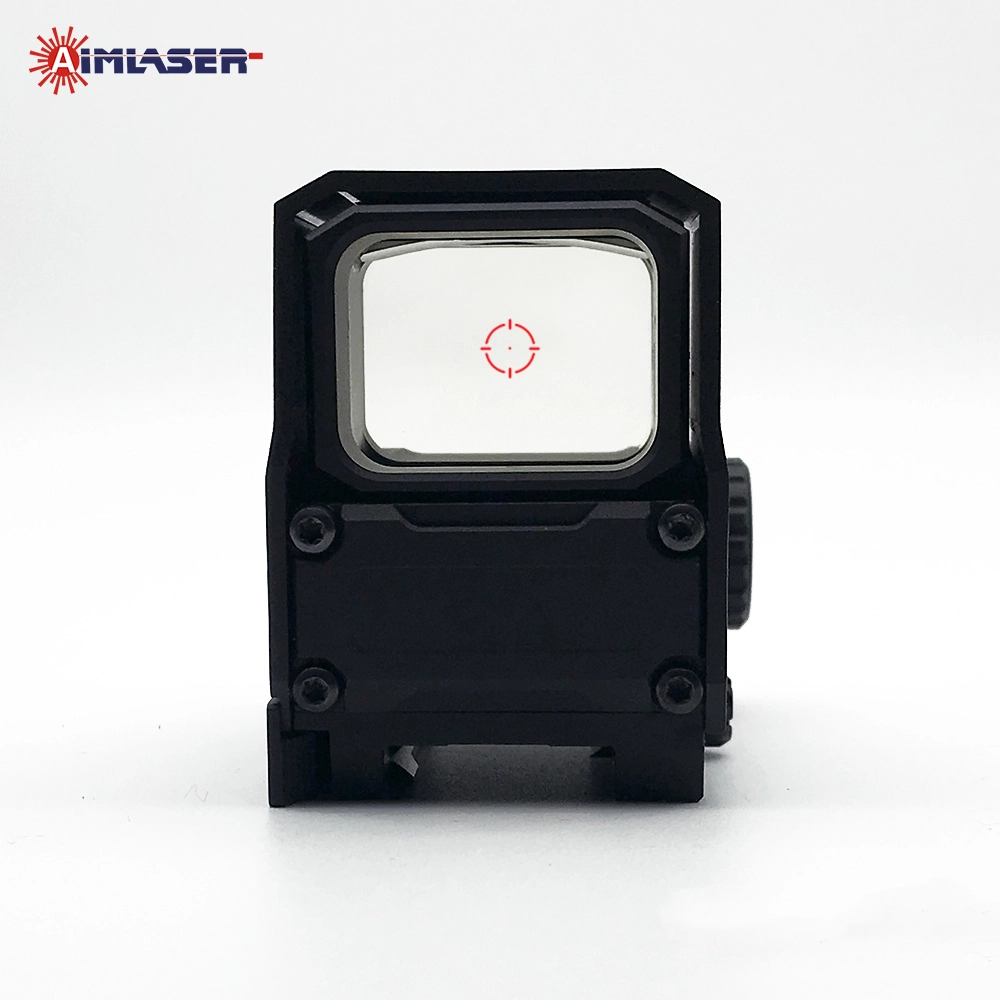

※ AM-H2S Holographic Sight
AIMLASER manufactures high-performance holographic sights made from rugged 7075 aerospace-grade aluminum alloy. AM-H2S features a large viewing window for quick target acquisition, is IP68 rated for water, dust, and fog resistance, and is built to withstand up to 1200G shock. With motion-activated wake-up, auto shut-off, and up to 1000 hours of battery life, AM-H2S is designed for demanding environments. The multi-reticle system offers 20 brightness levels for daylight and 10 for night vision compatibility. Parallax-free performance ensures high accuracy at medium to long ranges, making them ideal for tactical, law enforcement, and professional shooting applications.
※ Holographic Sight Features
True holographic reticle: Maintains point-of-aim regardless of viewing angle
1 MOA dot with 68 MOA ring for fast target engagement
Motion-activated wake and auto shut-off for extended battery life (up to 1000 hours)
20 daylight + 10 night vision brightness levels, NV-compatible
IP68 waterproof, fog-proof, and dustproof; shockproof rated to 1200G
Large viewing window with crystal-clear optical clarity
Supports both-eyes-open shooting for full situational awareness
Side-mounted digital buttons for quick and intuitive brightness and mode adjustment
Compatible with magnifiers and night vision devices
※ Holographic Sight Parameters
Optical Performance
Magnification
1X
Window Size
≥31mm×22mm
Reticle Type
1MOA Dot & 68MOA Circle
Parallax Size
≤2MOA
Laser Wavelength
650nm
Electrical Performance
Battery
CR123A
Continuous Operation Time
≥1000 Hours (medium brightness)
Brightness Settings
20 Levels for Daytime / 10 Levels for Night Vision
Low Battery Alert
Reticle Flashing
Motion Wake-up
Enable
Mechanical Parameters
Material
Aerospace Aluminum 7075
Manufacturing Process
CNC Machining
Surface Treatment
Black Anodizing
Click Adjustment Range
±40MOA (Windage & Elevation)
Click Adjustment Precision
0.5MOA
Mounting Type
Picatinny
Dimensions
≤75mm×54mm×62mm
Sight Base Length
36mm
Weight
240g (without Battery)
Environmental Parameters
Operating Temperature
-40℃+55℃
Storage Temperature
-45℃+60℃
Shock Resistance
1200G
Waterproof Rating
IP68
※ Our Services
Customized solution and package.
After sale service: One year warranty offered.
Good quality: Durable anodized aluminum construction with high precision laser.
Quick shipment: 3-5 working days for samples; 2-4 weeks for mass quantity.
Quality guaranteed: Produced according to ISO9001:2008 quality control process.
