Super Small Laser Φ4mm 635nm 5mw Red Dot Laser Module Mini Lasers for Gun Laser Grips

Laser Wavelength:
Laser Color:
Output Power:
Housing Material:
Dimensions:
Availability:
Quantity:
  • ML635-10G2
  • AIMLASER, ELITELASER
  • 90132000.99
  • Red  Visible
  • 635nm
  • CW  Dot

Super Small Laser Φ4mm 635nm 5mw Red Dot Laser Module Mini Lasers for Gun Laser Grips

laser wavelength chart

AimLaser provides customized Mini Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 2V to 5V DC.

The mini laser modules possess characteristics of smallest size, low power consumption, compact structure and low cost, now are widely used in gun laser sights, gun laser grips, laser aiming devices, laser barcode scanners, miniature laser tools and precision instruments for laser positioning, laser alignment and laser scanning applications.

※ 635nm 5mW Red Dot Mini Laser Diode Module Descriptions

The ML635-10G2 is a mini red laser module subassembly with collimated beam. The maximum laser output power is 5.0mW at 635nm.

※ 635nm 5mW Red Dot Mini Laser Diode Module Optical and Electrical Characteristics

ITEM SPECIFICATIONS
Model Number ML635-10G2 Red Dot Mini Laser Diode Module
Wavelength 635nm
Output Power ≤5.0mW
Laser Mode CW
Beam Size 10x22mm@20m
Divergence 0.8mrad
Optics Optical Glass Lens
Operating Current <50mA
Operating Voltage 3V DC
CDRH Class Class IIIa
Circuit control Auto Power Control (APC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -20℃ to 60℃

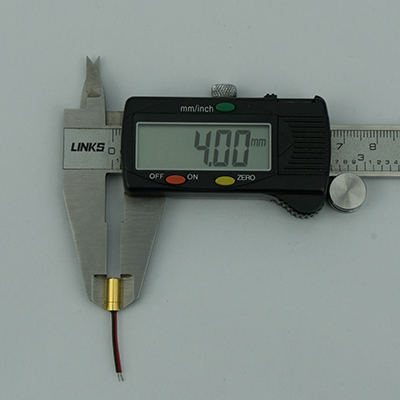

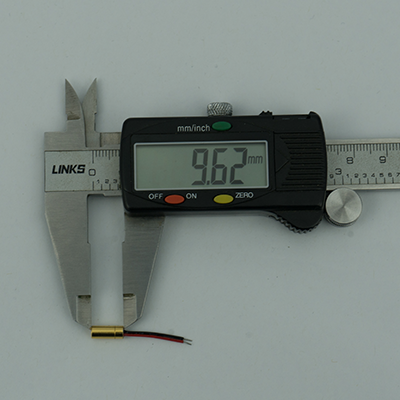

Dimensions Φ4x10mm (APC Inside)
Life Span 10,000Hrs

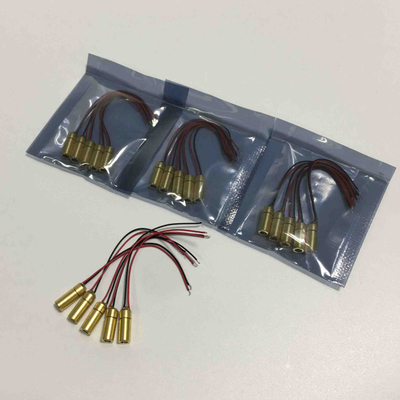

650nm 5mW Small Laser Pointer Module-AIMLASER (1) 635nm 5mW Aiming Laser Modules 4x10mm-AIMLASER (1)

※ 635nm Red Laser Module Applications

  1. Gun laser sights

  2. Gun Laser Grips

  3. Laser aiming devices

  4. Laser alignment instrument

  5. Laser pointing instrument

  6. Laser positioning devices

  7. Laser surveying instrument

  8. Laser detection equipment

  9. Medical Laser Instrument

  10. Miniature Laser Tools etc.


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Module Production Process

※ Laser Modules Production EquipmentLaser module production equipment

※ Laser Modules Testing Equipment

Laser Module testing equipment

※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
