12V Green Laser Line Generator 520nm 20mW Line Laser Maker

Product Name:
Output Power:
Line Width:
Fan Angle:
Applications:
Availability:
Quantity:
  • ALP520-20A
  • AIMLASER, ELITELASER
  • 90132000.99
  • Green  Visible
  • 520nm
  • Line

12V Green Laser Line Generator 520nm 20mW Line Laser Maker

laser wavelength chart

AimLaser provides customized Red and Green Laser Line Generators with different output power, line width and dimensions for industrial applications, which uses optical glass lens and input voltage various from 3V to 12V DC or 110VAC.

We can make fixed focus and adjustable focus laser line projectors to meet different customers' requirements.

Special power supply and mounting bracket are provided.

※ What is a Laser Line Generator?

Laser line projector is a great tool for alignment and positioning of opposite sides, fixed points, and process routes.

It is widely used in wood, stone, and cloth cutting machines or packing machines by projecting a distinct red or green working line or edges for alignment and positioning on materials to guide the machine operations; therefore, solve the problems of straightness, flatness, parallelism, squareness, and leveling issues.

※ Why use a Laser Line Generator?

The laser line generator can replace rulers, stops, measuring aids or templates, which greatly enhanced the processing efficiency, helped to reduce processing costs and increased productivity; therefore, improved industrial competitiveness for traditional industries. You can use both hands for working.

※ 520nm 20mW Green Laser Line Maker Descriptions

The ALP520-20A is a green laser line generator for stone, wood and textile cutting machine. The maximum laser output power is 20.0 mW at 520nm.

※ 520nm 20mW Green Laser Line Maker Optical and Electrical Characteristics

ITEM SPECIFICATIONS
Model Number ALP520-20A Green Laser Line Maker
Wavelength 520nm
Output Power ≤20.0mW
Output Aperture Φ5.0mm
Line Width ≤2.0mm@5m
Fan Angle 90°
Divergence 0.6mrad
Optics Optical Glass Lens
Operating Current <180mA
Operating Voltage 3-5V or 12V or 24V DC
CDRH Class Class II
Circuit control Auto Power Control (APC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -40℃ to 80℃
Dimensions Φ16x80mm or Φ20x110mm (PCB Inside)
Case Material Black Anodized Aluminum
Life Span 8,000Hrs

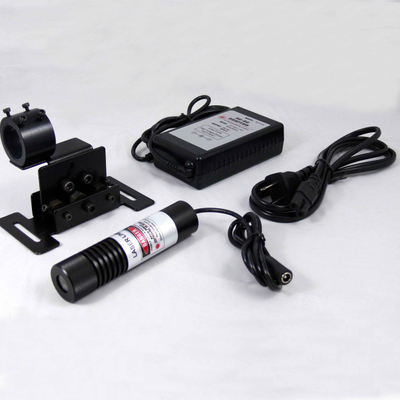

Strait Line Laser Line Generator-AIMLASER Red Laser Line Generators-AIMLASER

※ AimLaser Laser Line Generator Features

   Long lifetime

   Compact size

   Easy mounting

   High brightness

   Convenient adjustment

   High reliability and stability

   Wide temperature operation -10℃ to 50℃


※ Laser Line Generator Applications

  1. Industrial laser alignment and positioning

  2. Stone, Wood and Metal working

  3. Fabric, Rubber and Tyre cutting or processing


※ Why buy Laser Line Generators from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Module Production Process

※ Laser Modules Production EquipmentLaser module production equipment

※ Laser Modules Testing Equipment

Laser Module testing equipment

※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
