360 Degree Green Line Laser Module 515nm 0.7mW

Product Name:
Output Power:
Fan Angle:
Line Thickness:
  • AM515R30G1
  • 90132000.99
  • Green
  • 520nm
  • Line  Circle

360 Degree Green Line Laser Module 515nm 0.7mW

laser wavelength chart

AimLaser provides customized 360 Degree Red and Green Line Laser Modules with different output power, line width and dimensions for industrial applications, which uses optical glass lens and input voltage various from 3V to 24V DC or 110VAC.

What is a 360 degree Line Laser Generator?

Laser line projector is a great tool for alignment and positioning of opposite sides, fixed points, and process routes.

It is widely used in laser distance measurer, self leveling laser tools, laser survey instrument by projecting a distinct red or green 360 degree laser line for alignment and positioning and surveying to guide the machine operations; therefore, solve the problems of straightness, flatness, parallelism, squareness, and leveling issues.

Why use a 360 degree Line Laser Generator?

The laser line generator can replace rulers, stops, measuring aids or templates, which greatly enhanced the processing efficiency, helped to reduce processing costs and increased productivity; therefore, improved industrial competitiveness for traditional industries. You can use both hands for working.

515nm 0.7mW 360 Degree Green Laser Line Generator Descriptions

The AM515R30G1 is a 360 degree green line laser generator for self leveling laser tools, laser alignment tools or laser tape measure equipment. The maximum laser output power is 0.6 mW at 515nm.

520nm 0.7mW 360 Degree Green Laser Line Generator Optical and Electrical Characteristics

Model Number AM515R30G1 (360 Degree Green Line Laser)
Wavelength 515nm
Output Power ≤0.7mW
Output Power Ratio ≤5:1
Output Aperture Φ5.0mm
Fan Angle 360°
Line Width ≤3mm@5m
Line Accuracy <1mm@5m
DOF 1m
Optics Optical Glass Lens
Operating Current <280mA
Operating Voltage 3-5V or 12V or 24V DC
CDRH Class Class II
Circuit control Auto Power Control (APC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -40℃ to 80℃
Dimensions Φ12x22mm (PCB Inside)
Case Material Black Anodized Aluminum
Life Span 8,000Hrs

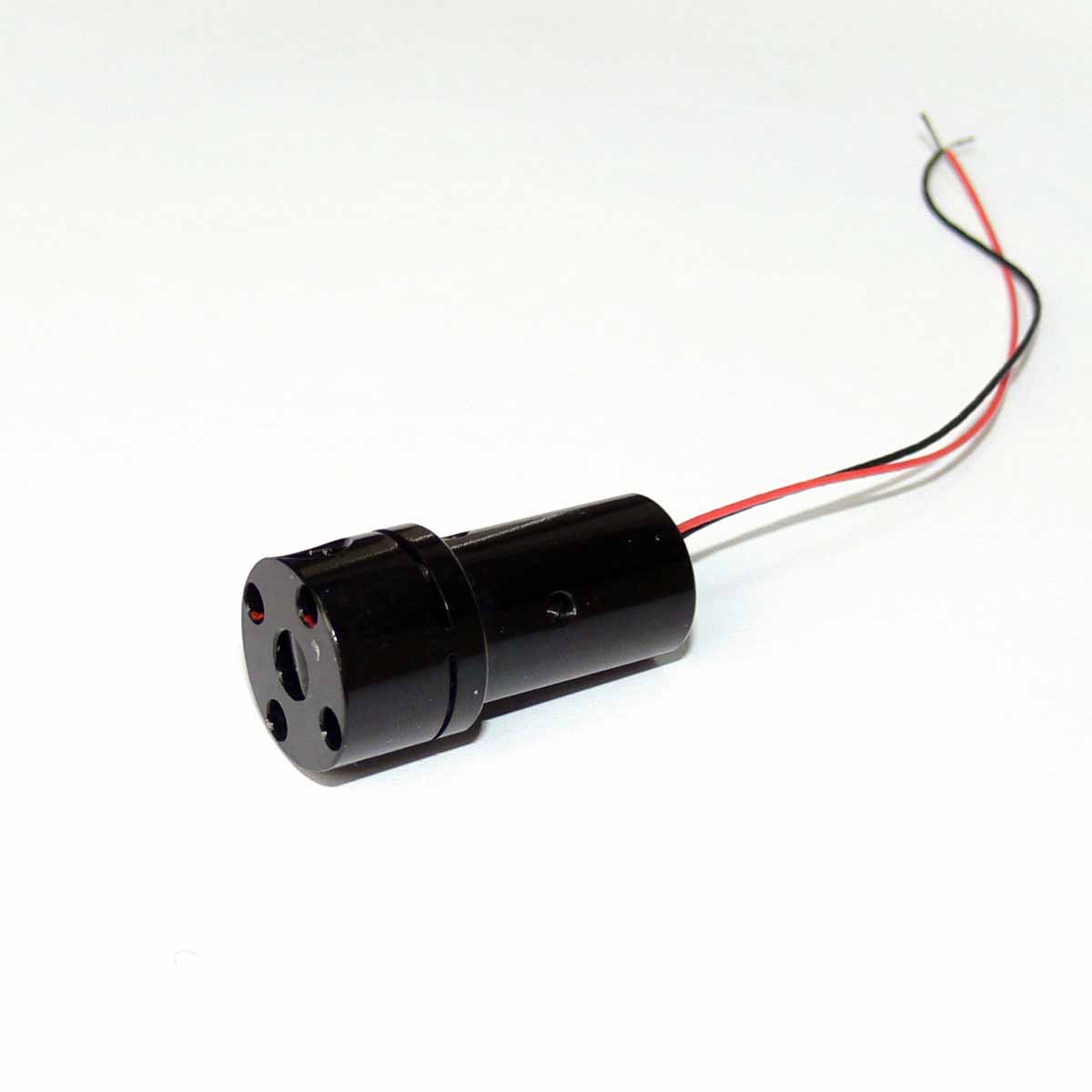

Laser Leveling Modules-AIMLASER (1) Laser Leveling Modules-AIMLASER (5)

※ AimLaser Line Laser Module Features

   Long lifetime

   Compact size

   Easy mounting

   High brightness

   Convenient adjustment

   High reliability and stability

   Wide temperature operation -10℃ to 50℃

360 Degree Line Laser Module Applications

   Laser Line Maker

   Laser Tape Measurer

   Laser Measuring Tools

   Laser Alignment Systems

   Laser Distance Measurer

   Laser Survey Instrument

   3D Laser Scanner

   Self Leveling Laser Tools etc.

Why buy 360 Line Lasers from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips

Laser Modules Production Process

Laser Module Production Process

Laser Modules Production EquipmentLaser module production equipment

Laser Modules Testing Equipment

Laser Module testing equipment

※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
