| Laser Wavelength: | |
|---|---|
| Output Power: | |
| Housing Material: | |
| Fiber Core: | |
| Connector: | |
| Quantity: | |
AimLaser provides low power Pigtailed Coaxial Fiber Coupled Laser Modules whose wavelength ranges from 405nm to 1064nm and fiber core 4um, 9um, 50um, 62.5um, 105um, 125um, 170um and 200um etc. The connectors are available for SMA, FC or ST together with different fiber length.
Featured with compact size and low power consumption, our fiber coupled lasers use special designed LD drivers based on customer applications and PD feedbacks can be added to improve the reliability and stability of the lasers.

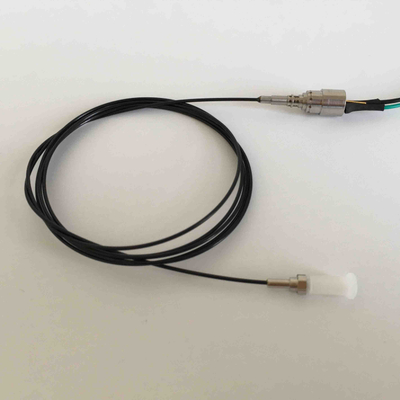

The AM660SF40FC is a red pigtailed fiber coupled laser diode Module subassembly with collimated beam. The maximum laser output power is 40.0mW at 660nm.
| ITEM | SPECIFICATIONS |
| Model Number | AM660SF40FC Pigtailed Fiber Coupled Laser Module |
| Wavelength | 660nm |
| Output Power | ≥40.0mW (Customer ACC) |
| Laser Mode | CW |
| Spectral Width | <2.0nm |
| Wavelength Shift | 0.3nm |
| Operating Current | <250mA (Customer ACC) |
| Operating Voltage | 3.0V DC (Customer ACC) |
| Optical Lens | Optical Coating Glass Lens |
| CDRH Class | Class IIIb |
| Circuit control | Auto Constant Current (Customer Driver) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 60℃ |
| Dimensions | Φ8x22mm (Customer ACC) |
| Fiber Core Diameter | 9um Singlemode Fiber |
| Cladding Diameter | 125um |
| Fiber Length | 1m |
| Numerical Aperture | 0.13 N.A. |
| Connector | FC/PC |
| Life Span | 10,000Hrs |
 |  |
Optical Alignment Systems
Medical Laser Instrument
CTP Laser Printing
OEM Instrumentation
Laboratory Instrument
Laser Test and Inspection Equipment
Provide One year warranty
Offer customized solutions
Normal sample lead time: within 2 weeks
Conform to ROHS, FDA, IEC, SGS standards
ISO9001:2008 certified laser module manufacturer
Using original Laser Diodes from Arima, Osram, Nicha and branded chips
MOQ: 1pc
Delivery time: 3-20 days
Shipment Terms: FOB Xi'an China
Payment Terms: T/T, Western Union, PayPal
Shipment Method: DHL, UPS, FedEx or TNT
※ Contact us
