808nm 50mW Invisible Infrared Laser Beam for Night Vision Products

Laser Wavelength:
Laser Color:
Output Power:
Beam Size:
Housing Material:
Availability:
Quantity:
  • AM808D50G1
  • AIMLASER, ELITELASER
  • 90132000.99
  • IR  Invisible
  • 808nm
  • CW

808nm 50mW Invisible Infrared Laser Beam for Night Vision Products

laser wavelength chart

AimLaser provides customized Infrared Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The infrared laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 808nm 50mW IR Laser Module Descriptions

The AM850D50G1 is an infrared laser module subassembly with collimated beam. The maximum laser output power is 50.0mW at 808nm.

808nm 50mW IR Laser Module Optical and Electrical Characteristics

ITEM SPECIFICATIONS
Model Number AM808D50G1 IR Laser Diode Module
Wavelength 808nm
Output Power ≤50.0mW
Laser Mode CW
Beam Size ≤6x10mm@10m
Divergence 0.5mrad
Optics Optical Glass Lens
Operating Current <200mA
Operating Voltage 3-5V DC
CDRH Class Class IIIb
Circuit control Auto Constant Current (ACC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -20℃ to 60℃
Dimensions Φ12x40mm (PCB Inside)
Life Span 10,000Hrs

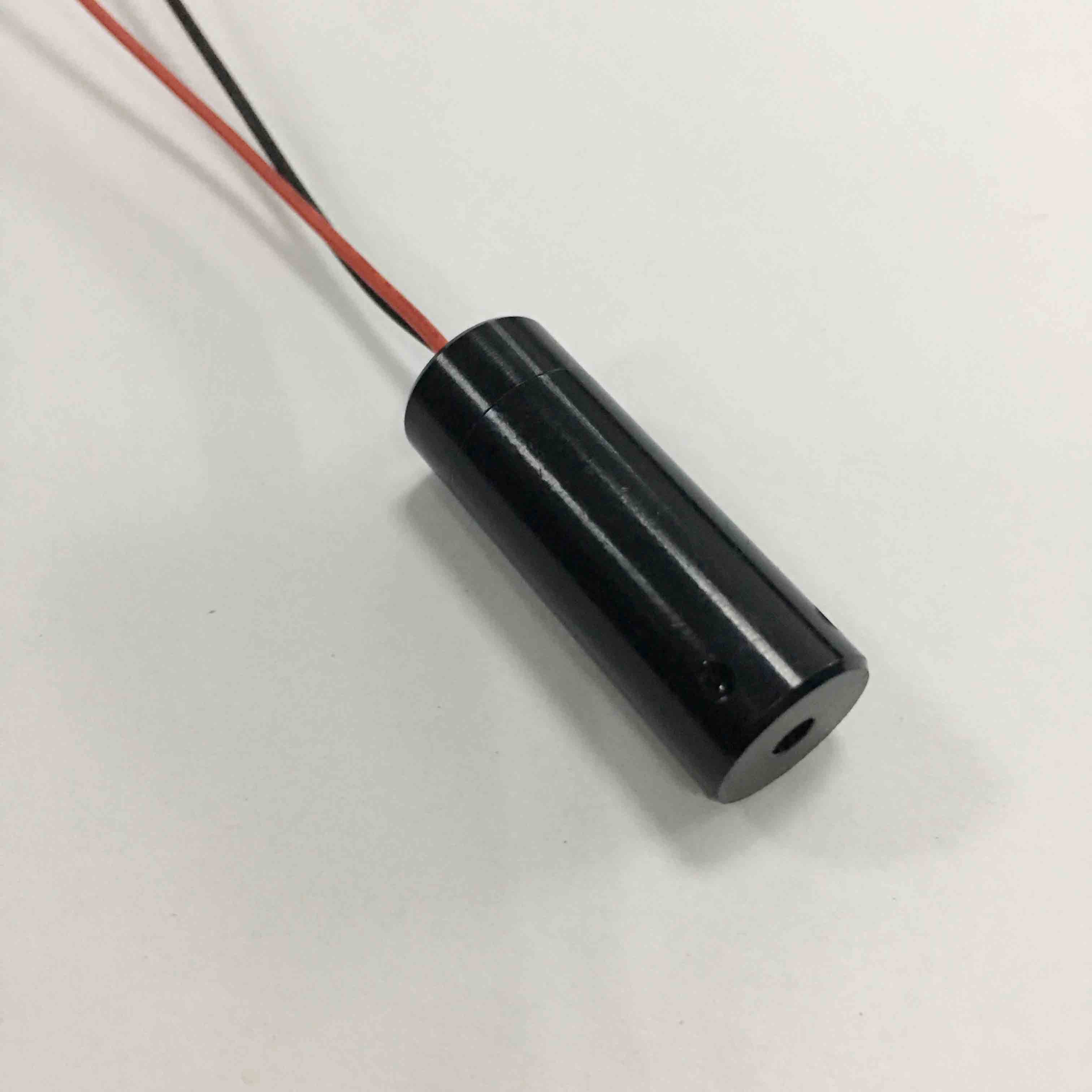

Position Lasers-AIMLASER (1) Position Lasers-AIMLASER (2)

※ 808nm Infrared Laser Module Applications

  1. Gun laser sights

  2. Gun Laser Grips

  3. Night Vision Lasers

  4. Laser aiming devices

  5. Laser alignment instrument

  6. Laser pointing instrument

  7. Laser positioning devices

  8. Laser surveying instrument

  9. Laser detection equipment

  10. Medical Laser Instrument

  11. Miniature Laser Tools etc.


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Module Production Process

※ Laser Modules Production EquipmentLaser module production equipment

※ Laser Modules Testing Equipment

Laser Module testing equipment

※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
