Alignment Laser Emitter Module 650nm 20mW Single Mode Lasers

Laser Wavelength:
Laser Color:
Output Power:
Beam Size:
Housing Material:
Availability:
Quantity:
  • AM650D40G1
  • AIMLASER, ELITELASER
  • 90132000.99
  • Red  Visible
  • 650nm
  • Pulse  CW  Dot  TTL

Alignment Laser Emitter Module 650nm 20mW Single Mode Lasers

laser wavelength chart

AimLaser provides customized Red Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The red laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 650nm 20mW Dot Red Laser Diode Module Descriptions

The AM650D40G1 is a red laser module subassembly with adjustable beam. The maximum laser output power is 20.0mW at 650nm.

※ 650nm 20mW Dot Red Laser Diode Module Optical and Electrical Characteristics

ITEM SPECIFICATIONS
Model Number AM650D40G1 Dot Red Laser Diode Module
Wavelength 650nm
Output Power ≤20.0mW
Laser Mode CW
Beam Size ≤1.0mm@1m
Divergence 0.6mrad
Optics Optical Glass Lens
Operating Current <90mA
Operating Voltage 3V-5V DC
CDRH Class Class IIIb
Circuit control Auto Constant Current (ACC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -40℃ to 80℃
Dimensions Φ10x35mm (APC Inside)
Housing Material Full Brass or Black Andoized Aluminum
Life Span 10,000Hrs

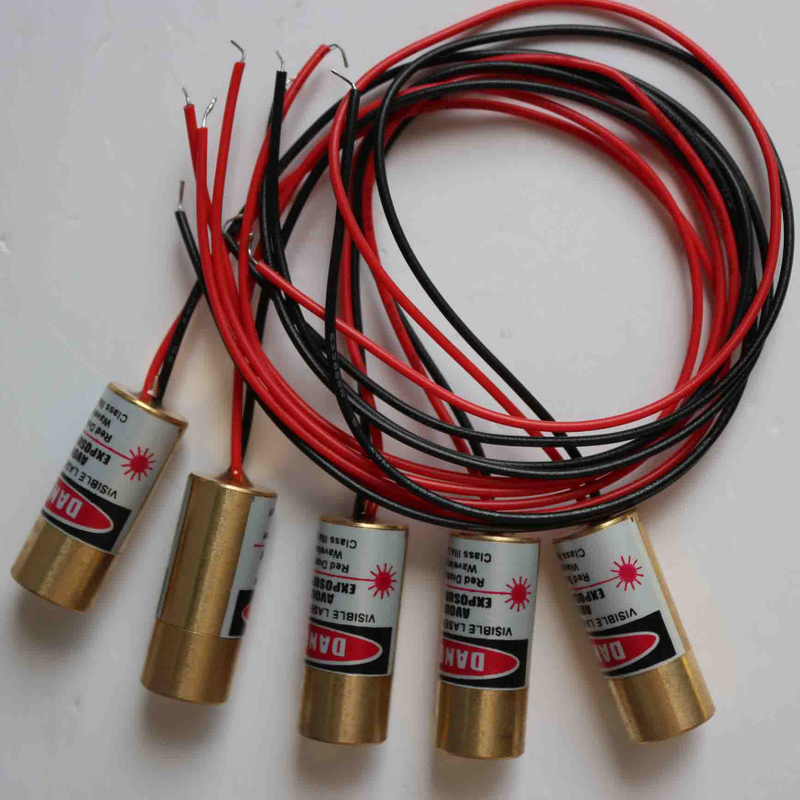

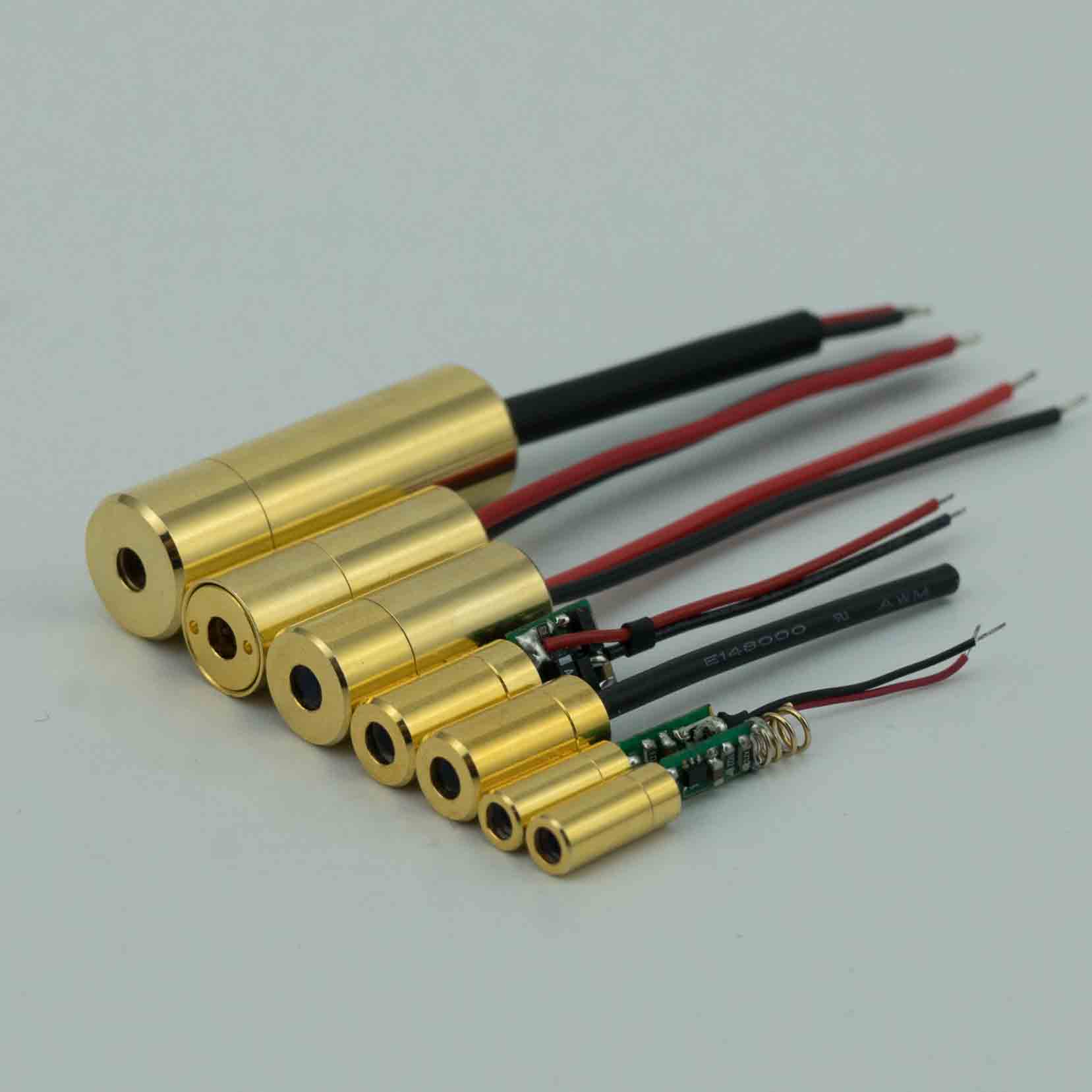

Laser Diode Modules-AIMLASER Laser Diode Modules Low Power-AIMLASER

※ 650nm Red Laser Module Applications

  1. Scientific Research

  2. Laboratory Instrument
    Gun Laser Grips
    Gun laser sights

  3. Laser aiming devices

  4. Laser alignment instrument

  5. Laser pointing instrument

  6. Laser positioning devices

  7. Laser surveying instrument

  8. Laser detection equipment

  9. Medical Laser Instrument

  10. Consumer Products

  11. Nightwear Sporting Products

  12. Automotive interior Ambient Light

  13. OEM Instrumentation


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Module Production Process

※ Laser Modules Production EquipmentLaser module production equipment

※ Laser Modules Testing Equipment

Laser Module testing equipment

※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
