Coaxial Dual Beam Aiming Laser Modules 850nm 1mW and 520nm 5mW for Gun Laser Sights

Laser Wavelength:
Output Power:
Housing Material:
Circuit Control:
Applications:
Availability:
Quantity:
  • DB-IR01G05
  • AIMLASER, ELITELASER
  • 90132000.99
  • Red  IR  Visible  Invisible
  • 520nm  850nm
  • Pulse  CW  Dot

Coaxial Dual Beam Aiming Laser Modules 850nm 1mW and 520nm 5mW

for Gun Laser Sights

laser wavelength chart

AimLaser provides customized Coaxial Dual Beam Laser Diode Module Combo with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 2V to 5V DC.

The dual beam laser modules possess characteristics of smallest size, low power consumption, compact structure and low cost, now are widely used in gun laser sights, gun laser grips, laser aiming devices, laser barcode scanners, miniature laser tools and precision instruments for laser positioning, laser alignment and laser scanning applications.

※ 850nm 1mW and 520nm 5mW Dual Beam Aiming Laser Module Descriptions

The DB-IR01G05 is an infrared and green laser light combo subassembly with collimated beam. The maximum laser output power is 1.0mW at 850nm and 5.0mW at 520nm.

850nm 1mW and 520nm 5mW Dual Beam Aiming Laser Module Optical and Electrical Characteristics

ITEM SPECIFICATIONS
Model Number DB-IR01G05 IR and Green Dual Beam Laser Light Combo
Wavelength and Output Power 850nm 0.4mW-1.0mW and 520nm 1.0mW-5.0mW
Laser Mode CW
Output Aperture Dia. 3.0mm
Beam Size 6x12mm@10m and 10x22mm@20m
Divergence 0.6mrad
Optics Optical Glass Lens
Operating Current 850nm <30mA and 520nm <160mA
Operating Voltage 3V DC (1pc CR123A)
CDRH Class Class IIIa
Circuit control Auto Power Control (APC)
Power Modulation High/Low Power Switch
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -40℃ to 80℃
Dimensions Customized
Housing Material Brass and Insulated Anodized Aluminum
Life Span 10,000Hrs

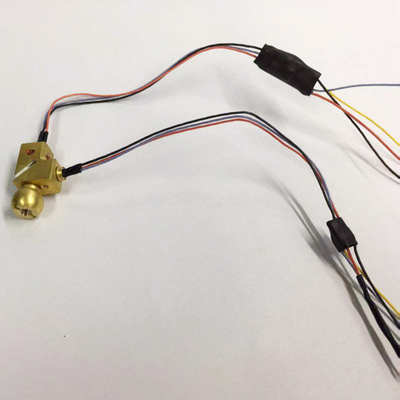

405nm 5mW and 520nm 5mW Dual Beam Laser Module Combo-AIMLASER (1) 850nm 1mw and 520nm 5mW Dual Beam Laser Wire Connections

※ Dual Beam Laser Module Combo Applications

  1. Gun laser sights

  2. Gun Laser Grips

  3. Laser aiming devices

  4. Miniature Laser Tools etc.


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Module Production Process

※ Laser Modules Production EquipmentLaser module production equipment

※ Laser Modules Testing Equipment

Laser Module testing equipment

※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
