AimLaser provides customized Mini Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 2V to 5V DC.
The mini laser modules possess characteristics of smallest size, low power consumption, compact structure and low cost, now are widely used in gun laser sights, gun laser grips, laser aiming devices, laser barcode scanners, miniature laser tools and precision instruments for laser positioning, laser alignment and laser scanning applications.

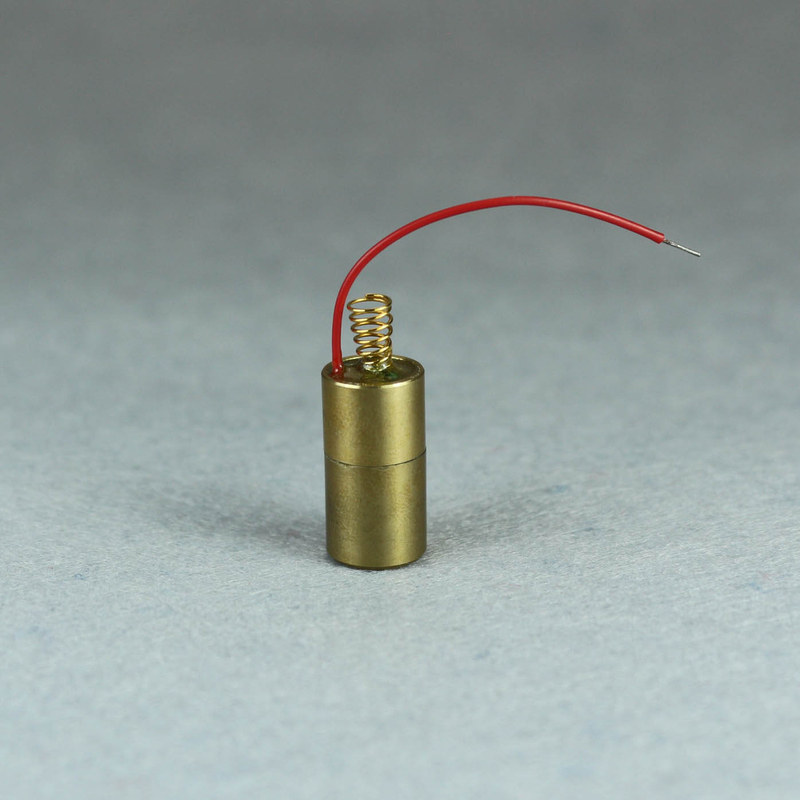

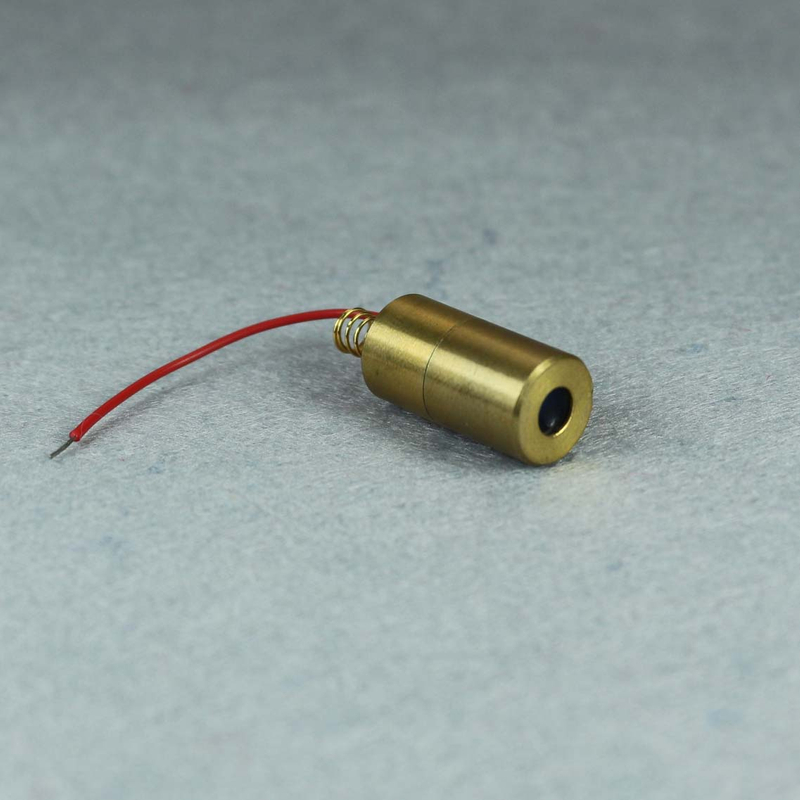

The ML650-10G2 is a mini red laser module subassembly with collimated beam. The maximum laser output power is 5.0mW at 650nm.
ITEM | SPECIFICATIONS |
Model Number | ML650-10G2 Red Dot Mini Laser Diode Module |
Wavelength | 650nm |
Output Power | ≤5.0mW (Customer ACC) |
Laser Mode | CW |
Beam Size | <8x12mm@10m and <16x22mm@20m |
Divergence | 0.6mrad |
Optics | Optical Glass Lens |
Operating Current | <60mA (Customer ACC) |
Operating Voltage | 3V DC (Customer ACC) |
CDRH Class | Class IIIa |
Circuit control | Auto Constant Current (Customer ACC) |
Circuit Protection | Static, Surge, and Reverse Polarity Protected |
Working Temperature | -10℃ to 50℃ |
Storage Temperature | -40℃ to 80℃ |
Dimensions | Φ4x10mm (Customer ACC) |
Life Span | 8,000Hrs |
Gun laser sights
Gun Laser Grips
Laser aiming devices
Laser alignment instrument
Laser pointing instrument
Laser positioning devices
Laser surveying instrument
Laser detection equipment
Medical Laser Instrument
Miniature Laser Tools etc.
Provide One year warranty
Offer customized solutions
Normal sample lead time: within 2 weeks
Conform to ROHS, FDA, IEC, SGS standards
ISO9001:2008 certified laser module manufacturer
Using original Laser Diodes from Arima, Osram, Nicha and branded chips
MOQ: 1pc
Delivery time: 3-20 days
Shipment Terms: FOB Xi'an China
Payment Terms: T/T, Western Union, PayPal
Shipment Method: DHL, UPS, FedEx or TNT
※ Contact us
