Miniature Laser Φ4mm 520nm 5mw Green Dot Laser Module for Laser Aiming Devices Gun Laser Grips

Laser Wavlength:
Laser Color:
Output Power:
Housing Material:
Dimensions:
Availability:
Quantity:
  • ML520-10G2
  • AIMLASER, ELITELASER
  • 90132000.99
  • Green
  • 520nm
  • CW  Dot

Miniature Laser Φ4mm 520nm 5mw Green Dot Laser Module for Laser Aiming Devices Gun Laser Grips

laser wavelength chart

AimLaser provides customized Mini Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 2V to 5V DC.

The mini laser modules possess characteristics of smallest size, low power consumption, compact structure and low cost, now are widely used in gun laser sights, gun laser grips, laser aiming devices, laser barcode scanners, miniature laser tools and precision instruments for laser positioning, laser alignment and laser scanning applications.

※ 520nm 5mW Green Dot Mini Laser Diode Module Descriptions

The ML520-10G2 is a mini green laser module subassembly with collimated beam. The maximum laser output power is 5.0mW at 520nm.

※ 520nm 5mW Green Dot Mini Laser Diode Module Optical and Electrical Characteristics

ITEM SPECIFICATIONS
Model Number ML520-10G2 Green Dot Mini Laser Diode Module
Wavelength 520nm
Output Power ≤5.0mW
Laser Mode CW
Beam Size 10x22mm@20m
Divergence 0.8mrad
Optics Optical Glass Lens
Operating Current <140mA
Operating Voltage 3V DC
CDRH Class Class IIIa
Circuit control Auto Power Control (APC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -20℃ to 60℃
Dimensions Φ4x10mm (APC Inside)
Life Span 8,000Hrs

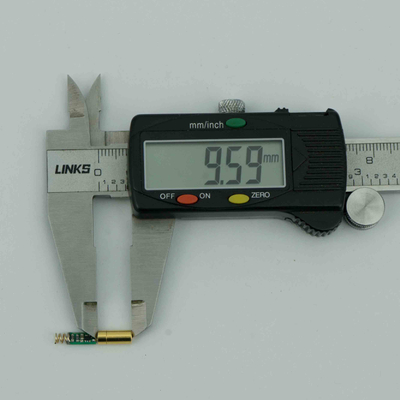

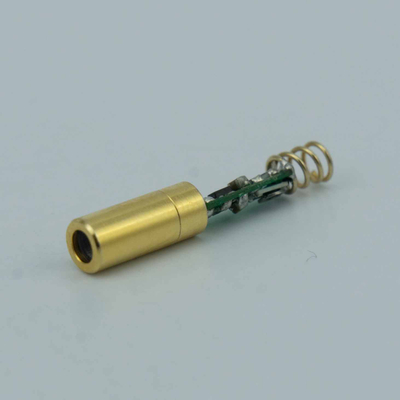

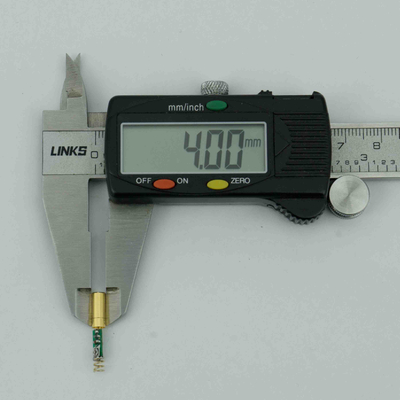

520nm 5mW Green Dot Lasers 4x10mm for Laser Grips-AIMLASER (1) 520nm 5mW Green Dot Lasers 4x10mm for Laser Grips-AIMLASER (3)

※ 520nm Green Laser Module Applications

  1. Gun laser sights

  2. Gun Laser Grips

  3. Laser aiming devices

  4. Laser alignment instrument

  5. Laser pointing instrument

  6. Laser positioning devices

  7. Laser surveying instrument

  8. Laser detection equipment

  9. Medical Laser Instrument

  10. Miniature Laser Tools etc.


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Module Production Process

※ Laser Modules Production EquipmentLaser module production equipment

※ Laser Modules Testing Equipment

Laser Module testing equipment

※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
