Powell Lens Design Lasers Uniform Laser Line Generator for Machion Vision Inspection

Laser Wavelength:
Output Power:
Line Width:
Fan Angle:
Housing:
Availability:
Quantity:
  • AM405U50G1
  • AIMLASER, ELITELASER
  • 90132000.99
  • Violet
  • 405nm  450nm
  • Pulse  CW  Line  TTL

Powell Lens Design Lasers Uniform Laser Line Generator for Machion Vision Inspection

laser wavelength chart

AimLaser provides customized Uniform Line Laser Diode Modules which use high quality Powell lens and possess characteristics of compact size, narrow line width, high stability and reliability.

The thinnest line can be 10um; fan angle is optional from 10°to 90° and wavelength ranges from 405nm to 850nm. The input voltage is also various from 3V to 12V DC.

※ 405nm 50mW Powell Lens Uniform Line Laser Module Descriptions

The AM405Ug0G1 is a Violet blue line laser module subassembly with collimated beam. The maximum laser output power is 50.0mW at 405nm. Energy is uniformly distributed.

※ 405nm 50mW Powell Lens Uniform Line Laser Module Optical and Electrical Characteristics

ITEM SPECIFICATIONS
Model Number AM405U50G1 Powell Lens Uniform Line Laser Module
Wavelength 405nm
Output Power ≤50.0mW
Output Aperture Φ6.0mm
Line Width ≤30um@150mm
Fan Angle 60°
Divergence 0.6mrad
Optics Optical Glass Lens
Operating Current <160mA
Operating Voltage 3-12V DC
CDRH Class Class IIIb
Circuit control Auto Power Control (APC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -40℃ to 80℃
Dimensions Φ14x55mm (PCB Inside)
Case Material Brass or Aluminum Black Anodized (Insulation)
Life Span 8,000Hrs


Machion Vision Laser Modules-AIMLASER (2) Powell Lens Uniform Line Laser Modules-AIMLASER (2)

※ Powell Lens Uniform Line Laser Module Applications

  1. PPT Visions

  2. 3D Vision System

  3. Laser Profilometer

  4. Laser Contour Scanner

  5. Machine Visual Products

  6. Machine Vision Cameras

  7. Industrial Smart Cameras

  8. Laser Scanning System

  9. Laser Measuring Profilometer

  10. Laser Scribe Positioning Machines

  11. Industrial Visual Measurement System

  12. Industrial Robot Visual Guidance System

  13. Automatic Equipment Visual Positioning System


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Module Production Process

※ Laser Modules Production EquipmentLaser module production equipment

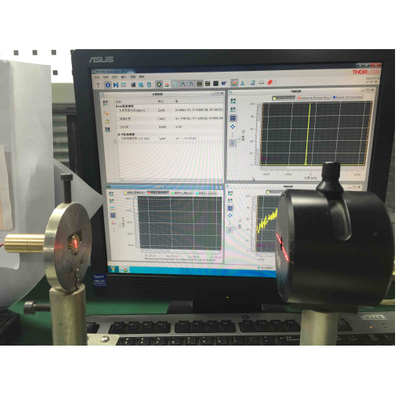

※ Laser Modules Testing Equipment

Laser Module testing equipment

※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
