520nm 50mW 200um Green Uniform Line Laser Module with Powell Lens for Robot Vision Scanning

Laser Wavelength

520nm
Output Power

50mW
Line Width

≤200um@100mm~150mm
Fan Angle

60 Degrees
Housing

2cm*2cm*7cm Insulated Black Anodized Aluminum

 Inquire Add to Basket

Model: AM520U125G7
Brand: AIMLASER
Code: 90132000.99
Color: Red
Wavelength: 520nm
Type: Pulse, CW, Line, TTL

Product Description

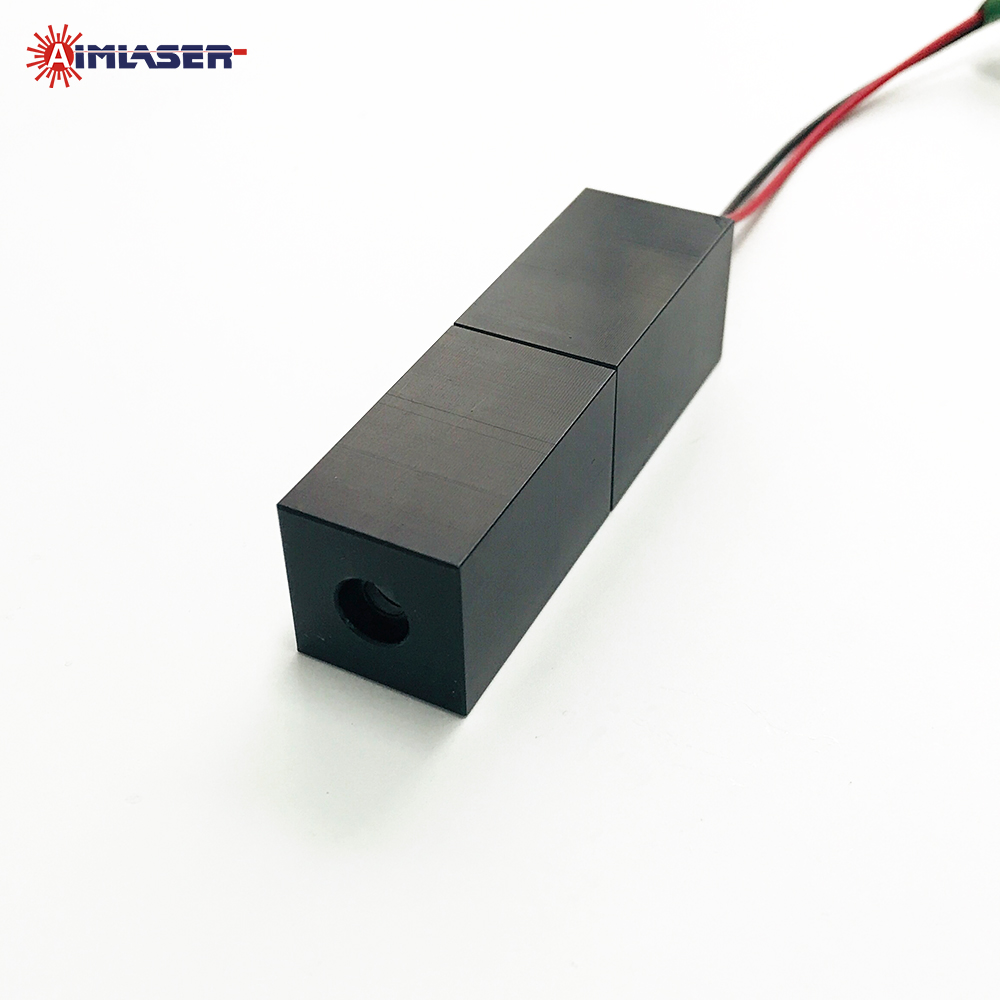

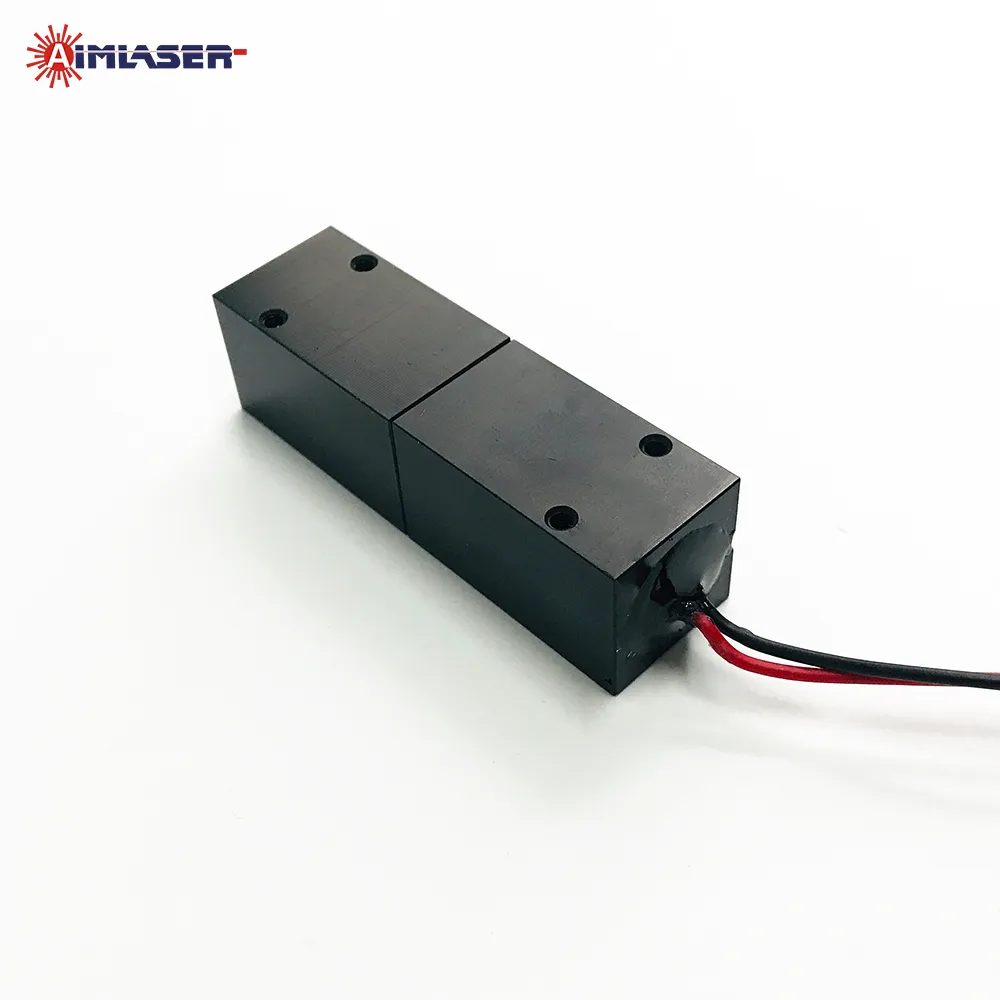

520nm 50mW 200um Green Uniform Line Laser Module with Powell Lens for Robot Vision Scanning

AimLaser provides customized Uniform Line Laser Diode Modules that use a specially designed Powell lens to project a laser beam into a sharp, evenly illuminated line with consistent intensity from end to end. Compared to cylindrical lenses that produce Gaussian lines with bright centers and weak edges, Powell lenses deliver uniform line profiles, making them ideal for machine vision, 3D scanning, industrial alignment, and robotic guidance applications.

※ 520nm 50mW Powell Lens Uniform Line Laser Module Descriptions

The AM520U125G7 is a green line laser module subassembly with collimated beam. The maximum laser output power is 50.0mW at 520nm. Energy is uniformly distributed.

※ 520nm 50mW Powell Lens Uniform Line Laser Module* Optical and Electrical Characteristics*

ITEM	SPECIFICATIONS
Model Number	AM520U125G7 Powell Lens Green Uniform Line Laser Module
Wavelength	520nm
Output Power	≤50.0mW
Output Aperture	Φ5.0mm
Line Width	≤200um@100mm~150mm
Fan Angle	60°
Divergence	0.2mrad
Optics	Glass Lens
Operating Current	<80mA
Operating Voltage	24V DC
CDRH Class	Class IIIb
Circuit control	Auto Power Control (APC)
Circuit Protection	Static, Surge, and Reverse Polarity Protected
Working Temperature	-10℃ to 50℃
Storage Temperature	-40℃ to 80℃
Dimensions	2cmx2cmx7cm (PCB Inside)
Case Material	Brass or Aluminum Black Anodized
Life Span	10,000Hrs
