940nm 10W 20mm@4m Powell Lens Uniform Line Laser Power Adjustable with Built-in Cooling Fan

940nm 10W 20mm@4m Powell Lens Uniform Line Laser Power Adjustable with Built-in Cooling Fan

AimLaser provides customized Uniform Line Laser Diode Modules which use high-quality Powell lens and possess characteristics of compact size, narrow line width, high stability and reliability.

The thinnest line can be 10um; fan angle is optional from 10°to 120° and wavelength ranges from 405nm to 1550nm. The input voltage is also various from 3V to 220V.

※ 940nm 50mW Powell Lens Uniform Line Laser Module Descriptions

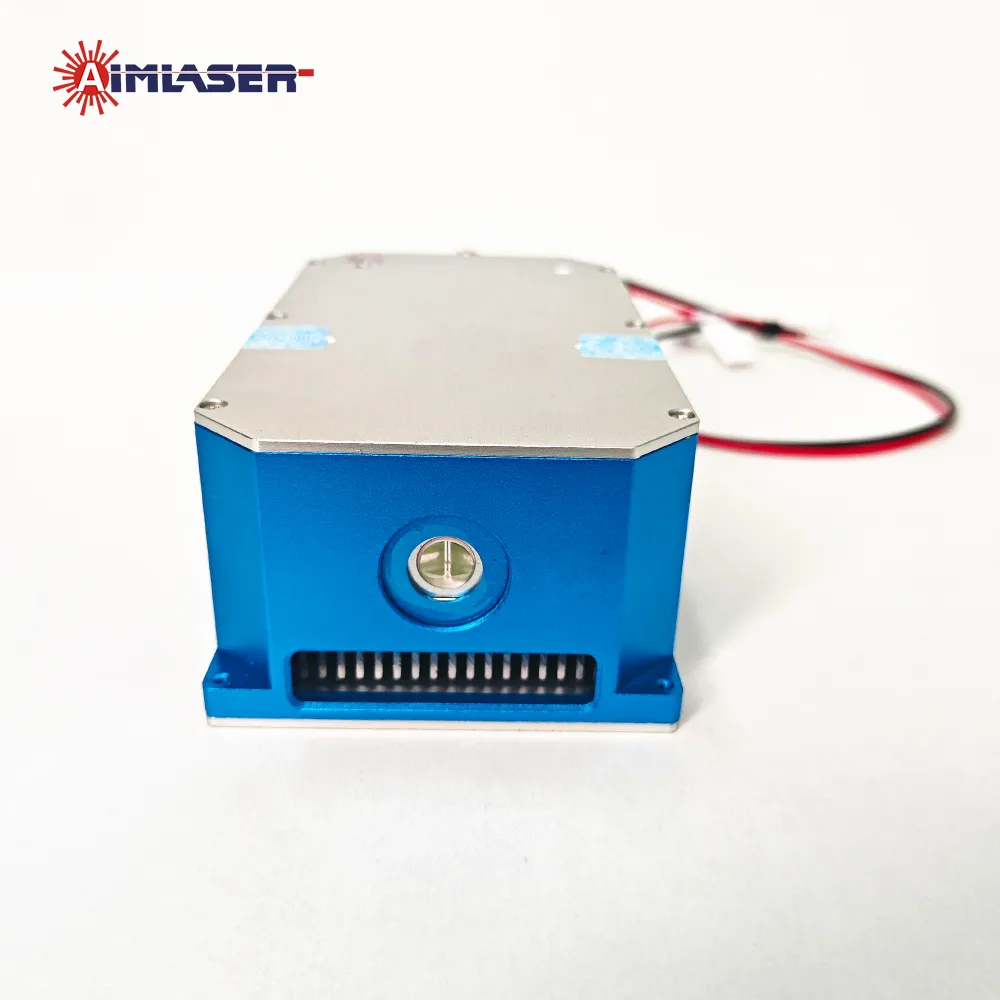

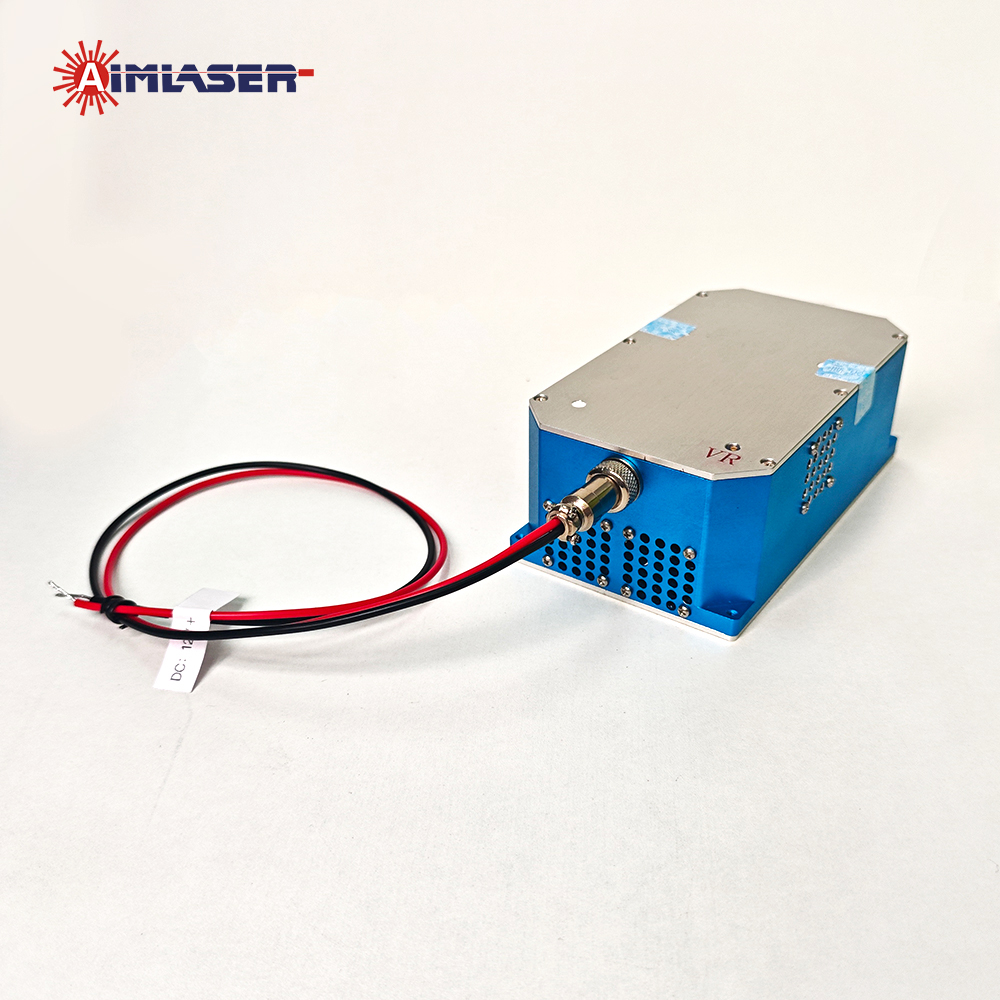

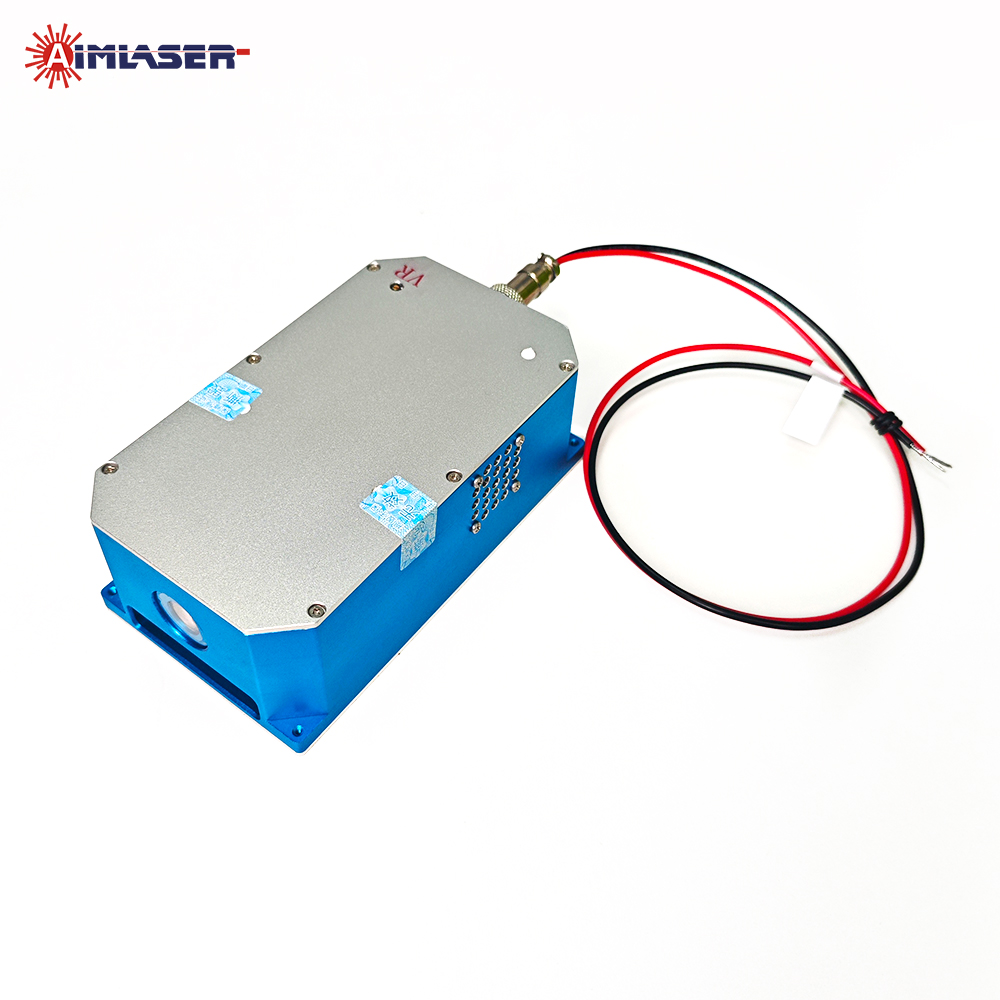

The AM940U10WG1 is an infrared line laser module subassembly with a power adjustment potentiometer. The maximum laser output power is 10W at 940nm. Energy is uniformly distributed. The external VR knob allows power adjustment, while the built-in cooling fan enhances stability during long-term operation.

※ 940nm 10W Powell Lens Uniform Line Laser Module Optical and Electrical Characteristics

※ Powell Lens Uniform Line Laser Module Applications

1. PPT Visions

2. 3D Vision System

3. Laser Profilometer

4. Laser Contour Scanner

5. Machine Visual Products

6. Machine Vision Cameras

7. Industrial Smart Cameras

8. Laser Scanning System

9. Laser Measuring Profilometer

10. Laser Scribe Positioning Machines

11. Industrial Visual Measurement System

12. Industrial Robot Visual Guidance System

13. Automatic Equipment Visual Positioning System

※ Why buy Laser Modules from AimLaser?

1. Provide One year warranty

2. Offer customized solutions

3. Normal sample lead time: within 2 weeks

4. Conform to ROHS, FDA, IEC, SGS standards

5. ISO9001:2008 certified laser module manufacturer

6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips

※ Laser Modules Production Process

※ Laser Modules Production Equipment

※ Laser Modules Testing Equipment

※ Laser Module Payment and Shipment

1. MOQ: 1pc

2. Delivery time: 3-20 days

3. Shipment Terms: FOB Xi'an China

4. Payment Terms: T/T, Western Union, PayPal

5. Shipment Method: DHL, UPS, FedEx or TNT
