| Wavelength: | |
|---|---|
| Output Power: | |
| Line Width: | |
| Uniformity: | |
| Voltage: | |
AM520RU50G
AIMLASER
90132000.99
520nm
Circle
OEM
One Year
1PC
China

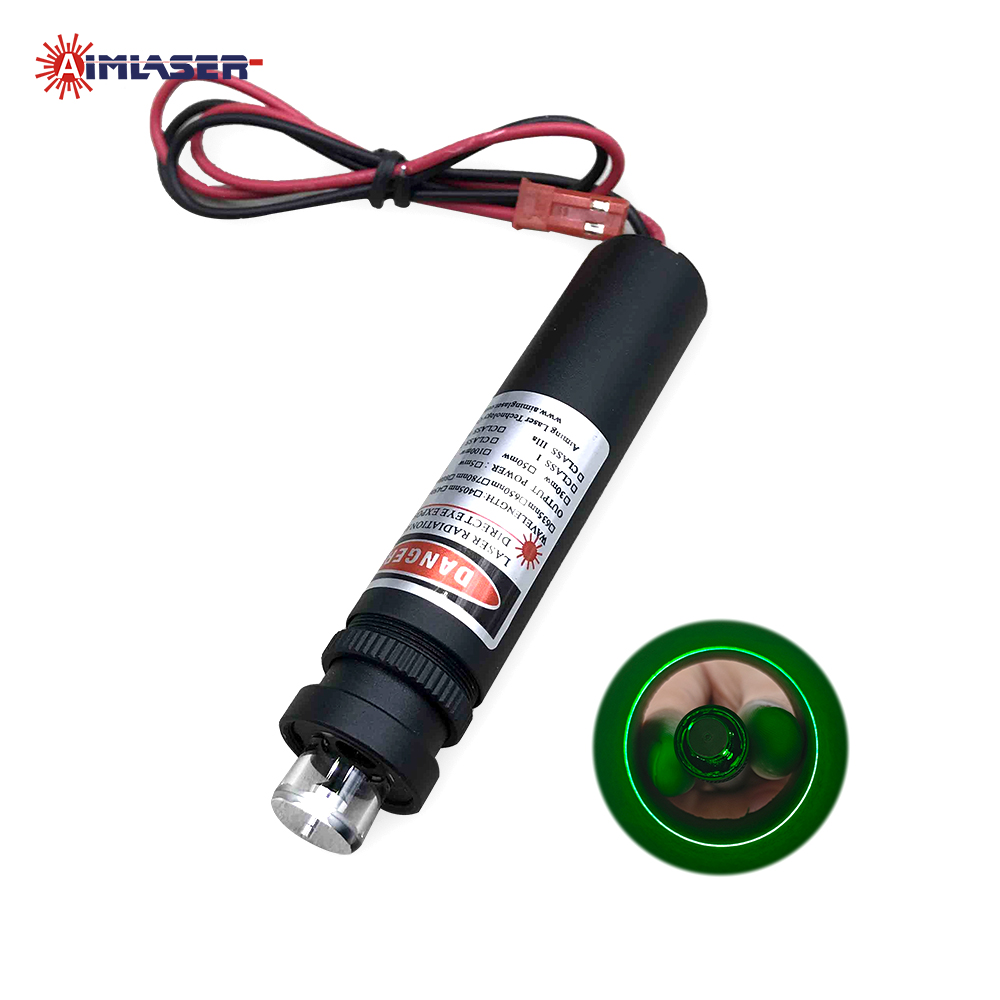

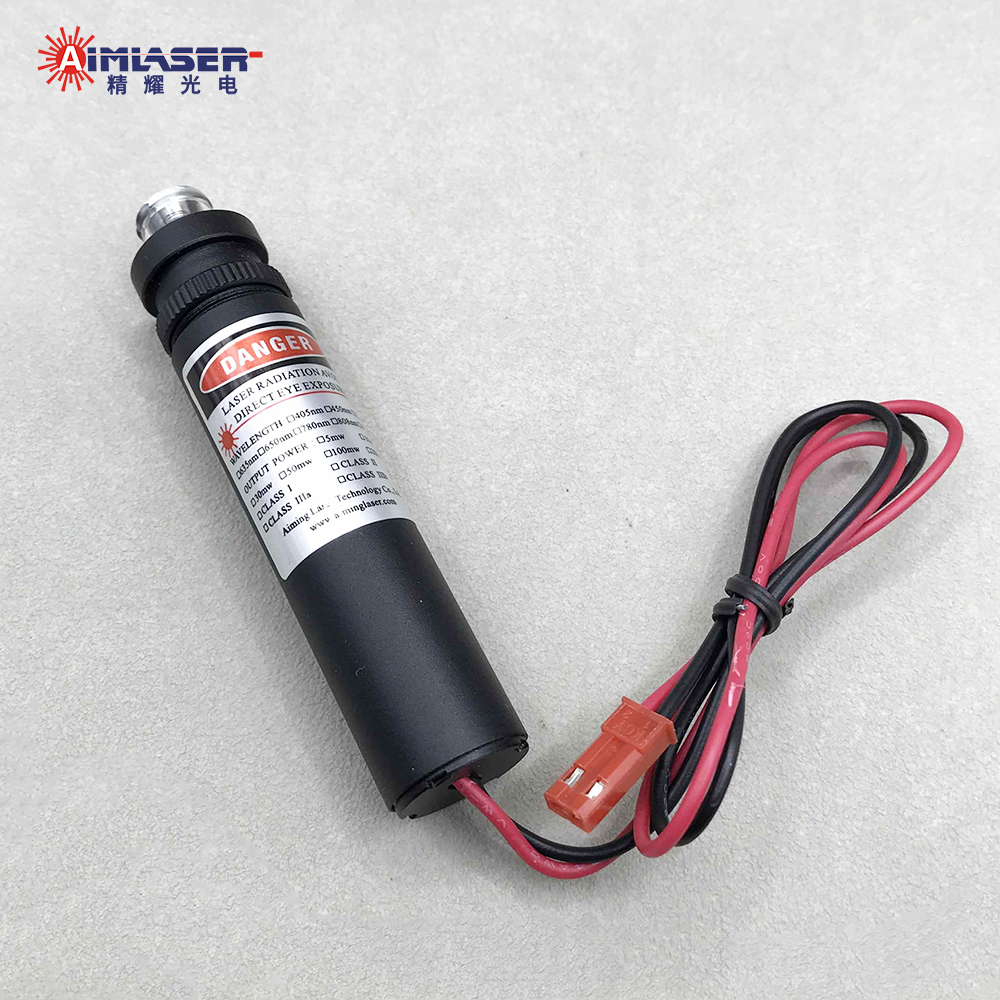

AIMLASER 360° Circular Uniform Line Laser Module projects a continuous 360° laser line with good uniformity and stable optical performance. The adjustable focus allows the laser line to be optimized for different working distances.
Available in various wavelengths and output powers, the module is suitable for different inspection and measurement requirements. It is widely used in pipeline inspection, machine vision, 3D scanning, surface defect detection, and other precision laser applications.
AIMLASER provides customized solutions based on specific application requirements. Wavelength, output power, focus, housing dimensions, waterproofing, built-in battery, and other specifications can be customized.
360° continuous circular laser line
Line uniformity up to 70%
Adjustable focus
Stable output power and good consistency
Compact design
| Parameter | Specification |
|---|---|
| Laser Pattern | 360° Circular Line |
| Wavelength | 450nm, 520nm, 660nm or customized |
| Output Power | 10mW, 50mW, 200mW, or customized |
| Line Uniformity | Up to 70% |
| Line Width | ≤1mm @ 800mm or customized |
| Focus | Adjustable of Fixed |
| Voltage | 5V, 12V, 24V Optional |
| Circuit Control | Auto Constant Current (ACC) |
| Operating Temperature | -10℃ to +50℃ |
| Lifespan | 10,000 hours |
| Housing Size | Ø16 × 77mm |
| Waterproof | Optional |
| Built-in Battery | Optional |
MOQ: 1pc
Delivery time: 3-20 days
Shipment Terms: FOB Xi'an China, EXW, DAP, DDP
Payment Terms: T/T, PayPal
Shipment Method: DHL, UPS, FedEx
