850nm 5mW Miniature Laser Diode Modules Pin Out Military Lasers

Laser Wavelength:
Laser Color:
Output Power:
Housing Material:
Dimensions:
Availability:
Quantity:
  • ML850-10G3
  • AIMLASER, ELITELASER
  • 90132000.99
  • IR  Invisible
  • 850nm
  • CW  Dot

850nm 5mW Miniature Laser Diode Modules Pin Out Military Lasers

laser wavelength chart

AimLaser provides customized Mini Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 2V to 5V DC.

The mini laser modules possess characteristics of smallest size, low power consumption, compact structure and low cost, now are widely used in gun laser sights, gun laser grips, laser aiming devices, laser barcode scanners, miniature laser tools and precision instruments for laser positioning, laser alignment and laser scanning applications.

※ 850nm 5mW  Infrared Dot Mini Laser Diode Module Descriptions

The ML850-10G3 is a mini infrared laser module subassembly with collimated beam. The maximum laser output power is 5.0mW at 850nm.

※ 850nm 5mW Infrared Dot Mini Laser Diode Module Optical and Electrical Characteristics

ITEM SPECIFICATIONS
Model Number ML850-10G3 Infrared Dot Mini Laser Diode Module
Wavelength 850nm
Output Power ≤5.0mW (Customer ACC)
Laser Mode CW
Beam Size <8x12mm@10m and <16x22mm@20m
Divergence 0.6mrad
Optics Optical Glass Lens
Operating Current <40mA  (Customer ACC)
Operating Voltage 3V DC  (Customer ACC)
CDRH Class Class IIIa
Circuit control Auto Constant Current  (Customer ACC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -40℃ to 80℃
Dimensions Φ6x12mm (Customer ACC)
Life Span 8,000Hrs

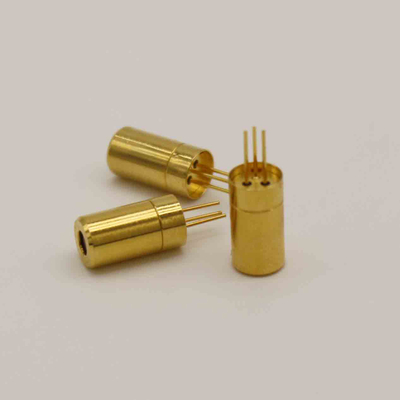

IR Laser Module Pinout-AIMLASER (1) IR Laser Module Pinout-AIMLASER (2)
