When selecting laser technology for OEM applications, understanding the distinction between fiber coupled lasers and pigtailed laser diodes is crucial for optimizing beam delivery performance. Both technologies offer precision optical transmission, yet their structural differences, coupling efficiency, and application suitability vary significantly. As an industry expert serving manufacturers across medical, industrial, and telecommunications sectors since 2012, Aiming Laser Technology has witnessed firsthand how these beam delivery methods impact system integration, maintenance costs, and operational reliability. [smartbuy.alibaba]
Fiber coupled lasers represent a comprehensive optical assembly where laser diodes are precisely aligned and coupled into optical fibers to enable flexible, long-distance beam transmission. The coupling process involves sophisticated beam shaping optics, precision alignment mechanisms, and high-quality optical fibers that work synergistically to maximize light transmission efficiency. This technology enables laser beam delivery to remote locations while maintaining beam quality and minimizing energy loss during transmission. [aiminglasers]

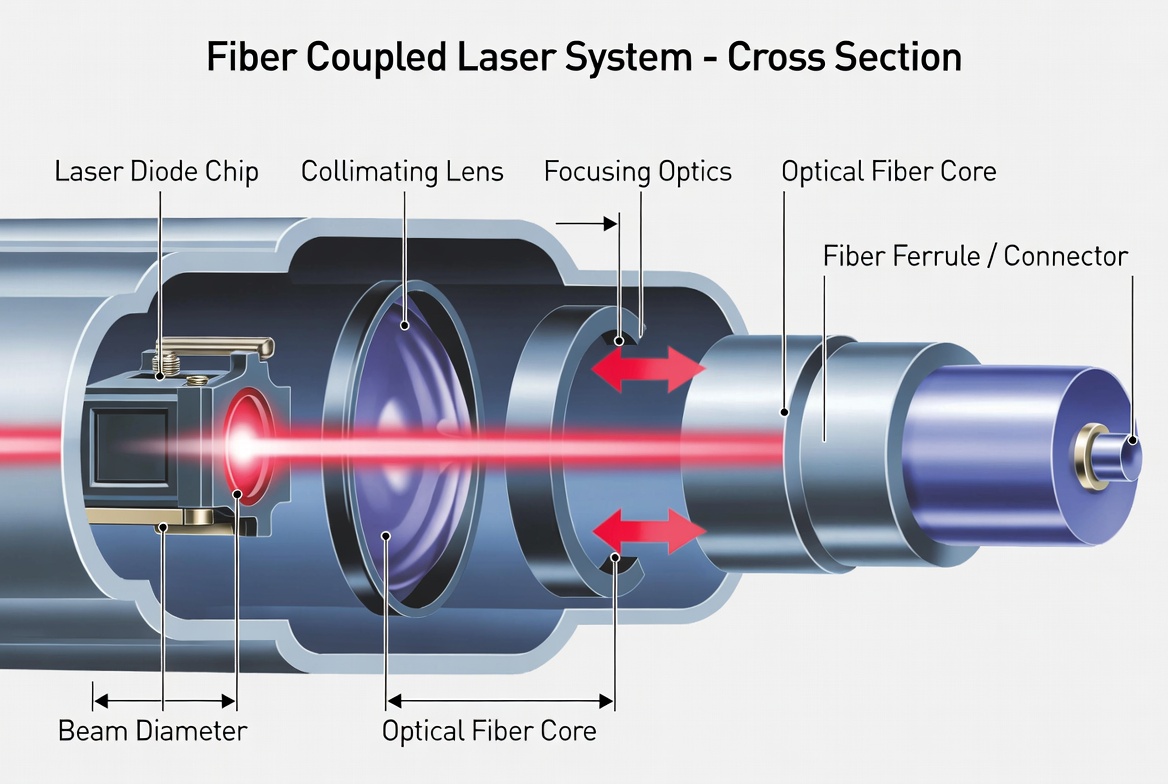

AI Image Prompt 1: "Industrial fiber coupled laser system diagram showing laser diode chip, collimating lens, focusing optics, and optical fiber core with light path arrows, technical cross-section illustration, clean white background"
Modern fiber coupled laser systems achieve coupling efficiencies exceeding 80% when optimized for high-quality laser sources with M⊃2; values below 1.05. The coupling efficiency depends on multiple factors including transmission losses through optical components (approximately 1%), imaging aberrations and beam distortion (around 8%), and Fresnel reflection losses at fiber end faces (roughly 8%). [sukhamburg]
The optical architecture of fiber coupled lasers comprises several critical components that determine overall performance. Laser diode chips generate coherent light, collimating lenses shape divergent beams into parallel rays, focusing optics concentrate light onto fiber cores, and precision alignment stages ensure optimal coupling. Advanced systems incorporate temperature stabilization to maintain wavelength consistency and thermal management systems to handle heat dissipation during high-power operations. [aiminglasers]
Single-mode fiber coupled systems typically utilize fiber cores ranging from 3.5μm to 9μm in diameter, while multimode configurations employ larger cores from 50μm to 200μm. The fiber termination can feature standard connectors such as FC/PC, FC/APC, SMA, or ST connectors with customizable fiber lengths to meet specific application requirements. [aiminglasers]

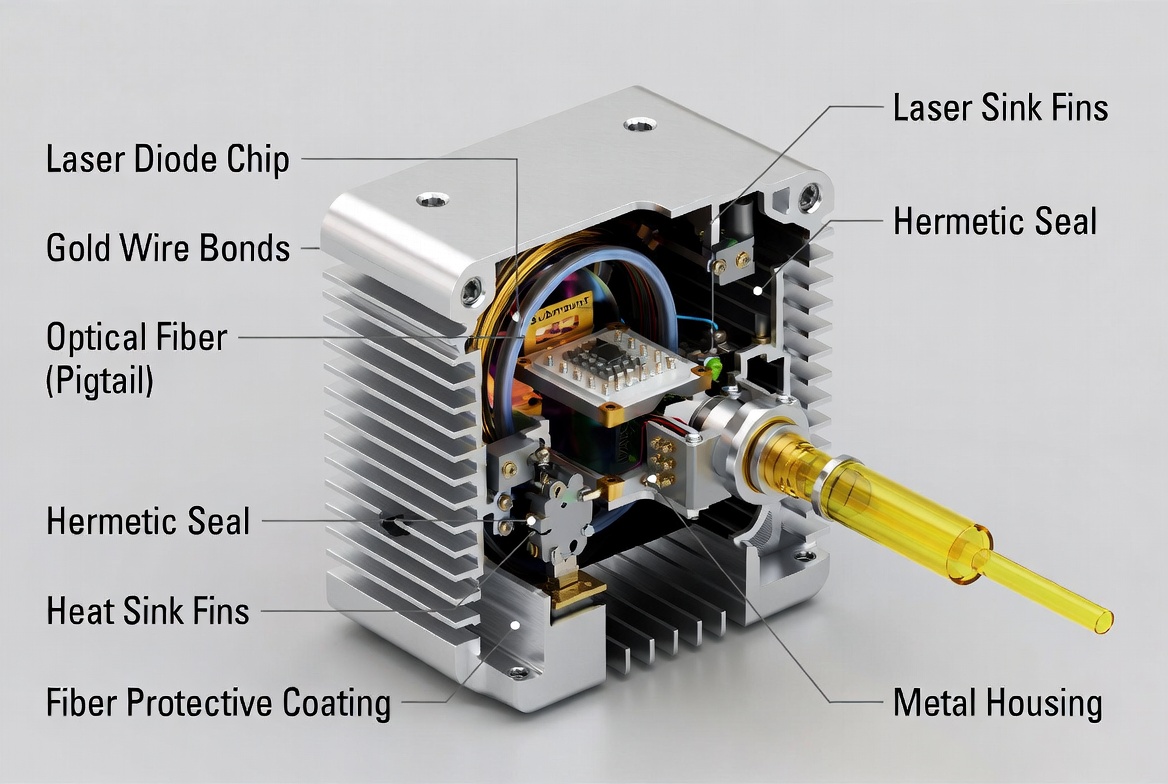

Pigtailed laser diodes feature a permanently attached optical fiber sealed directly within the laser housing, creating a monolithic assembly that prioritizes mechanical stability and environmental resistance. This sealed construction eliminates removable connector interfaces at the laser source, significantly reducing susceptibility to contamination, insertion losses, and misalignment issues common in connectorized systems. The pigtail design is particularly favored for OEM integrations where long-term reliability outweighs the need for fiber replaceability. [rpmclasers]
Manufacturing pigtailed laser diodes requires micro-positioning stages that enable sub-micron alignment accuracy during the coupling process. Power output from the distal fiber end is continuously monitored during assembly to ensure optimal coupling efficiency before permanent sealing. This manufacturing precision enables pigtailed devices to maintain consistent performance across temperature variations and mechanical vibrations. [hanstcs-laser]
Pigtailed laser diodes are available across wavelength ranges from 405nm ultraviolet through 1064nm near-infrared, with output powers spanning from 1mW for precision measurement applications to 50mW for industrial and medical systems. The wavelength selection directly impacts application suitability—405nm and 450nm variants serve biomedical instrumentation and fluorescence excitation, 520nm and 635nm wavelengths address visible laser applications including machine vision and alignment, while 780nm through 1064nm options support telecommunications, laser pumping, and industrial processing. [exhibitors.electronica]
Fiber coupled laser systems with detachable connectors face inherent coupling efficiency variability due to repeated connection and disconnection cycles. Each time a detachable fiber is reconnected, microscopic alignment variations prevent consistent positioning at the identical optical coupling point, reducing overall system efficiency. Conversely, pigtailed configurations maintain factory-optimized alignment throughout their operational lifetime, delivering stable coupling efficiency that typically ranges from 30% for general-purpose systems to over 50% for precision-optimized assemblies. [eoc-inc]
Performance Metric | Fiber Coupled (Connectorized) | Pigtailed Laser Diode |
|---|---|---|
Typical Coupling Efficiency | 30-45% (variable) ozoptics | 30-50% (stable) eoc-inc |
Alignment Stability | Moderate (reconnection variability) rpmclasers | Excellent (permanent seal) smartbuy.alibaba |
Environmental Resistance | Good (depends on connector quality) smartbuy.alibaba | Superior (sealed housing) smartbuy.alibaba |
Maintenance Requirements | Higher (connector cleaning, realignment) rpmclasers | Lower (no user-serviceable parts) aiminglasers |
Beam Quality (M⊃2; factor) | <1.2 to 1.5 (application-dependent) sunlonge | <1.2 to 1.5 (application-dependent) sunlonge |
Advanced fiber coupled systems can achieve coupling efficiencies up to 94% when utilizing quantum dot DFB laser technology with optimized optical subassemblies. However, such performance requires controlled environmental conditions and precision maintenance protocols that may not be practical for all industrial applications. [innolume]
When dealing with high-power laser systems, thermal management at the fiber coupling point becomes critical. The coupling process is inherently imperfect—power that fails to enter the fiber core converts to heat at the proximal fiber end, requiring adequate heat sinking to prevent fiber damage. Pigtailed designs offer superior thermal integration because the fiber attachment point can be thermally bonded to the laser package heat sink during manufacturing. Detachable fiber systems require external thermal management solutions to protect connectors from heat-induced degradation during high-power operations. [eoc-inc]
High-power fiber coupled laser modules delivering 60W to 150W output demonstrate qualified operational lifetimes exceeding 20,000 hours when properly thermally managed. The latest industrial diode lasers utilizing AAA technology achieve 70W output through 800μm-core fiber array packages while maintaining beam quality suitable for precision industrial applications. [photonicsonline]
Fiber coupled lasers dominate medical applications requiring flexible beam delivery to hard-to-reach anatomical locations. In minimally invasive surgery, endoscopy, ophthalmology, and dental procedures, the ability to route laser energy through thin, flexible optical fibers is essential. Pigtailed laser diodes serving medical applications benefit from their sealed construction, which prevents biological contamination and maintains sterility compliance. [alibaba]
The 532nm fiber-coupled green laser wavelength has become particularly valuable in ophthalmology for retinal photocoagulation treatments, providing optimal tissue absorption with minimal thermal damage to surrounding structures. The global fiber-coupled green laser market reached $458 million in 2024 and is projected to grow to $1060 million by 2031, driven primarily by expanding medical applications and precision manufacturing needs. [intelmarketresearch]
AI Image Prompt 4: "Medical laser surgery scene showing fiber-coupled laser beam delivered through flexible optical fiber to surgical target, doctor hands holding fiber optic handpiece, operating room environment, professional medical photography style"
Industrial laser applications spanning micro-welding, marking, curing, and precision cutting increasingly rely on fiber coupled laser technology for its reliability and integration flexibility. The ability to separate the laser source from the processing head via optical fiber enables compact tool designs, reduced weight at the point of operation, and simplified maintenance procedures. Manufacturing facilities benefit from centralized laser sources that distribute optical power to multiple processing stations through fiber networks, optimizing capital equipment utilization. [brandnewdiode]
TRUMPF's 6-kilowatt TruDiode fiber-coupled units achieve 68% wall-plug efficiency, reducing energy costs by $0.11 per kilowatt-hour compared to legacy CO₂ laser systems. IPG and Coherent fiber-coupled outputs can slice 12mm stainless steel at 2 meters per minute, demonstrating the power-handling capabilities of modern fiber delivery systems. [mordorintelligence]
Single-mode pigtailed laser diodes serve as the foundation for long-distance telecommunications, offering the beam quality and wavelength stability required for high-speed data transmission. The permanent fiber attachment ensures coupling stability across temperature variations and mechanical vibrations common in telecommunications infrastructure. For optical sensing applications including LiDAR, fiber sensing, and spectroscopy, pigtailed configurations provide measurement repeatability by eliminating connector-induced variability. [lasermate]
Edge-emitting pigtailed laser diodes led the laser diode market with 46.13% market share in 2025, primarily due to their unmatched single-mode coupling efficiency for long-haul optical links. The continuous-wave operation mode accounted for 63.71% of shipments in 2025, with telecommunications applications representing a substantial portion of this demand. [mordorintelligence]
Many advanced laser systems employ hybrid architectures that leverage the strengths of both pigtailed and detachable fiber approaches. In these configurations, one or more laser diodes are internally fiber-coupled with permanently pigtailed fibers, then terminated at bulkhead connectors integrated into the system housing. This design allows external detachable fibers to be connected and replaced as needed while preserving the internal coupling efficiency achieved during manufacturing. [rpmclasers]
AI Image Prompt 5: "Hybrid laser system schematic showing internal pigtailed laser diode connected to bulkhead connector with external detachable fiber cable, technical cutaway diagram with labeled components and optical path indicators"
This hybrid approach is particularly valuable for OEM equipment manufacturers who need to balance system reliability with field serviceability. The internal pigtailed section ensures stable laser-to-fiber coupling performance, while the external detachable fiber enables end-user replacement without requiring factory-level optical alignment expertise. [rpmclasers]
When designing laser systems for OEM applications, manufacturers must evaluate multiple factors including required coupling efficiency, environmental operating conditions, maintenance accessibility, and total cost of ownership. For sealed medical devices operating in sterile environments, fully pigtailed designs offer superior contamination resistance and regulatory compliance simplicity. For industrial systems requiring periodic fiber replacement due to mechanical wear or process contamination, hybrid architectures with internal pigtailing and external connectorization provide optimal balance. [alibaba]
B2B suppliers serving the laser diode market should demonstrate ISO 13485 certification for medical applications, maintain factory facilities exceeding 1,400m² to support volume production and dedicated R&D zones, and achieve on-time delivery rates of at least 98.5% to ensure supply chain reliability. [alibaba]
The M⊃2; factor quantifies how closely a real laser beam approaches ideal Gaussian beam performance, with lower values indicating superior focusing capability and beam propagation characteristics. An M⊃2; value of 1.0 represents a perfect Gaussian beam (theoretical ideal), M⊃2; below 1.5 indicates excellent beam quality suitable for precision applications, while M⊃2; above 2.0 is acceptable for general illumination but offers limited focusing capability. High-quality fiber-coupled laser sources should achieve M⊃2; values below 1.5, with advanced systems reaching M⊃2; below 1.2 to approach diffraction-limited performance. [sunlonge]
Both pigtailed and fiber-coupled (connectorized) laser diodes can achieve similar M⊃2; performance when properly designed. The beam quality is primarily determined by the laser diode chip characteristics and the optical design of the coupling system, rather than whether the fiber is permanently attached or connectorized. However, pigtailed systems maintain consistent M⊃2; performance over time because the coupling alignment remains fixed, whereas connectorized systems may experience beam quality degradation if connectors are improperly mated or contaminated. [sunlonge]
Superior beam quality directly translates to tighter focusing, better spatial resolution, and more efficient coupling into downstream optical systems. For precision laser cutting applications, small depth of focus (DOF) resulting from low M⊃2; values (1.05-1.15) concentrates energy with high precision, though requiring precise height control and flat materials. For thick plate cutting and uneven materials, higher M⊃2; values (multimode systems) provide greater tolerance to focus position variations with DOF typically ranging from 6-10mm. [laserspechub]
Medical laser applications particularly benefit from superior beam quality, as tighter focusing enables tissue-selective ablation with reduced collateral damage to surrounding healthy tissue. The 532nm wavelength combined with M⊃2; below 1.2 provides ophthalmologists with precise control for retinal photocoagulation procedures, minimizing thermal spread while achieving therapeutic objectives. [intelmarketresearch]
Pigtailed laser diodes demonstrate superior long-term stability in harsh environmental conditions due to their sealed construction that protects the critical coupling interface from dust, moisture, temperature fluctuations, and mechanical vibrations. The permanent fiber attachment eliminates connector-related failure modes including contamination-induced insertion loss, mechanical wear from repeated mating cycles, and thermal expansion mismatch at connection points. Field deployments in industrial environments consistently demonstrate that pigtailed systems require less frequent maintenance interventions compared to connectorized alternatives. [smartbuy.alibaba]
Temperature stability testing of fiber coupling systems reveals that properly designed laser beam couplers maintain high coupling efficiency across operating temperature ranges, with pointing stability better than 10μrad/°C. This thermal performance is critical for OEM applications where equipment operates across wide ambient temperature ranges or experiences internal thermal variations during operation. [mouser]
The primary disadvantage of pigtailed laser diodes is the difficulty of fiber replacement if damage occurs. Since the fiber is permanently sealed within the housing, any fiber breakage or degradation typically requires replacement of the entire laser module. For applications where fiber damage is likely due to mechanical stress, chemical exposure, or repeated flexing, connectorized fiber-coupled systems offer field replaceability that reduces total cost of ownership. [rp-photonics]
OEM equipment designers should conduct failure mode and effects analysis (FMEA) during the design phase to determine whether fiber damage is a credible failure mode in their specific application. If fiber damage probability is low and environmental sealing is critical, pigtailed designs offer superior value. If fiber replacement is anticipated during the equipment lifecycle, hybrid architectures with internal pigtailing and external connectorization provide optimal balance. [hanstcs-laser]
Pigtailed laser diodes typically command higher initial pricing compared to equivalent-power connectorized modules due to the precision alignment and permanent sealing processes required during manufacturing. However, the total cost of ownership calculation must account for maintenance costs, downtime expenses, and reliability-related warranty claims over the equipment lifecycle. For OEM manufacturers producing high-volume medical devices or telecommunications equipment, the superior reliability of pigtailed designs often justifies the premium initial cost. [alibaba]
Bulk purchasing strategies for B2B suppliers should emphasize performance metrics including coupling efficiency consistency batch-to-batch, qualified operational lifetime (target >20,000 hours), and factory certifications relevant to the target application sector. Leading OEM laser suppliers demonstrate response times under 1 hour for technical inquiries, on-time delivery rates exceeding 98.5%, and reorder rates above 25% indicating sustained customer satisfaction. [alibaba]
The global laser diode market is experiencing robust growth, with edge-emitting devices maintaining 46.13% market share in 2025 driven by telecommunications, industrial processing, and medical applications. Low-power diodes below 1 watt led unit shipments with 41.47% share in 2025, while high-power modules above 10 watts are projected to grow at 12.69% CAGR through 2031. This growth trajectory reflects increasing adoption of laser technology across manufacturing automation, medical therapeutics, and optical sensing applications. [brandnewdiode]
The shift toward high-power, high-efficiency fiber coupled laser systems continues as industries seek to increase operational efficiency and reduce energy consumption. Advanced fiber coupled designs capable of generating more powerful light while consuming less energy are becoming increasingly attractive for applications ranging from industrial manufacturing to medical therapies. [linkedin]
When evaluating fiber coupled lasers versus pigtailed laser diodes, OEM engineers should prioritize application-specific requirements including operating environment (temperature range, contamination exposure, vibration), required coupling efficiency and stability, maintenance accessibility constraints, regulatory compliance requirements for medical/aerospace applications, and budget allocation for initial capital versus lifecycle costs. [alibaba]
For sealed medical devices, sterile pharmaceutical processing equipment, and telecommunications infrastructure, pigtailed configurations offer superior value through enhanced reliability and reduced maintenance burden. For industrial laser processing systems, research instrumentation, and prototype development platforms where flexibility and fiber replaceability are valuable, connectorized fiber-coupled systems provide operational advantages. [smartbuy.alibaba]
Collaborating with established laser diode manufacturers who specialize in OEM solutions ensures access to customization capabilities, technical support, and quality consistency. Aiming Laser Technology has served OEM customers across medical instrumentation, industrial automation, and scientific research sectors since 2012, offering customized single-mode and multimode fiber coupled laser modules with wavelengths from 405nm to 1064nm and output powers from 1mW to 20W. This breadth of offering enables OEM customers to source optimized laser solutions that precisely match their application requirements without over-specifying costly features or compromising performance with undersized components. [exhibitors.electronica]
Both fiber coupled lasers and pigtailed laser diodes deliver precision optical beam transmission, with selection depending primarily on application-specific priorities. Pigtailed laser diodes excel in applications demanding maximum coupling stability, environmental sealing, and long-term reliability without field serviceability requirements. Their permanently sealed construction makes them ideal for medical devices, telecommunications infrastructure, and industrial OEM equipment where maintenance access is limited. [hanstcs-laser]
Connectorized fiber coupled lasers offer flexibility advantages for research, prototyping, and applications requiring periodic fiber replacement, though at the cost of reduced coupling stability and increased maintenance requirements. Hybrid architectures combining internal pigtailing with external connectorization represent an increasingly popular compromise, delivering factory-optimized coupling performance while enabling field-replaceable external fibers. [smartbuy.alibaba]
For OEM manufacturers seeking to optimize beam delivery performance, partnering with experienced laser technology suppliers who offer customization capabilities, comprehensive technical support, and proven quality systems ensures successful product development and long-term market competitiveness.
Q1: What is the primary difference between a fiber coupled laser and a pigtailed laser diode?
A: The primary difference lies in the fiber attachment method—pigtailed laser diodes feature permanently sealed fibers within the housing for maximum stability, while fiber coupled lasers may use detachable connectors allowing fiber replacement but with potential coupling variability. [rpmclasers]
Q2: Which technology offers better coupling efficiency?
A: Both technologies can achieve similar coupling efficiencies (30-50%), but pigtailed designs maintain more consistent performance over time due to permanent factory alignment, while connectorized systems may experience variability from repeated connection cycles. [ozoptics]
Q3: Are pigtailed laser diodes suitable for high-power applications?
A: Yes, pigtailed designs are well-suited for high-power applications because the permanent fiber attachment enables superior thermal integration with the laser package heat sink, effectively managing heat at the coupling point. [photonicsonline]
Q4: Can I replace the fiber on a pigtailed laser diode if it gets damaged?
A: No, the fiber is permanently sealed within the housing, so fiber damage typically requires replacing the entire laser module—this is the primary tradeoff for enhanced reliability and environmental sealing. [rp-photonics]
Q5: Which industries benefit most from fiber coupled laser technology?
A: Medical applications (surgery, ophthalmology, dermatology), industrial processing (welding, cutting, marking), telecommunications, optical sensing (LiDAR, spectroscopy), and laser pumping for solid-state and fiber laser systems all extensively utilize fiber coupled laser technology. [brandnewdiode]
