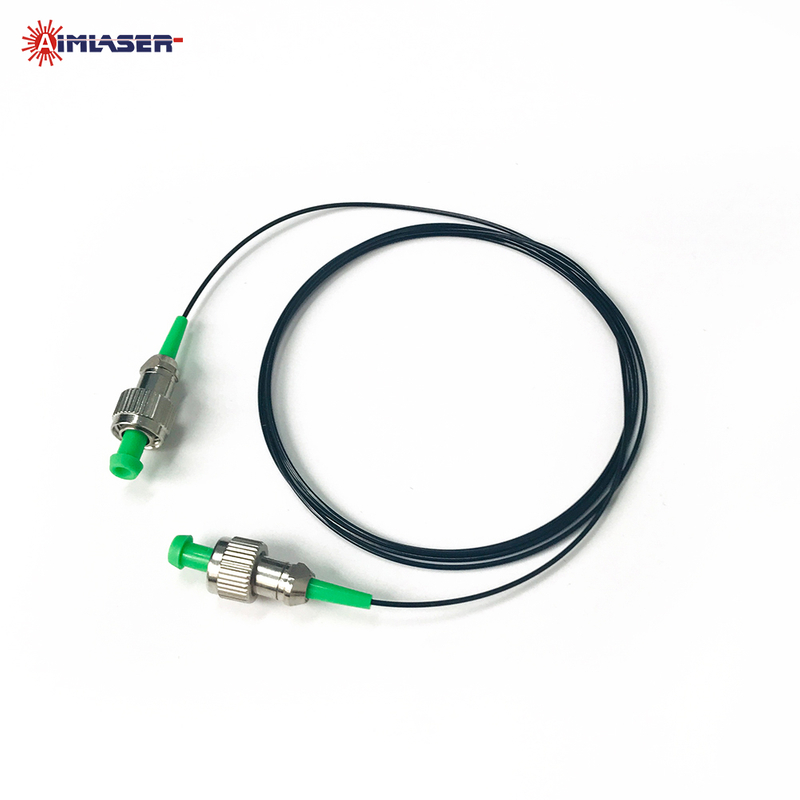

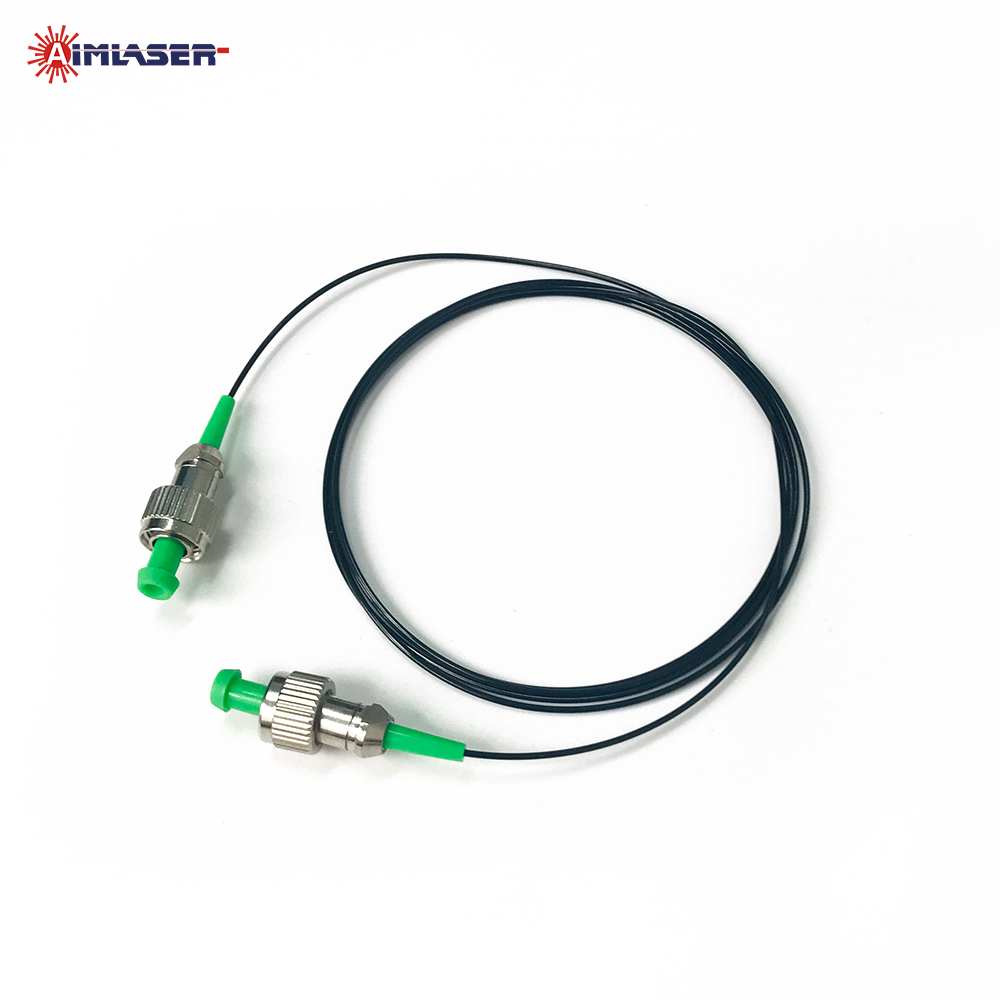

Fiber Optic Patch Cord Single Mode Multimode Fiber Jumper Cable

Fiber Optic Patch Cord

Our Fiber Optic Patch Cords are designed for reliable optical signal and laser power transmission in a wide range of photonics and biomedical applications. We offer single-mode, polarization-maintaining single-mode, and multimode fiber options with a wide selection of fiber core sizes, connectors, wavelengths, and cable lengths.

With excellent environmental stability, low insertion loss, good repeatability, and reliable interconnection performance, our fiber patch cords feature a robust protective layer and strong tensile resistance for demanding applications. Connector types, fiber specifications, cable length, and optical coatings can be customized according to specific requirements.

Typical applications include spectroscopy, illumination, laser diode (LD) power transmission, medical instruments, optogenetics, and flexible high-power laser delivery.

Features

• Wide Fiber Selection – Available in single-mode, polarization-maintaining, and multimode configurations.

• Low Optical Loss – Designed for efficient and reliable light transmission.

• Excellent Repeatability – Provides consistent optical performance for repeated connections.

• Reliable Interconnection – Good connector compatibility and intermateability.

• Robust Protection – Thick protective layer provides enhanced durability and tensile resistance.

• Wide Wavelength Range – Suitable for applications from 400 nm to 1600 nm.

• Flexible Customization – Fiber, connector, cable length, and optical coating can be customized to meet specific application requirements.

Specifications

Item	Specification
Product Type	Fiber Optic Patch Cord / Fiber Jumper
Fiber Type	Single Mode / Polarization-Maintaining Single Mode / Multimode
Fiber Core Diameter	3 / 3.5 / 4 / 5 / 5.5 / 9 / 50 / 62.5 / 105 / 200 / 400 / 600 / 800 μm
Wavelength Range	400–1600 nm

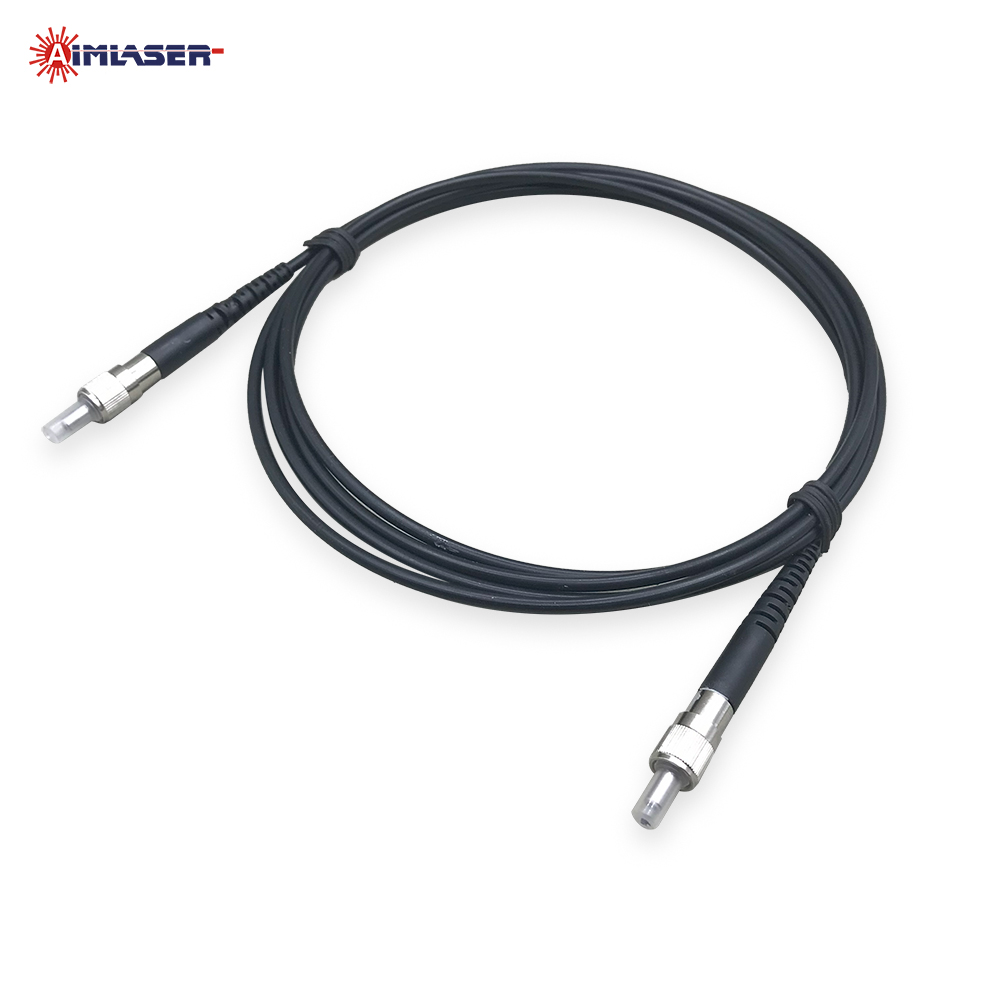

Connector Options	FC/PC / FC/APC / SMA905 / Custom
Custom Connector	Floating / Open-End Connector Available
Cable Length	Customizable
Optical Coating	Customizable according to wavelength and application
Insertion Loss	Low
Repeatability	Excellent
Intermateability	Excellent
Protective Layer	Thick Protective Layer
Tensile Resistance	High
Environmental Stability	Excellent
Applications	Spectroscopy, Illumination, LD Power Transmission, Medical Instruments, Optogenetics, High-Power Laser Delivery

※ Payment and Shipment

• MOQ: 10pcs

• Delivery time: 3-20 days

• Shipment Terms: FOB Xi'an China, EXW, DAP, DDP

• Payment Terms: T/T, Western Union, PayPal

• Shipment Method: DHL, UPS, FedEx or TNT
