In modern industrial laser systems, Gaussian beam distribution is the foundation for precise cutting, marking, alignment and sensing performance. As a manufacturer of industrial laser modules and OEM laser solutions, Aiming Laser Technology Co., Ltd. (AimLaser) sees every day how Gaussian beam characteristics directly determine real‑world application results. [en.wikipedia]
In this article, we will explain Gaussian beam distribution from an engineer's practical perspective, show how it impacts system design and process quality, and share insights from our experience supplying laser diode modules and fiber‑coupled lasers to global OEM customers since 2012. [edmundoptics]
A Gaussian beam is an idealized laser beam whose transverse intensity profile follows a Gaussian function: highest intensity at the center, smoothly decreasing toward the edges. This is the fundamental TEM00 mode of many lasers and is favored because it can be focused more tightly and diverges less than other beam profiles. [rp-photonics]
Key properties of a Gaussian beam include: [edmundoptics]
- Gaussian intensity distribution: Symmetric around the beam center, falling off smoothly with radial distance. [en.wikipedia]
- Beam waist: The location where the beam diameter is smallest; intensity is highest here. [edmundoptics]
- Rayleigh range: The distance from the waist where the beam area doubles and intensity drops to half on axis. [rp-photonics]
- Divergence angle: Far from the waist, the beam expands with a characteristic divergence depending on wavelength and waist size. [edmundoptics]
Because real industrial laser modules are never perfectly ideal, engineers treat Gaussian beams as a useful design model and then evaluate how closely the actual beam matches the theory. [edmundoptics]
For OEM instrument builders, system integrators and industrial end‑users, Gaussian beam distribution is not just a mathematical concept; it is a practical performance lever. When the beam profile is well‑controlled and close to Gaussian, you gain: [en.wikipedia]
- Predictable focusing: Easier to achieve a small, well‑defined spot size at the working distance. [edmundoptics]
- High energy density: More energy concentrated at the focal point, crucial for marking, cutting and micromachining. [laserline]
- Better repeatability: Stable Gaussian‑like beams lead to consistent process quality across production batches. [tjslasers]
- Simpler optical design: Optical elements (lenses, mirrors, beam expanders) can be sized and aligned using established Gaussian beam propagation formulas. [dielslab.unm]
From AimLaser's experience supporting customers in machine vision, laser alignment, industrial sensing and heat treatment related applications, the projects with the best yield and lowest rework are almost always those where the beam distribution is characterized early and matched to the process window. [made-in-china]
The beam waist w0 is the most compact point of the beam, and it sets the starting point for how the beam will expand as it propagates. The Rayleigh range zR describes the region around the waist where the beam remains relatively small and near‑collimated. Engineers often define process working distances within or near this region to maintain high intensity and stable spot size. [edmundoptics]
No real laser is perfectly collimated: every beam diverges. For a Gaussian beam, divergence increases when the waist radius is smaller or when the wavelength is longer. The beam parameter product (BPP)—the product of waist radius and far‑field divergence—provides a concise way to quantify beam quality; an ideal Gaussian beam has a BPP of approximately λ/π. [edmundoptics]
For OEM designers, BPP and divergence directly influence:
- Minimum achievable spot size at a given working distance. [rp-photonics]
- Depth of focus and tolerance to mechanical positioning errors. [edmundoptics]
- Choice of collimating and focusing optics. [dielslab.unm]
Real beams deviate from the ideal Gaussian model. The M⊃2; factor is a widely used metric to describe this deviation: [en.wikipedia]
- M⊃2; ≈ 1: Near‑ideal Gaussian beam. [rp-photonics]
- M⊃2; > 1: Broader focus and higher divergence than an ideal Gaussian beam with the same waist. [edmundoptics]
Industrial users typically specify maximum acceptable M⊃2; values to ensure that their modules deliver the required focusing performance. [edmundoptics]
In many industrial and additive manufacturing processes, non‑Gaussian beam shapes such as top‑hat, ring or rectangular profiles are gaining attention due to their specific heat distribution benefits. [patents.google]

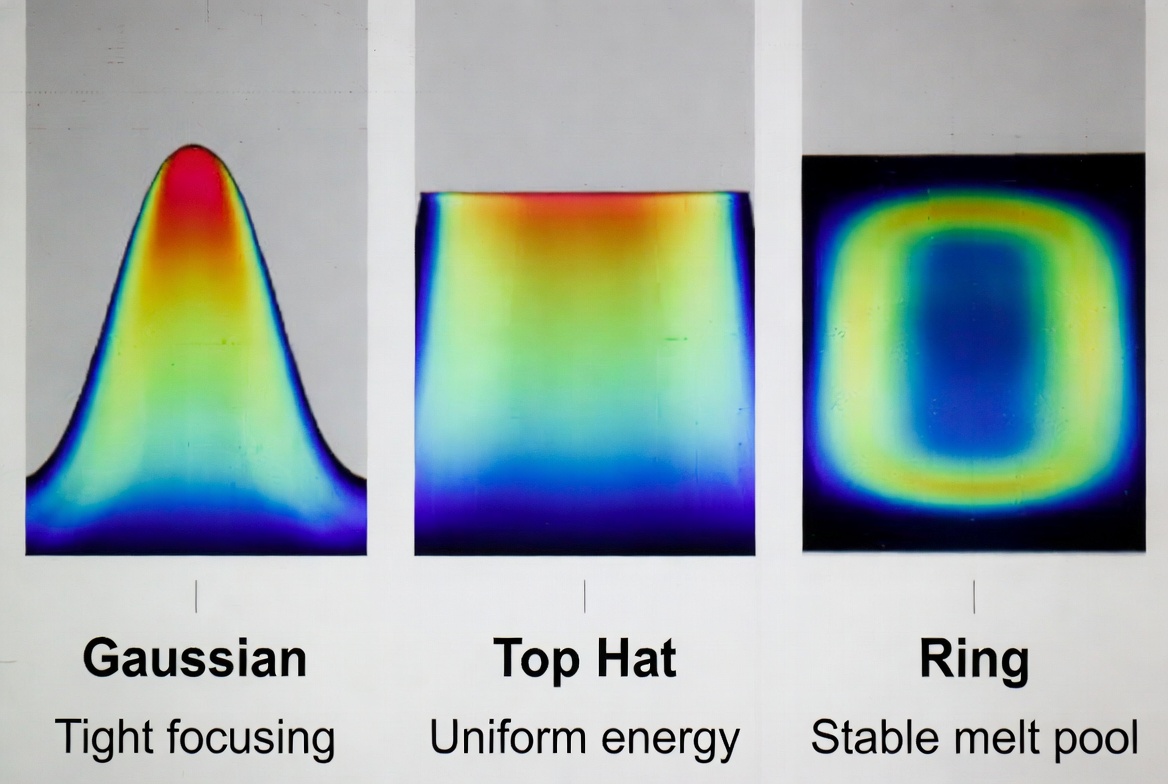

Below is a concise comparison of common profiles:
Beam profile | Intensity distribution | Typical advantages | Common applications |
|---|---|---|---|
Gaussian | Peak at center, smooth decay to edges (en.wikipedia) | Tight focusing, simple optics, well understood theory (edmundoptics) | General marking, alignment, sensing, machine vision (edmundoptics) |
Top-hat | Nearly uniform across beam, sharp edges (sciencedirect) | Even energy distribution, reduced hot spots (laserline) | Precision heat treatment, laser surface hardening, uniform ablation (laserline) |
Ring-shaped | Intensity concentrated in a ring (sciencedirect) | Controlled melt pool in powder bed fusion, reduced spatter (sciencedirect) | Metal additive manufacturing, selective heating (sciencedirect) |
Rectangular / line | Shaped into rectangles or lines (patents.google) | Matches part geometry, efficient scanning (laserline) | Machine vision line illumination, scanning, web inspection (laserline) |
Even when a top‑hat or line profile is required, design usually starts from a Gaussian beam and then uses beam‑shaping optics such as Powell lenses or diffractive optical elements to achieve the target distribution. [patents.google]
Recent research in laser‑based powder bed fusion of metals shows how transforming Gaussian beams into alternative shapes can significantly change melt pool behavior and part quality. For instance: [sciencedirect]
- Top‑hat and ring-shaped beams can spread energy more evenly over the powder bed, improving process efficiency and mechanical stability. [sciencedirect]
- Non‑rotationally symmetric beams can create more homogeneous temperature fields, reducing spatter and defects caused by complex fluid flow in the melt pool. [sciencedirect]
Similarly, in surface hardening and heat treatment, high‑power diode lasers with well‑controlled beam shapes have been shown to offer energy‑efficient hardening of complex component geometries, while enabling precise control of temperature to avoid both under‑ and overheating. [laserline]
These findings confirm what many OEM users observe in production: beam distribution is a critical process parameter on the same level as laser power, scanning speed and focus position. [tjslasers]

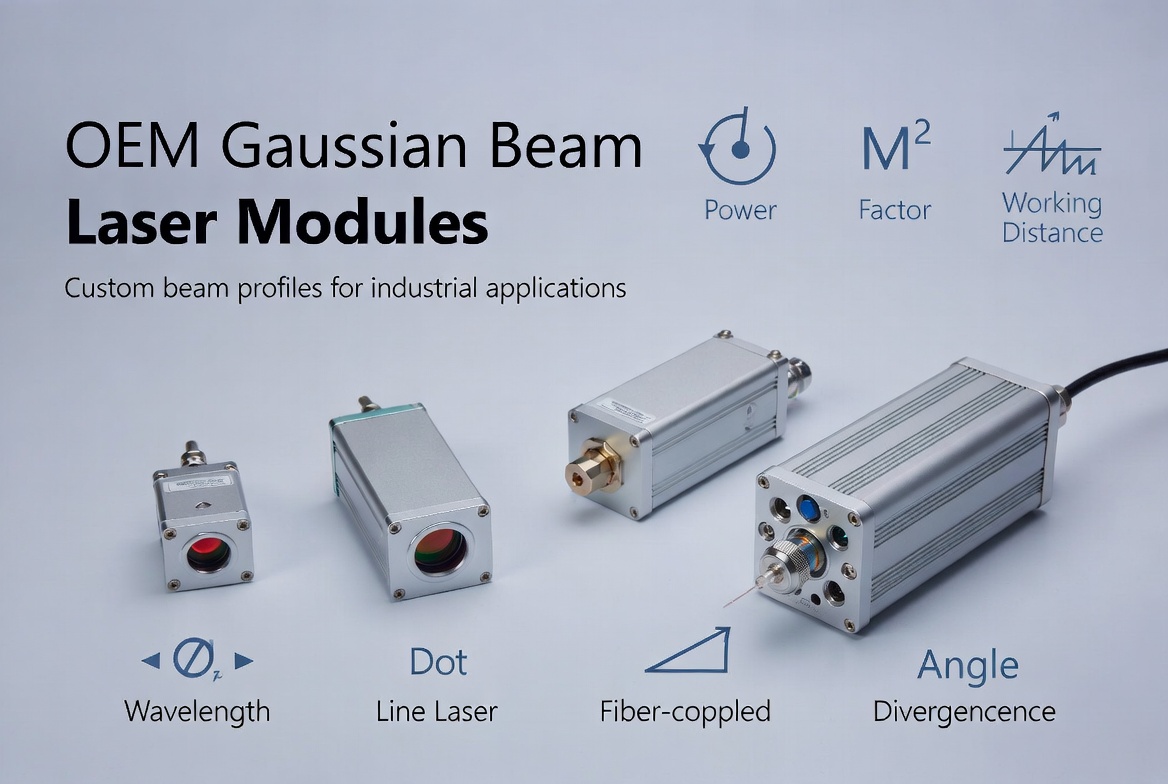

As an OEM laser module manufacturer, AimLaser designs and optimizes products around the practical implications of Gaussian beam propagation. [exhibitors.electronica]
To deliver stable, near‑Gaussian beams, our engineers carefully select: [aiminglaser]
- Laser diodes and fiber sources with suitable mode structure and wavelength (405–1064 nm ranges in many product families). [aiminglaser.en.alibaba]
- Collimating optics to set the beam waist and divergence for the target working distance. [dielslab.unm]
- Powell and cylindrical lenses to convert Gaussian beams into uniform lines for machine vision and alignment tasks. [instagram]
- Stable driving electronics to maintain output power and beam shape under temperature and load variations. [facebook]
Not every application needs the same level of beam quality. Based on field feedback from global OEM clients, typical patterns include: [made-in-china]
- Machine vision line laser: More sensitive to line uniformity and edge sharpness than to perfect M⊃2;. [exhibitors.electronica]
- Precision marking and micromachining: Requires low M⊃2;, well‑defined waist and tight focus tolerance. [tjslasers]
- Alignment and positioning: Focuses on visible brightness and clear geometry over long distances; moderate divergence and good stability are key. [aiminglaser]
Our engineering team works with OEM customers to translate these requirements into realistic specifications for beam diameter, divergence, working distance and beam profile. [aiminglaser.en.alibaba]
For engineers or buyers selecting industrial laser modules, the following practical steps can help you evaluate whether a module's Gaussian beam characteristics match your project needs. [made-in-china]
1. Clarify the working distance and spot size.
- Define the typical and maximum working distances in your system.
- Determine the required spot diameter or line width at that distance.
2. Check divergence and initial beam diameter.
- Use the specified divergence (full angle) and initial beam size to estimate spot size at the working distance. [edmundoptics]
- Ensure that the calculated spot size fits your process window.
3. Review M⊃2; or equivalent beam quality data.
- Prefer modules with lower M⊃2; for applications demanding fine focusing. [rp-photonics]
- If M⊃2; is not given, request beam profile measurements or application examples.
4. Inspect beam profile and line uniformity.
- For line lasers, ask for measurement of line intensity along the length, especially if using Powell lens technology. [instagram]
- For dot lasers, check for symmetry and absence of hot spots or satellite peaks.
5. Consider stability across temperature and lifetime.
- Stable drivers and thermal design help preserve Gaussian‑like behavior over time. [facebook]
- Ask for reliability data or references from similar application environments. [laserline]
By following this checklist, you can align your beam distribution requirements with the right industrial laser module specification. [exhibitors.electronica]
Based on more than a decade of working with global OEMs in industries such as machine vision, industrial alignment and laser shooting products, AimLaser has collected several best practices for managing Gaussian beam distribution. [aiminglaser]
Define your process requirements first—tolerances, materials, speeds, safety margins—then derive beam specifications from these constraints. This approach avoids over‑spending on beam quality that brings no practical benefit. [laserline]
Use the Gaussian beam as a stable base and then apply beam-shaping optics to tailor the intensity distribution. For example: [patents.google]
- Add a Powell lens to generate a uniform line for machine vision inspection. [instagram]
- Use cylindrical lenses or diffractive elements to form rectangular or application‑specific patterns. [patents.google]
Lab measurements of Gaussian beam parameters are essential but not sufficient. Always validate modules in real‑world conditions: [tjslasers]
- Actual mounting orientation and mechanical tolerances.
- Real ambient temperature range and vibration levels.
- Target materials, surface finish and motion system dynamics. [sciencedirect]
Our OEM customers who build this validation phase into their development cycles consistently report shorter ramp‑up times and fewer post‑installation adjustments. [aiminglaser.en.alibaba]
Aiming Laser Technology Co., Ltd. (AimLaser) is a China‑based factory focusing on diode laser modules, fiber‑coupled lasers and industrial laser solutions for OEM instrument applications. Since 2012, we have supported customers in sectors including: [linkedin]
- Industrial laser alignment and positioning. [made-in-china]
- Machine vision line lasers and inspection. [exhibitors.electronica]
- Industrial sensing and automation. [aiminglaser]
- Laser shooting products such as training cartridges and targets. [linkedin]
Our product ranges cover wavelengths from around 405 nm to 1064 nm and typical output powers from sub‑milliwatt levels up to tens of watts in certain families, depending on configuration. We offer custom OEM design, including beam shaping, mechanical integration and electronics adaptation to match customers' system requirements. [m.aiminglaser]
If you are designing or upgrading instruments that rely on precise laser beam distribution, partnering with an experienced industrial laser module manufacturer can dramatically shorten your development cycle. [aiminglaser.en.alibaba]
- Need a Gaussian beam line laser for machine vision or web inspection?
- Looking for a custom fiber‑coupled module with specified divergence and beam quality?
- Planning to switch from simple Gaussian profiles to top‑hat or shaped beams for more robust manufacturing processes? [laserline]
Contact Aiming Laser Technology Co., Ltd. today to discuss your application requirements and get an OEM laser module configured for your exact Gaussian beam distribution and performance targets. [m.aiminglaser]
Many diode and solid‑state lasers naturally operate close to the fundamental Gaussian mode, which offers tight focusing, predictable propagation and simpler optical design compared with more complex beam shapes. This makes Gaussian beams a practical default for industrial modules used in marking, alignment and sensing. [made-in-china]
You should consider alternative profiles when you need a more uniform temperature or intensity distribution, such as in metal powder bed fusion, surface hardening or certain high‑precision heat treatment tasks. Research shows that ring and top‑hat beams can improve melt pool stability and reduce defects in these processes. [sciencedirect]
The M⊃2; factor tells you how much a real beam deviates from an ideal Gaussian beam. A higher M⊃2; leads to larger focused spots and higher divergence for the same optics, so your system may require larger lenses or shorter working distances to achieve the same resolution or energy density. [edmundoptics]
Yes. AimLaser provides custom OEM modules, combining different laser sources, optics and mechanical mounts to achieve specific beam diameters, divergence, M⊃2; ranges and shaped profiles, including uniform line beams using Powell lenses. Our team can also suggest trade‑offs between performance, cost and manufacturability. [instagram]
You will get faster and more accurate recommendations if you prepare: [exhibitors.electronica]
- Target application and material.
- Required working distance range.
- Desired spot size or line length/width.
- Acceptable wavelength range and power level.
- Environmental conditions (temperature, vibration, protection level).
