Laser Wavelength: | |
---|---|
Output Power: | |
Line Width: | |
Fan Angle: | |
Housing: | |
Availability: | |
Quantity: | |
AM635U30G1
AIMLASER, ELITELASER
90132000.99
Red Visible
635nm
Pulse CW Line TTL

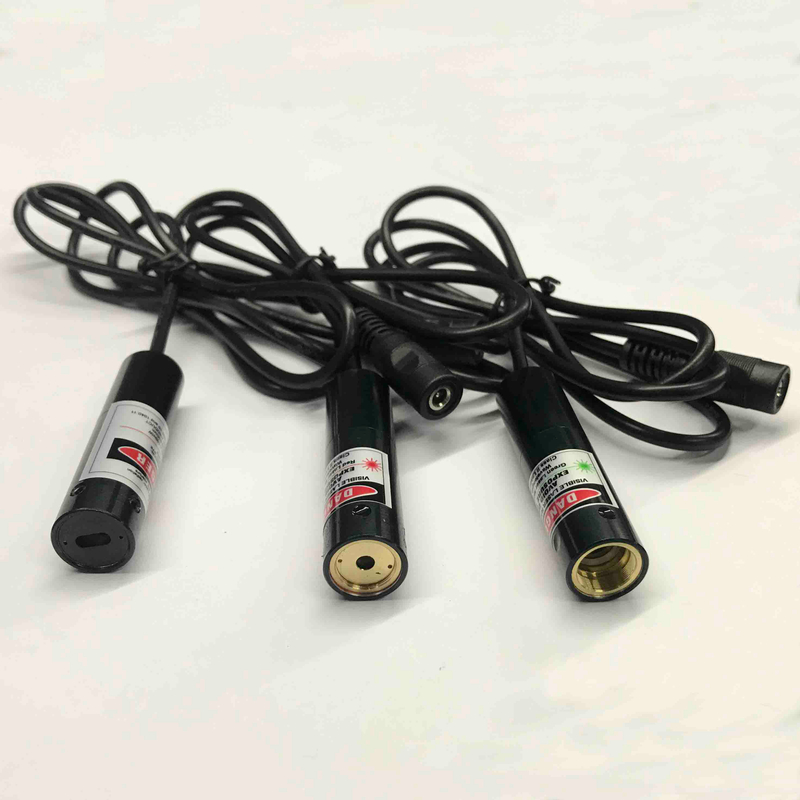

AimLaser provides customized Uniform Line Laser Diode Modules which use high quality Powell lens and possess characteristics of compact size, narrow line width, high stability and reliability.
The thinnest line can be 10um; fan angle is optional from 10°to 90° and wavelength ranges from 405nm to 850nm. The input voltage is also various from 3V to 12V DC.

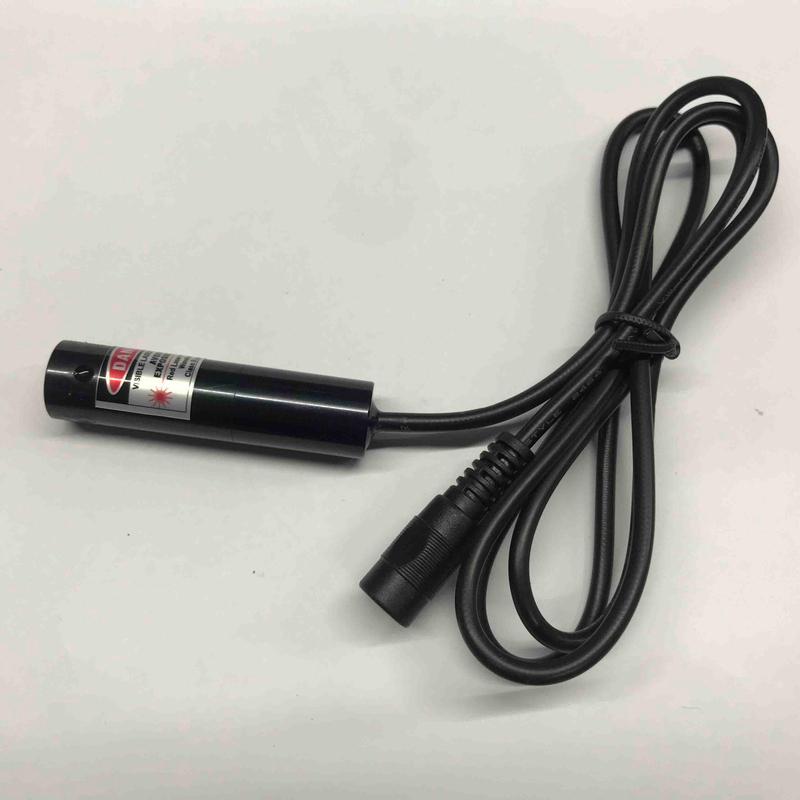

The AM635U30G1 is a red line laser module subassembly with collimated beam using high quality Powell Lens. The maximum laser output power is 30.0mW at 635nm. Energy is uniformly distributed.
ITEM | SPECIFICATIONS |
Model Number | AM635U30G1 Powell Lens Uniform Line Laser Module |
Wavelength | 635nm |
Output Power | ≤30.0mW |
Output Aperture | Φ4.0mm |
Line Width | ≤150um@400mm |
Fan Angle | 30° |
Divergence | 0.6mrad |
Optics | Optical Glass Lens |
Operating Current | <160mA |
Operating Voltage | 3-5V DC |
CDRH Class | Class IIIb |
Circuit control | Auto Power Control (APC) |
Circuit Protection | Static, Surge, and Reverse Polarity Protected |
Working Temperature | -10℃ to 50℃ |
Storage Temperature | -40℃ to 80℃ |
Dimensions | Φ14x55mm (PCB Inside) |
Case Material | Brass or Aluminum Black Anodized (Insulation) |
Life Span | 10,000Hrs |
PPT Visions
3D Vision System
Laser Profilometer
Laser Contour Scanner
Machine Visual Products
Machine Vision Cameras
Industrial Smart Cameras
Laser Scanning System
Laser Measuring Profilometer
Laser Scribe Positioning Machines
Industrial Visual Measurement System
Industrial Robot Visual Guidance System
Automatic Equipment Visual Positioning System
Provide One year warranty
Offer customized solutions
Normal sample lead time: within 2 weeks
Conform to ROHS, FDA, IEC, SGS standards
ISO9001:2008 certified laser module manufacturer
Using original Laser Diodes from Arima, Osram, Nicha and branded chips
MOQ: 1pc
Delivery time: 3-20 days
Shipment Terms: FOB Xi'an China
Payment Terms: T/T, Western Union, PayPal
Shipment Method: DHL, UPS, FedEx or TNT
※ Contact us
