When engineers ask about laser beam expander vs collimator, they are usually trying to solve one practical problem: how to keep a beam as tight, stable, and usable as possible over a long distance such as 100m. The short answer is that the "best" option depends on your starting beam quality, divergence, wavelength, power level, and whether your goal is to reduce beam spread at distance or prepare the beam for downstream focusing.
A laser beam expander increases the diameter of a collimated input beam and produces a larger collimated output beam. Because the beam diameter increases, divergence decreases, which is exactly why beam expanders are used in laser scanning, remote sensing, interferometry, and long-distance beam delivery.
In simple terms, a beam expander trades beam diameter for lower divergence. That tradeoff matters because the tighter the divergence, the smaller the beam will usually remain at longer working distances. For many industrial and OEM systems, this is the difference between a beam that stays on target and a beam that spreads too much before reaching the work surface.
A collimator is used to make light rays more parallel, usually by taking a diverging beam and converting it into a more parallel output. In laser systems, people often use the term loosely, which creates confusion, because some beam expanders are also described as collimating devices depending on the optical arrangement.
For product and system design, the key point is this: a collimator is typically chosen to improve beam parallelism at the source, while a beam expander is chosen to change beam size and divergence in a controlled way. In high-precision OEM applications, that distinction affects alignment tolerance, spot size at distance, and the final energy density on target.

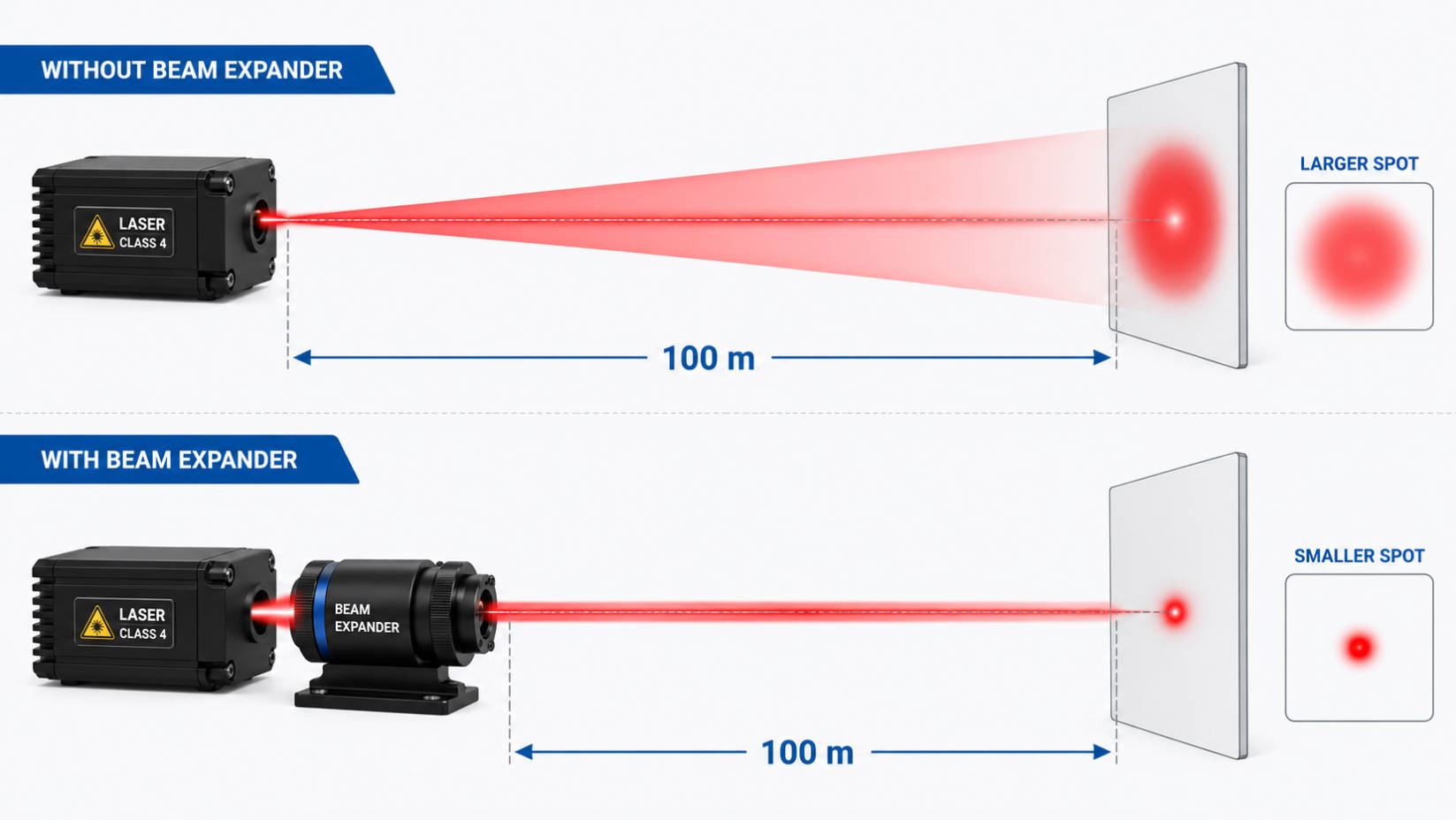

At 100m, beam divergence becomes a major performance factor. A small improvement in divergence can produce a large improvement in final spot diameter, especially when the original beam is narrow. Edmund Optics' example shows that using a 10X beam expander reduced beam diameter at 100m from 101 mm to 20 mm in the illustrated case.
| Factor | Beam Expander | Collimator |
|---|---|---|
| Main purpose | Increase beam diameter and reduce divergence | Make rays more parallel and improve beam alignment |
| Best use at 100m | Reducing beam spread over long distance | Stabilizing output from a diverging source |
| Effect on spot size | Usually smaller spot at distance if input beam is already well-collimated | Depends on source geometry and optical quality |
| OEM relevance | Strong for long-range beam delivery and custom integration | Strong for source conditioning and alignment modules |
The practical lesson is that if your beam is already reasonably collimated, a beam expander often gives better long-distance results than simply relying on a collimator alone. If the source beam is not cleanly collimated first, expansion may only magnify the problem.
To achieve the tightest beam at 100m, the main design target is low divergence, not just a larger housing or more optics. Beam diameter and divergence are linked, so an optical design that increases the outgoing diameter can also reduce spread over distance.
This is why beam expanders are widely used in laser ranging, remote sensing, and laser machining systems where a small far-field spot matters. In industrial OEM projects, that same logic applies when a client needs consistent beam delivery across machines, production lines, or environmental conditions.

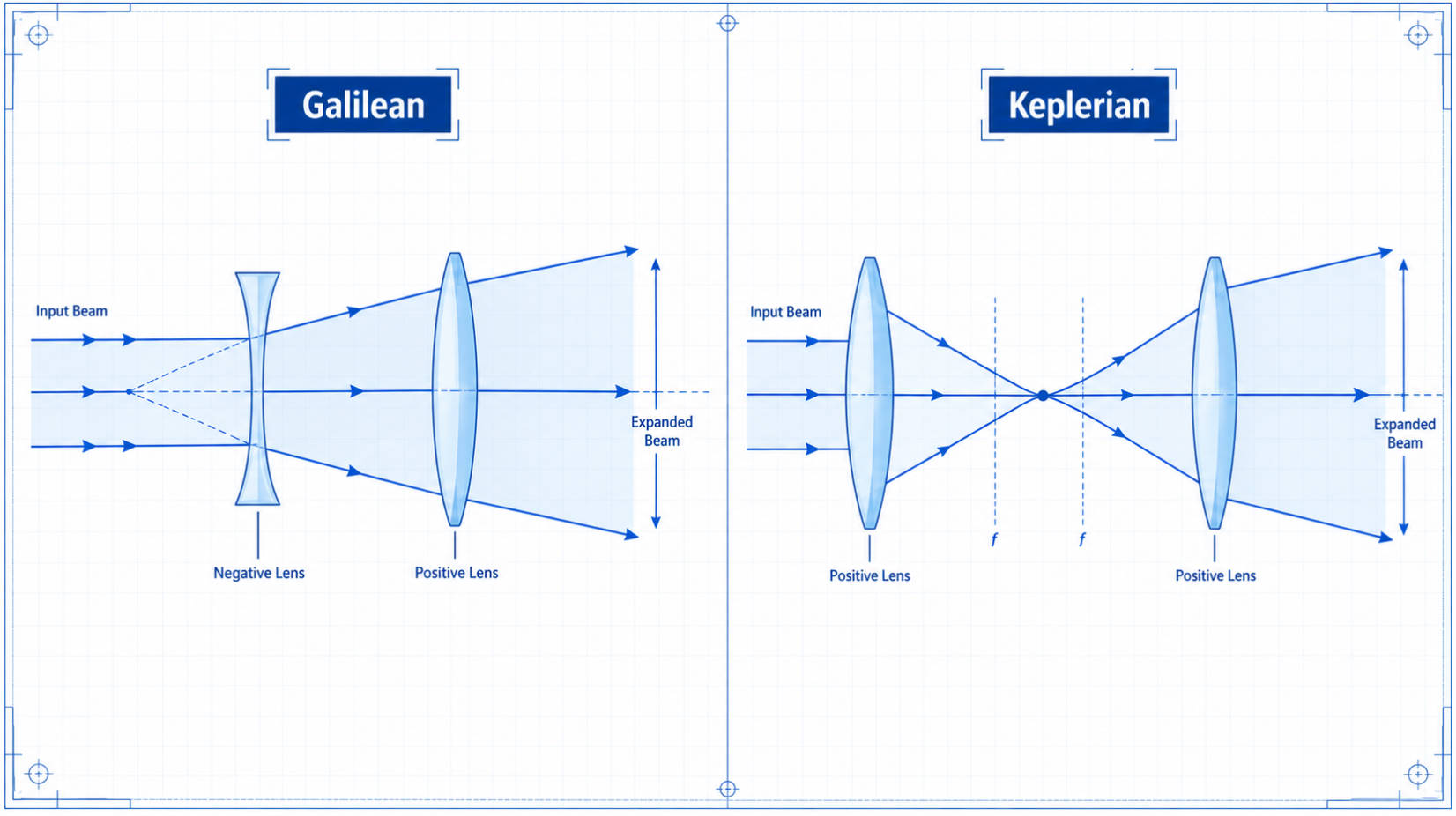

Most industrial beam expanders use a Galilean or Keplerian arrangement. Keplerian designs can support spatial filtering because they include an internal focus, but that same internal focus can be a problem in high-power systems due to heat and wavefront distortion.
Galilean designs avoid the internal focus, which makes them better suited to high-power laser applications. For OEM users, that often translates into better thermal behavior, fewer alignment risks, and easier integration into compact laser modules.
- High-power laser systems.
- Compact OEM modules.
- Applications where internal focus is undesirable.
- Systems needing spatial filtering.
- Lower-power setups where internal focus is acceptable.
Many buyers focus only on beam diameter, but the real performance picture is broader. A larger beam can reduce divergence, but it may also increase sensitivity to alignment error, wavelength mismatch, and mechanical tolerance.
You should also consider:
- Wavefront quality.
- Thermal stability.
- Coating compatibility.
- Working wavelength.
- Pointing stability.
- System packaging constraints.
For OEM manufacturing, these details matter because the best optical solution is not always the one with the highest theoretical magnification. It is the one that performs consistently in real production conditions.
Here is a practical selection workflow we use when advising OEM and industrial customers.
1. Measure the input beam diameter.
Confirm the beam size at the aperture, not just after a lens or fixture.
2. Measure or estimate divergence.
If the beam already diverges too much, a beam expander can help, but only after source quality is confirmed.
3. Define the working distance.
In this article, that distance is 100m, so far-field behavior matters more than near-field appearance.
4. Choose the optical architecture.
Use Galilean for high power and compact systems; use Keplerian when spatial filtering is more important.
5. Check wavelength and coating compatibility.
Optical performance must match the actual laser wavelength, not just the nominal band.
6. Validate with mechanical tolerance.
Even a good optical design can fail if the housing introduces beam wander or alignment drift.
From an OEM perspective, the question is rarely "Which optic is better?" The real question is which configuration gives the most stable output under production constraints. In export-focused manufacturing, that means accounting for vibration, thermal cycling, assembly tolerance, and end-user handling.
For custom industrial laser modules, beam expanders are especially valuable when the downstream process depends on a narrow footprint at distance. That includes measurement systems, marking systems, and long-range illumination modules where beam consistency affects product reliability and customer satisfaction.
Suppose a laser source produces a 1 mm beam with measurable divergence. If you leave it untreated, the beam can grow significantly by the time it reaches 100m. Edmund Optics' example shows how a 10X beam expander dramatically reduced beam diameter at 100m in a modeled case, from 101 mm to 20 mm.
That does not mean every system will achieve the same result. It does show the principle: expansion before propagation can dramatically reduce far-field beam spread when the source and optics are properly matched. This is why beam expander selection should be treated as a system-design decision, not just a component purchase.
If your team is designing an OEM laser module for long-distance beam control, ask for a custom optical evaluation before choosing the final beam expander or collimator. A small change in optics can create a major change in performance at 100m, so the safest path is a design review based on wavelength, power, beam diameter, and target distance.
Not exactly. A beam expander increases beam diameter and reduces divergence, while a collimator is used to make rays more parallel from a diverging source.
If the input beam is already well-collimated, a beam expander is often the better choice because it can reduce divergence and improve far-field spot size.
Yes. Edmund Optics shows that a beam expander can reduce beam diameter at 100m by lowering divergence, even though the beam becomes larger near the source.
Because it avoids an internal focus, which helps reduce heat-related wavefront errors and makes it better suited to high-power applications.
They should confirm wavelength, beam diameter, divergence, power level, thermal behavior, mechanical tolerance, and the actual working distance.
