A laser line generator turns a round laser beam into a line for inspection, alignment, and measurement. In industrial systems, its job is not only to create a visible line, but to create a line that is stable, straight, and consistent across the working area.
This matters because many vision systems depend on brightness consistency. If the middle of the line is too bright and the edges are too weak, the image can become uneven. That can reduce measurement accuracy and make defect detection less reliable.
For that reason, laser line generators are widely used in machine vision, 3D profiling, conveyor inspection, and industrial positioning. They are often selected when the main requirement is a clean and uniform line rather than a complex projection pattern.
Uniformity is one of the most important performance indicators in line projection. A more uniform line helps cameras capture more balanced data, which improves edge detection and surface analysis.
In practical terms, this means the system can process objects more consistently. For example, when a product moves across a production line, the inspection software receives a clearer signal if the illumination stays even from end to end.
Diffractive optical elements, often called DOEs, use micro-structured surfaces to shape light into custom patterns. These patterns can include dots, lines, grids, multi-line arrays, and other structured-light configurations.
Unlike a standard laser line generator, a DOE is built for pattern flexibility. That makes it useful when the application needs more than a single straight line. In some systems, the goal is to project several spots at once, cover a larger area, or create a pattern that supports 3D sensing and calibration.
DOEs are especially useful in optical systems where the projected shape itself carries information. That can include structured-light measurement, special inspection tasks, compact projection modules, and custom beam-splitting designs.
DOEs are a strong fit when the optical system needs one of the following:
- Multiple spots or multiple lines.
- A custom projection shape.
- Structured-light measurement.
- Beam splitting in a compact package.
- A pattern designed for a very specific industrial task.
Their main advantage is flexibility. Their main challenge is that the design is usually more tightly linked to the wavelength and operating conditions of the system.

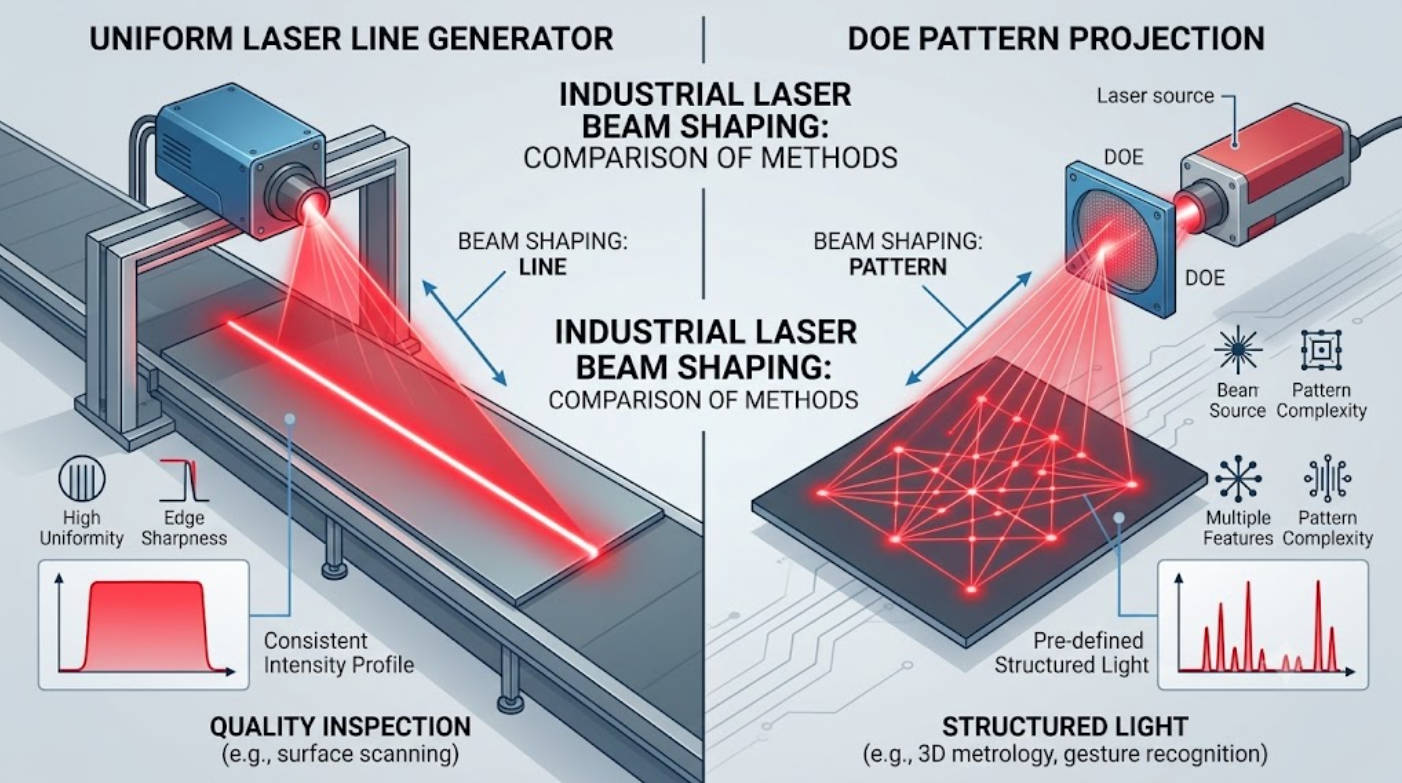

The simplest way to compare these technologies is to look at the output they are designed to produce. A laser line generator is usually the better choice when the main goal is a highly uniform line. A DOE is usually the better choice when the main goal is a more complex optical pattern.
A laser line generator tends to be easier to define in terms of performance. Buyers usually care about line width, fan angle, straightness, working distance, and brightness consistency. A DOE, by contrast, is usually judged by pattern shape, spot arrangement, diffractive efficiency, and the degree to which the output matches the target design.
| Factor | Laser Line Generator | Diffractive Optical Element (DOE) |
|---|---|---|
| Main output | Uniform straight line | Custom line, dots, grids, or complex patterns |
| Primary strength | High line consistency | High pattern flexibility |
| Best for | Machine vision, alignment, profiling | Structured light, custom projection, beam splitting |
| Design focus | Line quality and stability | Optical pattern design |
| Wavelength sensitivity | Generally lower | Generally higher |
| OEM use | Standardized modules | Special-purpose optical projects |
For classic machine vision line scanning, the laser line generator usually performs better. It produces a cleaner and more consistent line, which helps the camera read edges, surfaces, and height variations more accurately.
That is why line generators are commonly used in inspection systems, barcode-related imaging setups, 3D laser profiling, and surface measurement. When the application depends on a single illuminated line, simplicity often creates better results.
A DOE becomes more attractive when the machine vision task requires a more advanced illumination pattern. For example, if the system needs several lines or points across a wider region, a DOE can provide a more efficient way to distribute light across the scene.

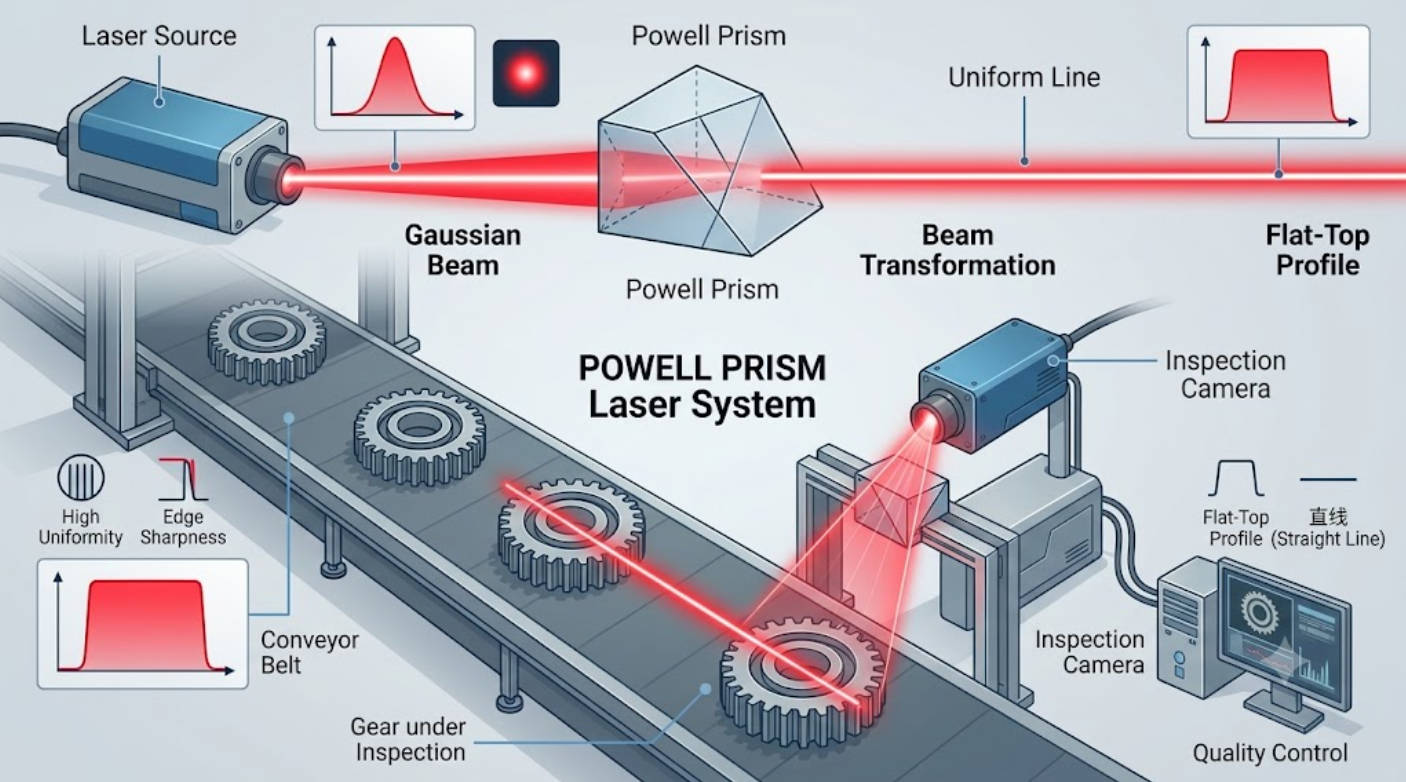

In many industrial line-laser systems, Powell prism or Powell lens designs are still preferred because they help solve the problem of Gaussian beam intensity. A normal laser beam is usually brightest in the center, but a Powell-based design redistributes that energy more evenly across the line.
This gives the system a more usable line for inspection and measurement. It also improves consistency when the product surface, distance, or image processing requirements are demanding.
Another practical advantage is that Powell-based line generators are often well suited to OEM production. They are relatively clear to specify, easier to standardize, and useful in applications where stable performance matters more than optical novelty.

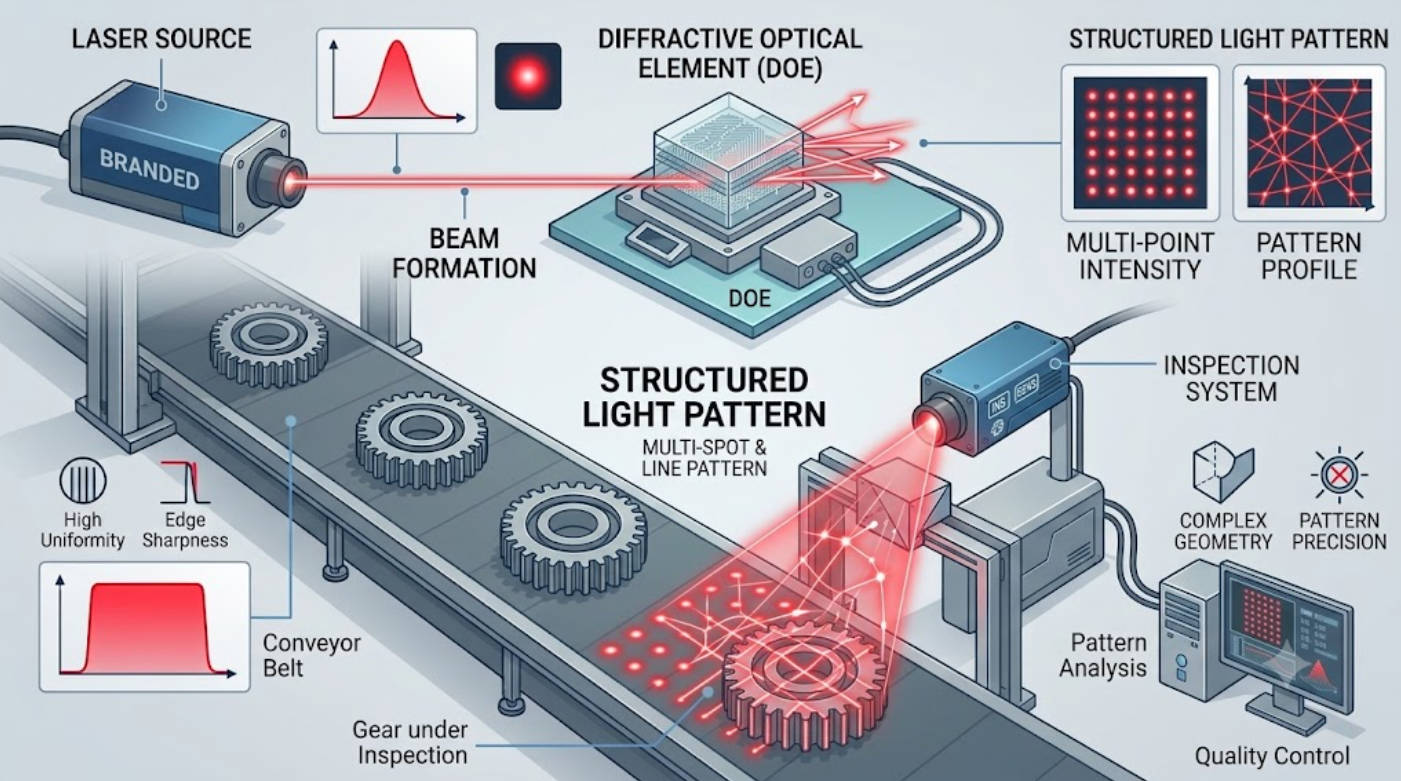

A DOE is the stronger option when the system needs optical creativity. If the project calls for a multi-spot pattern, special structured light, or a nonstandard beam layout, a DOE can often deliver the needed shape in a compact design.
This is particularly valuable in advanced inspection environments. Some applications need the light pattern itself to reveal features that a single line cannot show. In those cases, the diffractive approach offers more freedom.
DOEs also work well when the project is designed around a highly specific target. For example, an OEM may want a projection pattern that matches a sensor layout, fills a certain area, or interacts with a custom camera geometry.
From an OEM manufacturing standpoint, the choice is not only technical. It also involves repeatability, volume production, integration effort, and long-term supply stability.
Laser line generators are often easier to standardize because their output requirements are clear. OEM buyers usually know what they want: a stable line, a defined working distance, and reliable performance under industrial conditions. This makes the product easier to specify and easier to reproduce in batches.
DOEs are more custom-driven. That can be an advantage when a brand wants product differentiation or application-specific optical behavior. However, it also means the design and validation process usually needs more care.
For brand owners, distributors, and equipment makers, the right choice depends on whether they need a dependable line source or a custom optical pattern that supports a specialized function.
A practical selection process can simplify the decision.
1. Define the inspection or projection goal.
2. Decide whether the system needs one line or a more complex pattern.
3. Confirm the working wavelength and optical geometry.
4. Check whether uniformity, efficiency, or pattern flexibility matters most.
5. Match the design to the production scale and integration requirements.
If the project depends on precise line measurement, a laser line generator is usually the safer choice. If the project depends on custom structured light, a DOE is often the more suitable option.
In real-world industrial settings, the two technologies often serve different roles.
Laser line generators are commonly used in:
- Conveyor inspection.
- 3D surface profiling.
- Dimension measurement.
- Alignment systems.
- Industrial automation modules.
DOEs are commonly used in:
- Structured-light sensing.
- Multi-point projection.
- Calibration systems.
- Custom optical pattern generation.
- Special inspection and imaging tasks.
The distinction is not about which technology is universally better. It is about which one solves the application problem with fewer compromises.
When comparing the two options, several technical details should be reviewed early in the project.
The first is wavelength compatibility. Optical performance can shift when the source wavelength changes, so the design must match the laser source closely.
The second is power handling. If the system runs at higher optical power, the material choice, thermal stability, and mounting structure all become important.
The third is alignment sensitivity. Some designs are more forgiving during assembly, while others require tighter mechanical control. For OEM production, this can affect yield and final system stability.
The fourth is cost versus function. A more complex DOE may solve a difficult pattern problem, but a well-optimized line generator may be better if the application only needs a straight, high-quality line.
In many industrial projects, the most effective optical solution is not the most complicated one. It is the one that matches the application with the least compromise.
If the system is built for inspection, measurement, or line scanning, a uniform laser line often gives better practical value than a visually more complex projection. If the system is built for structured-light analysis or specialized pattern generation, a DOE may provide the exact flexibility needed.
This is why many OEM projects begin with the application requirement rather than the optical device itself. Once the imaging goal is clear, the right optical path becomes much easier to define.
If your project depends on a uniform, stable, and easy-to-integrate line source, a laser line generator is usually the best fit. If your project depends on a custom and more complex illumination pattern, a DOE offers greater freedom.
For OEM buyers, the right decision should balance optical output, production consistency, wavelength matching, and long-term application needs. In many cases, the winning solution is the one that keeps the system simple while still meeting the performance target.
No. A laser line generator is designed mainly to create a uniform line, while a DOE is designed to create custom diffractive patterns.
A laser line generator is usually better for standard machine vision line scanning because it provides stronger line uniformity and simpler image analysis.
Yes. A DOE can create a line, but it can also create other shapes such as dots, grids, and multi-line patterns.
They are widely used because they help convert a Gaussian beam into a more uniform line with better brightness consistency.
Yes. A DOE usually offers more pattern flexibility, especially when the application needs a nonstandard optical output.
It depends on the application. Laser line generators are often easier to standardize, while DOEs are better when custom optical behavior is required.
