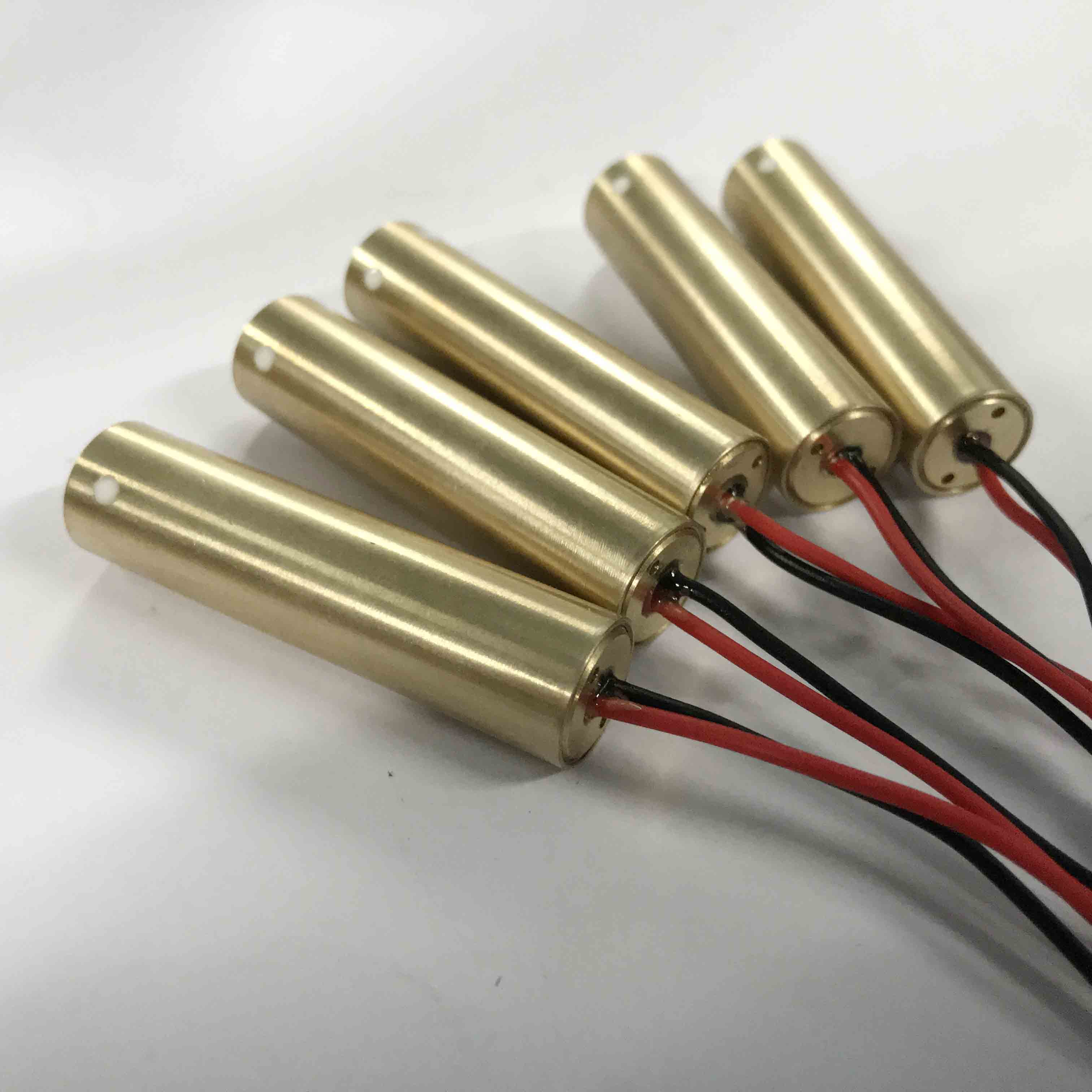

Low Cost 532nm 20mW DPSS Laser Modules Green Laser Beam

Laser Wavelength:
532nm
Laser Color:
Green Dot Laser Beam
Output Power:
20mW
Beam Size:
≤8mm@10m
Housing Material:
12x50mm Full Brass
Availability:
Inquire Add to Basket

Low Cost 532nm 20mW DPSS Laser Modules Green Laser Beam
Low Cost 532nm 20mW DPSS Laser Modules Green Laser Beam

  • AM532D20G1

  • AIMLASER

  • 90132000.99

  • Green, Visible

  • 520nm

  • CW, Dot


Low Cost 532nm 20mW DPSS Laser Modules Green Laser Beam

laser-wavelength-chart

AimLaser provides customized Diode Pumpled Solid State DPSS Laser Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The green laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 532nm 20mW Green DPSS Laser Module Descriptions

The AM532D20G1 is a green laser module subassembly with collimated beam. The maximum laser output power is 20.0mW at 532nm.

※ 532nm 20mW Green DPSS Laser Module Optical and Electrical Characteristics

ITEM SPECIFICATIONS
Model Number AM532D20G1 Green DPSS Laser Module
Wavelength 532nm
Output Power ≤20.0mW
Laser Mode CW
Beam Size ≤8mm@10m
Divergence 0.5mrad
Optics Optical Glass Lens
Operating Current <300mA
Operating Voltage 3VDC
CDRH Class Class IIIa
Circuit control Auto Power Control (APC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature 0℃ to 45℃
Storage Temperature -20℃ to 70℃
Dimensions Φ12x50mm (Driver Inside)
Housing Material Full Brass
Life Span 5,000Hrs

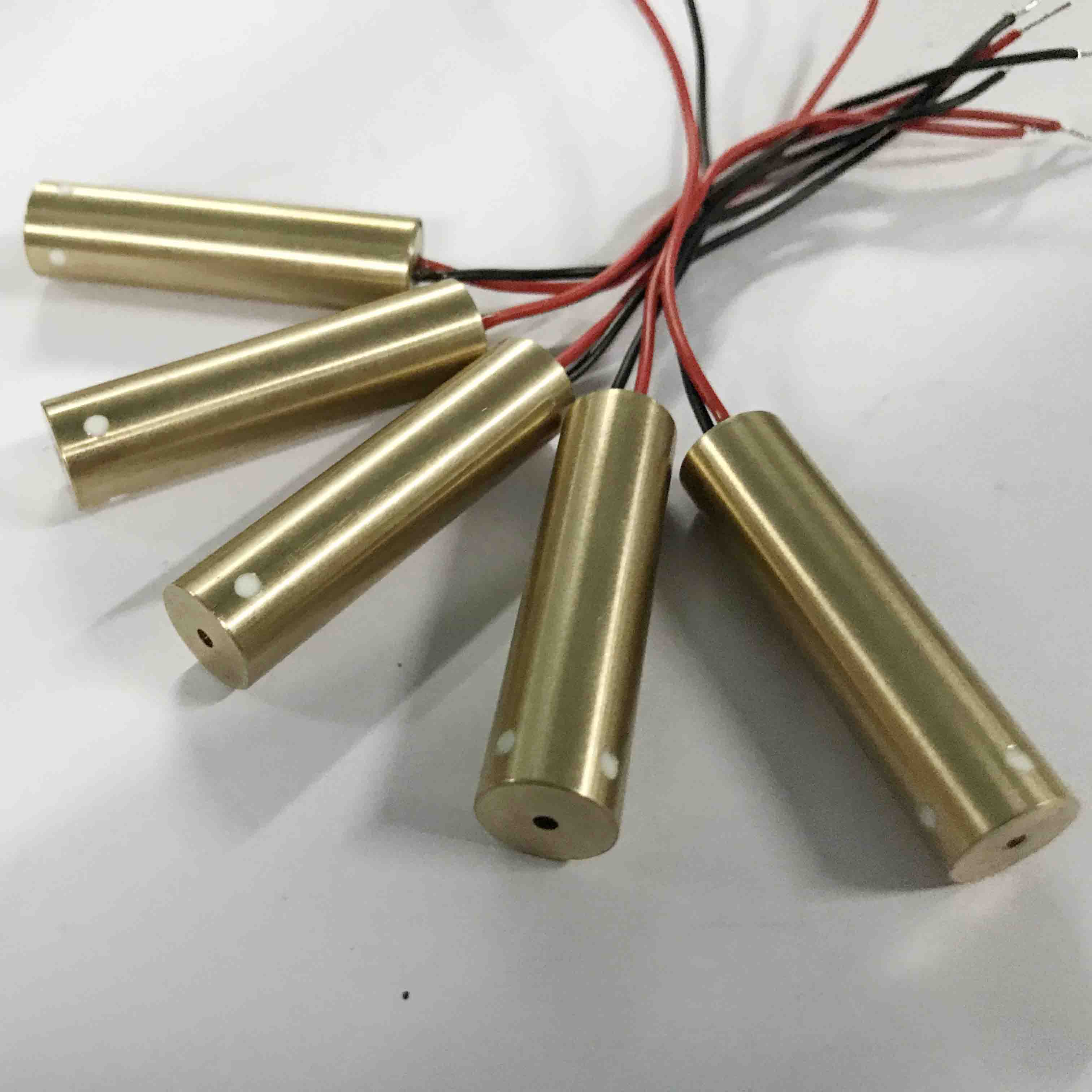

Pulse Laser Modules-AIMLASER Pulse Laser Diode Modules-AIMLASER

※ 532nm Green Laser Module Applications

  • Scientific Research

  • Laboratory Instrument
    Gun Laser Grips
    Gun laser sights

  • Laser aiming devices

  • Laser alignment instrument

  • Laser pointing instrument

  • Laser positioning devices

  • Laser surveying instrument

  • Laser detection equipment

  • Medical Laser Instrument

  • Consumer Products

  • Nightwear Sporting Products

  • Automotive interior Ambient Light

  • OEM Instrumentation

※ Why buy Laser Modules from AimLaser?

  • Provide One year warranty

  • Offer customized solutions

  • Normal sample lead time: within 2 weeks

  • Conform to ROHS, FDA, IEC, SGS standards

  • ISO9001:2008 certified laser module manufacturer

  • Using original Laser Diodes from Arima, Osram, Nicha and branded chips

※ Laser Modules Production Process

105um Multimode Fiber Coupled Laser (7)

※ Laser Modules Production Equipment

laser-modules-production-equipment

※ Laser Modules Testing Equipment

laser-module-testing-equipment

※ Laser Module Payment and Shipment

  • MOQ: 1pc

  • Delivery time: 3-20 days

  • Shipment Terms: FOB Xi'an China

  • Payment Terms: T/T, Western Union, PayPal

  • Shipment Method: DHL, UPS, FedEx or TNT
