AIMLASER
OEM, ODM
China

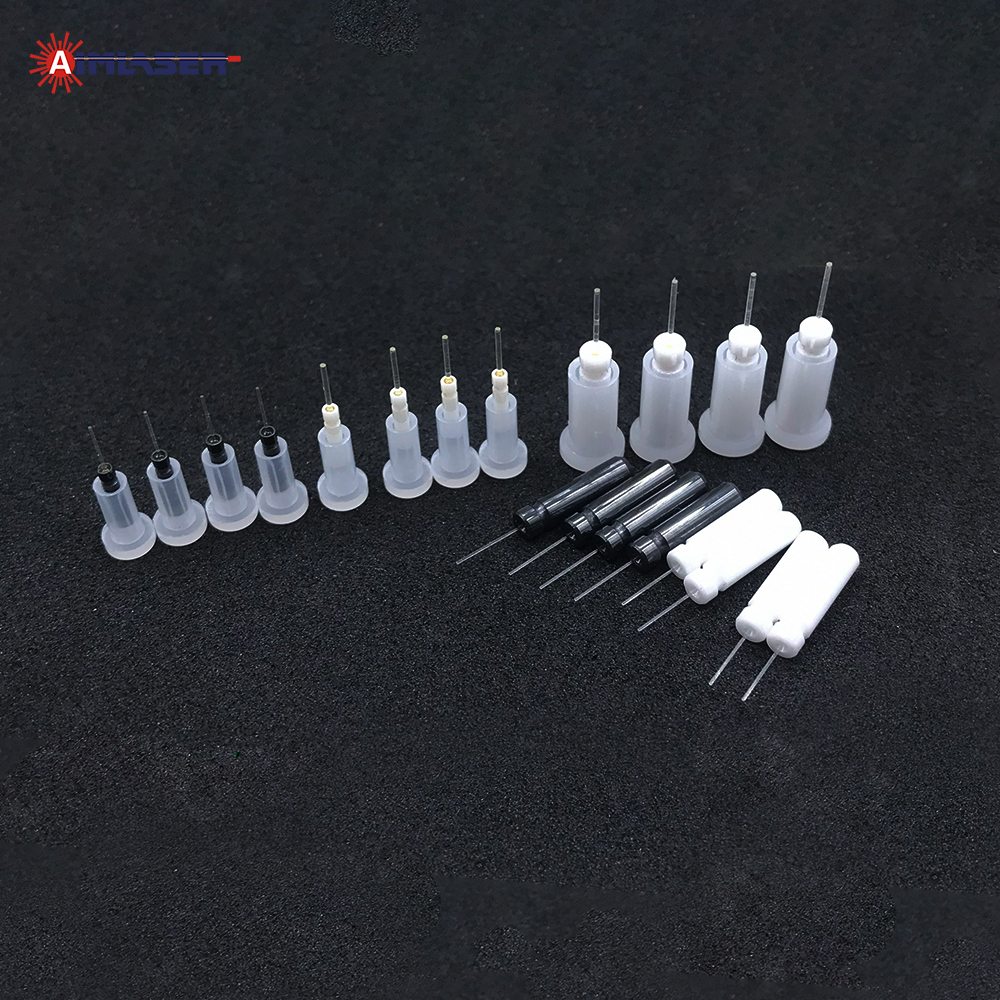

The AIMLASER Optogenetics Ceramic Ferrule is an implantable fiber optic component designed for optogenetics, neuroscience, and life science research. It combines a precision ceramic ferrule with optical fiber to provide efficient light transmission for experimental applications.
The ferrule is available with different fiber core diameters, numerical apertures, fiber lengths, and angled fiber tips to meet various experimental requirements. A biocompatible nano-coating helps reduce tissue irritation, while the special groove design facilitates fixation during implantation. Optional dust caps, ceramic sleeves, and fiber optic patch cords are also available.
High Optical Transmission – ≥85% transmission with low autofluorescence.
Biocompatible Design – Nano-coating helps reduce tissue irritation and inflammatory response.
Low Light Leakage – Dual silica fiber design helps reduce light leakage and back reflection.

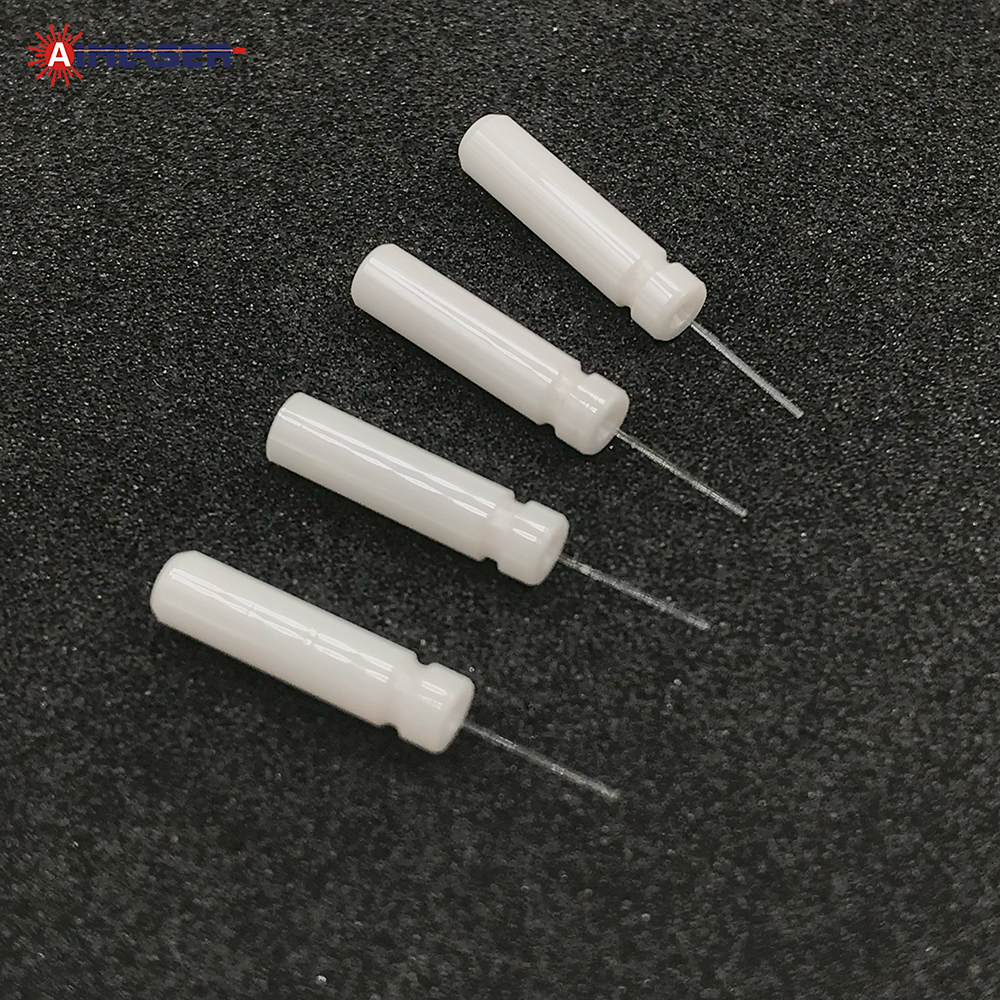

Secure Fixation – Special groove design facilitates stable fixation during implantation.
Precision Fiber Optics – Flat or angled fiber tips provide controlled light delivery.
Customizable – Fiber specifications, length, tip angle, and ferrule dimensions can be customized.
| Item | Specification |
|---|---|
| Product Type | Optogenetics Ceramic Ferrule |
| Application | Optogenetics, Neuroscience, Life Science Research |
| Material | Ceramic + Optical Fiber |
| Fiber Core Diameter | 100 μm / 200 μm / 300 μm / 400 μm |
| Numerical Aperture (NA) | 0.22 / 0.37 / 0.50 |
| Fiber Type | Silica Optical Fiber |
| Fiber Length | 1–20 mm, Customizable |
| Fiber Length Tolerance | ±0.1 mm |
| Fiber Tip Angle | Flat / 30° / 45° / 60° |
| Light Transmission | ≥85% |
| Autofluorescence | Low |
| Ceramic Head Diameter | Ø1.25 mm / Ø2.5 mm |
| Ceramic Head Length | 6.4 mm / 10.5 mm |

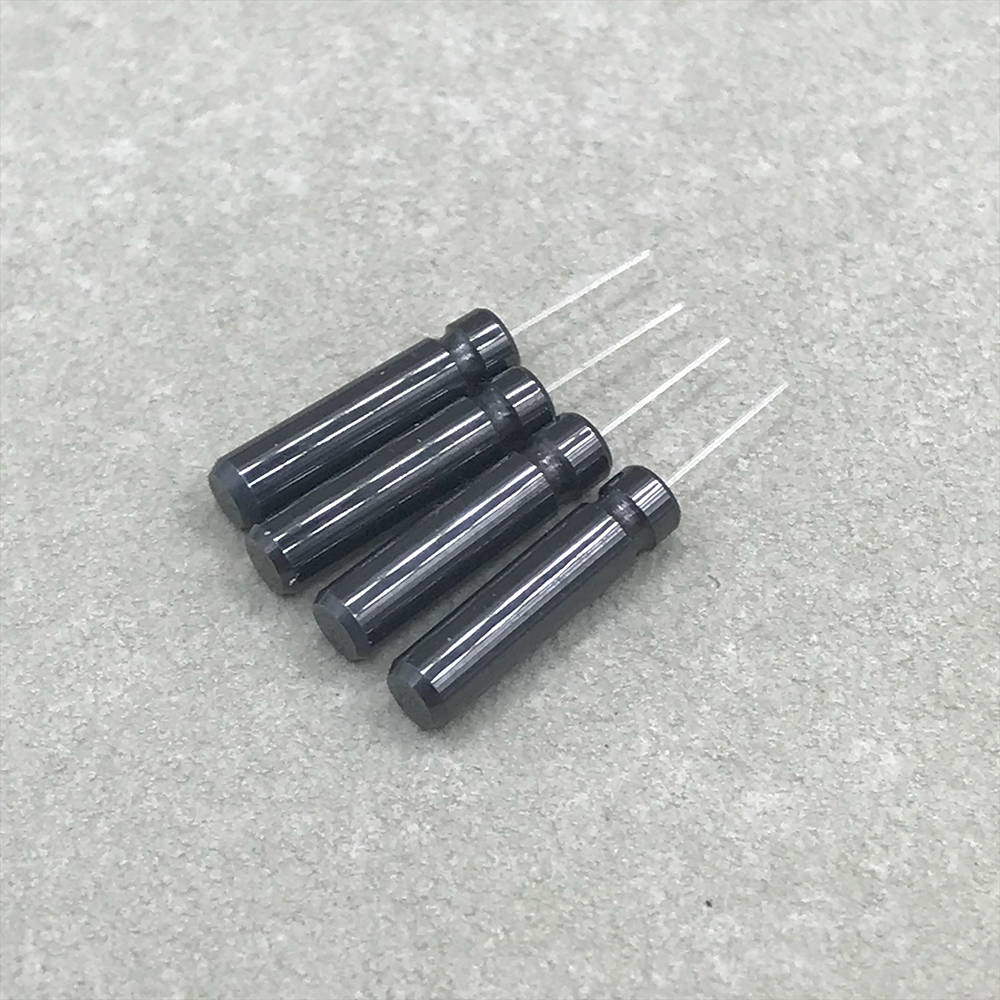

| Ceramic Head Color | White / Black |
| Coating | Biocompatible Nano-Coating |
| Design | Special Fixation Groove |

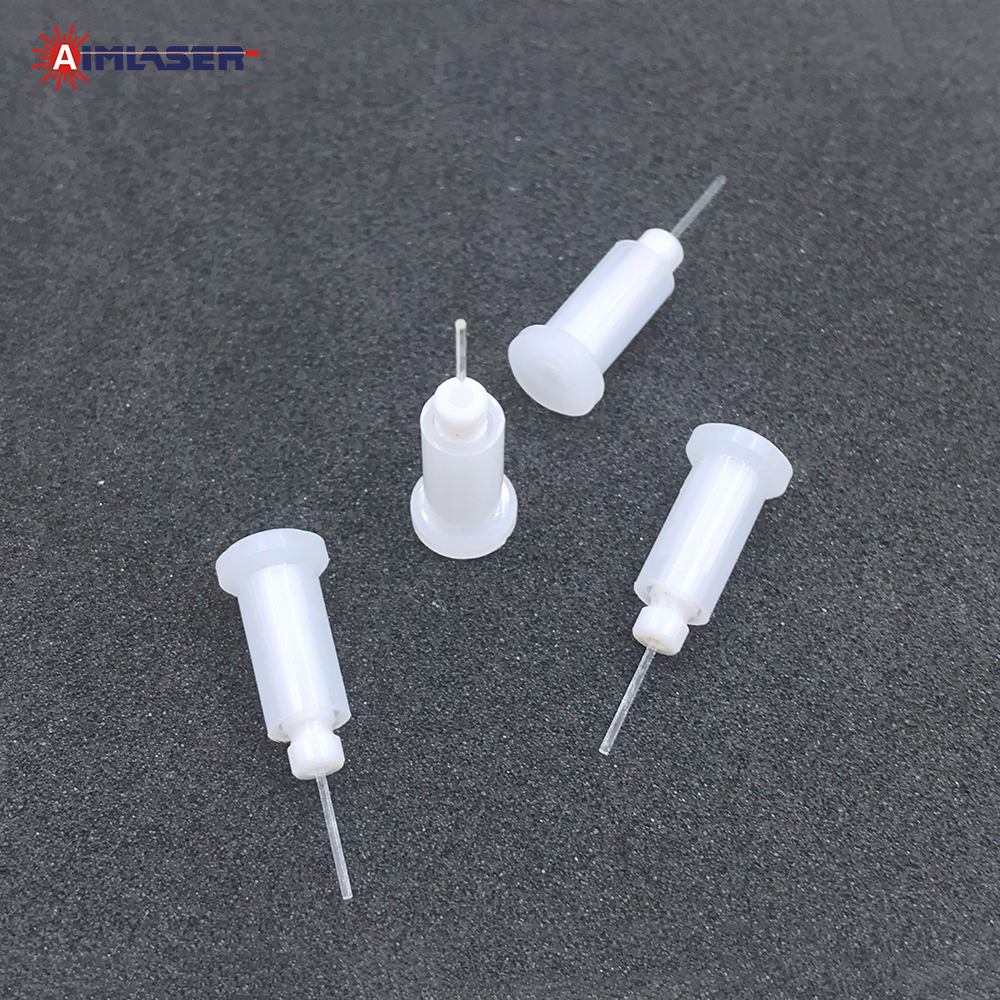

| Accessories | Dust Cap / Ceramic Sleeve / Fiber Optic Patch Cord |
| Customization | Fiber, length, NA, angle and dimensions available |
