Tile leveling looks simple at first glance, but the final result depends on precision. A straight row, even grout joints, and consistent tile height all start with a reliable visual guide. That is why the choice between a single line laser and a cross line laser matters more than many installers expect.
For floor tile, wall tile, and decorative layouts, the laser is not just a tool for convenience. It helps the installer control alignment, reduce errors, and maintain consistency from the first tile to the last. In many projects, the right laser can save time and prevent expensive rework.

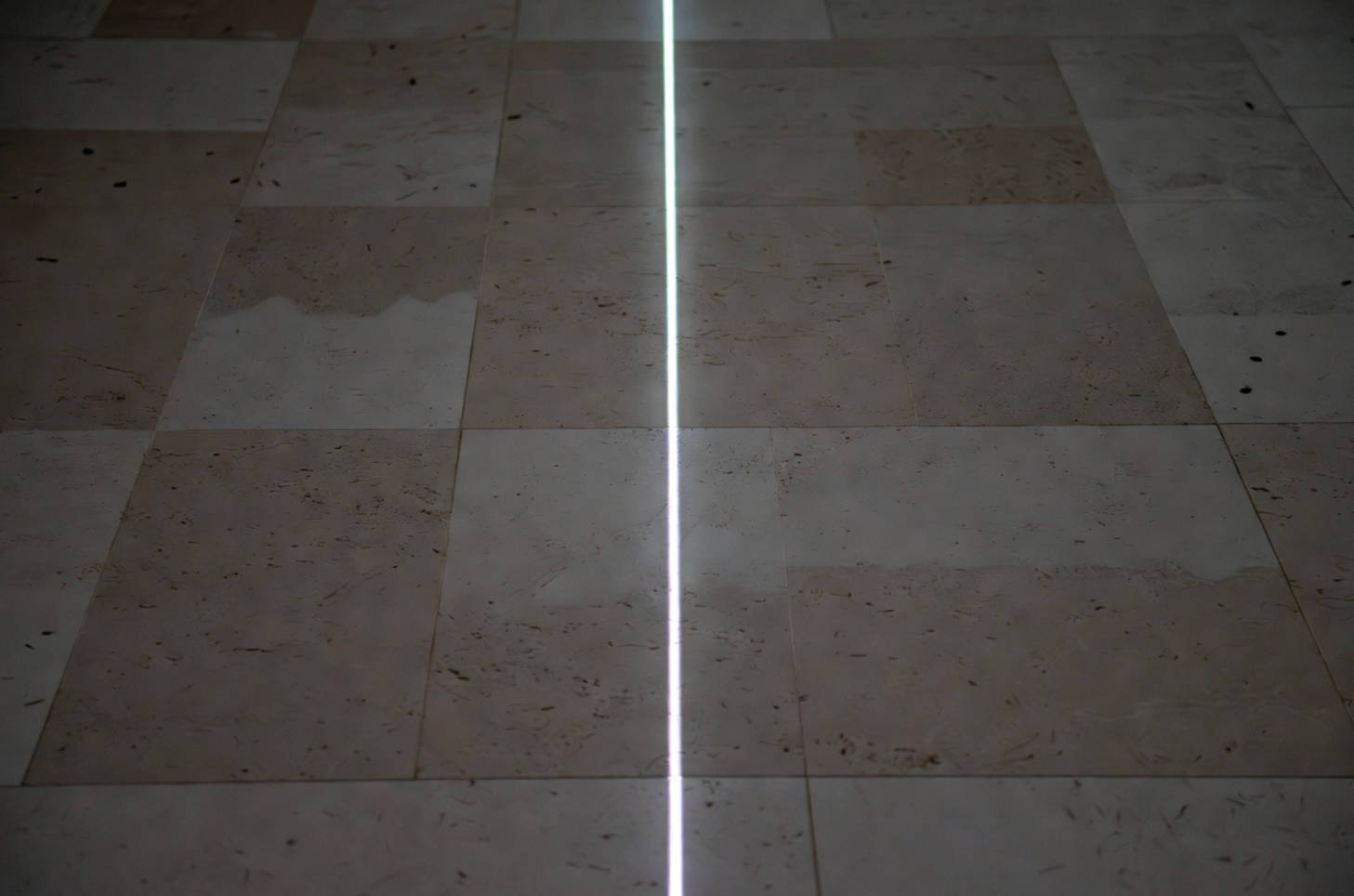

A single line laser projects one straight beam, usually horizontal or vertical. It is designed to create a clear reference line that can be followed across a wall, floor, or long installation path.
This type of laser is often preferred when the installer wants a simple visual guide with minimal distraction. It works especially well in long, narrow spaces, repeated layout runs, or projects where one main control line is enough to guide the work.
- Projects one clean reference line.
- Simple to use and easy to read.
- Works well for long straight layouts.
- Helps maintain focus on one baseline.
- Suitable for controlled, repetitive installations.

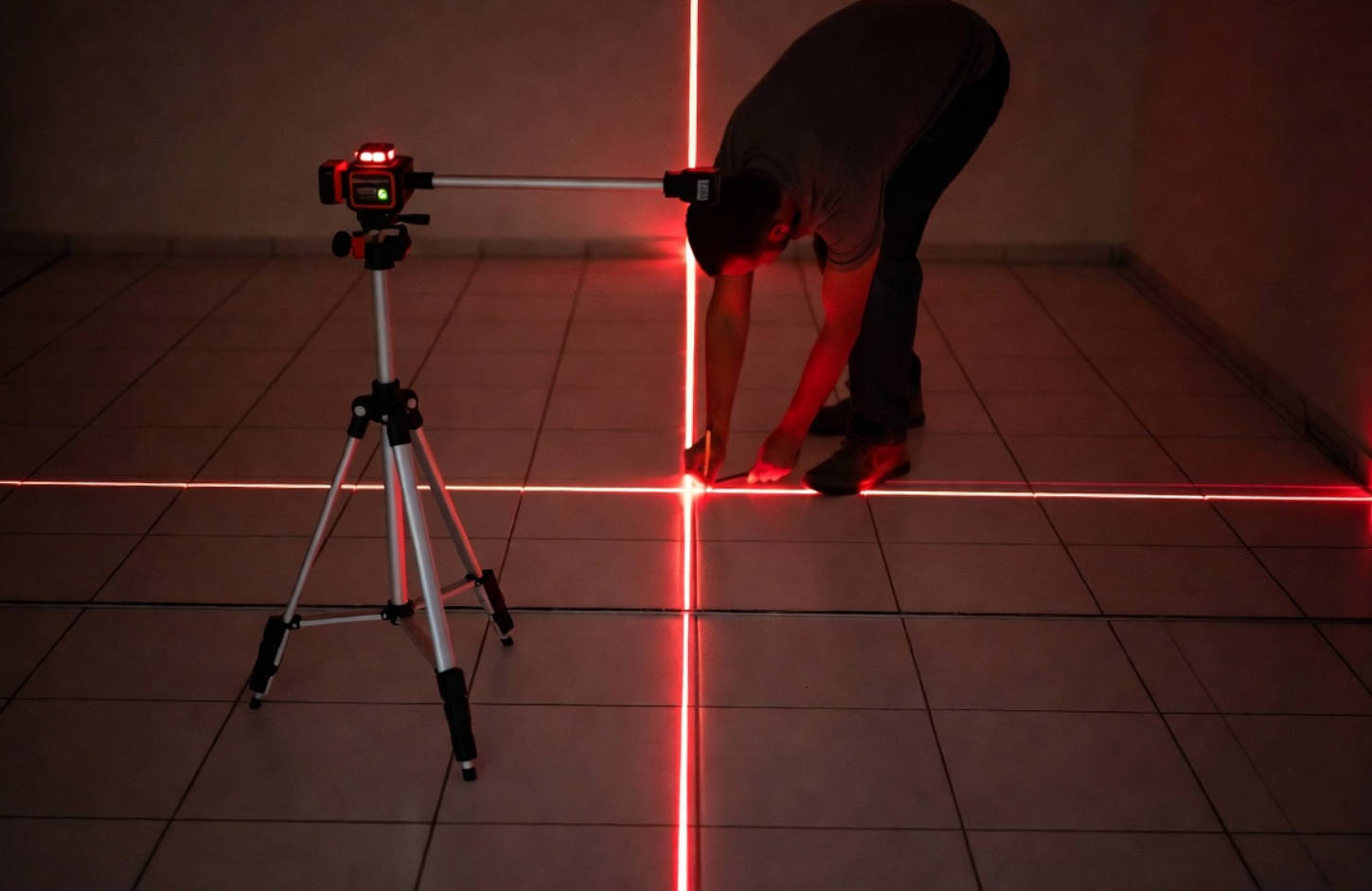

A cross line laser projects two intersecting lines, usually one horizontal and one vertical. Together, these lines create an immediate right-angle reference that is useful for squaring a room and setting a tile layout quickly.
This type of laser is popular for jobs where both axes must be seen at once. It is especially useful at the beginning of a tile project, when the installer needs to determine the center point, confirm the room geometry, or align the first rows before continuing.
- Projects both horizontal and vertical lines.
- Makes room squaring easier.
- Speeds up initial layout work.
- Helps with center-based tile planning.
- Useful for small to medium indoor projects.

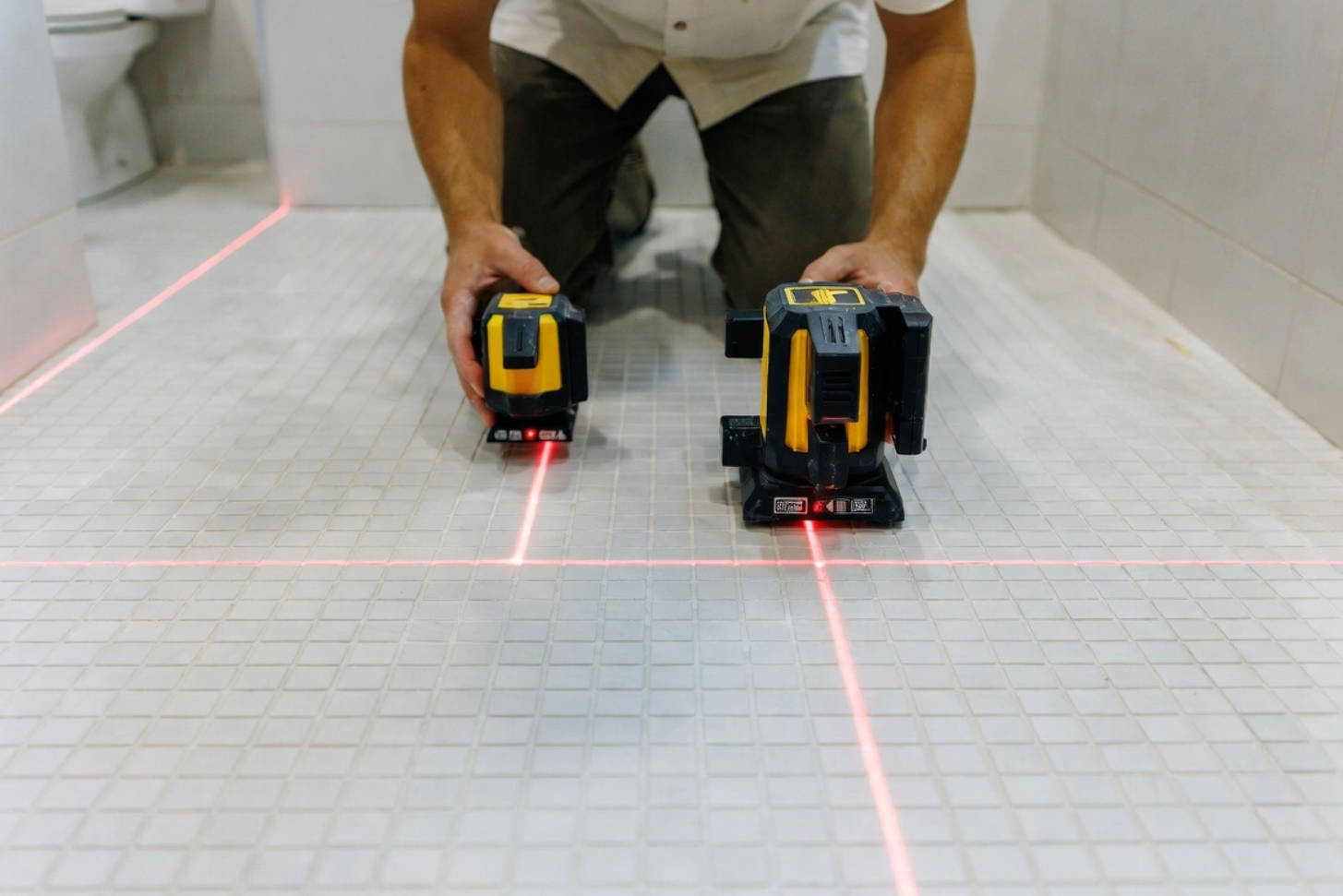

Both tools are useful, but they solve different problems. The best choice depends on whether the installer needs a single control line or two-axis guidance.
| Feature | Single Line Laser | Cross Line Laser |
|---|---|---|
| Best use | Long straight reference work | Squaring and layout setup |
| Visual style | Simple and focused | More complete reference view |
| Setup speed | Moderate | Fast |
| Tile leveling use | Strong for baseline control | Strong for room alignment |
| Complex layouts | Works well with planning | Better for center and corner alignment |
| Ease of use | Very easy | Very easy |
For most tile leveling jobs, the cross line laser is more versatile at the start of the project. It helps the installer see the room structure immediately and makes it easier to position the first tiles correctly. The single line laser becomes more valuable when the layout is already defined and the work needs a clean, uninterrupted guide.
For most tile leveling applications, the cross line laser is the better all-around choice. It gives the installer both the horizontal and vertical references needed to square the room and set the first rows with confidence.
That said, the single line laser still has strong advantages in certain situations. When the room is long, when one reference line is enough, or when the installer wants less visual clutter, a single line laser can be the better tool. In practice, many professionals use both depending on the stage of the project.
- When the room must be squared before installation.
- When the layout starts from a center point.
- When the installer wants to see both axes at once.
- When the project is small or medium in size.
- When fast setup is more important than simplicity.
- When the installation follows one long baseline.
- When the room is narrow or linear.
- When the installer wants a clean and simple guide.
- When the layout is already marked and confirmed.
- When maximum visual clarity is preferred.
A laser is only as useful as the quality of its line. If the beam is uneven, hard to read, or overly bright in the center, the installer may struggle to use it confidently. This is why line uniformity is important for tile work as well as industrial alignment use.
In professional optics design, a more uniform laser line improves readability across the entire beam length. That can make a real difference in both jobsite usability and product positioning. For manufacturers, this is one reason uniform line laser sources are widely used in professional and OEM applications.

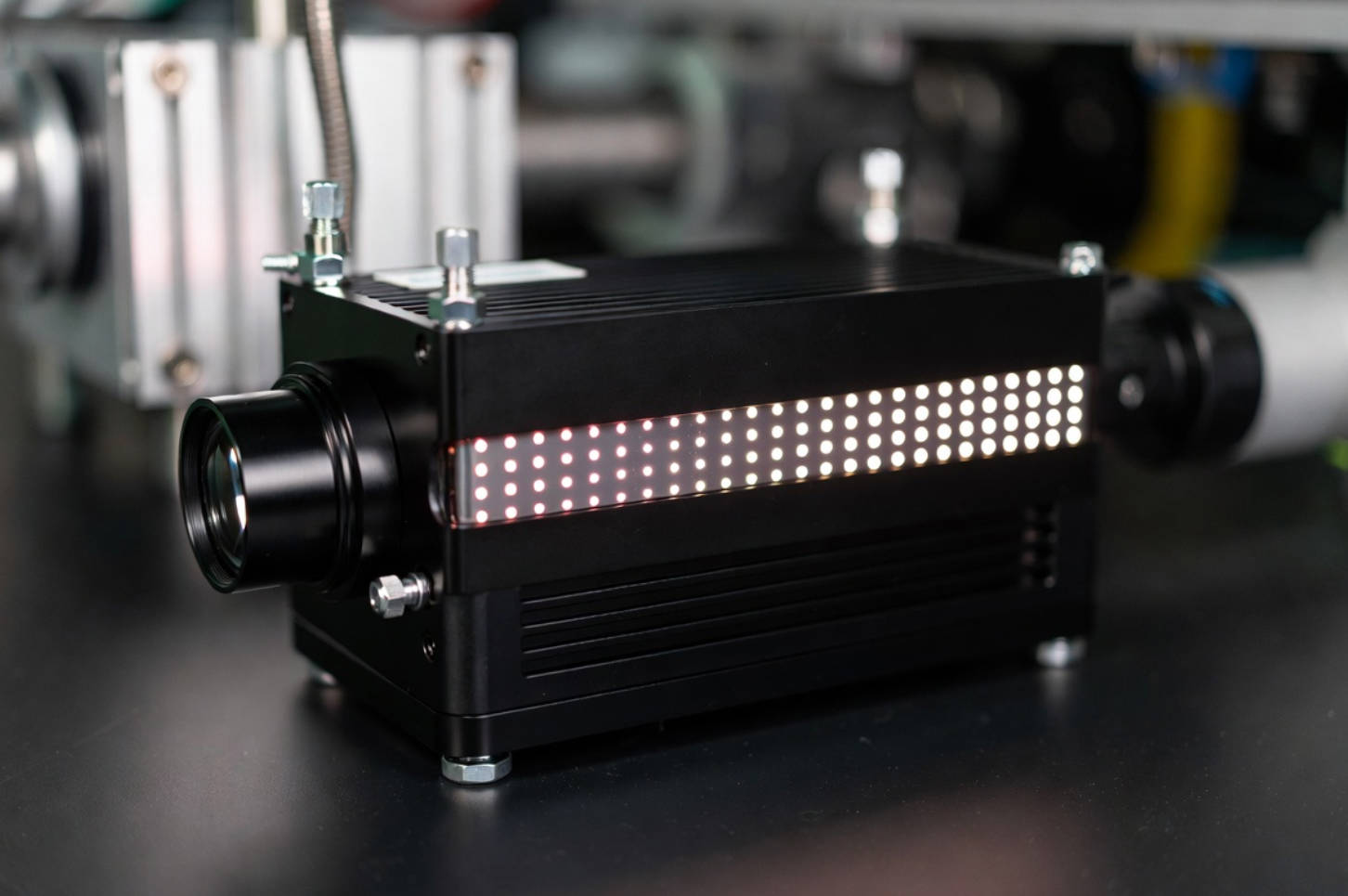

Powell lens technology is widely used in line laser modules because it helps transform the beam into a more even and uniform line. Instead of a line with a strong hotspot in the center, the output is distributed more consistently along the full line.
This matters in tile leveling because the installer needs a reference that is easy to follow from end to end. A more uniform line reduces visual strain and helps the user trust the alignment more easily. For OEM buyers, this also supports a more professional product experience.
A good tile installation workflow usually follows a clear sequence. The laser is important, but it should work together with physical measurement and layout verification.
1. Measure the room carefully.
2. Identify the main visual direction of the space.
3. Use a cross line laser to square the layout.
4. Mark the primary control line.
5. Switch to a single line laser if a long straight guide is needed.
6. Check spacing with tile spacers and a straightedge.
7. Confirm the first few rows before continuing.
This approach helps reduce layout drift and keeps the installation consistent. The laser provides the visual guide, while the installer confirms the physical result at each stage.
Even with a good laser, tile work can go wrong if the setup is rushed. A few simple mistakes can affect the final result more than the tool itself.
- Starting without measuring the room properly.
- Relying only on the laser and ignoring physical checks.
- Using a line that is too hard to see in the working environment.
- Failing to square the room before beginning.
- Installing the first row without confirming alignment.
Avoiding these mistakes is often more important than choosing the most expensive tool. A clear process matters as much as the laser itself.
Lasers should always be used with care. Even low-power units require attention to beam direction, reflections, and safe handling practices.
Installers should avoid direct eye exposure and be mindful of reflective surfaces such as polished tile, glass, or metal tools. In professional environments, proper training and safe operating habits are part of responsible use. Good safety practice protects both the installer and the work environment.
For brands, wholesalers, and industrial buyers, the comparison is not only about single line versus cross line. It is also about how the laser behaves in real use, how stable the output is, and how easily it fits into a product platform.
Aiming Laser Technology Co., Ltd. focuses on OEM laser solutions for overseas brand owners, wholesalers, and manufacturers. In this category, uniform line output, optical consistency, housing customization, and stable batch production are all important. A strong product is not only accurate; it is also easy to integrate, easy to use, and easy to market.
For tile leveling, the best laser depends on the task. A cross line laser is usually better for squaring, layout setup, and quick room alignment. A single line laser is often better for long, clean, straight reference work.
If your goal is professional-grade product performance, focus on line quality, stability, and user clarity as much as on beam type. The right laser should make the installer's work faster, easier, and more accurate from the first tile to the last.
Yes, it can be enough for simple projects or long straight runs where only one reference line is needed.
Because they provide both horizontal and vertical references at the same time, which makes squaring and layout easier.
A cross line laser is often more convenient for wall tile because it helps with both row alignment and vertical reference.
It helps create a more uniform laser line, which improves readability and makes the beam easier to follow.
No. A laser is a guide, but it should always be paired with measurements, spacers, and physical alignment checks.
