Single line lasers and laser line generators both create visible laser lines, but they differ significantly in fan angle control, line uniformity, and application precision in machine vision and industrial inspection. Understanding these differences helps OEMs and system integrators choose the right laser source for accuracy, throughput, and long‑term reliability. [aiminglaser]
In machine vision and 3D inspection, the quality of the laser line directly impacts edge detection, profile accuracy, and measurement repeatability. As an OEM laser module manufacturer, Aiming Laser Technology Co., Ltd. (Aimlaser) regularly helps global brands upgrade from basic single line lasers to advanced Powell lens laser line generators when projects move from proof‑of‑concept to mass production. From a practitioner's perspective, the key is not just "seeing a line," but controlling fan angle, intensity distribution, and line straightness under real‑world conditions. [optitechno]
A single line laser typically refers to a laser diode beam expanded into a line using a simple cylindrical or glass lens. The resulting line usually follows the Gaussian distribution of the original beam: very bright in the center and significantly dimmer at the edges. [edphoton]
Key characteristics of typical single line lasers: [aiminglaser]
- Non‑uniform brightness (hot spot in the middle, weak edges)
- Moderate fan angle control; often fixed or limited options
- Lower optics cost, suitable for basic positioning or indication
- More sensitive to alignment and distance changes
From an integrator's viewpoint, these modules are acceptable for simple alignment tasks or low‑accuracy vision guidance where strict measurement tolerance is not required. [edphoton]
A laser line generator using a Powell lens (also called Powell prism) converts a circular laser beam into a long, uniform line with controlled fan angle and minimal distortion. The specially designed aspheric geometry redistributes light from the center to the edges, greatly improving line uniformity compared with cylindrical lenses. [thorlabs]
Core features of Powell lens laser line generators: [aiminglasers]
- Uniform intensity along most of the line (commonly within ±20–30%)
- Precise fan angle options, such as 30°, 45°, 60°, 75°, and up to around 90°
- Very thin line width, e.g. down to 10–30 µm at a defined working distance
- Stable line straightness, ideal for calibration and measurement tasks

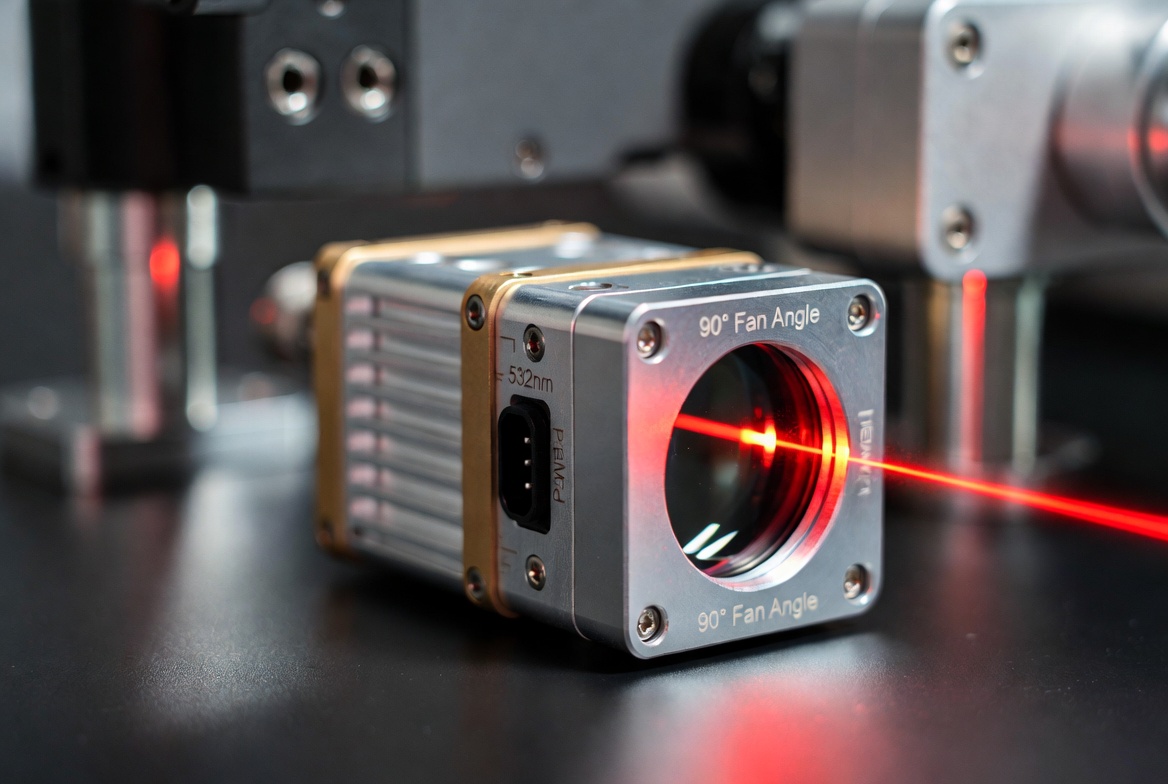

Aimlaser's uniform line laser modules adopt high‑quality Powell lenses and high‑stability drivers to deliver thin, uniform lines in wavelengths from 405 nm to 850 nm and powers from 1 mW to 100 mW for machine vision, 3D scanning, and smart cameras. [de.aiminglasers]

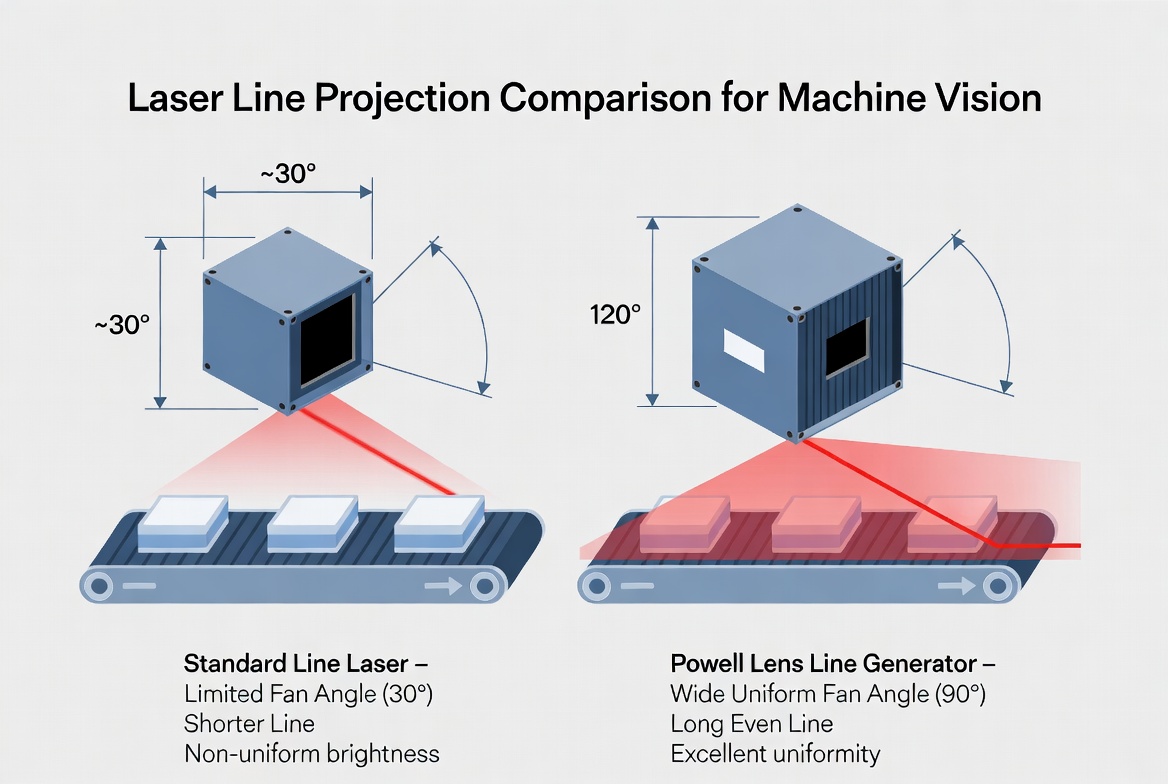

The fan angle is the angular spread of the laser line from the lens, typically specified in degrees. A larger fan angle generates a longer line at a given working distance, while a smaller fan angle concentrates power into a shorter but brighter segment. [laserlineoptics]
Why fan angle is critical in machine vision: [thorlabs]
- It defines the field of view coverage of the laser line.
- It influences line brightness per unit length and signal‑to‑noise ratio.
- It affects whether the line can cover the entire product width or inspection area.
Laser line generator lenses using Powell optics are available in standard fan angles like 30°, 45°, 60°, and 75°, with some suppliers offering ranges from 1° to 90° for various wavelengths. For OEM projects, this range allows you to design line coverage precisely around conveyor width, camera FOV, and working distance. [edphoton]
From a measurement engineer's standpoint, the shape and uniformity of the laser line are more important than just output power. [optitechno]

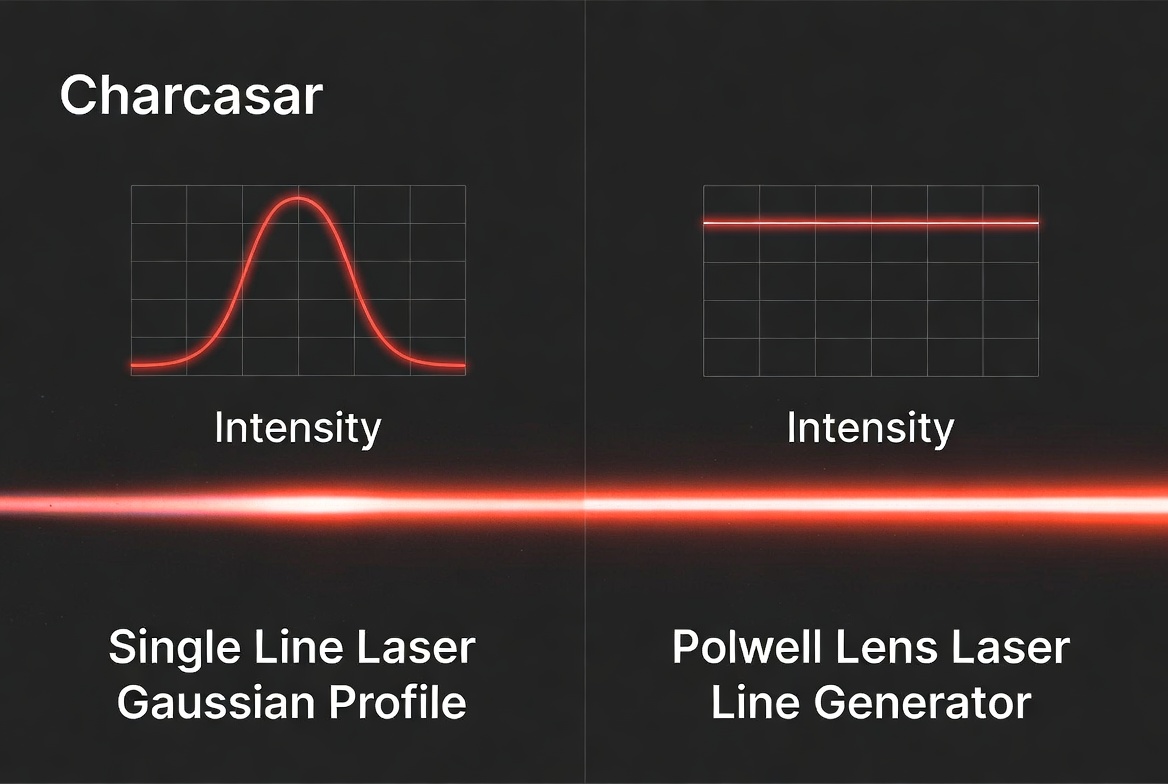

- Single line laser (cylindrical lens): Gaussian profile with strong center and weak edges leads to inconsistent edge detection and varying exposure across the line. [aiminglaser]
- Powell lens line generator: Redistributes light to achieve a flatter intensity profile, typically keeping variation within about 30% along the line. [optitechno]
In practical terms, better uniformity means fewer "burned" pixels at the center and fewer "missing" points at the edges, improving 3D profile stability and inspection repeatability. [thorlabs]
Aimlaser's Powell lens line generators can achieve line widths as thin as 10–30 µm at specified working distances, which is essential for accurate triangulation and small feature detection. Conventional single line lasers often produce thicker, less well‑defined lines, especially when working distance fluctuates. [aiminglasers]
Uniform, stable line geometry simplifies camera calibration and algorithm design because the system can assume consistent illumination across the entire FOV. Single line lasers may require additional software compensation or limited usable area to achieve similar accuracy. [aiminglaser]
The table below summarizes typical differences from an integrator's perspective.
Aspect | Single Line Laser | Laser Line Generator (Powell Lens) |
|---|---|---|
Line uniformity | Center hot‑spot, dim edges aiminglaser | Flat, uniform intensity along line aiminglaser |
Fan angle options | Limited, less optimized range edphoton | Multiple precise angles from ~1°–90° edphoton |
Line width | Relatively thick, less controlled aiminglaser | Very thin (≈10–30 µm at WD) aiminglasers |
Measurement accuracy | Adequate for simple detection | High accuracy for profiling and metrology aiminglaser |
Best use cases | Positioning, pointing, basic guidance aiminglaser | Machine vision, 3D scanning, robotics, smart cameras aiminglaser |
Cost | Lower optics cost | Higher optics cost, but better ROI in demanding tasks |
For OEM users, the decision often comes down to whether the vision system is indicator‑level or metrology‑level. For the latter, Powell lens line generators are usually the safer long‑term choice.
Drawing on typical project discussions with overseas OEMs, here is a practical decision pattern.
Choose a single line laser when: [edphoton]
- You need visual alignment or operator guidance, not pixel‑level measurement.
- The target is small, and full FOV coverage is not critical.
- Budget is tight and the project is in early prototype stage.
Choose a laser line generator when: [aiminglasers]
- You require consistent measurement across the entire width of an object.
- The camera uses edge detection or 3D triangulation sensitive to intensity variation.
- You must guarantee performance under different surface reflectivities and small mechanical tolerances.
In Aimlaser's experience, customers in 3D smart cameras, laser profilometers, and robotic inspection often start with simple line lasers, but quickly migrate to Powell uniform line lasers once they test real production samples and see the limitations of non‑uniform lines. [aiminglasers]

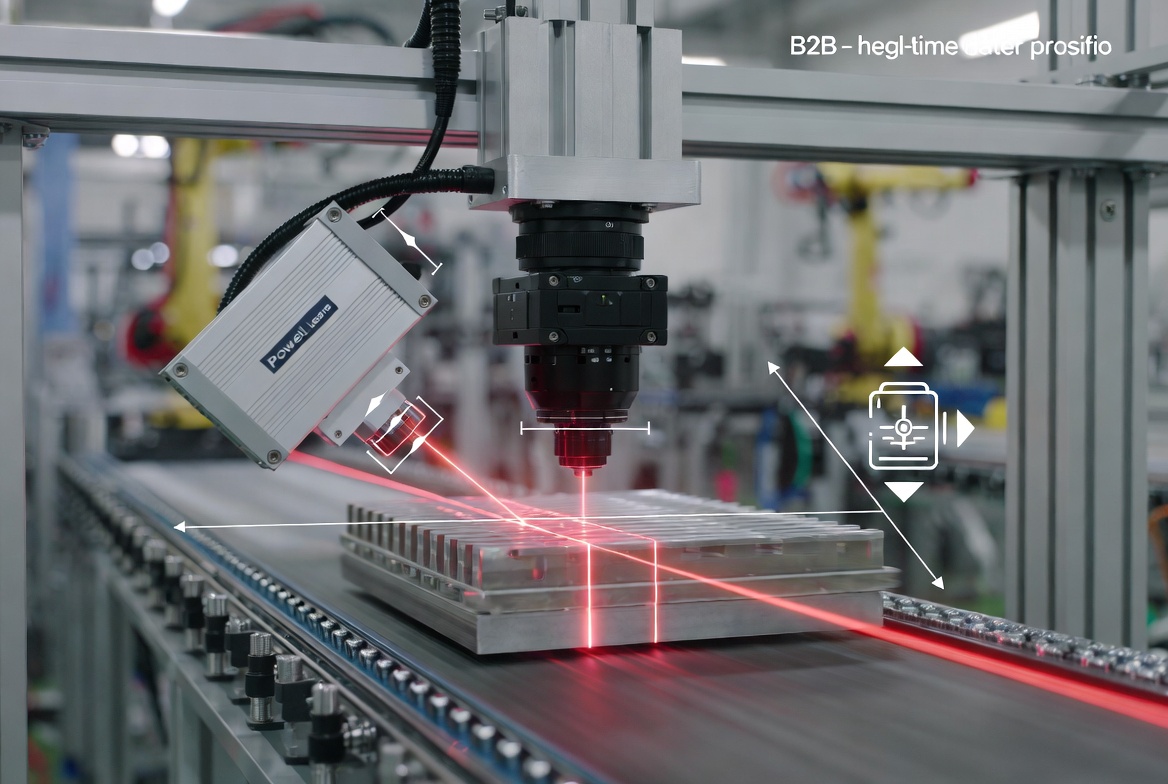

One common scenario is a machine vision integrator building a 3D contour scanner for metal or plastic parts. Initial prototypes may use a low‑cost single line laser to prove the concept, but the team soon faces problems: unstable edge detection on shiny surfaces, overexposed center pixels, and weak signals at the line extremes. [aiminglaser]
After switching to a Powell lens uniform line laser, they typically observe: [de.aiminglasers]
- More stable 3D profiles, especially near FOV edges
- Reduced algorithm complexity because less compensation is required
- Better performance across mixed surfaces (coated, matte, semi‑reflective)
From a total cost of ownership perspective, the slightly higher component cost of a laser line generator is offset by higher yield, fewer false rejects, and shorter commissioning time.
- Determine object width and camera FOV.
- Choose a fan angle that covers this width at the planned working distance; Powell lenses are commonly offered at 30°, 45°, 60°, 75°, etc. [thorlabs]
- For dimensional measurement or 3D scanning, specify a uniform laser line generator with Powell optics. [optitechno]
- For simple presence detection or guidance, a single line laser may be sufficient.
Aimlaser provides uniform line laser modules in wavelengths like 405 nm, 450 nm, 520 nm, 635 nm, 650 nm, 780 nm, and 850 nm with power levels from 1 mW to 100 mW to match camera sensitivity and surface characteristics. For reflective metal, shorter wavelengths may reduce blooming, while NIR can be better for certain materials and ambient conditions. [de.aiminglasers]
- Check driver stability, protection features, and form factor. Aimlaser modules integrate high‑stability drivers with compact brass or anodized aluminum housings (e.g., 14 × 55 mm). [de.aiminglasers]
- Consider heat dissipation, mounting, and focusing adjustment for long‑term reliability.
Aiming Laser Technology Co., Ltd. focuses on high‑performance Powell lens uniform line lasers and related modules for machine vision, industrial robotics, and 3D smart cameras. The company combines optical design, driver electronics, and OEM customization to support overseas brands, wholesalers, and equipment manufacturers. [aiminglasers]
Typical OEM services include: [de.aiminglasers]
- Custom fan angle, wavelength, output power, and housing
- Support for machine vision, 3D scanners, laser contour scanners, and smart cameras
- Engineering guidance for line uniformity, working distance, and integration
- Sample support and batch production for long‑term projects
By collaborating early in the design phase, OEM customers can choose the optimal balance between single line simplicity and laser line generator precision, avoiding late‑stage redesigns.
If you are evaluating single line lasers vs. laser line generators for a new machine vision or 3D inspection project, it is often more efficient to review your FOV, accuracy targets, and mechanical constraints directly with a laser module specialist. Aimlaser's engineering team can provide custom fan angle, wavelength, and power configurations, along with sample modules, to help you finalize the optimal laser source for your OEM system. [aiminglaser]
Contact Aimlaser to share your project drawings or specification sheet and get a tailored proposal for Powell lens uniform line lasers or optimized single line laser modules for your application.
Q1: Is a laser line generator always better than a single line laser?
A laser line generator with a Powell lens is usually better for high‑precision machine vision and 3D measurement because of its uniform intensity and controlled fan angle, but single line lasers can still be adequate for basic indication and low‑accuracy tasks. [optitechno]
Q2: How do I choose the right fan angle?
You calculate the required line length based on working distance and field of view, then select a Powell lens fan angle (for example 30°, 45°, 60°, or 75°) that covers the width with sufficient brightness. [edphoton]
Q3: What line width can I expect from a Powell lens line generator?
Depending on design and working distance, line widths down to around 10–30 µm are achievable with high‑quality modules such as those offered by Aimlaser for machine vision inspection. [aiminglasers]
Q4: Which wavelength is best for metal surface inspection?
Shorter visible wavelengths like 450 nm or 520 nm are often preferred for metal surfaces to reduce blooming and improve camera response, while NIR wavelengths may be selected for certain materials or ambient conditions. [aiminglaser]
Q5: Can Aimlaser customize housing and electrical interfaces for OEMs?
Yes, Aimlaser supports OEM customization for housing dimensions, materials, connector types, power supply requirements, and integration features, enabling easier installation into cameras, scanners, and robotic systems. [de.aiminglasers]
