TTL Modulation 450nm 30mW Blue Laser Pointer Module

Laser Wavelength:
450nm
Laser Color:
Blue Dot Laser Beam
Output Power:
30mW
Beam Size:
≤2.0mm@1m
Dimensions:
12x40mm Brass or Black Anodized Aluminum
Availability:
Inquire Add to Basket

TTL Modulation 450nm 30mW Blue Laser Pointer Module
TTL Modulation 450nm 30mW Blue Laser Pointer Module

  • AM450D30G1M

  • AIMLASER

  • 90132000.99

  • Blue, Visible

  • 450nm

  • Pulse, CW, Dot, TTL


TTL Modulation 450nm 30mW Blue Laser Pointer Module

laser-wavelength-chart

AimLaser provides customized Blue Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The blue laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 450nm 30mW Blue Dot Laser Diode Module Descriptions

The AM450D30G1M is a TTL modulated blue laser module subassembly with collimated beam. The maximum laser output power is 30.0mW at 450nm.

※ 450nm 30mW Blue Dot Laser Diode Module Optical and Electrical Characteristics

ITEM SPECIFICATIONS
Model Number AM450D30G1M Blue Dot Laser Diode Module
Wavelength 450nm
Output Power ≤30.0mW
Laser Mode Pulse (TTL Modulation)
Beam Size ≤2.0mm@1m
Divergence 0.6mrad
Optics Optical Glass Lens
Operating Current <160mA
Operating Voltage 5V DC
CDRH Class Class IIIb
Circuit control Auto Power Control (APC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -40℃ to 80℃
Dimensions Φ12x40mm (APC Inside)
Housing Material Brass or Black Anodized Aluminum
Life Span 8,000Hrs

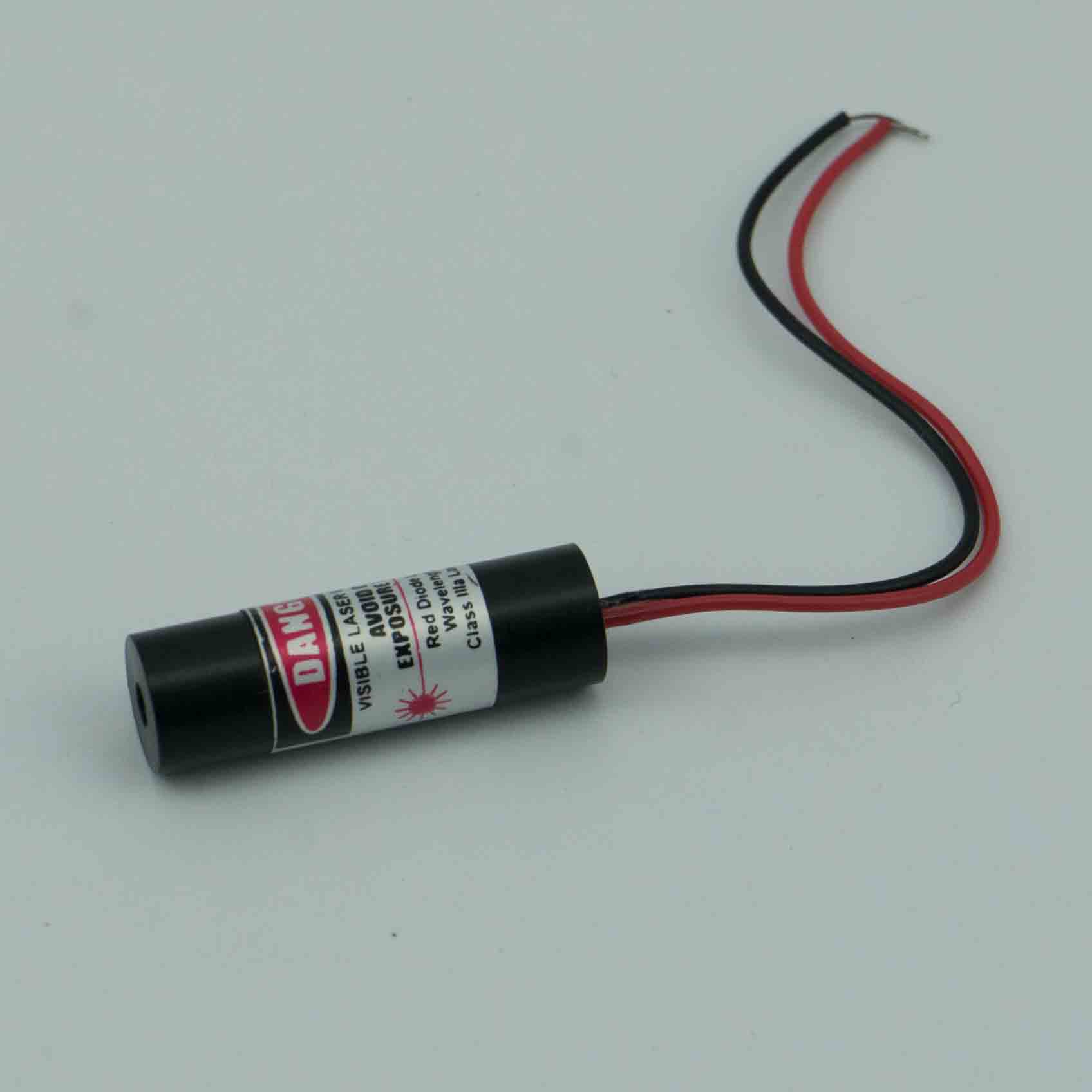

Scanning Laser Beam Modules-AIMLASER Semiconductor Diode Laser Modules-AIMLASER

※ 450nm Blue Laser Module Applications

  • Scientific Research

  • Laboratory Instrument
    Gun Laser Grips
    Gun laser sights

  • Laser aiming devices

  • Laser alignment instrument

  • Laser pointing instrument

  • Laser positioning devices

  • Laser surveying instrument

  • Laser detection equipment

  • Medical Laser Instrument

  • Consumer Products

  • Nightwear Sporting Products

  • Automotive interior Ambient Light

  • OEM Instrumentation

※ Why buy Laser Modules from AimLaser?

  • Provide One year warranty

  • Offer customized solutions

  • Normal sample lead time: within 2 weeks

  • Conform to ROHS, FDA, IEC, SGS standards

  • ISO9001:2008 certified laser module manufacturer

  • Using original Laser Diodes from Arima, Osram, Nicha and branded chips

※ Laser Modules Production Process

105um Multimode Fiber Coupled Laser (7)

※ Laser Modules Production Equipment

laser-modules-production-equipment

※ Laser Modules Testing Equipment

laser-module-testing-equipment

※ Laser Module Payment and Shipment

  • MOQ: 1pc

  • Delivery time: 3-20 days

  • Shipment Terms: FOB Xi'an China

  • Payment Terms: T/T, Western Union, PayPal

  • Shipment Method: DHL, UPS, FedEx or TNT
