As someone who has spent years working with industrial laser modules and OEM integration projects, I've seen line laser modules quietly become one of the most effective tools for precision alignment, measurement and machine vision in modern factories. In this guide, I'll walk through what a line laser module is, how it works, where it delivers the most value for OEMs and end users, and what to consider when sourcing from a specialized manufacturer like Aiming Laser Technology Co., Ltd. [loshield]
A line laser module is a compact laser device that uses a diode and dedicated optics to project the beam as a bright, uniform line instead of a point. By passing the beam through lenses such as cylindrical or Powell lenses, the module generates a precise fan-shaped laser line with controlled width, length and divergence. [en.wikipedia]
Unlike a simple laser pointer, a line laser module integrates:
- Laser diode
- Driver circuit
- Optical components for line generation
- Mechanical housing and, often, cooling elements [aiminglasers]
This integrated design makes line laser modules plug‑and‑play components for alignment, positioning, machine vision and structured light applications in industrial environments. [apinex]

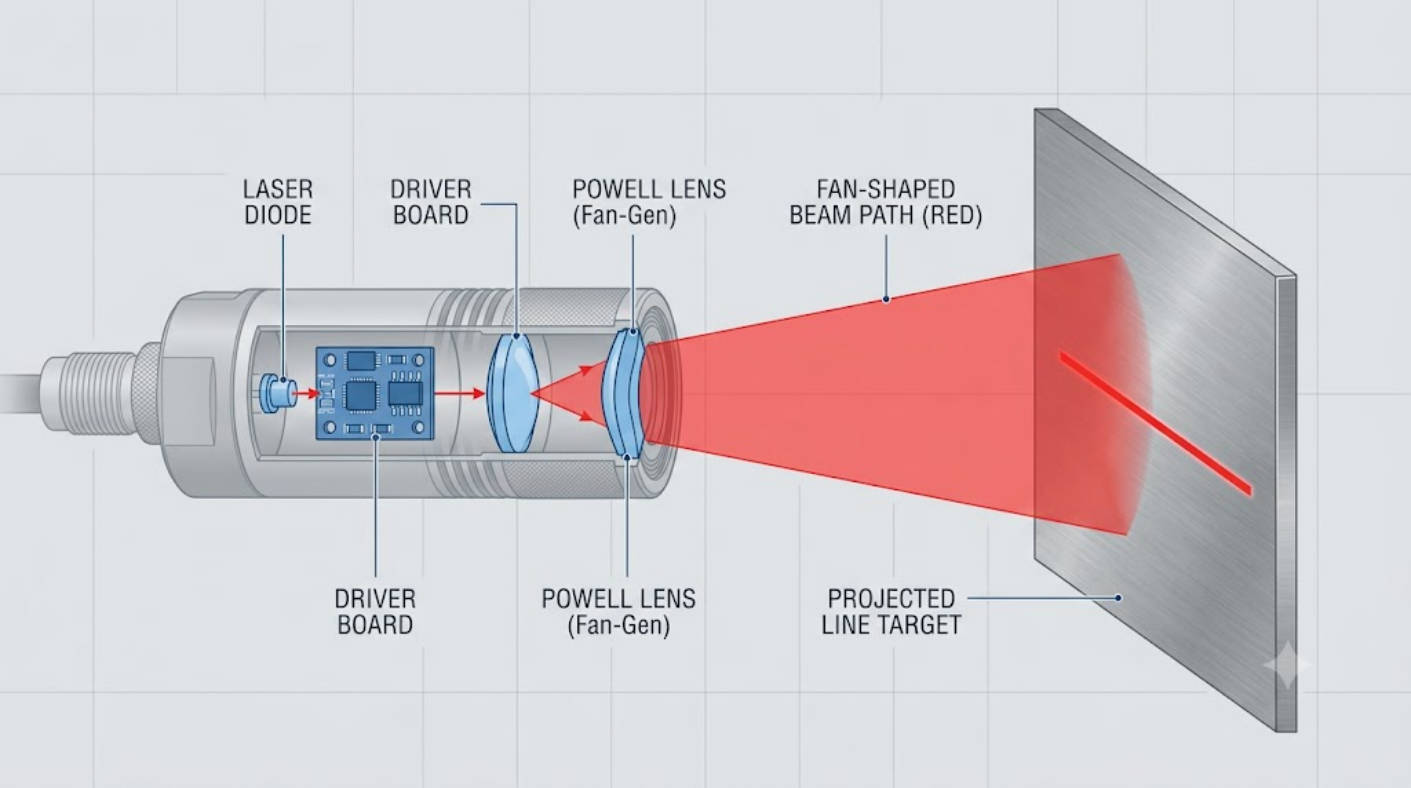

At its core, a line laser module converts electrical energy into a highly controlled optical line through three main stages. [loshield]
1. Laser generation
A laser diode emits a coherent beam at a defined wavelength (for example, 650 nm red or other visible/IR wavelengths). [zokoptics]
2. Beam shaping into a line
Optics such as cylindrical or Powell lenses spread the beam into a fan surface, which appears as a straight laser line when projected onto a workpiece or reference surface. [loshield]
3. Driver and thermal management
An integrated driver regulates current and protects the diode, while heat sinks or cooling systems keep temperature stable for long‑term operation. [aiminglasers]
By carefully tuning power, fan angle, working distance and line width, manufacturers can deliver ultra‑thin lines down to about 20 μm for demanding machine vision and metrology tasks. [zokoptics]
From an engineering standpoint, modern industrial line laser modules offer several critical advantages over conventional alignment tools or basic spot lasers. [ko.aiminglasers]
High‑quality modules can maintain micron‑level accuracy in the position and straightness of the laser line, which is vital for cutting, welding, calibration and other precision processes. [ko.aiminglasers]
- Minimal drift during continuous operation
- Consistent line thickness and brightness
- Tight control over beam position and angle [aiminglasers]
Industrial line laser modules are designed for:
- Minimal divergence, so the line stays narrow over longer distances
- High coherence and collimation for sharp, uniform lines [zokoptics]
- Adjustable fan angles (e.g., 10° to over 100°) to match the required field of view [zokoptics]
These characteristics allow cleaner work surfaces and more reliable detection in machine vision and scanning applications. [zokoptics]
Robust modules combine industrial‑grade materials, advanced cooling and solid driver design to maintain performance during continuous high‑intensity use. [ko.aiminglasers]
- Reduced maintenance and downtime
- Stable output power over time
- Resistance to harsh environments such as dust, vibration and temperature variation [aiminglasers]
Because line laser modules operate non‑contact and require no consumables, they reduce waste and can support energy‑efficient automation strategies. [ko.aiminglasers]
Compared with mechanical alignment fixtures or disposable markers, a single module can serve for millions of cycles, lowering total cost of ownership. [aiminglasers]
From my experience with OEM integration, line laser modules are most valuable when accuracy, repeatability and visual guidance must meet under real‑world constraints. [apinex]

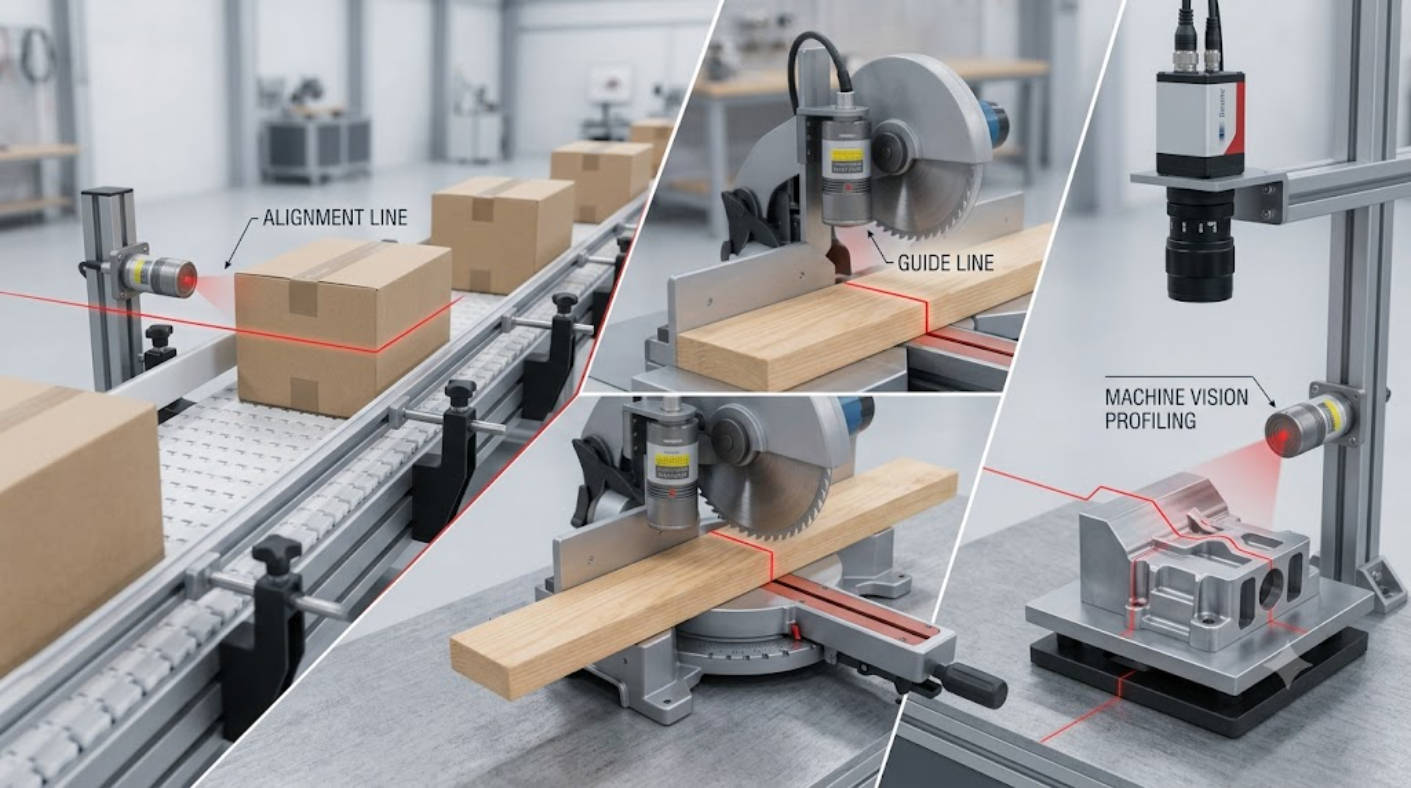

- Conveyor and material alignment
- Sawing, cutting and welding guidance
- Assembly line positioning marks [apinex]
The bright line gives operators and automated systems an intuitive reference for positioning workpieces, often replacing manual measuring tools. [apinex]
Line laser modules are widely used to generate structured light patterns for cameras and sensors. [en.wikipedia]
- 3D scanning and profiling
- Surface inspection and defect detection
- Dimensional measurement in production lines [en.wikipedia]
By analyzing the deformation of the laser line on a surface, vision systems can reconstruct depth and geometry with high precision. [en.wikipedia]
In metrology and calibration:
- Laser lines act as references for straightness, level or angle
- Multiple lines can form crosses or grids for more complex measurement tasks [en.wikipedia]
This helps maintain process capability and ensures equipment is periodically calibrated against a stable optical reference. [en.wikipedia]
For OEM customers integrating line laser modules into larger systems, the module is not just a component; it is part of a broader optical and mechanical ecosystem. [optlasers]
Leading OEM suppliers and manufacturers focus on tailoring critical parameters: [ceramoptec]
- Wavelength (visible vs. IR, compatibility with cameras and safety requirements)
- Output power and line brightness
- Line width (standard vs. ultra‑thin 20 μm lines) [zokoptics]
- Fan angle and working distance
- Driver interface and control options (analog, digital, PWM)
- Cooling concept (passive vs. active)
For integrators, the ability to fine‑tune these parameters ensures the module fits seamlessly into the optical path and mechanical envelope of the final system. [jenoptik]
Established OEM laser providers emphasize:
- Fully documented production and test protocols
- Environmental and reliability testing
- Support from concept design through series production and lifecycle maintenance [rheinmetall]
This kind of end‑to‑end support significantly reduces integration risk and long‑term service costs for B2B customers. [ceramoptec]
From an industry perspective, sourcing line laser modules from a manufacturer that focuses on industrial laser modules and OEM projects brings several practical advantages. [optlasers]
Aiming Laser Technology's published technical materials highlight the company's expertise in precision beam control, stable output and modular design for industrial line laser modules. This focus helps ensure: [ko.aiminglasers]
- Consistent quality across batches
- Application‑driven product development
- Rapid response to new requirements in automation and machine vision [aiminglasers]
Like other leading OEM laser providers, Aiming Laser Technology emphasizes:
- Customization of power, wavelength and optical configuration
- Modular mechanical designs that are easy to mount and integrate
- Alignment with modern sustainability and energy‑efficiency requirements [jenoptik]
For brand owners, wholesalers and equipment manufacturers, this means you can build differentiated products without investing in in‑house laser R&D. [optlasers]
Manufactured with industrial‑grade materials and stringent quality control, line laser modules from a specialized supplier are designed to withstand continuous operation in harsh environments while maintaining stable performance and long service life. This reliability is critical for OEMs whose end customers depend on uptime. [ko.aiminglasers]
When I support OEM customers in choosing the right line laser module, we typically follow a structured evaluation process. [ceramoptec]
1. Define the application
Alignment, 3D scanning, machine vision, measurement, or guidance.
2. Specify optical requirements
Wavelength, line width, fan angle, working distance, and required uniformity. [apinex]
3. Set electrical and control parameters
Input voltage, driver type, control interfaces and safety interlocks. [optlasers]
4. Assess mechanical constraints
Housing size, mounting options and environmental sealing (IP ratings, temperature range). [aiminglasers]
5. Plan for lifetime and service
Expected duty cycle, cooling strategy, and access to OEM technical support. [rheinmetall]
By approaching selection with these criteria, OEMs can reduce integration issues and ensure the module delivers the required performance in production.
Below is a simplified table illustrating typical specification ranges for industrial line laser modules from various manufacturers. [apinex]
Parameter | Typical Range / Example |
|---|---|
Wavelength | 650 nm red, other visible/IR options apinex |
Output power | 1–100 mW depending on application apinex |
Line width | Standard lines to approx. 20 μm ultra‑thin zokoptics |
Fan angle | 10°–110° or more, depending on optics zokoptics |
Working distance | 100 mm to 1 m or custom configurations zokoptics |
Housing | Plastic or metal, compact industrial designs apinex |
Applications | Alignment, machine vision, 3D scanning, inspection apinex |
If your brand, wholesale business or equipment manufacturing company is exploring ways to improve alignment, measurement or machine vision performance, industrial line laser modules are a practical, proven solution. By partnering with a specialized OEM supplier such as Aiming Laser Technology Co., Ltd., you can access tailored line laser designs, robust quality control and long‑term technical support for your systems. [jenoptik]
To move forward, define your key application requirements and engage with an expert OEM laser team to co‑develop the line laser modules that best fit your next‑generation products. [rheinmetall]
A laser pointer projects a single spot, while a line laser module uses dedicated optics to convert the beam into a precise line for alignment, measurement and vision tasks. [apinex]
They are widely used for conveyor alignment, cutting and welding guidance, machine vision, 3D scanning, structured light inspection and dimensional measurement. [en.wikipedia]
You should base these on your working distance, field of view and required measurement resolution, often targeting ultra‑thin lines (down to around 20 μm) for high‑precision tasks. [zokoptics]
Yes. They operate in a non‑contact, solid‑state manner with low power consumption and no consumables, which reduces waste and supports efficient automation. [ko.aiminglasers]
Specialist manufacturers provide customization, documented quality, reliability testing and lifecycle support, which lowers integration risk and ensures stable performance in demanding production environments. [ceramoptec]
