A visible laser is one of the most practical light sources in industrial equipment. It helps operators see the beam path clearly, which makes alignment, calibration, and setup faster and more accurate. In OEM industrial products, the challenge is not only to create visible output, but to keep that output stable, reliable, and suitable for long-term integration.
A visible laser is a laser whose wavelength falls within the human visible range, generally from 400 nm to 700 nm. Because the beam can be observed directly, visible lasers are often preferred in systems where manual alignment, beam positioning, or visual confirmation is required.
Compared with invisible light sources, visible lasers make it easier to check whether a system is functioning correctly. That is why they are common in industrial tools, inspection devices, machine vision systems, and positioning equipment.
Visible lasers are popular because they combine precision with convenience. Operators can see the beam, confirm the target position, and make adjustments quickly during installation or maintenance.
Typical industrial advantages include:
- Faster equipment setup.
- Easier beam path confirmation.
- Better visual alignment for operators.
- Improved integration with machine vision systems.
- More efficient calibration and inspection workflows.
In many industrial environments, a visible beam reduces setup time and improves repeatability.
Different visible wavelengths are used for different applications. The most common options are red, green, and violet.
| Wavelength | Color | Typical Use |
|---|---|---|
| 405 nm | Violet | Compact instruments and specialty alignment |
| 520 nm | Green | High-visibility alignment and targeting |
| 635 nm | Red | General industrial positioning |
| 650 nm | Red | Cost-effective modules and vision systems |
Green lasers are often easier to see in bright environments. Red lasers are widely used because they are practical, stable, and compatible with many industrial designs.
To realize stable visible laser output, the whole module must be designed as a system. The diode, driver, optics, housing, and thermal structure all affect performance.
The diode defines the wavelength, power level, and basic beam characteristics. For OEM projects, the first step is to match the diode to the target application.
Key factors include:
- Wavelength.
- Output power.
- Beam shape.
- Operating temperature.
- Duty cycle.
- Mounting space.
A good design starts with a clear application definition.
Heat is one of the main reasons visible laser output becomes unstable. If temperature rises too much, the beam may drift, power may fluctuate, and long-term reliability may decline.
Stable thermal design usually requires:
- Good heat dissipation.
- Proper housing materials.
- Stable current control.
- Careful component layout.
A module that performs well at room temperature may behave differently in real industrial conditions, so thermal testing matters.
The driver circuit controls current to the diode. If the current is unstable, the beam may flicker or shift in brightness.
A stable driver should support:
- Constant-current operation.
- Protection against reverse polarity.
- Good electrical noise resistance.
- Reliable long-term use.
For OEM integration, electrical stability is just as important as optical quality.
Many industrial applications do not need a simple dot beam. They need a line, cross, or other projection pattern. Beam-shaping optics make the module more useful for the end application.
Common beam types include:
- Dot laser.
- Line laser.
- Cross laser.
- Custom projection pattern.
The right beam shape improves visibility, accuracy, and ease of use.
Even when the diode and optics are correct, poor mechanical assembly can reduce performance. The lens, diode, PCB, and housing must all be aligned accurately.
Good mechanical design helps ensure:
- Stable beam direction.
- Better vibration resistance.
- More consistent output from unit to unit.
- Improved product life.
For OEM buyers, assembly precision is one of the clearest indicators of manufacturing quality.
Visible lasers are easier to see, but they still require proper safety control. Laser safety depends on power, wavelength, exposure time, and product class.
Practical safety measures include:
1. Define the laser class early.
2. Use warning labels and instructions.
3. Avoid direct eye exposure.
4. Add beam stops or protective housings where possible.
5. Train operators before use.
Safety should be built into the product design, not added later.
Visible laser modules are used in many industrial and commercial systems. Their visibility makes them especially useful when the user must see the beam in real time.
Common applications include:

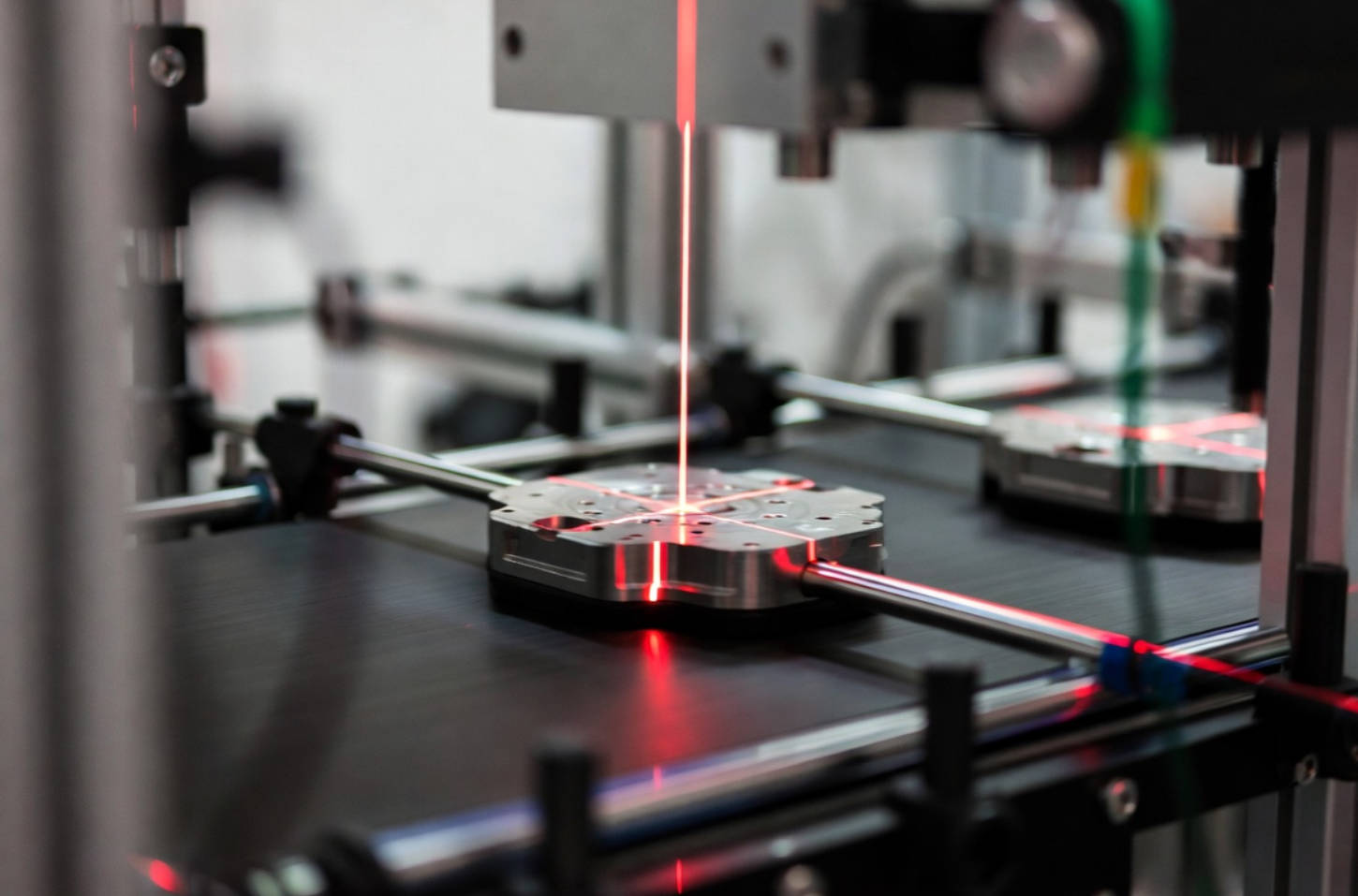

- Machine vision alignment.
- Conveyor positioning.
- Inspection equipment.
- Calibration tools.
- Industrial instruments.
- OEM devices for measurement and targeting.
In these systems, the visible beam helps improve setup speed and operating confidence.
When selecting a visible laser module, OEM buyers should focus on more than price. They should evaluate the engineering quality, production consistency, and customization capability of the supplier.
Important selection questions include:
- What wavelength is required?
- What output power is appropriate?
- What beam pattern is needed?
- How stable is the module in different temperatures?
- Can the module be customized for size or mounting?
- What testing is done before shipment?
A reliable supplier should be able to explain these points clearly and provide samples for validation.
Standard modules may work for simple applications, but many industrial projects need customization. Custom design can improve fit, performance, and long-term stability.
Common customization options include:
- Wavelength selection.
- Power adjustment.
- Housing design.
- Cable and connector options.
- Beam pattern design.
- Control interface support.
Customization reduces integration problems and helps the final device perform better in the field.
Aiming Laser Technology Co., Ltd. focuses on OEM laser module manufacturing for industrial applications. According to the company's public materials, it has manufactured diode laser modules for OEM instrument applications since 2012.
For international brands, wholesalers, and manufacturers, this matters because OEM projects usually require:
- Stable engineering support.
- Repeatable production quality.
- Custom design support.
- Clear technical communication.
- Reliable delivery for export markets.
A mature OEM partner helps shorten development cycles and improve product consistency.
If you are planning to integrate a visible laser module into your device, a simple workflow can help:
1. Define the application and working distance.
2. Select the wavelength based on visibility and environment.
3. Confirm the output power and beam shape.
4. Check electrical and thermal limits.
5. Test the module in the real device.
6. Verify safety and labeling requirements.
7. Move to pilot production only after performance is stable.
This process reduces redesign risk and helps avoid costly delays.
Visible lasers are simple in concept, but stable industrial performance depends on disciplined design and careful manufacturing. When the diode, thermal system, optics, and assembly are all controlled properly, the module can deliver reliable visible output in real-world equipment.
For OEM buyers, the best results come from working with a manufacturer that understands both the technical requirements and the practical needs of industrial integration.
A visible laser is a laser with a wavelength in the human visible range, usually from 400 nm to 700 nm.
They are used for alignment, machine vision, inspection, positioning, and industrial calibration.
Green is often preferred for visibility, while red is widely used for practical and cost-effective industrial designs.
They can still be hazardous depending on output power and exposure conditions, so safety controls are necessary.
Stable output comes from the right diode, good thermal control, a stable driver, proper beam shaping, and precise assembly.
Customization improves fit, performance, and integration efficiency in the final device.
