Laser intensity distribution describes how optical power is spread across a laser beam or laser line, and it directly affects marking, alignment, inspection, and machine-vision performance. For industrial laser modules, the two most important profiles are Gaussian intensity distribution and uniform intensity distribution.
In industrial applications, a laser is not just "bright" or "dim." Its beam has a measurable intensity pattern that determines how energy interacts with the target surface. That pattern influences edge sharpness, visibility, heating behavior, and process consistency, which is why engineers and OEM buyers should understand it before selecting a laser module.
For manufacturers serving export markets, this topic is especially important because end users often need different line profiles for different tasks. A structured explanation of beam profile helps buyers choose the right product faster and reduces misunderstanding in quotation and integration stages.
Laser intensity distribution affects both performance and process reliability. In practical terms, a beam with uneven energy may create inconsistent results, while a beam with a controlled profile can improve stability and repeatability.
Key reasons it matters include:
- Laser marking and coding: The profile influences contrast and line clarity.
- Machine vision and inspection: Uniformity helps cameras capture consistent brightness.
- Alignment and positioning: A stable line profile improves visibility in industrial environments.
- Material processing: Energy distribution affects heating, cutting, and surface response.
For B2B buyers, this means the right intensity profile is not a cosmetic detail. It is a specification that can affect quality, uptime, and customer satisfaction.

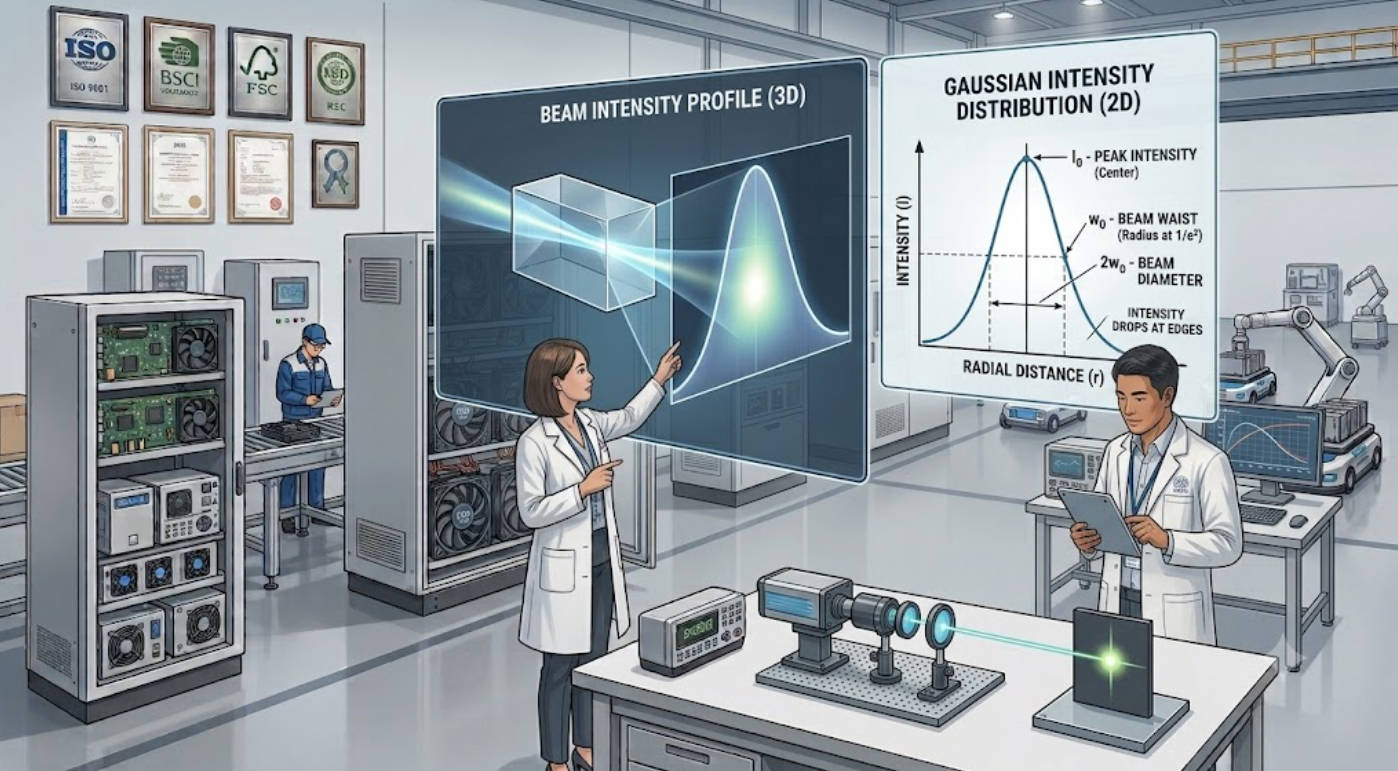

A Gaussian intensity distribution is the natural output shape of many laser diodes, where the highest intensity appears near the center and gradually falls off toward the edges. In a line laser module, this typically means the laser line is brightest in the middle and less intense at both ends.
This profile is useful when the application benefits from a strong central beam, such as certain alignment or focused inspection tasks. However, if an application requires even brightness across the full line, a pure Gaussian pattern may not be ideal.

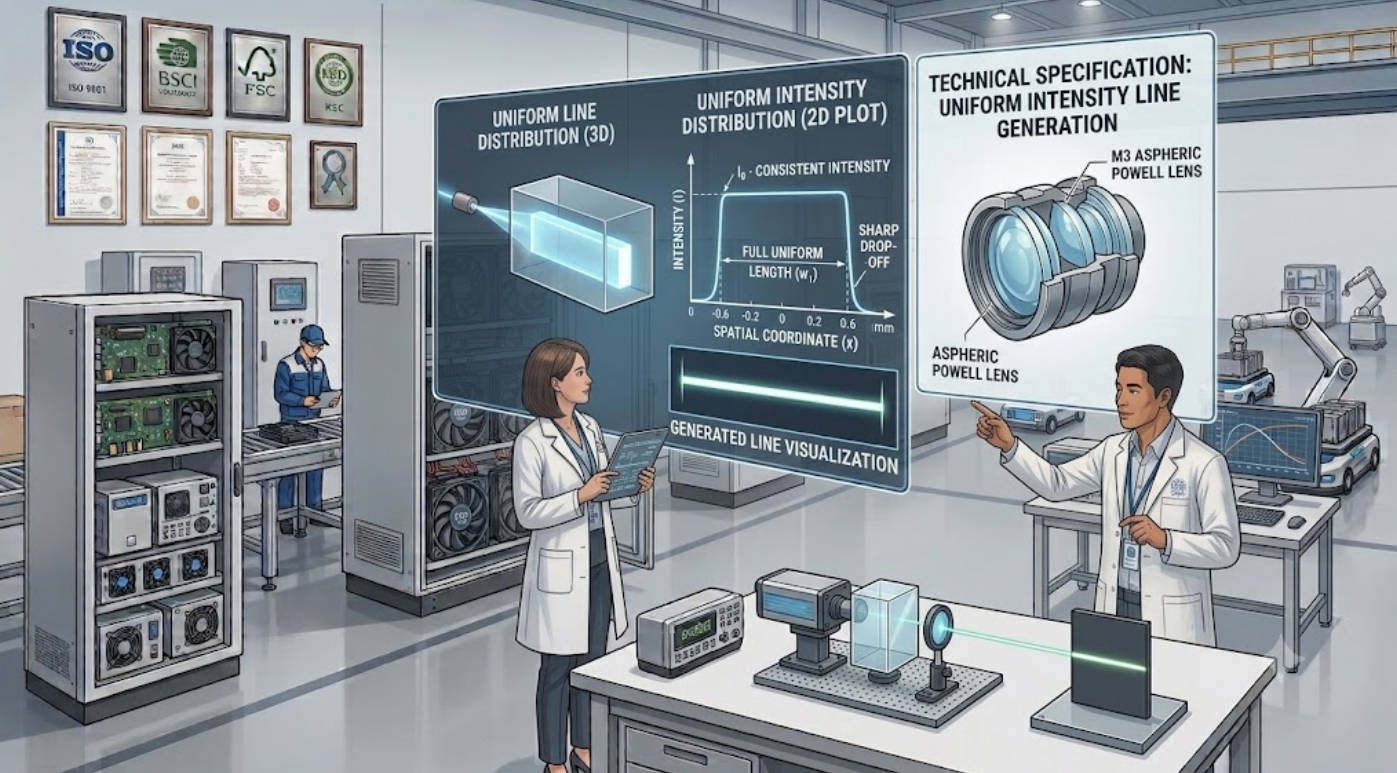

A uniform intensity distribution aims to keep the power density along the laser line as constant as possible. In real optical systems, this is usually achieved by clipping or shaping the original Gaussian output, often with a relatively high edge intensity.
This type of profile is preferred when consistent illumination matters more than peak intensity. Common use cases include:
- Industrial vision systems.
- Measurement and inspection lines.
- Surface scanning.
- Applications requiring stable brightness from end to end.
Although it is called "uniform," the underlying beam is still physically shaped by optical design. That is why technical data sheets should always be checked rather than relying only on general marketing terms.

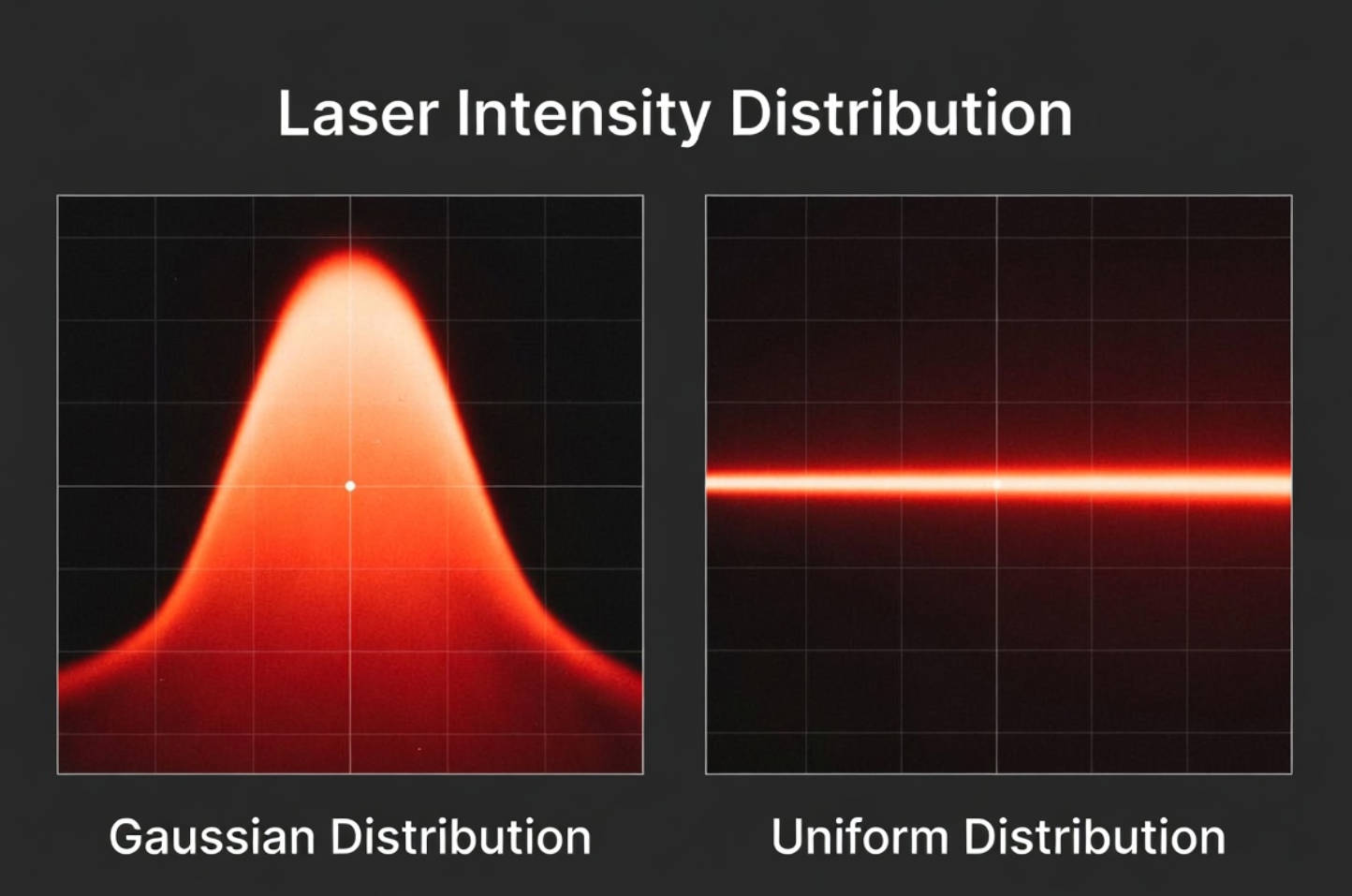

The difference between these two profiles becomes clearer when you compare their behavior in real work environments.
| Profile | Main Characteristic | Best For | Typical Limitation |
|---|---|---|---|
| Gaussian | Strong center, weaker edges | Alignment, focused energy tasks | Uneven brightness across the line |
| Uniform | More even power density | Vision, inspection, stable illumination | May sacrifice peak center intensity |
This comparison helps engineers decide whether they need peak intensity or brightness consistency. In OEM projects, that decision often depends on the camera setup, working distance, target material, and allowable tolerance.
Laser modules begin with a diode source that naturally emits a Gaussian pattern. Optical components inside the module then shape that output into the desired beam or line.
Common design factors include:
- The diode's native emission profile.
- Aperture shaping.
- Lens configuration.
- Edge intensity requirements.
- The intended line series or application category.
This is important from an OEM perspective because the final profile is not determined by one component alone. It is the result of the full optical design, which is why custom module specification should be discussed early in product development.
Choosing the right intensity distribution starts with the application goal. Below is a simple selection guide for industrial buyers.
1. Choose Gaussian if the center of the beam matters most.
2. Choose Uniform if line-wide consistency matters most.
3. Confirm the required working distance and line length.
4. Check the edge intensity specification in the technical sheet.
5. Test the module in the actual machine environment before final approval.
A practical example: in a vision inspection system, a highly even line can reduce image variation and improve measurement stability. In contrast, a positioning system may prioritize a brighter center for easier visual detection.
Many buyers focus only on wavelength, power, or housing size, and overlook beam profile. That can cause avoidable integration problems later.
Frequent mistakes include:
- Assuming all line lasers provide the same brightness pattern.
- Ignoring edge intensity specification.
- Selecting a module without testing under real working distance.
- Confusing uniform appearance with true optical uniformity.
- Not matching the beam profile to the camera or process requirement.
For OEM and wholesale projects, these mistakes can increase sampling cycles and extend delivery timelines. A clearer technical discussion at the inquiry stage helps prevent rework.
Laser intensity distribution should always be matched to end use. In industrial manufacturing, the same module can behave very differently depending on the task.
Typical scenarios include:

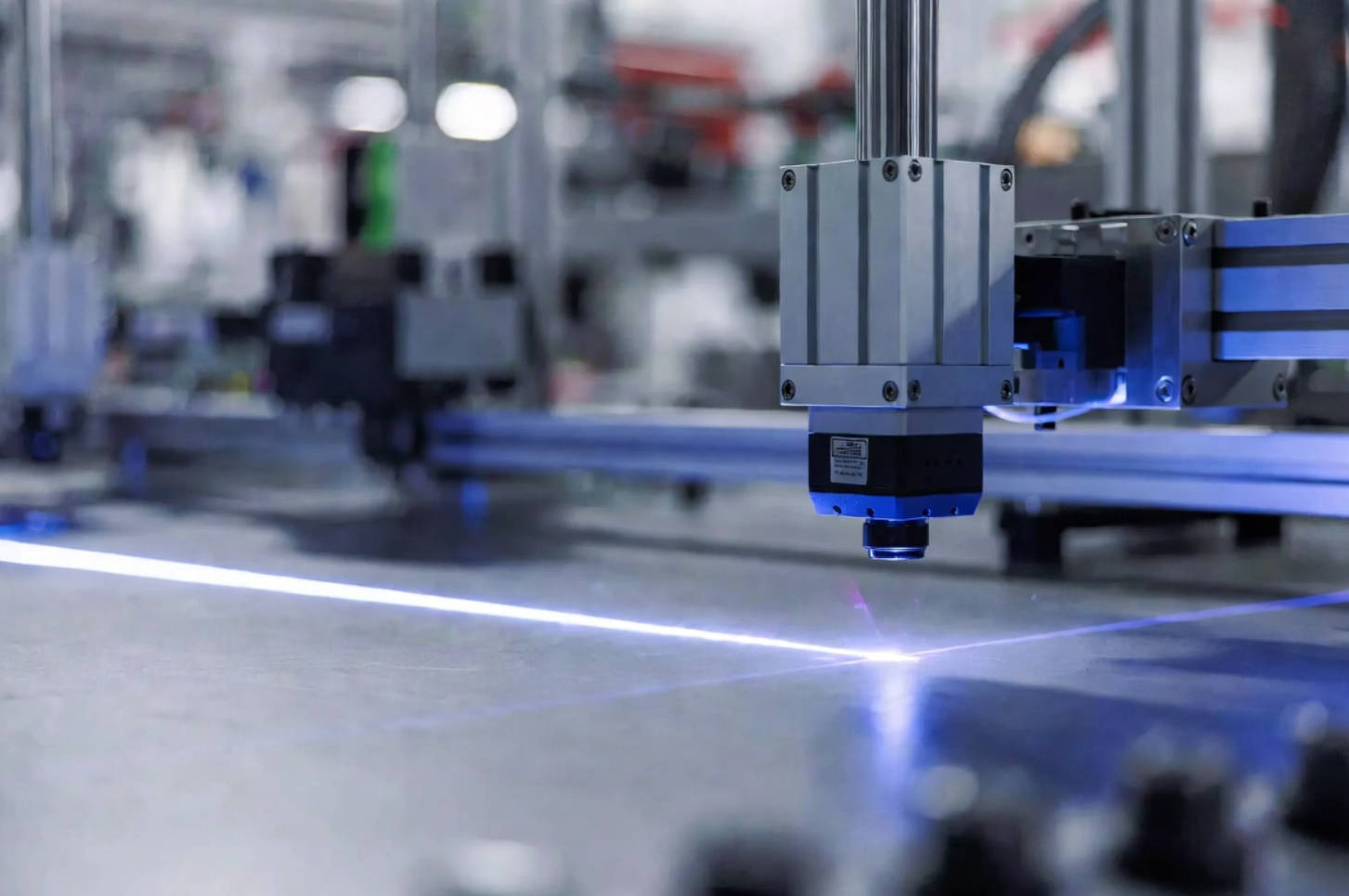

- Machine vision: A uniform line supports consistent image capture.
- Industrial alignment: A bright, stable line makes positioning easier.
- Measurement systems: Profile stability improves repeatability.
- Automation integration: Predictable beam behavior supports machine calibration.
- Quality inspection: Better profile control can reduce false readings.
For international OEM customers, this section is especially valuable because it translates optical theory into procurement logic.
From an OEM manufacturing perspective, intensity distribution should be treated as part of the product specification, not just an optical description. A reliable supplier should be able to explain the profile, edge intensity, and application fit in technical language.
When requesting a custom industrial laser module, ask for:
- Beam profile documentation.
- Edge intensity information.
- Working distance recommendations.
- Sample testing conditions.
- Application-specific integration guidance.
This is where experienced manufacturers add real value. They do not just supply a laser; they help the buyer match the laser to the process.
Understanding laser intensity distribution helps manufacturers, integrators, and OEM buyers choose the right industrial laser module for the right job. In most cases, the best choice depends on whether the application needs maximum center brightness or consistent line-wide illumination.
If you need OEM industrial laser modules for machine vision, alignment, inspection, or custom integration, contact Aiming Laser Technology Co., Ltd. to discuss your beam profile, working distance, and application requirements.
It is the way laser power is distributed across the beam or laser line. It determines how energy is concentrated or spread out across the target area.
Gaussian distribution is brightest at the center and weaker at the edges, while uniform distribution aims for more even brightness along the line.
Uniform intensity distribution is usually better for machine vision because it provides more consistent illumination across the inspection line.
Not perfectly. In practice, many uniform lines are still shaped from a Gaussian source and clipped by optics to create a flatter output.
Start with the application goal, then evaluate working distance, line length, edge intensity, and image or process requirements before final selection.
