As someone who has spent years helping OEM customers integrate industrial laser modules into demanding production environments, I see laser positioning as one of the simplest—and most underrated—ways to boost accuracy, throughput, and operator confidence. In this guide, I will walk you through what laser positioning is, how it works in real factories and workshops, the latest trends, and how an OEM partner like Aiming Laser Technology Co., Ltd. supports brands, wholesalers and machine builders worldwide. [aiminglasers]
At its core, laser positioning means using a visible laser beam as a reference line, point, cross or pattern to indicate exactly where an object should be placed, cut, aligned or inspected. Think of it as a highly precise "optical ruler" or "virtual template" that replaces manual marks, mechanical stops or guesswork. [linkedin]
In industrial environments, laser positioning is usually implemented with compact laser diode modules integrated into machines such as saws, press brakes, conveyors, CNC equipment, textile and packaging lines. These modules project patterns onto workpieces or work areas so that operators or control systems can align material in seconds rather than minutes. [lasertech]

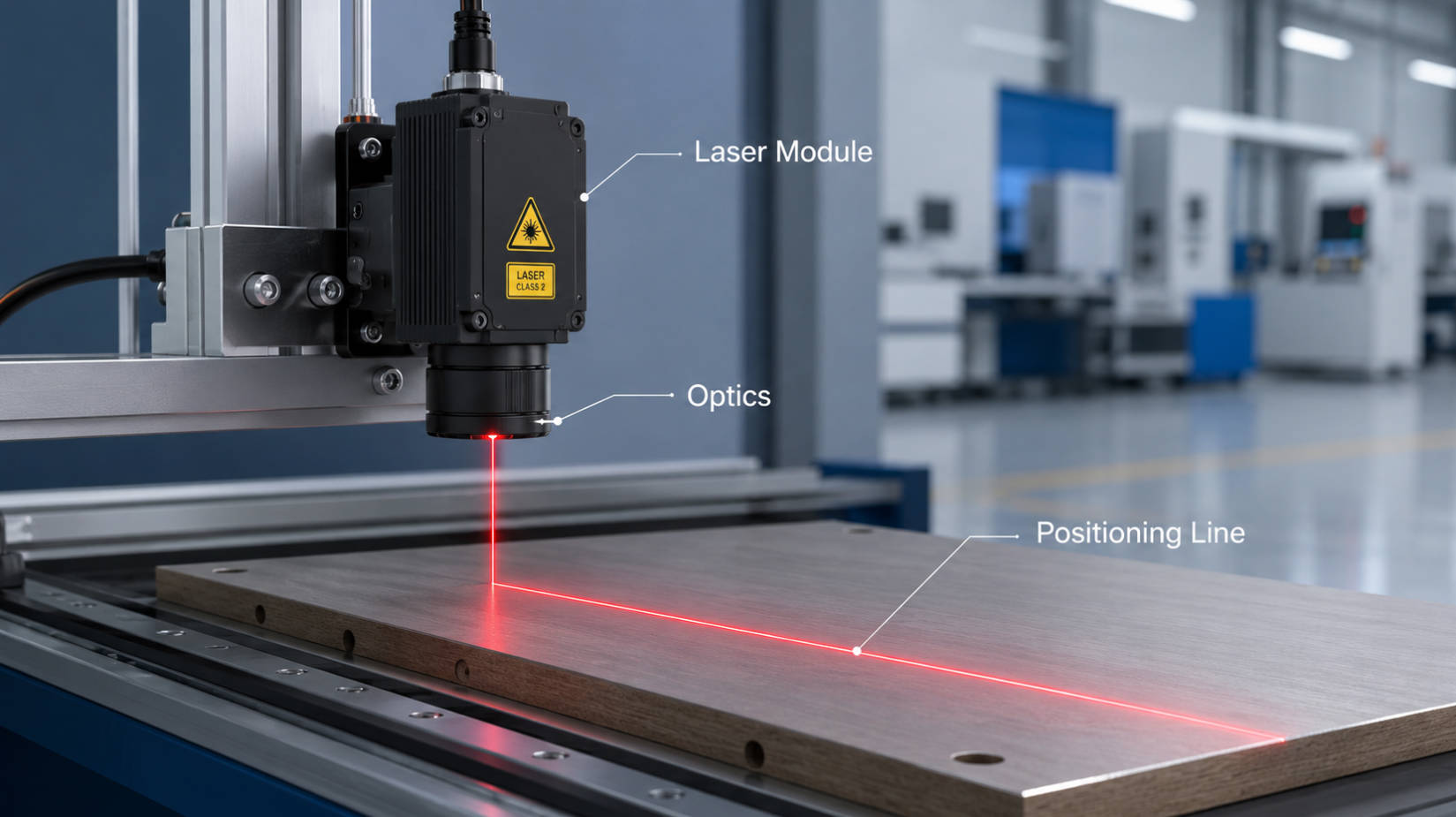

A typical industrial laser positioning system contains three main elements:
- Laser light source – Usually a diode laser module in the 405–980 nm range with power from below 1 mW up to several watts, depending on distance, ambient light, and safety requirements. [linkedin]
- Optics – Lenses or diffractive optics that shape the beam into a line, cross, dot, or circle used as the visible reference. [alrad]
- Mounting and controls – Mechanical mounts, focus adjustment, power and sometimes drivers or controllers that allow OEMs to tune brightness, focus and pattern size for their application. [linkedin]
When powered, the laser module projects a sharp pattern onto the surface of the workpiece or machine bed. Operators then position material so that edges, holes or features coincide with the projected line or cross before cutting, drilling, sewing, folding or welding. [lasertech]
From the perspective of an OEM laser manufacturer working with machine builders in automotive, woodworking, textiles and logistics, the benefits are consistent across industries. [aiminglasers]
- Higher accuracy and repeatability
Laser lines and crosses provide clear visual targets down to millimeter-level precision, even on large workpieces. [alrad]
- Faster setup and changeover
Operators no longer need to measure and remark each job; instead, they align to the light pattern and run. This reduces changeover time and increases throughput. [linkedin]
- Reduced scrap and rework
Misalignment is one of the most common causes of scrap. A clear optical reference helps prevent off-center cuts, mis-drilled holes and misaligned seams. [lasertech]
- Better ergonomics and training
New operators can understand "align the edge to the red line" far faster than complex measurement procedures, reducing training time. [lasertech]
- Non-contact, wear-free reference
Unlike mechanical guides, lasers do not wear, deform or introduce friction. This is especially valuable in clean or delicate processes. [linkedin]

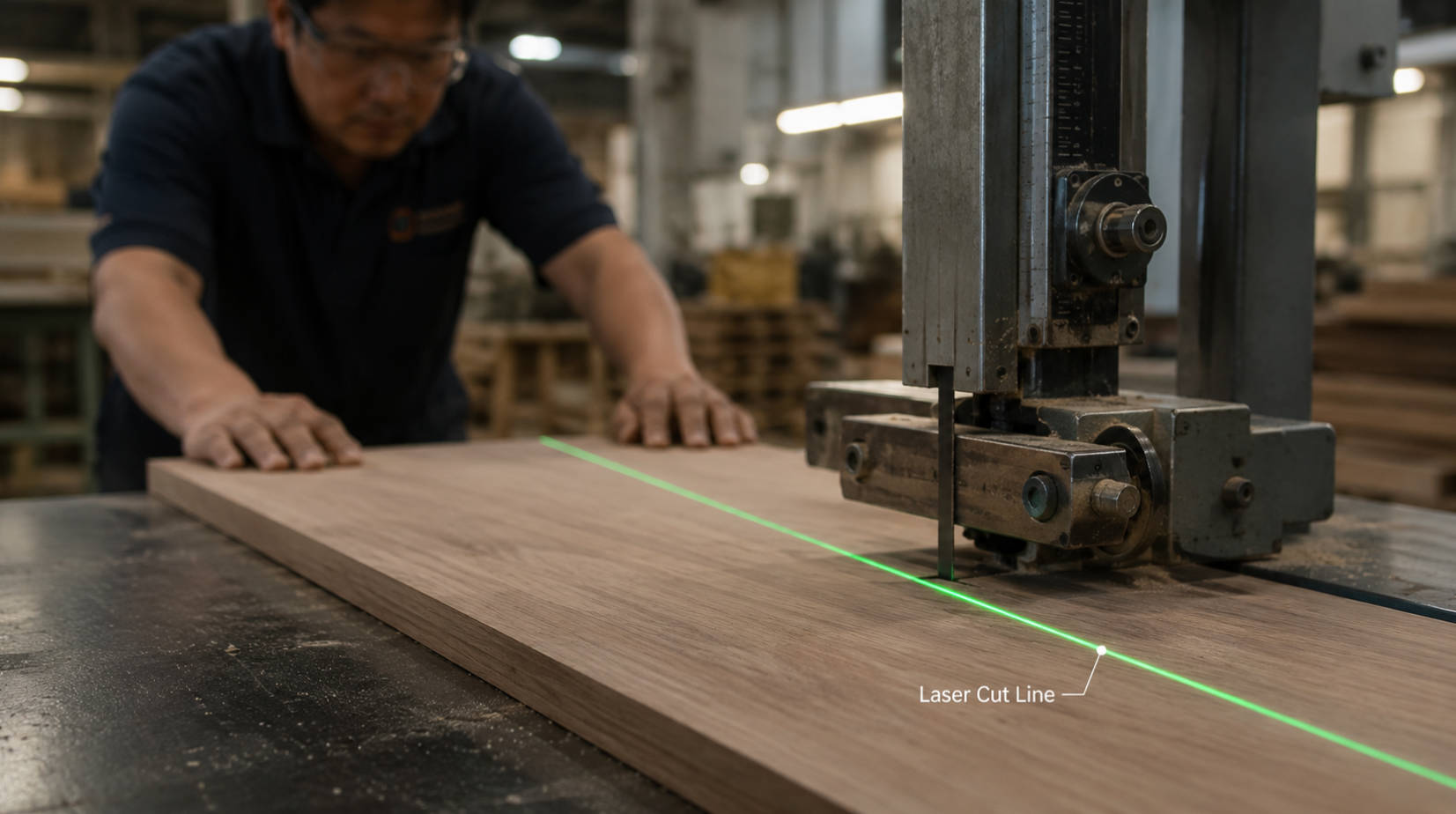

In woodworking, laser line projectors are widely used on band saws, cross-cut saws, multi‑blade saws and panel saws to show the exact cut line on logs, boards and panels. Operators position the material so that the desired cut or groove follows the projected line, reducing waste and improving consistency in furniture and construction components. [alrad]

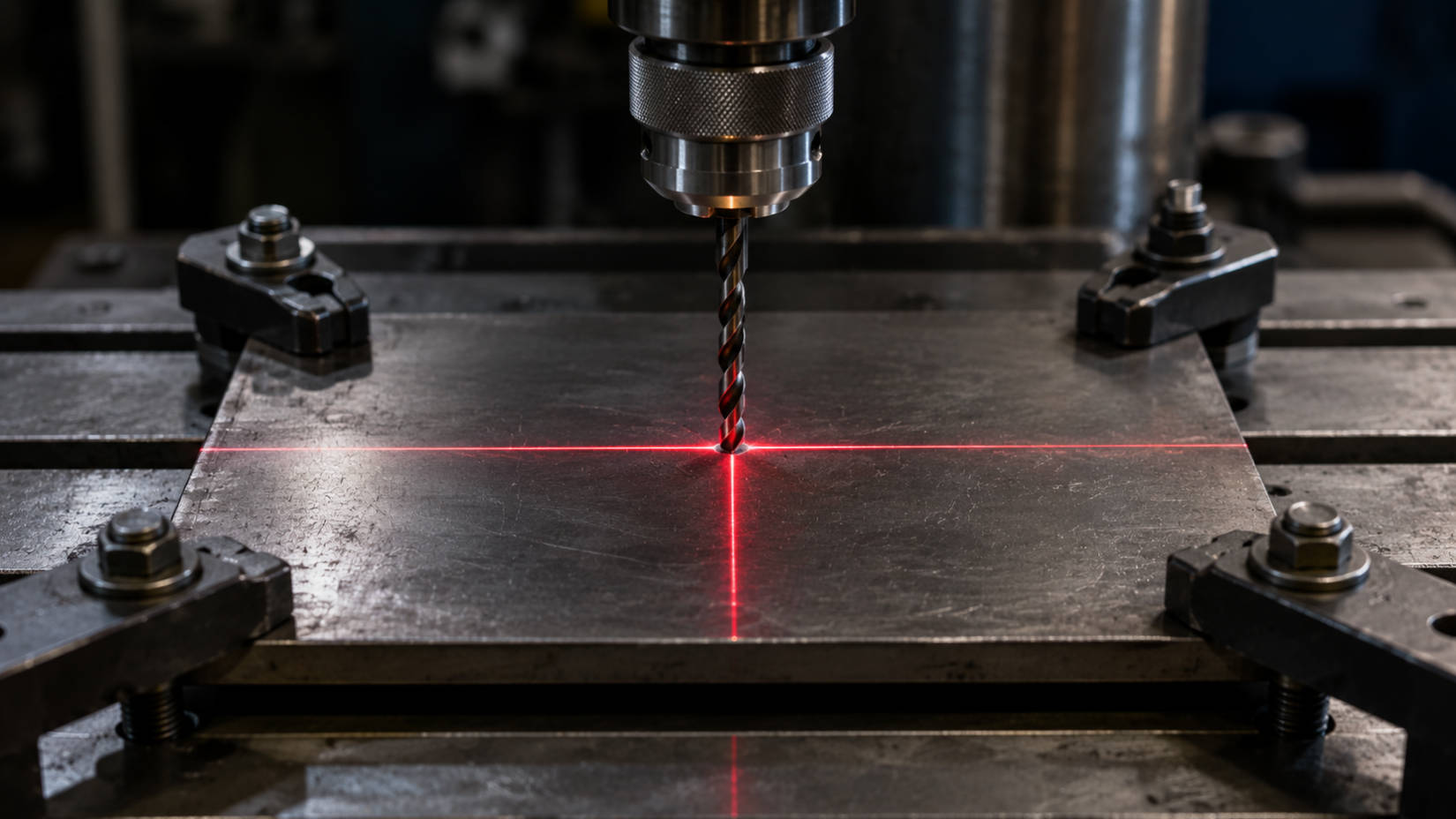

Metal workshops use positioning lasers on press brakes, shears, folding tables, drilling machines and milling equipment to align sheets, profiles and heavy components. For large or hard‑to‑move workpieces, the laser acts as a virtual gauge, helping operators "see" where bending lines or drill centers will fall before committing to the operation. [alrad]
On CNC bridge saws and multi‑blade saws for marble and stone, lasers help position slabs, suction cups and clamping devices with high precision. This improves yield from expensive slabs and reduces risk of miscuts on premium materials like marble, granite and engineered stone. [lasertech]
In textile and leather manufacturing, laser modules provide a precise reference for positioning fabrics and leather as they enter sewing, cutting, printing or labeling machines. They are used as "optical rulers" for seam monitoring, pocket alignment, buttonhole placement and pattern positioning, which improves quality and reduces manual rework. [lasertech]

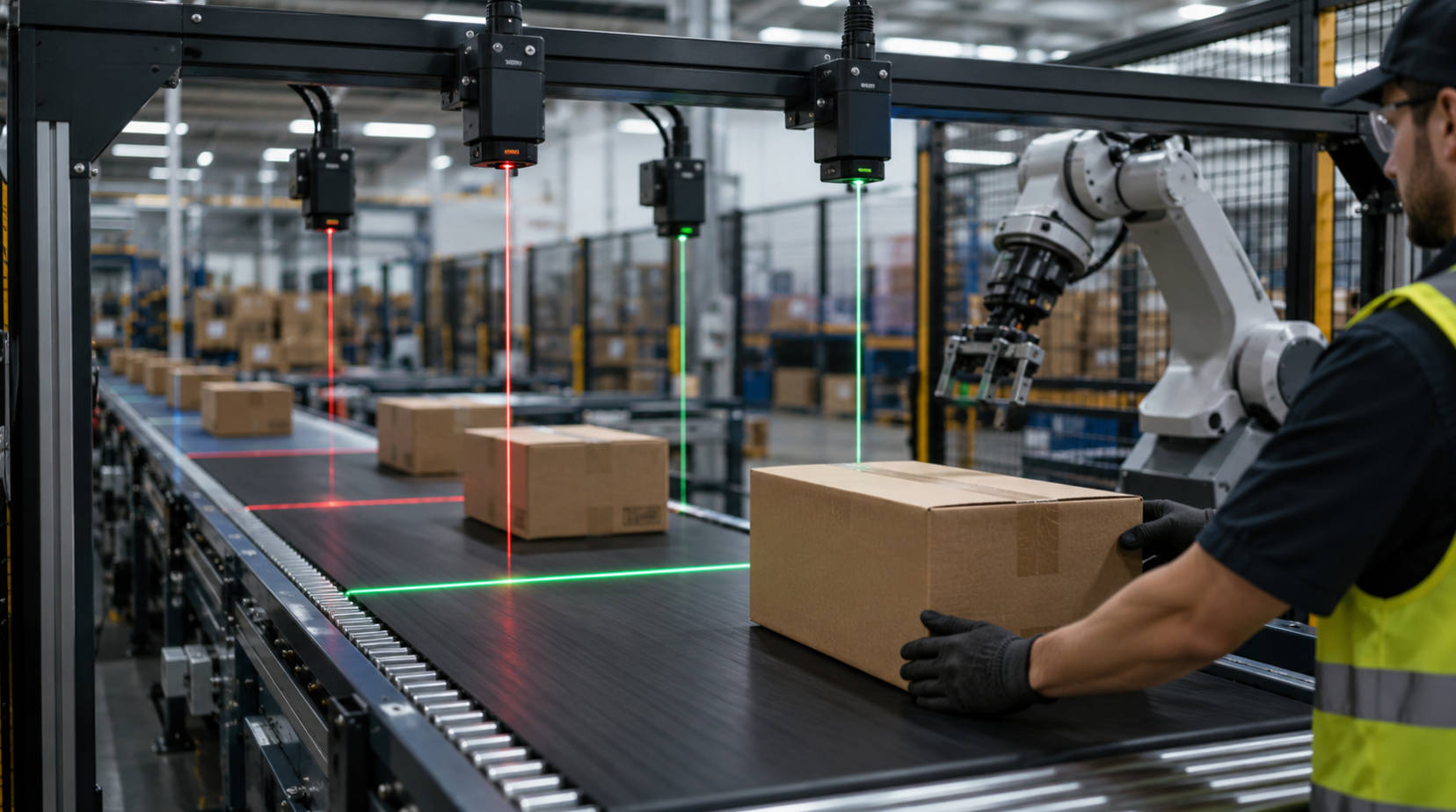

On conveyor belts and in automated warehouses, lasers projecting lines or crosses indicate where boxes, bottles or packages should be placed, sorted or picked. They are also used to guide operators in automated vertical warehouses, speeding recognition and retrieval of materials. [linkedin]
Beyond industry, positioning lasers are used for patient alignment in medical imaging and treatment rooms, where accurate, repeatable positioning is critical. Laser references help technicians align patients or equipment without physical contact, improving comfort and accuracy. [alrad]
From an OEM manufacturer's perspective, the value of laser positioning becomes clear when you look at long‑term performance in the field. One automotive customer integrated laser diode modules into forklift guidance systems for warehouse operations, achieving more than 40,000 hours of operation without failure and reducing downtime by roughly 30% compared with earlier trials using less stable sources. [aiminglasers]
Another OEM using diode laser modules for packaging and cardboard display alignment reported mean time between failures of around 35,000 hours, which is crucial for 24/7 production environments where unplanned stops are extremely costly. These examples show why machine builders and system integrators often prefer diode laser modules over older technologies in positioning applications: they offer long lifetime, compact size and stable performance under continuous operation. [aiminglasers]
The positioning laser market has been growing rapidly as factories digitize and automate. Public analyses indicate that the global positioning laser market is expected to expand significantly from around USD 2.1 billion in 2024, roughly doubling over the next several years as automation and robotics adoption accelerates. [linkedin]
This growth is driven by sectors such as automotive, construction, medical devices and smart logistics, where precise alignment and tracking underpin quality and safety. For OEM manufacturers of industrial laser modules, this means a rising demand for customized, integration‑ready modules that fit into specialized machinery and turnkey systems. [linkedin]
Aiming Laser and other OEM suppliers typically design several main categories of positioning laser modules for industrial integration. [optlasers]
Module type | Typical pattern | Key use cases | Notable benefit |
|---|---|---|---|
Line laser module | Straight line | Saws, press brakes, conveyors lasertech | Clear cut or fold reference over long distances |
Cross-hair laser module | Cross (X or +) | Drilling, sewing, pick‑and‑place linkedin | Exact intersection point targeting |
Dot laser module | Single point | Positioning sensors, simple targets lasertech | Very compact and versatile |
Multi-line / pattern module | Multiple lines, grids or circles | Complex layout, marking zones lasertech | Visual guidance for multi‑position tasks |
By choosing the right pattern, wavelength and power, OEMs can tailor the visual reference to match operator viewing conditions, material reflectivity and safety classifications. [linkedin]
Based on integration projects with various industrial customers, a practical selection process usually considers the following factors. [optlasers]
1. Application geometry and distance
Define working distance, field of view and the size of the pattern you need on the target. [lasertech]
2. Pattern type
Choose between line, cross, dot or custom patterns based on the alignment task (cut line, hole center, zone marking, etc.). [linkedin]
3. Wavelength and visibility
Common industrial choices include red lasers for general visibility and green for higher visibility in bright environments. Consider ambient lighting and surface color. [lasertech]
4. Output power and safety class
Select the lowest power that still delivers a clear pattern at working distance, to help stay within the desired safety class and minimize risk. [uno]
5. Mechanical integration
Check size, mounting options, focus adjustment and environmental protection (dust, moisture) to ensure reliable operation in your machine. [linkedin]
6. Reliability and lifetime
Look for industrial‑grade diode modules with documented lifetime data and test protocols, especially for 24/7 applications. [ceramoptec]
Even relatively low‑power positioning lasers must be used responsibly. Key safety guidelines from university and regulatory sources emphasize both optical and mechanical safety. [osha]
- Keep beam above or below eye level
Position the laser so that the beam path is not at typical eye height for standing or seated operators. [uno]
- Secure mounting
The laser must be securely fixed to prevent displacement, unintended beam paths or vibrations that might create unexpected reflections. [warwick.ac]
- Control stray beams
Cover or shield windows, doors and openings around Class IIIB or Class IV systems to prevent uncontrolled beam escape. [osha]
- Provide appropriate eye protection when needed
In higher‑power or open‑beam setups, operators should be equipped with correct laser safety eyewear and trained in safe operation. [warwick.ac]
- Align high‑power lasers at low power
Whenever practicable, align using a low‑power beam or neutral density filters to reduce risk during setup. [warwick.ac]
From an OEM perspective, designing modules with stable mounts, clear labeling and integration guidelines significantly improves end‑user safety and compliance. [rheinmetall]
Aiming Laser Technology Co., Ltd. has focused on OEM diode laser modules for instrument and industrial applications since 2012, supplying brands and machine builders worldwide. Our product range covers wavelengths from about 405 nm to 980 nm, with output powers from sub‑milliwatt levels up to several watts for demanding industrial tasks. [aiminglaser]
For overseas brands, wholesalers and equipment manufacturers, the most valuable aspects of working with a specialized OEM partner are:
- Application‑specific customization of optical patterns, housings, connectors and drivers for easy integration. [rheinmetall]
- Documented reliability, including batch testing, MTBF data and traceability for industrial audits. [ceramoptec]
- Lifecycle support, from concept and prototyping through volume production and long‑term supply. [ceramoptec]
If you are designing or upgrading a machine that relies on accurate visual alignment—whether in woodworking, metal fabrication, textiles, logistics or medical support equipment—working directly with an OEM laser module manufacturer helps ensure that the module you choose truly matches your real‑world environment. [optlasers]
For engineers and technical buyers planning to add laser positioning to a new or existing machine, this is a straightforward, field‑tested process. [aiminglasers]
1. Define the use case precisely
Clarify what needs to be aligned (cut, drill, fold, pick) and what pattern best supports that task.
2. Measure the working envelope
Document distances, viewing angles, space constraints, mounting positions and ambient light.
3. Consult on module selection
Work with your OEM laser supplier to choose wavelength, power, optics, housing and electrical interface.
4. Prototype and test on-site
Install sample modules on one machine, evaluate visibility, safety and operator feedback under real conditions.
5. Standardize and scale
Once validated, standardize specifications across machine models or production lines to simplify maintenance and spare parts.
By following these steps, many OEM customers have moved from small pilot projects to global deployment of laser positioning on multiple product lines. [optlasers]
If you manufacture machinery or systems that rely on precise alignment, laser positioning is a low‑cost upgrade that delivers measurable gains in accuracy, speed and operator confidence. As an OEM manufacturer, Aiming Laser Technology Co., Ltd. can work with your team from concept to series production, helping you define specifications, validate prototypes and deliver stable modules at scale. [linkedin]
To discuss your project requirements—such as working distance, pattern type, expected lifetime or integration constraints—you can reach out to the Aiming Laser team via their official contact channels and request engineering support or sample modules for evaluation. [aiminglaser]
The main purpose is to provide a clear visual reference—a line, cross or dot—that helps operators or automated systems position workpieces and tools accurately before processing. [linkedin]
Industries such as woodworking, metal fabrication, stone processing, textiles, packaging, logistics and medical imaging all use positioning lasers to improve alignment, reduce scrap and streamline workflows. [linkedin]
Use a line laser when you need to show a cut, fold or alignment line across a surface, and choose a cross‑hair laser when you need to mark an exact intersection point, such as for drilling, sewing or pick‑and‑place tasks. [linkedin]
Properly selected and installed positioning lasers are safe when used within the intended safety class and following guidelines such as keeping the beam above or below eye level, securing the module and providing eye protection where required. [uno]
OEM manufacturers provide industrial‑grade modules with custom optics, housings, electrical interfaces and documented lifetime, making them more reliable, easier to integrate and better supported over the full lifecycle of your machines. [rheinmetall]
