635nm 20mW Red Dot Laser Pointers Visible Red Beam Laser Light

Laser Wavelength:
Laser Color:
Output Power:
Beam Size:
Housing Material:
  • AM635D20G1
  • 90132000.99
  • Red  Visible
  • 635nm
  • Pulse  CW  Dot  TTL

635nm 20mW Red Dot Laser Pointers Visible Red Beam Laser Light

laser wavelength chart

AimLaser provides customized Red Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The red laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 635nm 20mW Visible Dot Red Laser Module Descriptions

The AM635D20G1 is a red laser module subassembly with collimated beam. The maximum laser output power is 20.0mW at 635nm.

635nm 20mW Visible Dot Red Laser Module Optical and Electrical Characteristics

Model Number AM635D20G1 Visible Dot Red Laser Module
Wavelength 635nm
Output Power ≤20.0mW
Laser Mode CW
Beam Size ≤4x3mm@1m
Divergence 0.2mrad
Optics Optical Glass Lens
Operating Current <90mA
Operating Voltage 3V-5V DC
CDRH Class Class IIIb
Circuit control Auto Power Control (APC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -40℃ to 80℃
Dimensions Φ12x40mm (APC Inside)
Housing Material Full Brass or Black Anodized Aluminum with Insulation
Life Span 10,000Hrs

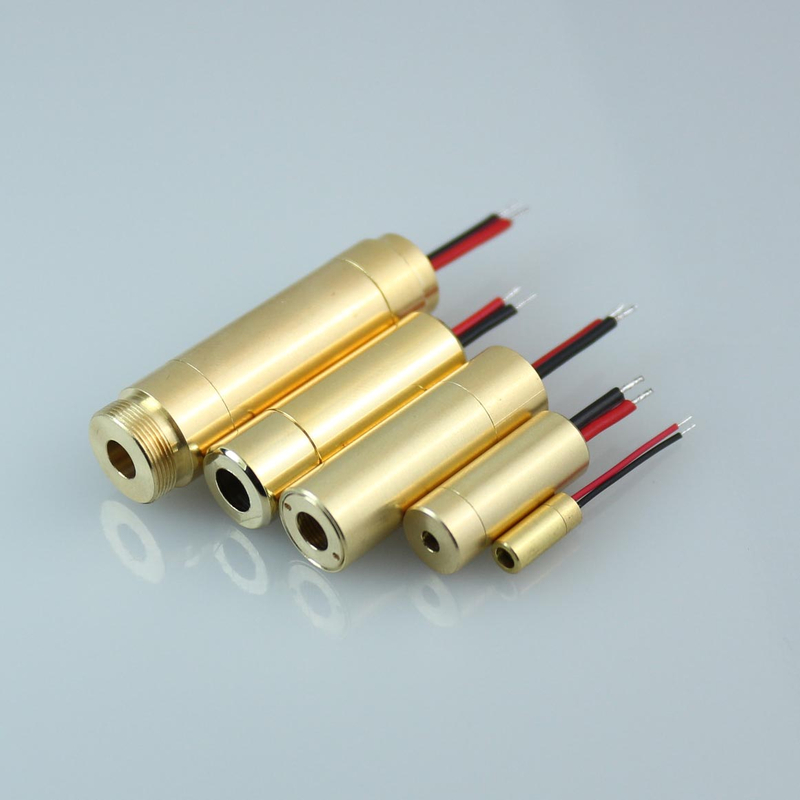

Laser Diode Red Modules-AIMLASER Red Beam Laser Module-AIMLASER (1)

※ 635nm Red Laser Module Applications

  1. Scientific Research

  2. Laboratory Instrument
    Gun Laser Grips
    Gun laser sights

  3. Laser aiming devices

  4. Laser alignment instrument

  5. Laser pointing instrument

  6. Laser positioning devices

  7. Laser surveying instrument

  8. Laser detection equipment

  9. Medical Laser Instrument

  10. Consumer Products

  11. Nightwear Sporting Products

  12. Automotive interior Ambient Light

  13. OEM Instrumentation

※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips

※ Laser Modules Production Process

Laser Module Production Process

※ Laser Modules Production EquipmentLaser module production equipment

※ Laser Modules Testing Equipment

Laser Module testing equipment

※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
