Medical Diode Laser Modules TTL Modulation 650nm 0.4mW Class I Laser Modules

Laser Wavelength:
Laser Color:
Output Power:
Beam Size:
Housing Material:
  • AM650D05G1
  • 90132000.99
  • Red  Visible
  • 650nm
  • Pulse  CW  Dot  TTL

Medical Diode Laser Modules TTL Modulation 650nm 0.4mW Class I  Laser Modules

laser wavelength chart

AimLaser provides customized Red Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The red laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 650nm 0.4mW Medical Diode Laser Module Descriptions

The AM650D05G1 is a red laser module subassembly with collimated beam. The maximum laser output power is 0.4mW at 650nm.

650nm 0.4mW Medical Diode Laser Module Optical and Electrical Characteristics

Model Number AM650D05G1 Medical Diode Laser Module
Wavelength 650nm
Output Power ≤0.4mW
Laser Mode CW
Beam Size ≤2.0mm@1.2m
Divergence 0.8mrad
Optics Optical Glass Lens
Operating Current <30mA
Operating Voltage 3V-5V DC
CDRH Class Class I
Circuit control Auto Power Control (APC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -40℃ to 80℃
Dimensions Φ10x35mm (APC Inside)
Housing Material Full Brass with Insulation
Life Span 10,000Hrs

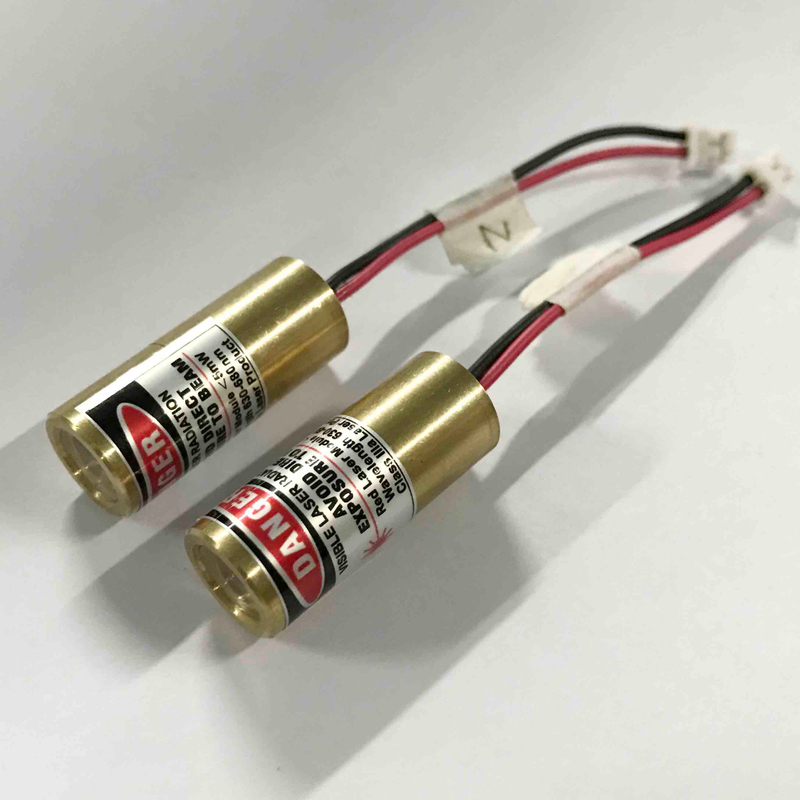

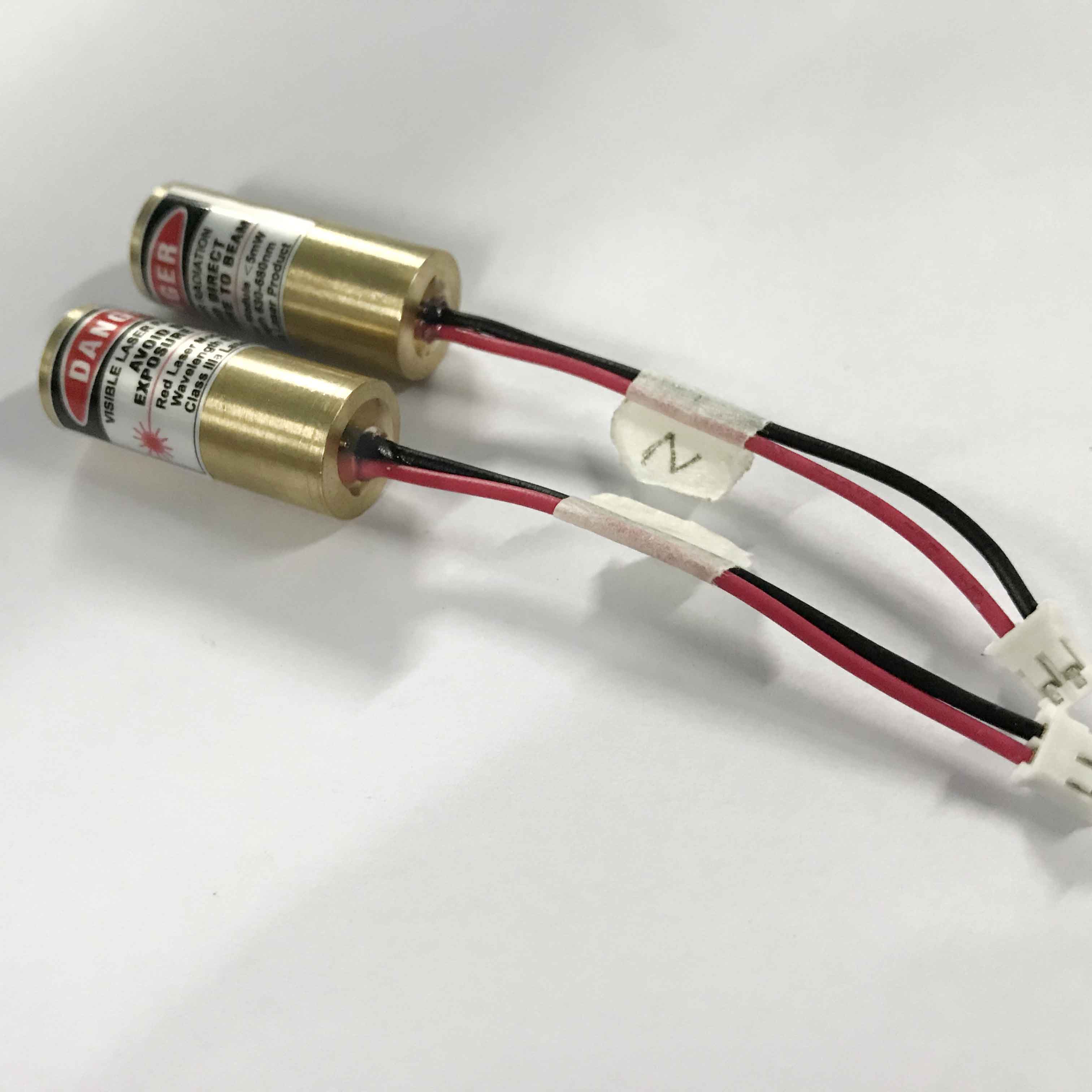

Visible Laser Modules Red Line-AIMLASER (1) Visible Laser Modules Red Line-AIMLASER (2)

※ 650nm Red Laser Module Applications

  1. Scientific Research

  2. Laboratory Instrument
    Gun Laser Grips
    Gun laser sights

  3. Laser aiming devices

  4. Laser alignment instrument

  5. Laser pointing instrument

  6. Laser positioning devices

  7. Laser surveying instrument

  8. Laser detection equipment

  9. Medical Laser Instrument

  10. Consumer Products

  11. Nightwear Sporting Products

  12. Automotive interior Ambient Light

  13. OEM Instrumentation

※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips

※ Laser Modules Production Process

Laser Module Production Process

※ Laser Modules Production EquipmentLaser module production equipment

※ Laser Modules Testing Equipment

Laser Module testing equipment

※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
