850nm 1mW IR Laser Diode Module Aiming Laser Module

Laser Wavelength:
Laser Color:
Output Power:
Housing Material:
Dimensions:
Availability:
Quantity:
  • AM850D05G2

  • AIMLASER, ELITELASER

  • 90132000.99

  • IR  Invisible

  • 850nm

  • Dot

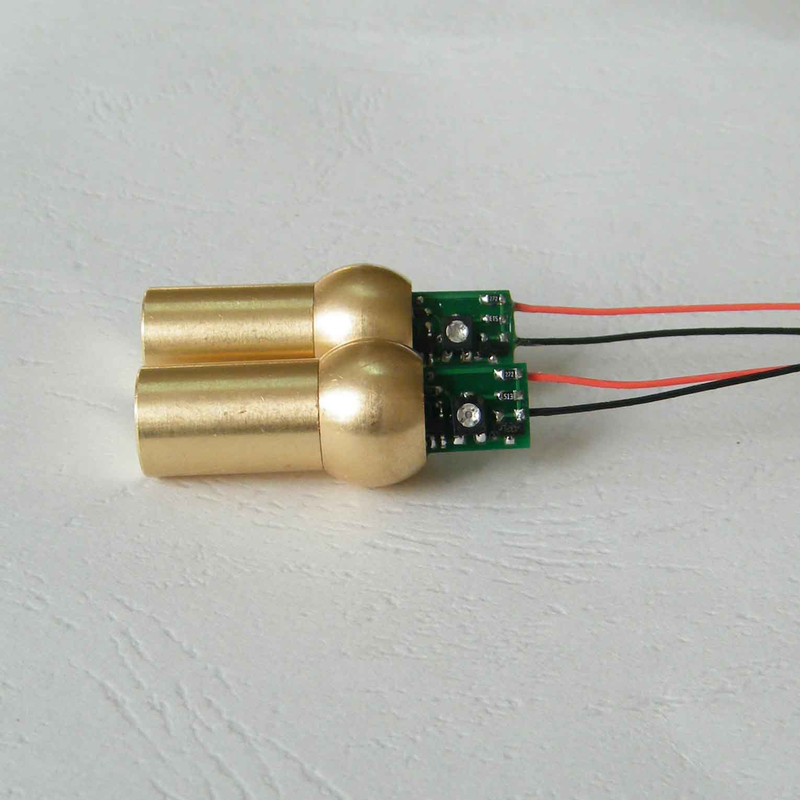

850nm 1mW IR Laser Diode Module Aiming Laser Module

laser wavelength chart

AimLaser provides customized Infrared Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The infrared laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 850nm 1mW IR Dot Mini Laser Diode Module Descriptions

The AM850D05G2 is an infrared laser module subassembly with collimated beam. The maximum laser output power is 1.0mW at 850nm.

※ 850nm 1mW IR Dot Mini Laser Diode Module Optical and Electrical Characteristics

ITEM SPECIFICATIONS
Model Number AM850D05G2 IR Dot Laser Diode Module
Wavelength 850nm
Output Power ≤1.0mW
Laser Mode CW
Beam Size ≤8.0mm@30m
Divergence 0.2mrad
Optics Optical Glass Lens
Operating Current <40mA
Operating Voltage 3V DC
CDRH Class Class II
Circuit control Auto Power Control (APC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -20℃ to 60℃
Dimensions Φ8x22mm (APC Inside)
Life Span 8,000Hrs

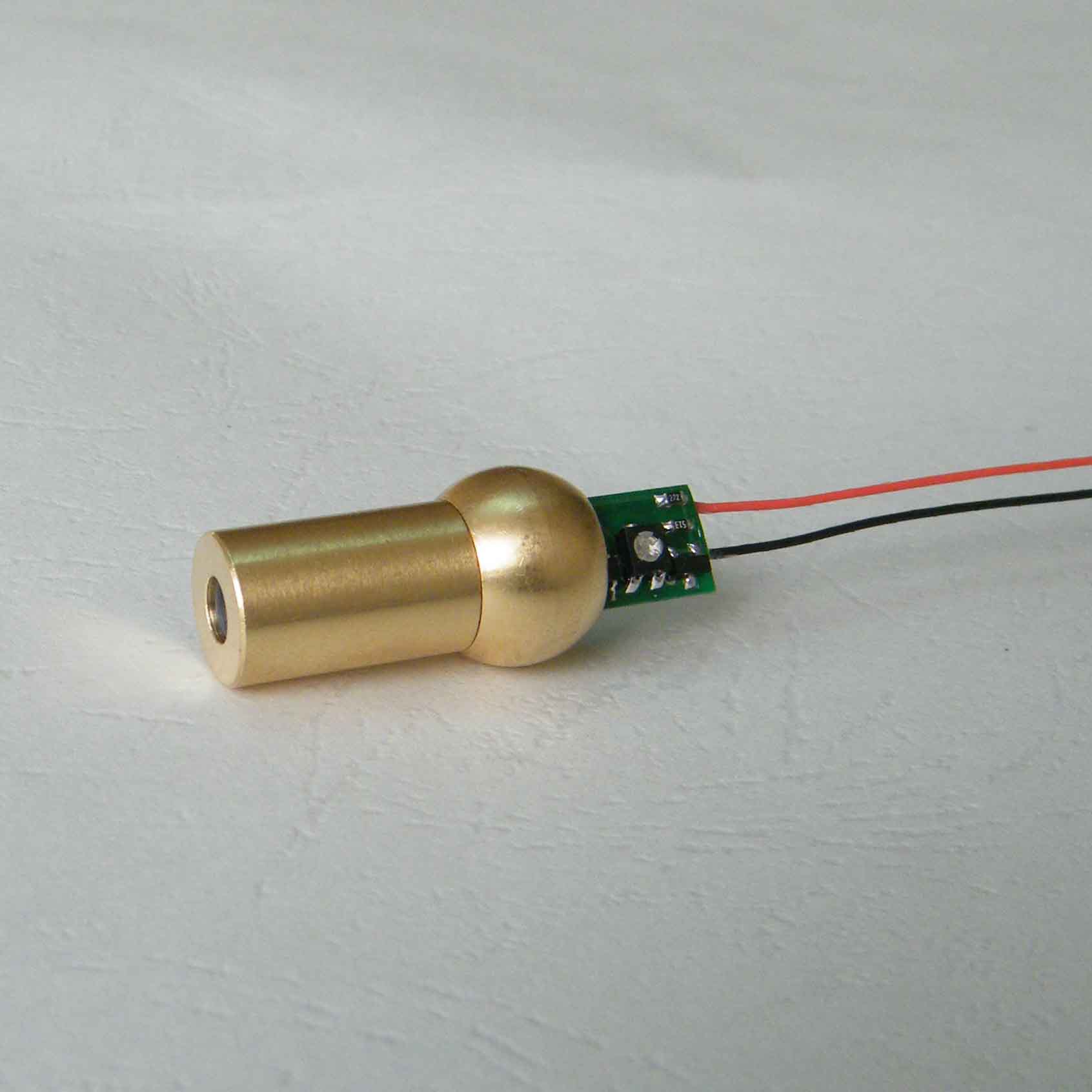

Infrared Laser Diode Module for Gun Sight Lasers-AIMLASER (1) Infrared Laser Diode Module for Gun Sight Lasers-AIMLASER (2)

※ 850nm Infrared Laser Module Applications

  1. Gun laser sights

  2. Gun Laser Grips

  3. Laser aiming devices

  4. Laser alignment instrument

  5. Laser pointing instrument

  6. Laser positioning devices

  7. Laser surveying instrument

  8. Laser detection equipment

  9. Medical Laser Instrument

  10. Miniature Laser Tools etc.


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Module Production Process

※ Laser Modules Production EquipmentLaser module production equipment

※ Laser Modules Testing Equipment

Laser Module testing equipment

※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
