| Product Name: | |
|---|---|
| Laser Wavelength: | |
| Laser Power: | |
| Operation Modes: | |
| LED Brightness: | |
| Material: | |
AM-LS01
AIMLASER
90132000.99
Red, Green
OEM, ODM
China

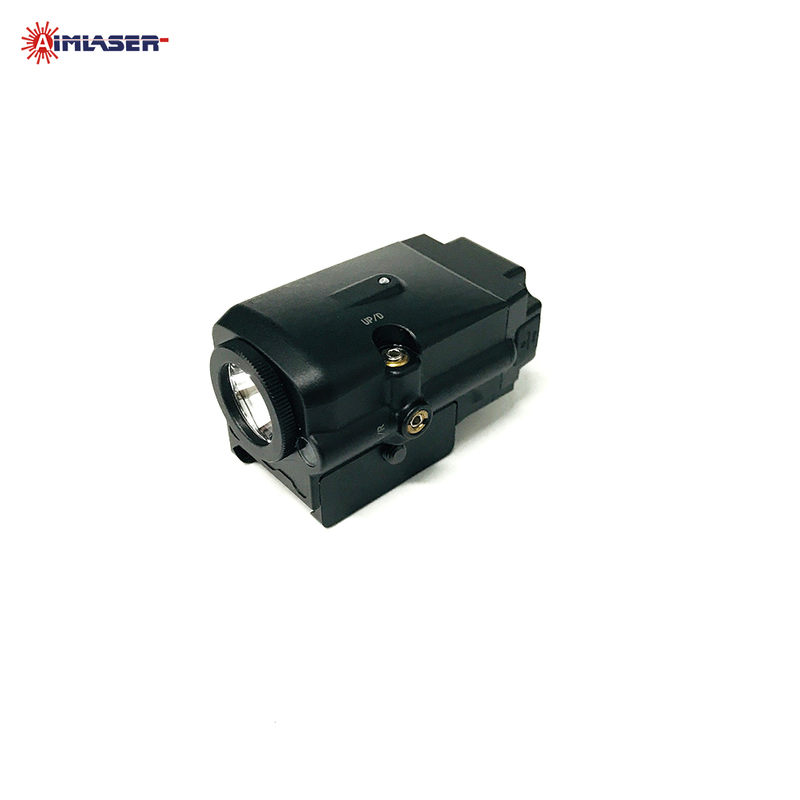

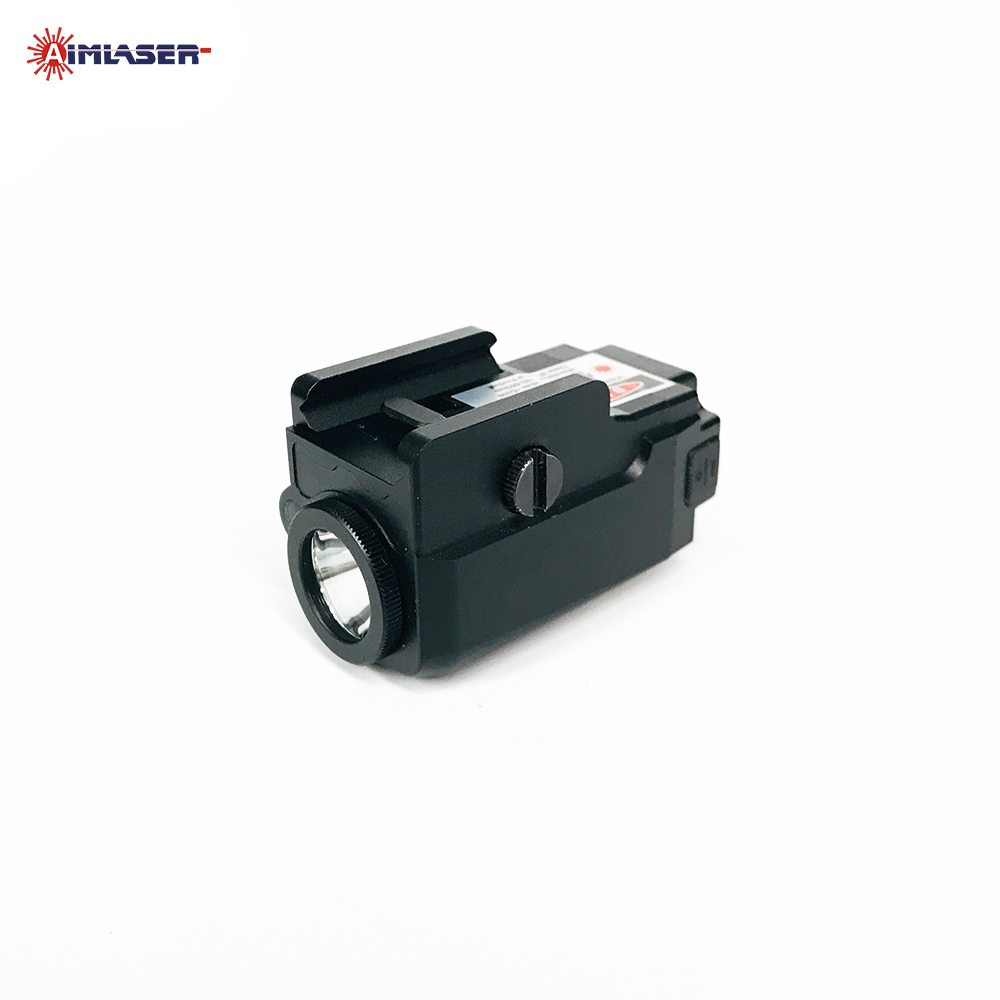

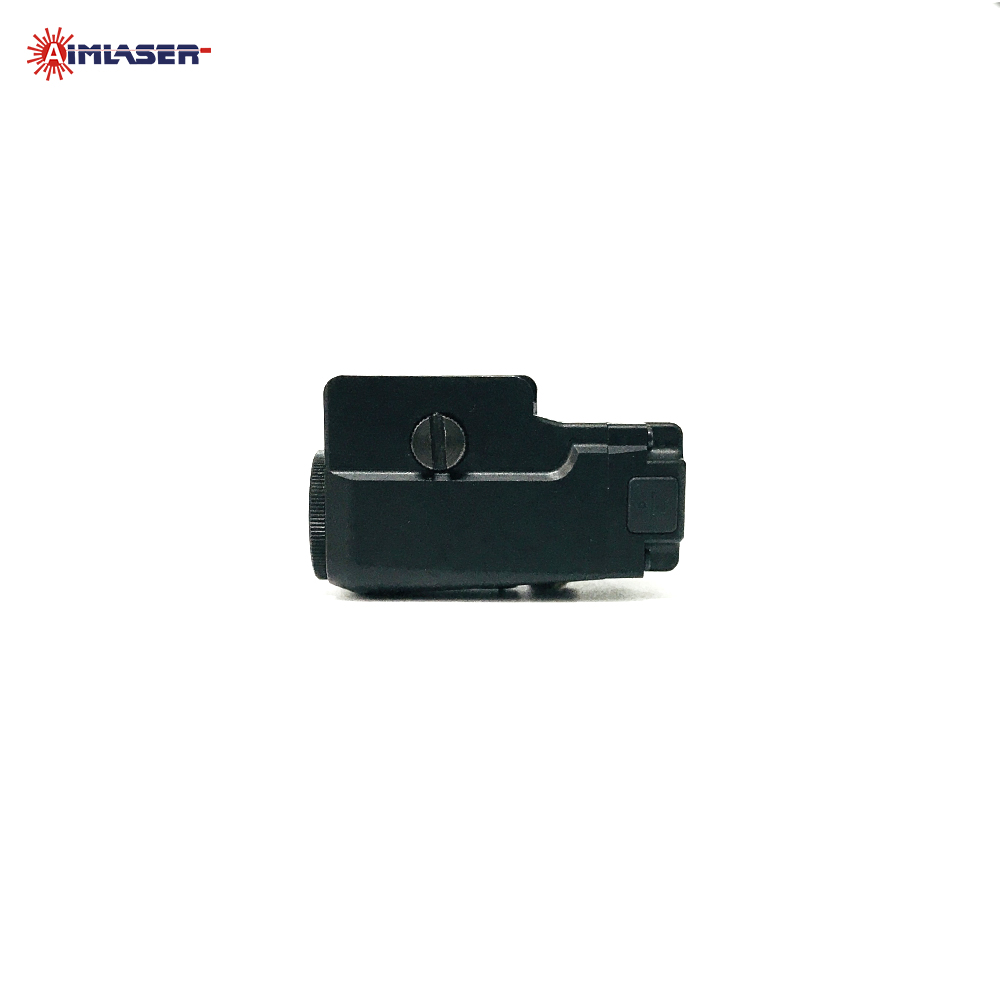

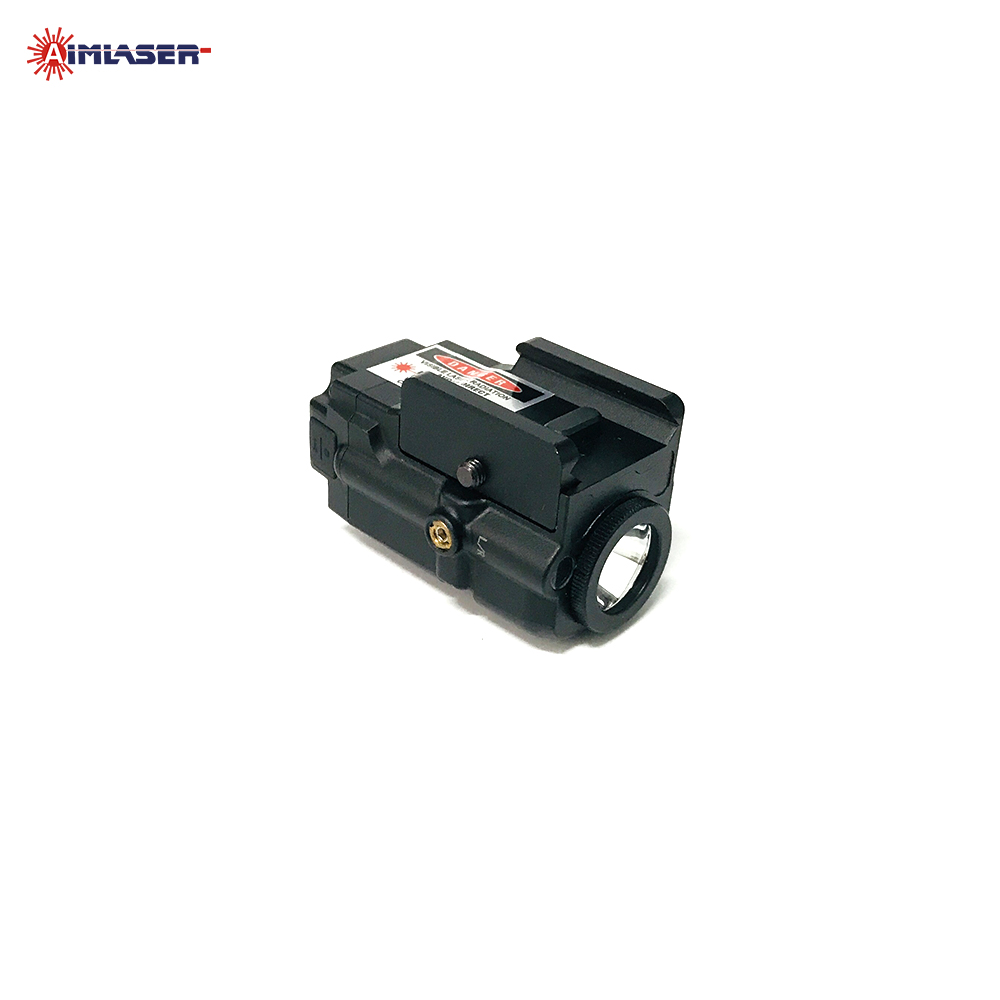

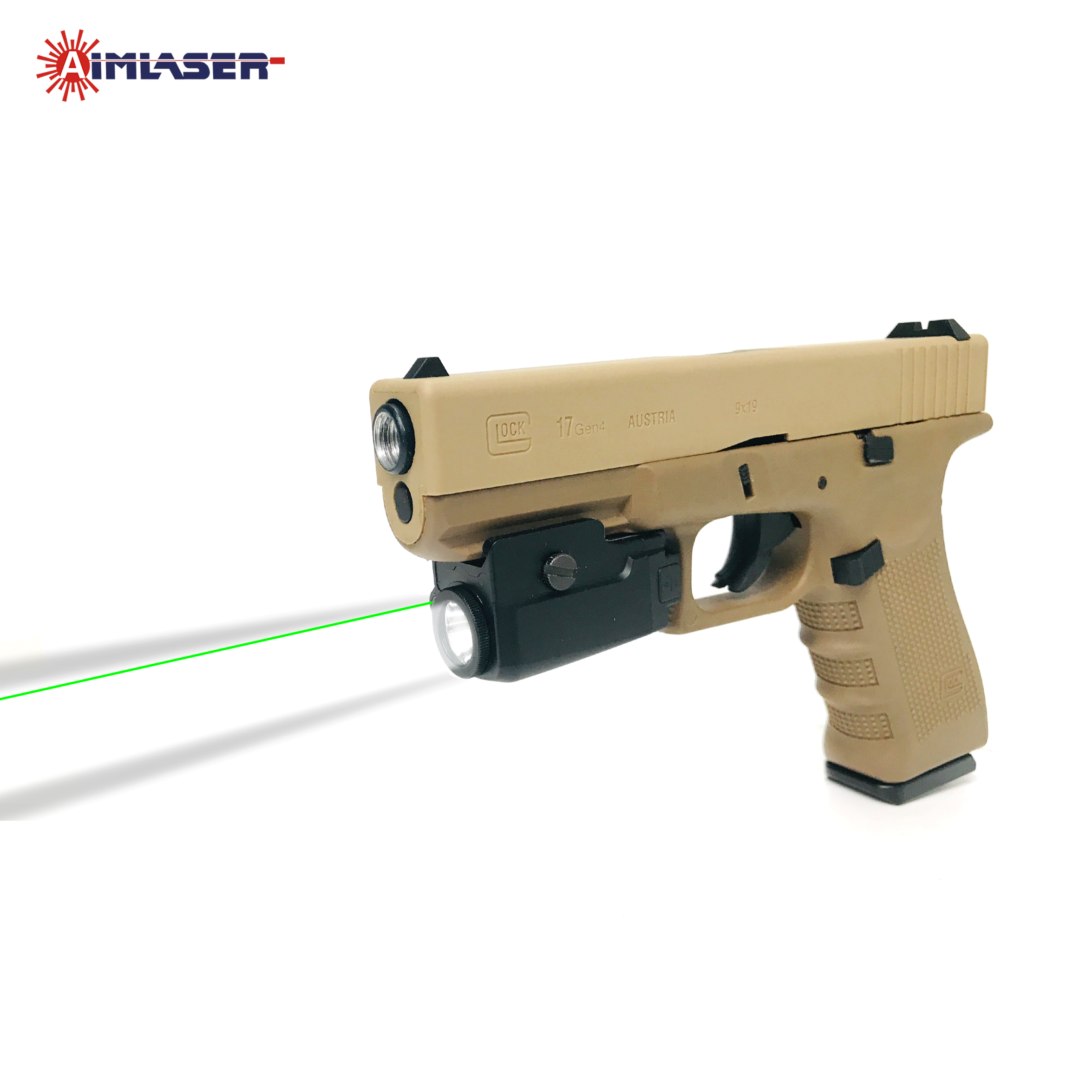

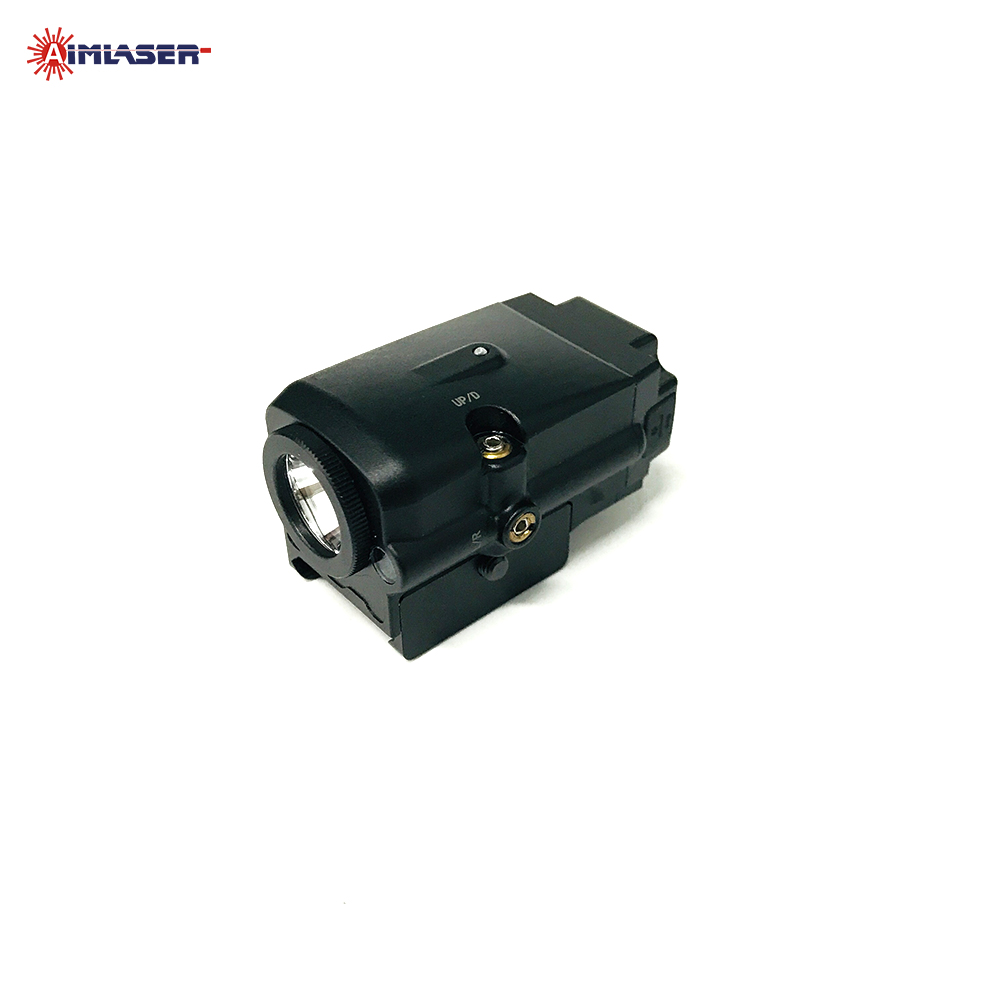

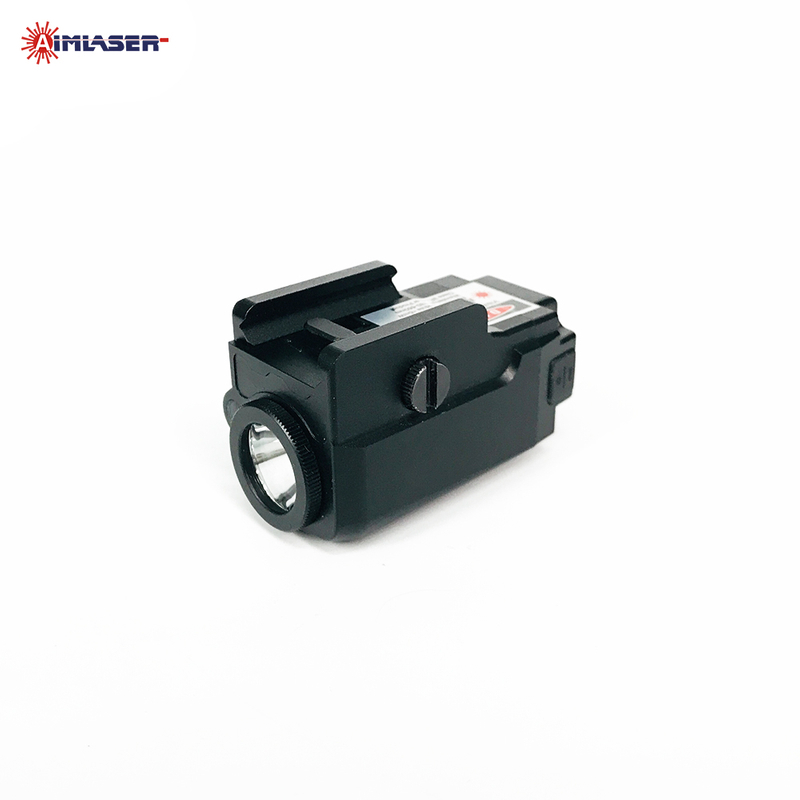

The AIMLASER AM-LS01 combines a visible laser sight and high-output LED light in a compact, lightweight housing, providing two essential functions in a single accessory. Its streamlined design, ambidextrous controls, and quick rail mounting make it easy to operate and deploy when space and weight are limited.
Available with green or red laser, the AM-LS01 offers three selectable operating modes—Laser, Light, and Laser + Light. The LED also supports steady and strobe illumination, providing greater flexibility for different applications.
Built from aluminum alloy with a black anodized finish, the AM-LS01 is designed for demanding use, featuring 800G shock resistance, ≥4m drop resistance, and IP65 waterproof protection.
OEM/ODM customization is available, including laser wavelength, housing design, appearance, logo, packaging, and product configuration.
Dual-Function Design
Laser aiming and high-output LED illumination integrated into one compact unit.
3 Operating Modes
Switch between Laser, Light, and Laser + Light according to application requirements. The light supports both steady and strobe modes.
Green or Red Laser
Choose green or red laser according to visibility and application requirements.
Ambidextrous Controls
Dual-side switches provide convenient operation for both left- and right-handed users.
Compact & Lightweight
Compact design minimizes added size and weight while maintaining essential laser and illumination functions.
Fast Mounting & Zeroing
Quick rail mounting and convenient windage/elevation adjustments enable fast installation and alignment.
Rugged & Weather Resistant
Durable aluminum alloy construction provides reliable performance in demanding outdoor environments.
| Item | Specification |
|---|---|
| Laser Wavelength | 520nm Green / 650nm Red |
| Laser Power | ≤5mW |
| Laser Class | Class IIIA |
| Beam Spot Size | ≤10 × 20mm @ 20m |
| Laser Runtime | 11 hours |
| LED Brightness | ≥300 Lumens |
| LED Runtime | ≥1 hour |
| Operation Modes | Laser / Light / Laser + Light |
| Battery | CR1/3N × 2 |
| Material | Aluminum Alloy |
| Finish | Black Anodizing |
| Operating Temperature | -20°C to +55°C |
| Dimensions | 56 × 25 × 30mm |
| Weight | 72g |
| Drop Resistance | ≥4m |
| Shock Resistance | 800G |
| Waterproof Rating | IP65 |
MOQ: 1pc
Delivery time: 3-20 days
Shipment Terms: FOB Xi'an China
Payment Terms: T/T, Western Union, PayPal
Shipment Method: DHL, UPS, FedEx or TNT
Customized solution and package.
After sale service: One year warranty offered.
Good quality: Durable anodized aluminum construction with high precision laser.
Quick shipment: 3-5 working days for samples; 2-4 weeks for mass quantity.
Quality guaranteed: Produced according to ISO9001:2008 quality control process.
