Infrared Thermal Imaging Monocular Scope Rail Mounted with Laser Rangefinding 24Hours Night Vision Outdoor Hunting

Infrared Thermal Imaging Monocular Scope Rail Mounted with Laser Rangefinding 24Hours Night Vision Outdoor Hunting

Infrared thermal imaging scopes are advanced optical devices that detect heat signatures emitted by objects, allowing users to see through darkness, smoke, fog, and light cover. Unlike traditional night vision, which requires ambient light, thermal scopes operate in complete darkness and are unaffected by light sources or camouflage. Widely used in military, law enforcement, search and rescue, wildlife observation, and tactical hunting, these scopes provide clear imaging of targets based on temperature differences. With rapid target acquisition, high-contrast imaging, and long detection ranges, thermal scopes have become essential tools in low-visibility and high-stakes environments.

※ AM-IRT02 Thermal Scope

AIMLASER’s AM-IRT02 is a high-performance infrared thermal imaging scope designed for military, tactical, and professional hunting use. Equipped with a 384×288 resolution 12μm VOx sensor and a 1024×768 high-contrast OLED display, it delivers sharp, real-time thermal imaging in all lighting and weather conditions.

The AM-IRT02 integrates a silent, shutter-free calibration system and a built-in laser rangefinder with real-time distance overlay, enabling quick target acquisition from 30m to 1300m. Multiple image modes—including White Hot, Black Hot, Red Hot, and Pseudo-Color—enhance visibility across diverse environments, while hotspot tracking, PIP, and onboard recording offer advanced situational awareness.

Built from durable materials and rated for 1500G shock resistance and IP-rated protection, the AM-IRT02 withstands harsh environments from -40℃ to +55℃. It supports Wi-Fi connectivity, PAL video output, and up to 8 hours of runtime with dual 18650 batteries. With its compact design,  customizable reticles, and AI-enhanced imaging, the AM-IRT02 is a versatile solution for professionals demanding reliable thermal performance in the field.

※ AM-IRT02 Features

• Silent shutter-free calibration for zero-noise, stealth operations

• High-sensitivity 384×288 VOx sensor with 1024×768 OLED for sharp thermal imaging

• Integrated 905nm laser rangefinder for accurate distance measurement (30–1300m)

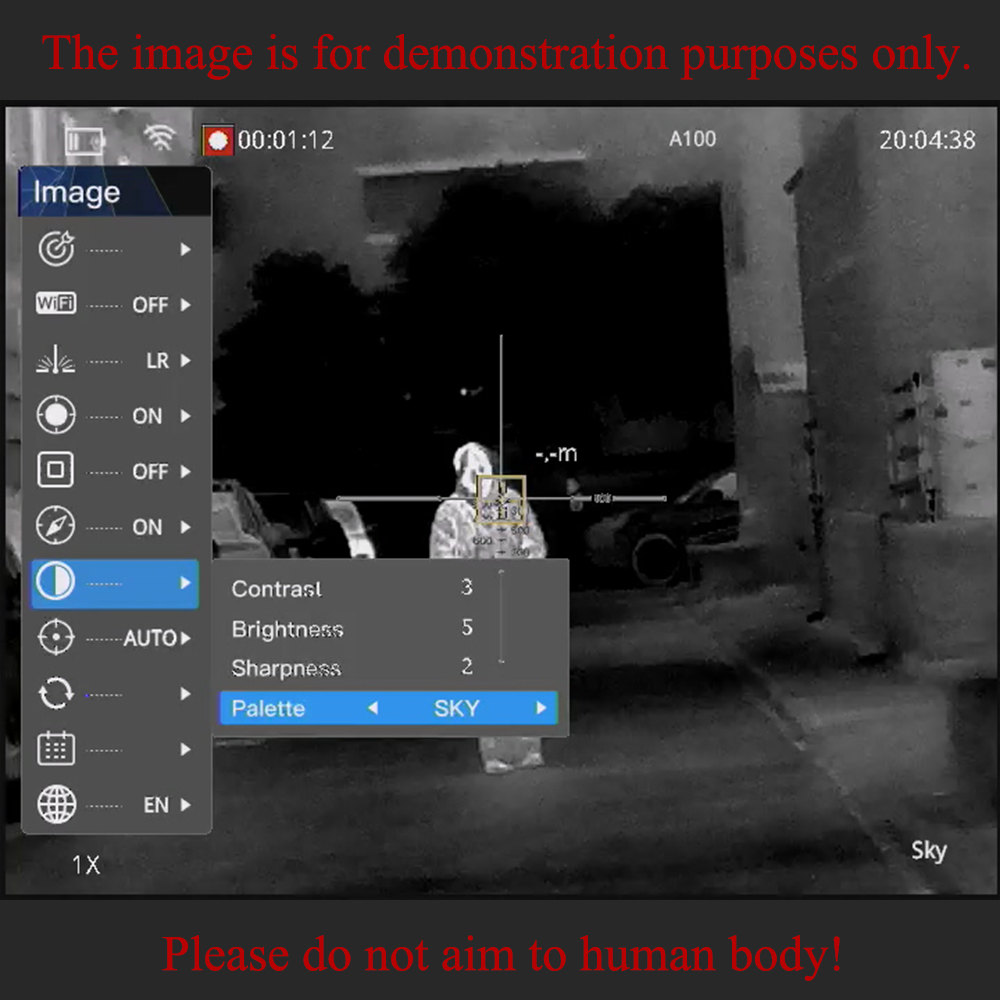

• Multiple imaging modes: White Hot, Black Hot, Red Hot, Edge, Pseudo-Color

• Built-in hotspot tracking, digital compass, inclinometer, and ballistic calculator

• Rugged 1500G shockproof and IP67-rated waterproof housing

• Supports Wi-Fi streaming, onboard video/photo recording, and PiP mode

• Customizable reticles with 10 weapon profiles and AI dead pixel correction

※ AM-IRT02 Parameters

Parameter	Specification
Model	AM-IRT02 Infrared Thermal Imaging Scope
Detector Type	Uncooled vanadium oxide
Spectral Range	8–14 μm
Resolution	384×288 (12μm)
MRTD (1f0)	≤550 mK
Display Type	OLED
Display Resolution	1024×768
Objective Focal Length	25mm F1.0
Field of View (FOV)	10.5°×7.9°
Focus Range	10m to ∞
Recognition Distance	700m (standing human)
Eyepiece Magnification	14X
Eyepiece Diopter Adjustment	±5D
Reticle Styles	5 types
Image Modes	White-hot, Black-hot, Red-hot, Pseudo-color, Outline
Digital Zoom	1x/2x/4x
Laser Wavelength	905nm
Laser Range	30m–1300m
Battery Type	18650 Li-ion ×2
External Video Output	PAL analog
Operating Time	≥8 hours
Wi-Fi	Supported
Photo/Video Capture	Supported
Operating Temperature	-40°C to +55°C
Weight	≤820g
Dimensions	200×116×95mm

※ Our Services

1. Customized solution and package.

2. After-sales service: One year warranty offered.

3. Cooperates with Glock, Bushnell and other famous brands.

4. Quick shipment: 3-5 working days for samples; 2-4 weeks for mass quantity.

5. Quality guaranteed: Produced according to ISO9001:2008 quality control process.

※ Thermal Scope Production Process

※ Thermal Scope Production Equipment

※ Thermal Scope Testing Equipment

※ Payment and Shipment

• MOQ: 1pc

• Delivery time: 3-20 days

• Shipment Terms: FOB Xi'an China

• Payment Terms: T/T, Western Union, PayPal

• Shipment Method: DHL, UPS, FedEx or TNT
