Choosing the right laser wavelength for Raman spectroscopy can determine whether an instrument delivers a clean, actionable spectrum or produces a weak signal buried under fluorescence. For Raman instrument developers, laboratory teams, and OEM manufacturers, the decision is not simply between a 532 nm, 785 nm, or 1064 nm laser. It is a system-level choice involving Raman signal strength, fluorescence suppression, detector response, spectral range, sample sensitivity, and optical integration.
At Aiming Laser Technology Co., Ltd., we work with OEM customers developing fiber-coupled laser solutions for analytical instruments, industrial inspection systems, biomedical devices, and research platforms. From an engineering perspective, the "best" Raman excitation wavelength is not universal. It depends on the sample, the spectrometer architecture, the target Raman shift range, and the commercial requirements of the final product.
This guide explains how laser wavelength affects Raman spectroscopy and provides a practical framework for selecting a fiber-coupled Raman laser source.
Raman spectroscopy identifies molecular structures by measuring inelastically scattered light. When laser photons interact with a sample, most scatter elastically as Rayleigh light. A very small fraction exchanges energy with molecular vibrations and shifts in frequency. This shifted light forms the Raman spectrum.
In theory, Raman shifts are reported in wavenumbers, so the molecular vibrational information does not fundamentally change with excitation wavelength. In practice, however, the wavelength strongly influences whether that information can be measured efficiently.
The three most important wavelength-selection factors are:
- Raman scattering efficiency
- Autofluorescence background
- Detector and spectrometer compatibility
A shorter excitation wavelength usually produces a stronger Raman signal. A longer wavelength often reduces fluorescence. The optimal design must balance these competing effects.
Raman scattering intensity is approximately proportional to the inverse fourth power of the excitation wavelength:
IRaman∝1/λ4
This relationship means that shorter wavelengths can generate substantially stronger Raman signals than longer wavelengths.
For example, moving from 1064 nm to 532 nm can significantly increase scattering efficiency. This makes visible excitation attractive when high sensitivity, fast acquisition, or low laser power is important.
However, signal strength alone should never be the only selection criterion. A strong Raman signal is not useful if the sample also produces an even stronger fluorescence background.
For an OEM Raman system, the λ⁻⁴ relationship affects several design decisions:
- Required optical power
- Integration time
- Detector sensitivity requirements
- Signal-to-noise ratio
- Portable instrument battery consumption
- Thermal management
- Maximum allowable sample exposure
A longer-wavelength source may require more optical power or a longer acquisition time to achieve acceptable signal quality. Yet it may still outperform a shorter-wavelength laser when fluorescence suppression is critical.
Fluorescence is one of the most common challenges in Raman spectroscopy. Many organic materials, pigments, biological samples, polymers, pharmaceuticals, oils, food products, and contaminated industrial samples can emit broad fluorescence when illuminated by ultraviolet or visible lasers.
This fluorescence can overwhelm narrow Raman peaks and make material identification difficult or impossible.
In general:
- Shorter wavelengths provide stronger Raman scattering but often create more fluorescence.
- Longer wavelengths reduce fluorescence but produce weaker Raman scattering.
- Near-infrared excitation is often preferred for complex, colored, or highly fluorescent samples.
This is why Raman laser wavelength selection must begin with the sample rather than with the laser specification alone.
Fluorescence may come from the target material itself or from external contamination. Typical causes include:
- Organic dyes and pigments
- Biological molecules
- Natural products and plant materials
- Polymer additives
- Surface coatings
- Residual solvents
- Trace impurities
- Oils, fuels, and hydrocarbons
- Degradation products in pharmaceuticals or artworks
In practical testing, a sample that appears suitable for 532 nm Raman excitation may still require 785 nm or 1064 nm after fluorescence is evaluated.
A 532 nm Raman laser is widely used for inorganic materials, crystalline samples, semiconductors, minerals, graphene, carbon materials, and many laboratory research applications.
Because 532 nm is a visible wavelength, it provides relatively high Raman scattering efficiency. It is also compatible with mature silicon CCD and CMOS detector technologies.
A 532 nm excitation laser is often suitable when the sample has low fluorescence and high Raman scattering is required.
Typical applications include:
- Mineral and gemstone analysis
- Semiconductor and wafer characterization
- Graphene and carbon nanotube studies
- Inorganic chemicals
- Battery materials
- Ceramics and glass
- Catalysts
- Thin-film analysis
- Academic Raman microscopy
The main limitation is fluorescence. Many organic, dyed, biological, and polymeric samples emit strong visible fluorescence under green excitation.
A 532 nm Raman laser may also increase the risk of sample heating or photodamage for light-sensitive materials, especially under tightly focused microscope objectives.
For OEM instruments, 532 nm can be an excellent option when the target market is well defined. It is less suitable for universal material identification systems that must handle diverse and unknown samples.
A 785 nm Raman laser is often the best general-purpose solution for Raman spectroscopy. It offers a practical balance between Raman signal strength, fluorescence suppression, detector availability, instrument size, and cost.
For many chemical, pharmaceutical, polymer, and industrial identification applications, 785 nm provides usable Raman spectra with lower fluorescence than visible lasers while still allowing the use of silicon-based detectors.
- Lower fluorescence than 532 nm excitation
- Higher Raman efficiency than 1064 nm excitation
- Good compatibility with silicon CCD and CMOS detectors
- Compact laser and spectrometer system design
- Broad industry adoption
- Suitable for portable and benchtop Raman instruments
- Strong balance of performance and system cost
A 785 nm system can typically cover a useful Raman shift range while maintaining a relatively efficient detector architecture. This makes it especially attractive for OEM handheld analyzers, pharmaceutical verification devices, polymer identification systems, and industrial process-monitoring platforms.
- Pharmaceutical raw-material identification
- Polymer sorting and recycling
- Chemical verification
- Forensic analysis
- Portable material identification
- Food and agricultural testing
- Industrial quality control
- Security and hazardous-material screening
For many OEM projects, 785 nm is the starting point. The laser wavelength should only move toward 532 nm or 1064 nm when sample behavior or application requirements justify the change.
A 1064 nm Raman laser is commonly selected for samples with severe fluorescence. It is particularly valuable for colored, dark, organic, biological, natural, or chemically complex materials that remain fluorescent under 785 nm excitation.
The trade-off is lower Raman scattering efficiency and a more demanding detector requirement.
- Strong suppression of fluorescence background
- Better performance for highly fluorescent samples
- Useful for oils, dyes, pigments, biological materials, and hydrocarbons
- Can reveal Raman peaks hidden at 532 nm or 785 nm
- Supports difficult material-identification tasks
A 1064 nm excitation source shifts Raman-scattered light further into the near-infrared region. Silicon detectors lose sensitivity near this region, so many 1064 nm Raman instruments require InGaAs detector arrays.
Compared with silicon detector systems, InGaAs-based systems may involve:
- Higher component cost
- Higher detector noise
- Lower sensitivity in some operating conditions
- More demanding thermal control
- Longer integration times
- More complex optical and electronic design
Therefore, 1064 nm is not automatically the best option. It is the preferred option when fluorescence is the dominant obstacle and the added system cost is justified by measurement quality.
| Selection Factor | 532 nm Raman Laser | 785 nm Raman Laser | 1064 nm Raman Laser |
|---|---|---|---|
| Raman scattering efficiency | High | Medium | Low |
| Fluorescence risk | High | Medium to low | Low |
| Typical detector | Silicon CCD/CMOS | Silicon CCD/CMOS | InGaAs array |
| System cost | Moderate | Moderate | Higher |
| Acquisition speed | Often faster | Balanced | Often slower |
| Best sample types | Inorganic, crystalline, low-fluorescence | General chemicals, polymers, pharmaceuticals | Highly fluorescent, colored, biological, organic |
| Common OEM use | Research and microscopy | Portable and industrial analyzers | Advanced analytical systems |
| Main limitation | Fluorescence interference | Not sufficient for extreme fluorescence | Lower sensitivity and higher cost |
The table should be used as a first-stage guide, not as a substitute for sample testing. In Raman instrument development, real sample validation is essential.
The most effective way to choose a Raman laser wavelength is to evaluate the sample and system requirements in a structured sequence.
Start by classifying the sample:
- Inorganic or organic
- Transparent or colored
- Crystalline or amorphous
- Pure or chemically complex
- Stable or heat-sensitive
- Known material or unknown field sample
- Low fluorescence or suspected high fluorescence
Inorganic and crystalline materials often work well with 532 nm. Mixed, unknown, or moderately fluorescent materials may be better suited to 785 nm. Highly fluorescent samples may require 1064 nm.
Your desired Raman shift range directly affects detector selection and spectrometer design.
For example, a system intended to analyze C–H stretching modes may need sufficient coverage in the high-wavenumber region. The excitation wavelength changes the wavelength range received by the detector, so the laser, grating, optical filters, and detector must be selected as one integrated system.
Do not assume sample behavior based only on material name. Different grades, suppliers, pigments, coatings, impurities, and aging conditions can change fluorescence behavior.
A practical test protocol is:
1. Measure representative samples with 532 nm or 785 nm excitation.
2. Inspect the baseline for broad fluorescence.
3. Compare peak visibility and signal-to-noise ratio.
4. Reduce power if sample heating or degradation is observed.
5. Test 1064 nm if fluorescence masks key Raman peaks.
6. Validate performance across the full sample library.
This approach reduces the risk of designing a Raman system around an ideal sample that does not represent real customer use conditions.
Laser wavelength should never be chosen independently from the detector.
For 532 nm and 785 nm systems, silicon CCD or CMOS detectors are usually practical because they provide good sensitivity in the visible and near-infrared range.
For 1064 nm Raman systems, an InGaAs detector is generally required to detect the longer-wavelength Raman-shifted light effectively.
For Raman spectroscopy, wavelength is only one part of the laser specification. An excitation laser should also be evaluated for:
- Narrow spectral linewidth
- Low wavelength drift
- High wavelength accuracy
- Low intensity noise
- Stable output power
- High beam quality
- Low amplified spontaneous emission
- Suitable coherence properties
- Long operational lifetime
A laser with poor spectral stability can broaden or shift Raman features, reduce repeatability, and make calibration more difficult.

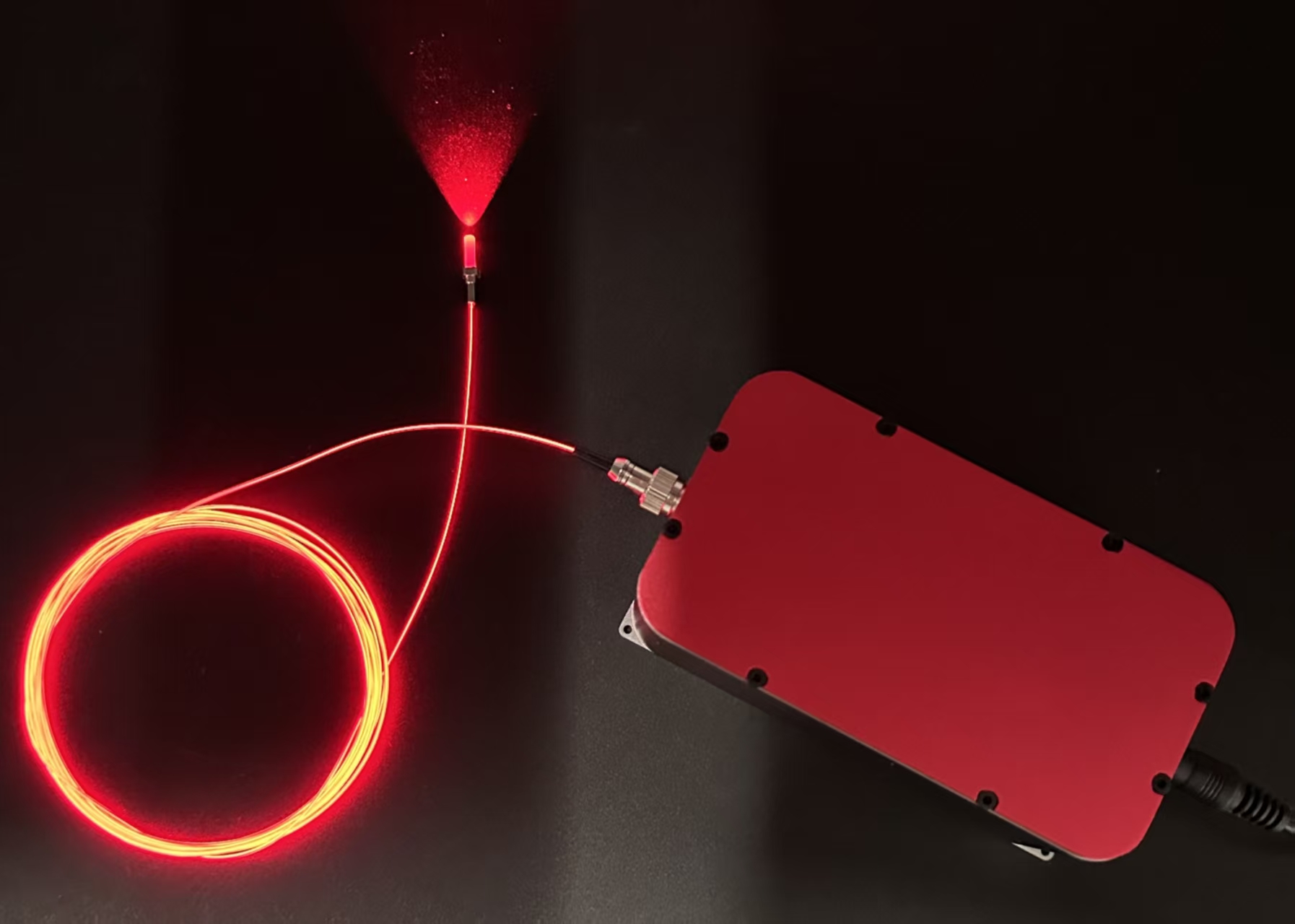

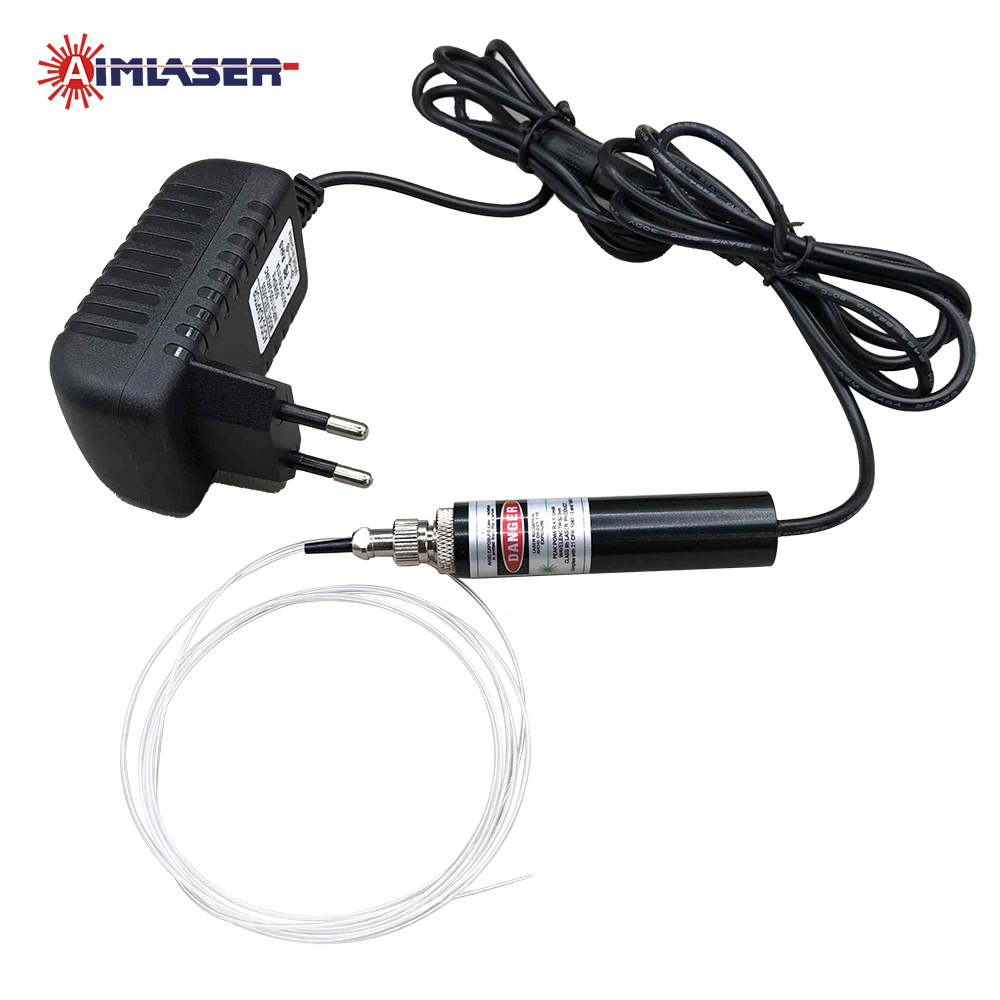

A fiber-coupled Raman laser can simplify optical integration by delivering excitation light through an optical fiber rather than requiring a free-space beam path from the laser package to the sampling head.
For OEM Raman instrument manufacturers, this approach can improve system modularity, reduce alignment complexity, and support remote or compact measurement designs.
- Flexible placement of the laser module
- Easier integration into compact instruments
- Simplified connection to Raman probes
- Reduced free-space alignment requirements
- Stable beam delivery to remote sampling heads
- Better modularity for OEM instrument platforms
- Potentially faster manufacturing and service processes
However, fiber coupling should be specified carefully. Fiber core diameter, numerical aperture, connector type, polarization requirements, output power, and beam profile all influence the final Raman system performance.
For a high-performance Raman probe, the laser source, fiber, collimation optics, dichroic filters, and collection path must be designed together.
When selecting an OEM supplier for a fiber-coupled Raman laser, ask for more than nominal wavelength and output power. The specifications below can have a direct effect on instrument performance, manufacturability, and long-term reliability.
| Specification | Why It Matters for Raman OEM Systems |
|---|---|
| Center wavelength tolerance | Supports consistent Raman calibration and filter matching |
| Spectral linewidth | Helps maintain spectral purity and measurement resolution |
| Wavelength stability | Reduces drift during long measurements and repeated tests |
| Output power stability | Supports consistent signal intensity and repeatable results |
| Fiber type and core diameter | Affects coupling, beam delivery, and probe compatibility |
| Numerical aperture | Influences divergence and optical acceptance |
| Connector format | Determines integration convenience and serviceability |
| Polarization state | Important for polarization-sensitive Raman applications |
| Package size | Affects portable and embedded instrument design |
| Thermal design | Supports stability across operating environments |
| Lifetime and reliability data | Reduces maintenance risk in commercial instruments |
A reliable OEM laser partner should be able to discuss the complete integration environment, not only provide a standard catalog model.
The most common Raman wavelength is not always the right wavelength for your application.
From a practical design perspective, use this decision framework:
- Choose 532 nm when Raman strength is the priority and fluorescence risk is low.
- Choose 785 nm when you need the best all-around balance for most chemical and industrial samples.
- Choose 1064 nm when fluorescence prevents reliable analysis at shorter wavelengths.
- Use a fiber-coupled laser architecture when compact design, probe-based measurement, remote sampling, or OEM modularity is important.
- Validate the source with real samples before locking the spectrometer and detector design.
A well-matched excitation source can improve spectral quality, shorten measurement time, reduce false identifications, and increase the commercial value of the final Raman instrument.
For Raman spectroscopy OEM projects, the laser should be designed around the final measurement task rather than selected as an isolated component. Aiming Laser Technology Co., Ltd. supports international brands, wholesalers, and equipment manufacturers with fiber-coupled laser solutions for customized analytical and industrial applications.
Whether you are developing a 532 nm research instrument, a 785 nm portable Raman analyzer, or a 1064 nm fluorescence-resistant system, our engineering team can help define the appropriate wavelength, optical power, fiber configuration, package format, and control interface for your platform.
Contact Aiming Laser Technology Co., Ltd. to discuss your custom fiber-coupled Raman laser requirements, OEM specifications, sample-testing needs, and integration goals.
There is no single best wavelength for every Raman application. 785 nm is often the best general-purpose choice because it balances Raman signal strength, fluorescence suppression, detector compatibility, and system cost. However, 532 nm can be better for low-fluorescence inorganic samples, while 1064 nm is often better for highly fluorescent samples.
A 785 nm Raman laser provides a practical balance between performance and cost. It reduces fluorescence compared with visible excitation wavelengths while maintaining stronger Raman scattering and more accessible detector options than 1064 nm systems.
Use a 1064 nm Raman laser when fluorescence remains strong at 532 nm and 785 nm. It is especially helpful for colored materials, natural products, hydrocarbons, biological samples, oils, pigments, and complex organic compounds.
A 532 nm laser generally produces a stronger Raman signal, but it may trigger more fluorescence. A 785 nm laser typically produces less fluorescence and is more versatile for mixed, organic, or industrial samples. The right choice depends on the sample and target application.
In many dispersive Raman systems, yes. Raman-shifted light from 1064 nm excitation often extends beyond the effective sensitivity range of standard silicon detectors. InGaAs detectors are better suited to near-infrared detection but can increase system cost and complexity.

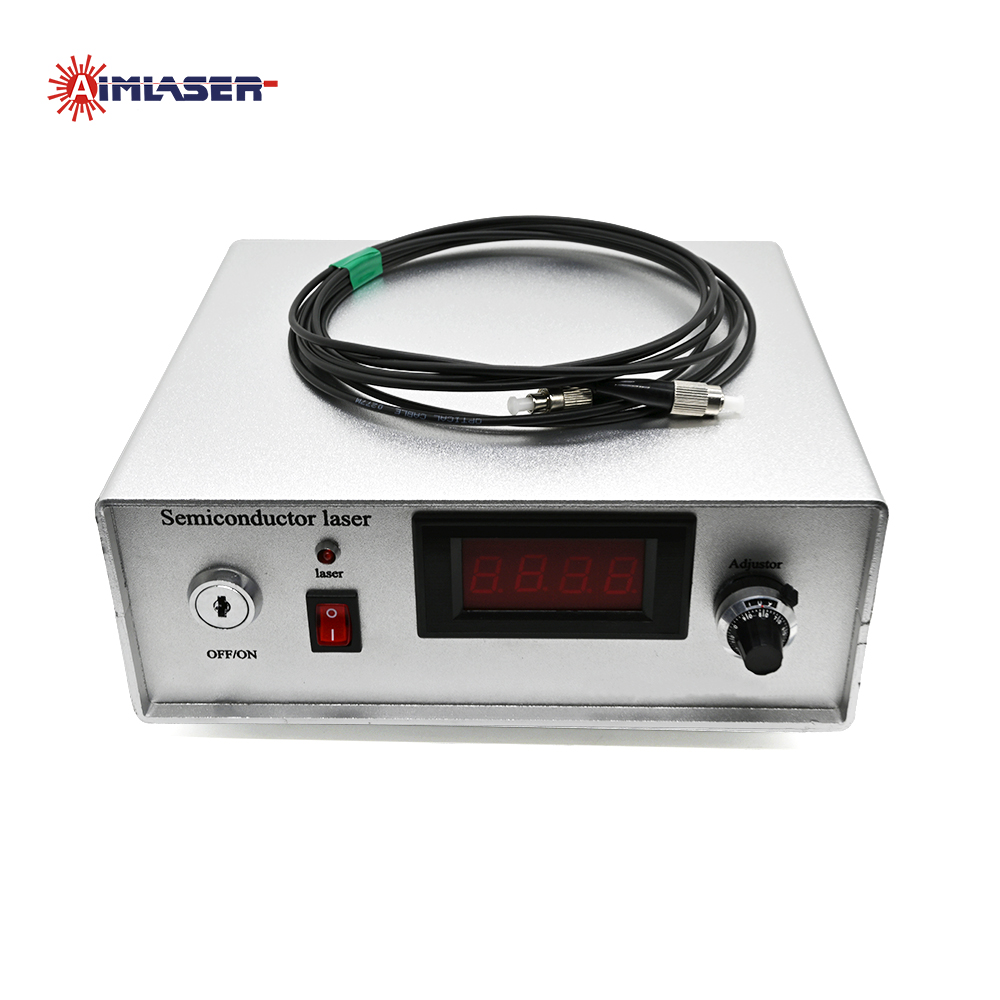

A fiber-coupled Raman laser simplifies beam delivery, supports compact and modular instrument designs, and can make it easier to connect the laser source to Raman probes or remote sampling heads. It is particularly useful for OEM Raman spectrometers and portable systems.
Important specifications include center wavelength, wavelength stability, spectral linewidth, output-power stability, beam quality, intensity noise, fiber type, fiber core diameter, numerical aperture, connector type, package size, and lifetime reliability.
1. RPMC Lasers. "The Influence of Laser Wavelength on Raman Spectroscopy." Available at: [https://www.rpmclasers.com/blog/the-influence-of-laser-wavelength-on-raman-spectroscopy/] [rpmclasers]
2. Tuschel, D. "Selecting an Excitation Wavelength for Raman Spectroscopy." Spectroscopy Online. Available at: [https://www.spectroscopyonline.com/view/selecting-excitation-wavelength-raman-spectroscopy] [spectroscopyonline]
3. Metrohm. "Choosing the Most Suitable Laser Wavelength for Your Raman Application." Available at: [https://www.metrohm.com/en/applications/bw-tek-applikationen/410000001-c.html] [metrohm]
4. Edinburgh Instruments. "Extreme Fluorescence Interference in Raman Microscopy." Available at: [https://www.edinst.com/resource/extreme-fluorescence-interference-raman-microscopy/] [edinst]
5. JASCO. "Avoiding Interference from Fluorescence Signal by Performing Raman Spectroscopy Measurements at Excitation Wavelength of 1064 nm." Available at: [https://jascoinc.com/applications/avoiding-interference-from-fluorescence-signal-by-performing-raman-spectroscopy-measurements-at-excitation-wavelength-of-1064-nm/] [jascoinc]
6. Patil, C. A., et al. "1064 nm Dispersive Raman Spectroscopy of Tissues with Strong Autofluorescence." *Optics Letters*. Available at: [https://opg.optica.org/fulltext.cfm?uri=ol-39-2-303] [opg.optica]
7. RP Photonics. "Fiber Lasers." Available at: [https://www.rp-photonics.com/fiber_lasers.html] [rp-photonics]
