Industrial Green Beam Laser Pointer 520nm 30mW 3V Adjustable Laser Modules

Laser Wavelength:
Laser Color:
Output Power:
Beam Size:
Housing Material:
Availability:
Quantity:
  • AM520D30G1
  • AIMLASER, ELITELASER
  • 90132000.99
  • Green  Visible
  • 520nm
  • Dot

Industrial Green Beam Laser Pointer 520nm 30mW 3V Adjustable Laser Modules

laser wavelength chart

AimLaser provides customizedGreen Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The green laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 520nm 30mW Dot Green Laser Diode Module Descriptions

The AM520D30G1 is a green laser module subassembly with collimated beam. The maximum laser output power is 30.0mW at 520nm.

※ 520nm 30mW Dot Green Laser Diode Module Optical and Electrical Characteristics

ITEM SPECIFICATIONS
Model Number AM520D30G1 Dot Green Laser Diode Module
Wavelength 520nm
Output Power ≤30.0mW
Laser Mode CW
Beam Size ≤2.0mm@1m
Divergence 0.2mrad
Optics Optical Glass Lens
Operating Current <240mA
Operating Voltage 3V DC
CDRH Class Class IIIb
Circuit control Auto Constant Current (ACC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -40℃ to 80℃
Dimensions Φ12x40mm (Driver Inside)
Housing Material

Full Brass or Black Anodized Aluminum

Life Span 8,000Hrs

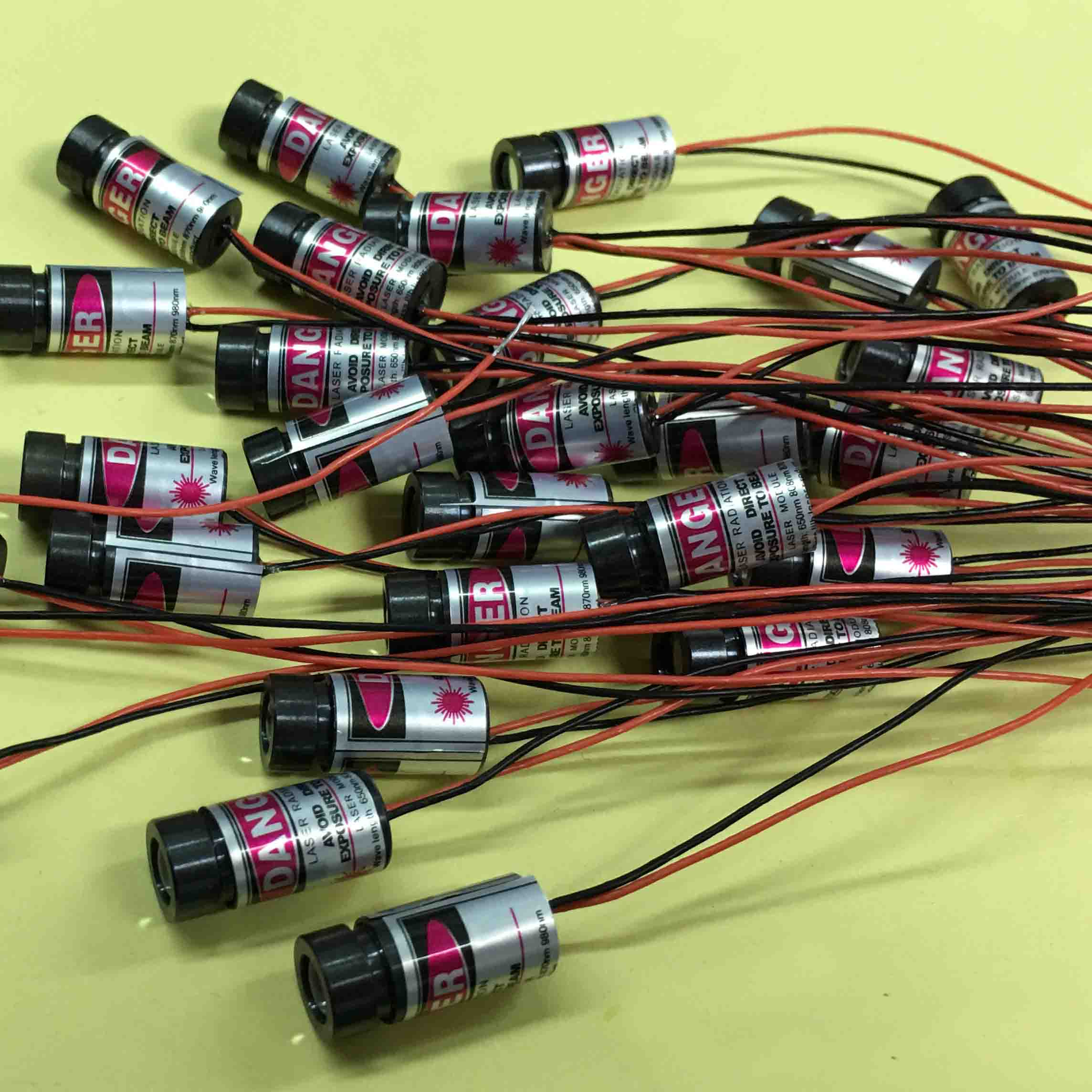

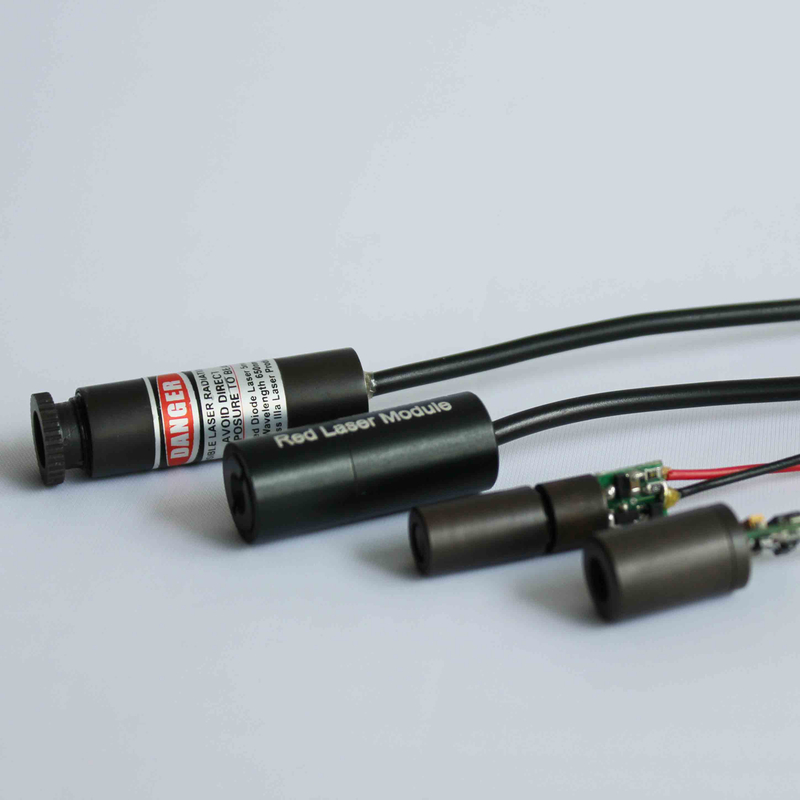

Laser Modules with Adjustable Focus-AIMLASER Laser Aiming Modules-AIMLASER

※ 520nm Green Laser Module Applications

  1. Scientific Research

  2. Laboratory Instrument
    Gun Laser Grips
    Gun laser sights

  3. Laser aiming devices

  4. Laser alignment instrument

  5. Laser pointing instrument

  6. Laser positioning devices

  7. Laser surveying instrument

  8. Laser detection equipment

  9. Medical Laser Instrument

  10. Consumer Products

  11. Nightwear Sporting Products

  12. Automotive interior Ambient Light

  13. OEM Instrumentation


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Module Production Process

※ Laser Modules Production EquipmentLaser module production equipment

※ Laser Modules Testing Equipment

Laser Module testing equipment

※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
