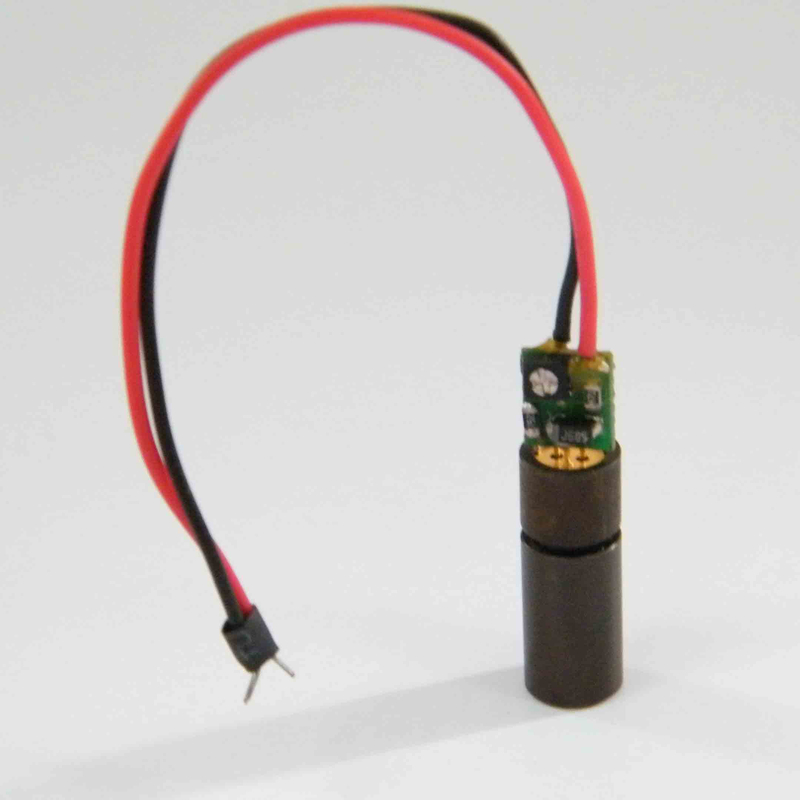

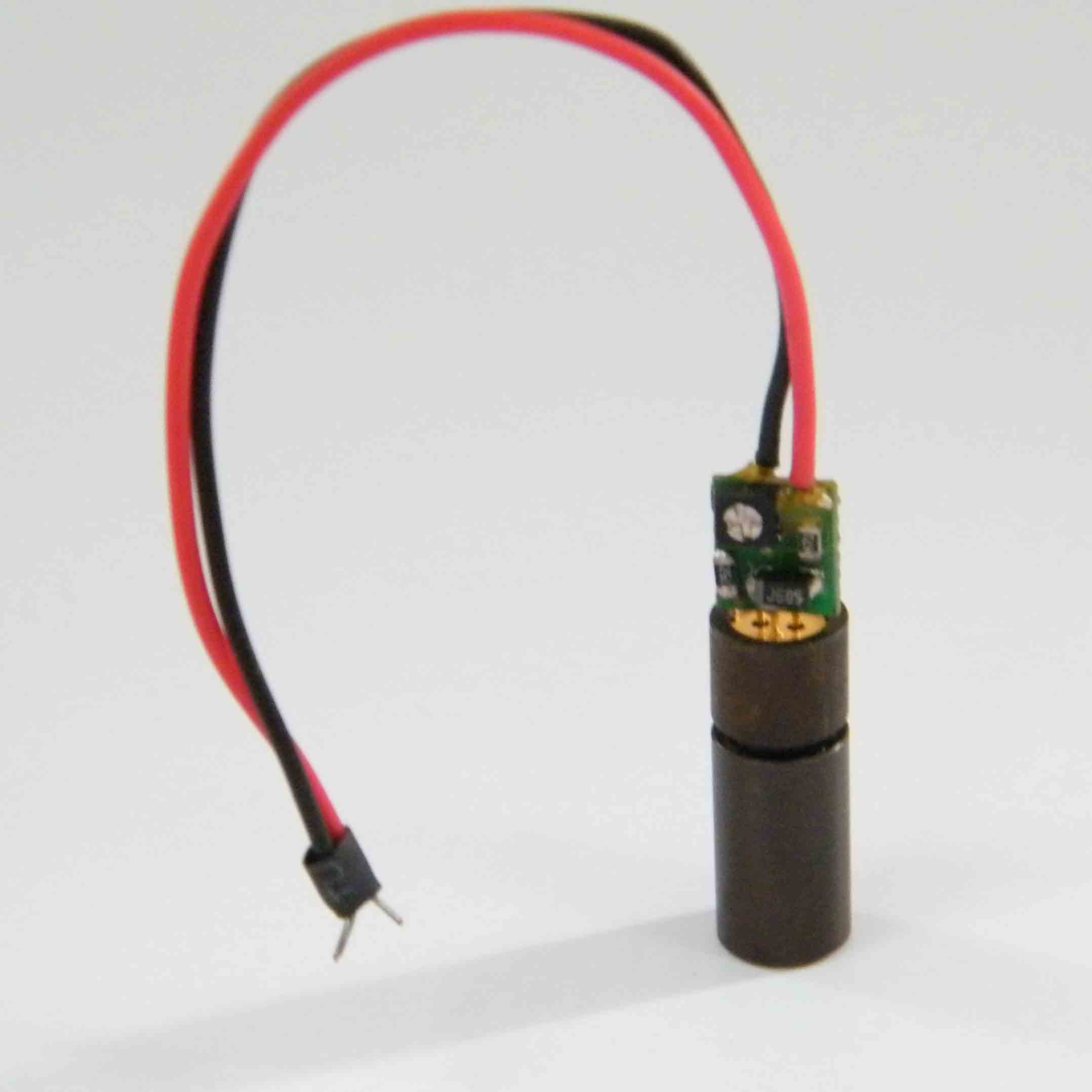

520nm 10mW Tunable Laser Modules Green Dot Optical Laser Source

Laser Wavelength:
520nm
Laser Color:
Green Dot Laser Beam Module
Output Power:
10mW
Beam Size:
2x4mm@2m
Housing Material:
8x22mm Full Brass
Availability:
Inquire Add to Basket

520nm 10mW Tunable Laser Modules Green Dot Optical Laser Source
520nm 10mW Tunable Laser Modules Green Dot Optical Laser Source

  • AM520D20G1

  • AIMLASER

  • 90132000.99

  • Green, Visible

  • 520nm

  • Dot


520nm 10mW Tunable Laser Modules Green Dot Optical Laser Source

laser-wavelength-chart

AimLaser provides customized Green Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The green laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 520nm 10mW Green Dot Laser Diode Module Descriptions

The AM520D20G1 is a green laser module subassembly with collimated beam. The maximum laser output power is 10.0mW at 520nm.

※ 520nm 10mW Green Dot Laser Diode Module Optical and Electrical Characteristics

ITEM SPECIFICATIONS
Model Number AM520D20G1 Green Dot Laser Diode Module
Wavelength 520nm
Output Power ≤10.0mW
Laser Mode CW
Beam Size ≤2x4mm@2m
Divergence 0.5mrad
Optics Optical Glass Lens
Operating Current <160mA
Operating Voltage 3V-5V DC
CDRH Class Class IIIb
Circuit control Auto Power Control (APC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -20℃ to 60℃
Storage Temperature -40℃ to 80℃
Dimensions Φ8x22mm (APC Inside)
Housing Material Full Brass
Life Span 8,000Hrs

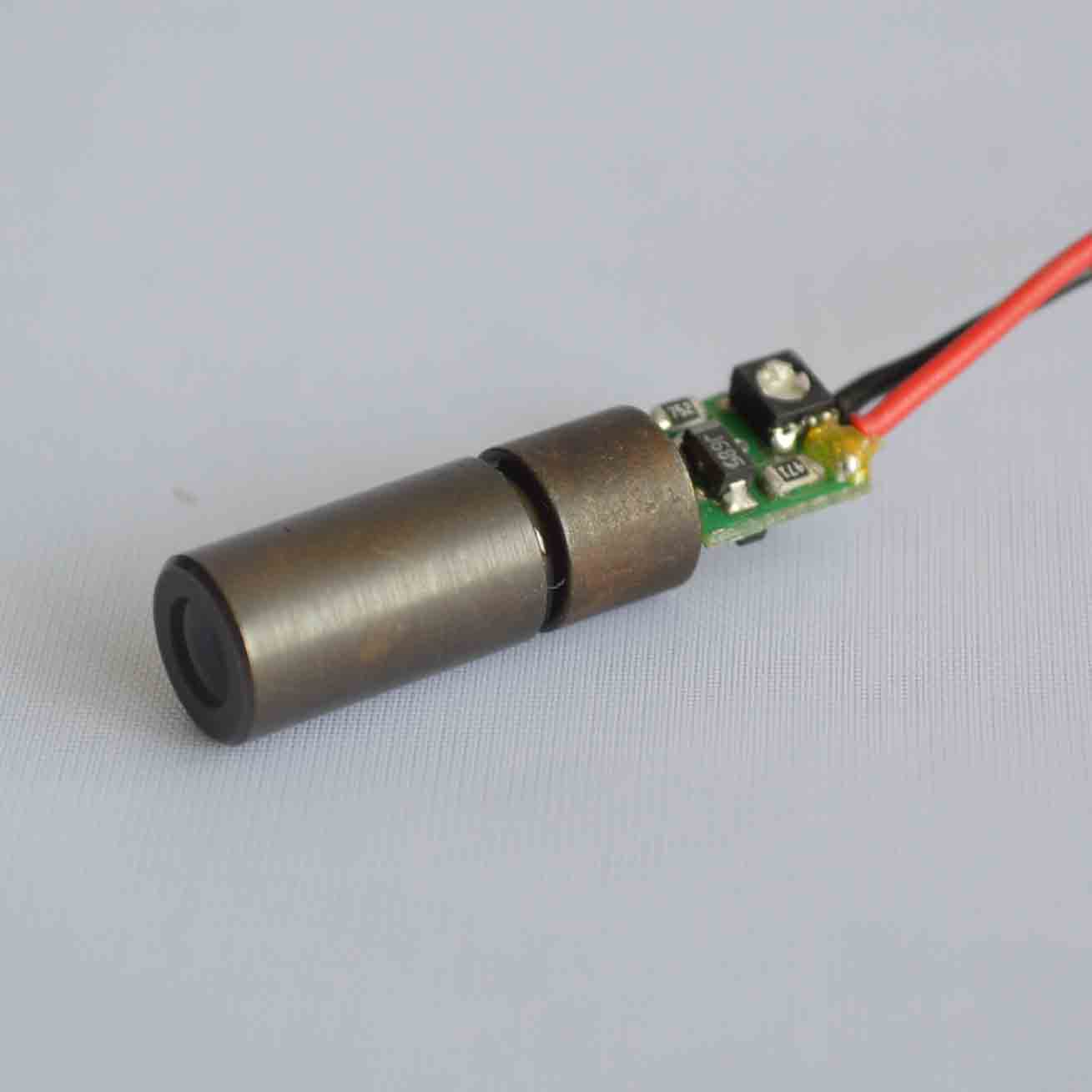

Adjustable Laser Modules (1)

Adjustable Laser Modules (4)

※ 520nm Green Laser Module Applications

  • Scientific Research

  • Laboratory Instrument
    Gun Laser Grips
    Gun laser sights

  • Laser aiming devices

  • Laser alignment instrument

  • Laser pointing instrument

  • Laser positioning devices

  • Laser surveying instrument

  • Laser detection equipment

  • Medical Laser Instrument

  • Consumer Products

  • Nightwear Sporting Products

  • Automotive interior Ambient Light

  • OEM Instrumentation

※ Why buy Laser Modules from AimLaser?

  • Provide One year warranty

  • Offer customized solutions

  • Normal sample lead time: within 2 weeks

  • Conform to ROHS, FDA, IEC, SGS standards

  • ISO9001:2008 certified laser module manufacturer

  • Using original Laser Diodes from Arima, Osram, Nicha and branded chips

※ Laser Modules Production Process

105um Multimode Fiber Coupled Laser (7)

※ Laser Modules Production Equipment

laser-modules-production-equipment

※ Laser Modules Testing Equipment

laser-module-testing-equipment

※ Laser Module Payment and Shipment

  • MOQ: 1pc

  • Delivery time: 3-20 days

  • Shipment Terms: FOB Xi'an China

  • Payment Terms: T/T, Western Union, PayPal

  • Shipment Method: DHL, UPS, FedEx or TNT
