As an OEM laser manufacturer working closely with international brands and production lines, I see beam spot output as one of the most critical and misunderstood parameters in fiber coupled laser systems. Understanding how beam spot size, shape and energy distribution behave at the fiber output is the difference between a stable, high‑yield process and a frustrating, inconsistent one. [aiminglasers]
Beam spot output from the end of an optical fiber describes the size, shape, intensity distribution and divergence of the laser beam as it exits the fiber and reaches the workpiece or sensor. In real OEM projects, this output determines whether a line is uniform across a camera field, a dot is precise enough for micro‑alignment, or a welding spot delivers the required energy density. [repositorio.unican]
For fiber coupled lasers, beam spot output is affected by the laser diode, coupling optics, fiber core design, numerical aperture (NA), and any downstream beam‑shaping optics such as collimators or diffusers. When you specify or design a fiber coupled laser module, treating beam spot output as a primary selection parameter—not an afterthought—will dramatically improve system performance and end‑user satisfaction. [nlight]
From an OEM and manufacturing perspective, Fiber Coupled Lasers, Beam Spot Output, Optical Fiber Laser Modules, and OEM Laser Solutions are the most important strategic keywords to keep in mind. In the global fiber‑coupled diode laser market, demand is growing rapidly as industries shift from bulky free‑space lasers to compact, robust fiber architectures for cutting, welding, marking, sensing and machine vision. [dataintelo]
For example, one recent market study estimates that fiber coupled diode lasers will grow from about 2.0 billion USD in 2025 to 4.39 billion USD by 2034, with a compound annual growth rate near 9.2%. This growth is driven by OEMs who value modular, easily integrated laser sources with controllable beam spot output at the fiber tip, because it shortens development cycles and improves repeatability in mass‑production. [sunlonge]
Beam spot output from an optical fiber can be defined in four practical dimensions: spot size, spot shape, power distribution, and divergence. For a typical single‑mode or few‑mode fiber coupled laser used in precision instruments, the output spot often approximates a Gaussian intensity distribution, with highest power density at the center and a smooth fall‑off towards the edges. [ncbi.nlm.nih]
When engineers talk about beam spot output, they are usually interested in:
- Spot diameter at a given working distance
- Energy density (W/cm²) on the target
- Uniformity across a line or area
- Sensitivity to misalignment or focus errors
Each of these metrics is influenced by the fiber core diameter and NA, the collimation optics, and any beam‑shaping elements between the fiber end and the workpiece. An OEM supplier like Aiming Laser Technology Co., Ltd. (AimLaser) designs fiber coupled modules so that these parameters remain stable over time and across production lots. [aiminglasers]
The fiber core diameter sets the initial physical scale of the beam at the fiber exit, while the numerical aperture (NA) controls how quickly the beam diverges. A smaller core and lower NA will tend to create a smaller, less divergent spot, which is ideal for precision focusing or micro‑spot applications. [repositorio.unican]
Conversely, a larger core or higher NA produces a larger beam and faster divergence, better suited for wide‑area illumination, line generation or applications where moderate uniformity is more important than tight focus. When specifying OEM fiber coupled lasers, it is common to balance core diameter and NA against required working distance and spot size to ensure the beam geometry matches the downstream optics and mechanical constraints. [aiminglasers]
Immediately after the fiber output, many systems use collimating lenses to transform the diverging beam into a more parallel beam with a defined diameter. The lens focal length, material, and aberrations directly impact the final beam spot size and quality at the target. [ncbi.nlm.nih]
Engineers typically consider:
- Lens focal length and clear aperture
- Anti‑reflection coatings at the laser wavelength
- Sensitivity to axial and angular misalignment
- Compatibility with vacuum, high‑temperature or vibration environments
High‑quality collimation is especially important for high‑power fiber lasers, where poor beam shaping can cause hot spots, uneven processing, and premature optical damage. For OEM instrument applications, AimLaser focuses on compact collimator designs that maintain beam spot stability across temperature and mechanical shock conditions. [scis.scichina]

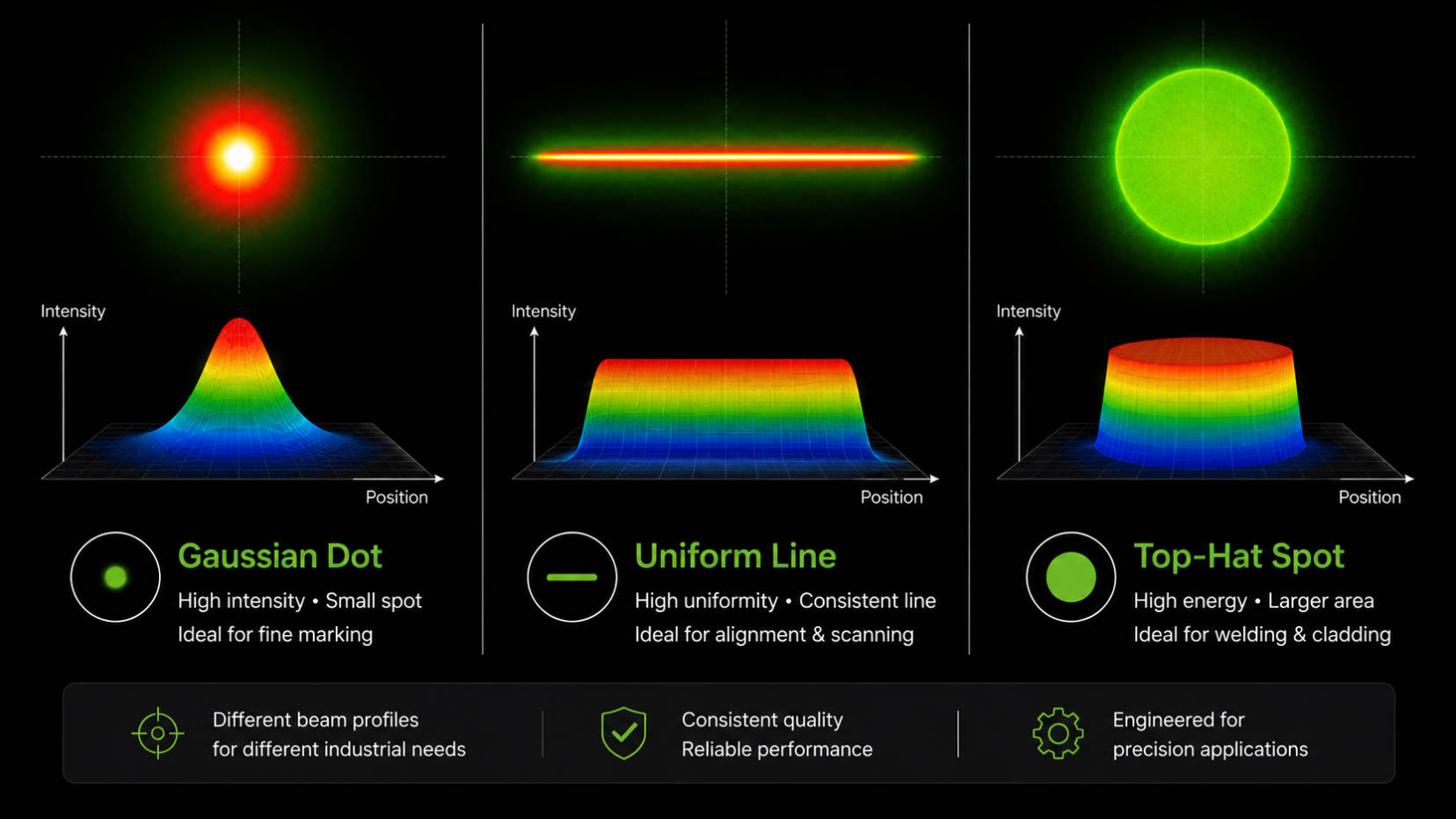

In many industrial modules, the raw diode output coupled into the fiber yields a Gaussian beam profile at the fiber exit—strong intensity in the center that decays smoothly. Gaussian spots are excellent for precise focusing and applications like micro‑welding or fine marking, because they concentrate power near the center. [repositorio.unican]
However, some applications require a more uniform top‑hat or flat‑top distribution, for example in surface treatment, materials processing over larger areas, or uniform illumination of a machine vision field. All‑fiber beam shaping, diffractive optics, or micro‑lens arrays can transform the Gaussian output into a controlled line or area with more uniform intensity, which is a fast‑growing trend in advanced manufacturing tools. [nlight]
Beam spot output is not just a lab parameter—it translates directly into process quality, cycle time and energy efficiency on the factory floor. In sheet metal cutting, for example, the dominance of fiber lasers is based on their ability to deliver high beam quality and stable spot output at kilowatt power levels, enabling faster cuts and cleaner edges than many legacy CO₂ systems. [nlight]
In machine vision and positioning systems, beam spot output determines whether a laser line is straight, uniform and stable across the entire sensor field. Uniform line modules with well‑controlled beam spot output are now standard components in 3D scanners, pick‑and‑place robots, and smart inspection systems, because they reduce calibration effort and improve measurement accuracy over time. [nlight]
For alignment and positioning tasks (e.g., woodworking saw alignment, medical device setups, jig positioning), OEM customers often specify:
- Small spot size at 0.5–2 m
- High roundness and minimal astigmatism
- Stable intensity across ambient temperature ranges
These requirements translate into single‑mode or few‑mode fiber modules with tight beam focusing and low divergence. Proper beam spot output helps operators see a crisp, clear dot instead of a fuzzy or elongated spot, reducing human error and speeding up alignment. [sunlonge]

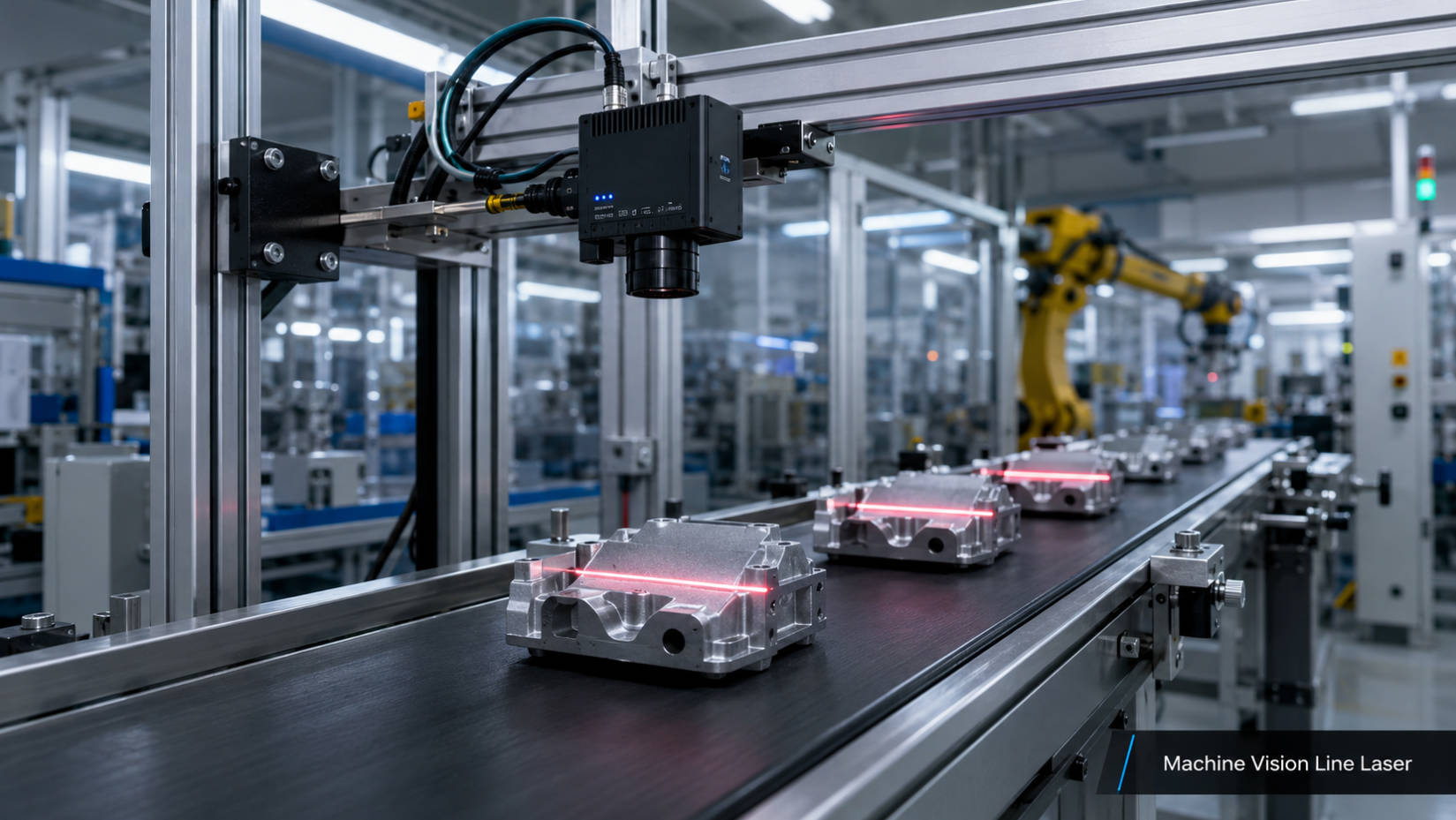

Machine vision line lasers use fiber coupled modules with specific optics that convert the beam into a straight, uniform line across a target. Here, beam spot output is evaluated not only at the line center, but across the entire length of the line. [aiminglasers]
Key performance factors include:
- Line straightness and edge sharpness
- Intensity uniformity (often within ±10–20%)
- Robustness to tilt and distance variations
Advanced beam shaping techniques, including all‑fiber beam shaping and micro‑optics, allow OEMs to deliver line lasers that maintain uniform beam spot output over large fields of view and extended working distances. [nlight]
In high‑power fiber lasers used for sheet metal cutting and welding, beam spot output is a central design parameter that affects penetration depth, kerf width, spatter, and overall productivity. A too‑large spot wastes energy and slows cutting speeds; a too‑small or poorly shaped spot can cause incomplete fusion or overheating. [scis.scichina]
New developments in beam shaping and coherent combination allow high‑power fiber lasers to produce tailored beam spots, such as ring modes or multi‑spot patterns, enhancing process stability on challenging materials. These trends demonstrate how control over beam spot output is becoming an active tool in process optimization, not just a passive specification. [olife.sjtu.edu]
Recent research in nanophotonic beam scanning and integrated waveguide optics has opened new possibilities for controlling beam spot size and density at unprecedented speeds. For instance, a 2026 Nature article describes how optimized waveguide cross‑sections can shrink beam spot diameter by roughly 40%, resulting in a 2.8‑fold increase in spatial spot density and a 1.7‑fold increase in scan speed. [bioengineer]
These techniques rely on:
- Tapered cantilever structures reducing air damping
- High‑quality factor mechanical designs
- Micro‑lens arrays and free‑form optics similar to smartphone cameras
Such innovations point to a future where fiber coupled or chip‑integrated laser systems can generate millions of individually addressable beam spots within compact modules, enabling next‑generation LiDAR, AR/VR displays, and ultra‑fast industrial inspection. For OEMs, this means that specifying beam spot output will gradually include not just static size and shape, but dynamic control over spot positions and densities across complex fields. [bioengineer]
From a practical OEM engineer's viewpoint, here is a checklist to use when you define beam spot output requirements for a fiber coupled laser module:
1. Define the working distance
- Minimum and maximum range from fiber tip to target.
2. Specify target spot size
- Diameter or line thickness at the primary working distance.
3. Clarify beam shape and profile
- Gaussian, top‑hat, line, rectangle, or custom pattern.
4. Set intensity uniformity requirements
- Acceptable variation across the spot or line.
5. Include environment constraints
- Temperature, vibration, vacuum, contamination risks.
6. Consider safety and standards
- Required laser class, eye‑safety limits, regulatory compliance.
By discussing these parameters early with your OEM laser supplier, you can avoid mismatches between theoretical beam calculations and real‑world performance. AimLaser's engineering team, for example, typically reviews each customer's beam spot requirements and proposes specific fiber core sizes, NAs, collimators and beam‑shaping optics optimized for the application. [sunlonge]
Below is a conceptual table illustrating how different beam spot output configurations align with typical industrial needs:
Beam Spot Type |
Typical Fiber & Optics |
Main Applications |
Key Advantages |
|---|---|---|---|
Small Gaussian Dot |
Single‑mode fiber, low NA, short focal‑length collimator repositorio.unican |
Precision alignment, medical positioning, micro‑sensing sunlonge |
High accuracy, tight focus, minimal aberrations repositorio.unican |
Uniform Line Beam |
Multi‑mode fiber, cylindrical or Powell lens, beam shaping nlight |
Machine vision, 3D scanning, logistics tracking sunlonge |
Good line uniformity, stable across field of view nlight |
Large Top‑Hat Spot |
Larger core fiber, higher NA, top‑hat optics repositorio.unican |
Surface treatment, large‑area illumination, cleaning sunlonge |
Even energy distribution, reduced hot spots ncbi.nlm.nih |
High‑Power Focused Spot |
High‑power fiber, advanced collimation and focusing scis.scichina |
Cutting, welding, additive manufacturing nlight |
High energy density, fast processing speeds nlight |
Multi‑Spot / Scanned Beam |
Integrated waveguides, micro‑lens arrays, nanophotonic scanning bioengineer |
LiDAR, AR/VR, ultra‑fast inspection bioengineer |
High spot density, dynamic beam control bioengineer |
This type of overview helps B2B buyers quickly connect beam spot output specifications to their real processes and performance goals. [sunlonge]
Since 2012, Aiming Laser Technology Co., Ltd. has focused on providing precision laser solutions—including fiber coupled lasers, uniform line modules, and custom OEM laser trainers—for industrial, medical and defense instrument manufacturers. Our product range spans diode laser modules and fiber coupled lasers from approximately 405 nm to 1064 nm, with output powers from 0.4 mW to 6000 mW, covering most common OEM needs from low‑power sensing to high‑intensity applications. [aiminglasers]
From an OEM customer's perspective, the most valuable support areas are:
- Custom beam spot design: Matching spot size, shape and uniformity to the application. [sunlonge]
- System‑level integration advice: Helping align mechanical fixtures, optics and electronics around the specified beam spot output. [aiminglasers]
- Reliability and warranty: Providing consistent beam spot performance over the product's lifetime with defined warranty terms (e.g., one‑year warranties on many products). [aiminglasers]
Our team also assists with documentation, including optical simulations, beam profile diagrams and integration guidelines, which makes it easier for international OEMs to pass internal validation and regulatory reviews. [aiminglasers]
If you are an OEM, brand owner or system integrator looking to optimize beam spot output for your next instrument or production line, partnering with a specialist manufacturer like Aiming Laser Technology Co., Ltd. can dramatically shorten your development time.
Contact our engineering team to:
- Review your current beam spot challenges and application constraints.
- Define target spot size, shape and uniformity requirements.
- Select or design a fiber coupled laser module tailored to your process.
By aligning beam spot output with real‑world performance metrics—cycle time, precision, energy consumption—you can turn your laser source from a simple component into a genuine competitive advantage in your market.
Beam spot output is the size, shape, intensity distribution and divergence of the laser beam at the fiber exit and on the target, after any collimation or beam‑shaping optics. It defines how the laser energy is delivered to the workpiece or sensor and directly affects process quality and measurement accuracy. [nlight]
A smaller fiber core typically produces a smaller initial beam diameter and can support tighter focusing at a given working distance, while a larger core yields a larger beam and faster divergence. Choosing the core diameter is a trade‑off between desired spot size, allowable divergence and system tolerance to misalignment. [repositorio.unican]
Many fiber coupled lasers produce a beam with approximately Gaussian intensity distribution, which concentrates power at the center and decreases smoothly towards the edges. This shape enables predictable focusing behavior and is well understood in optical design, which simplifies lens selection and process simulation. [scis.scichina]
Yes. By combining appropriate fiber design with beam‑shaping optics (such as diffractive elements, Powell lenses or micro‑lens arrays), OEMs can transform the Gaussian fiber output into a uniform line or top‑hat spot with controlled intensity. These designs are widely used in machine vision, materials processing and inspection systems. [nlight]
You should provide details about working distance, desired spot size and shape, acceptable intensity uniformity, environmental conditions, and safety requirements. With these inputs, an OEM supplier like Aiming Laser can recommend specific fiber types, collimators and beam‑shaping solutions that meet your performance and regulatory needs. [sunlonge]
