Laser beam expanders and standard laser modules solve very different problems in long-distance laser delivery, and choosing the wrong one can quietly limit your system performance and ROI. This guide compares them from a practical OEM and system-integration perspective so you can improve beam divergence control at distance while reducing long-term integration risk. [edmundoptics]
- What a laser beam expander actually does to divergence at distance
- How a standard laser module behaves over long working distances
- When to add a beam expander and when a better OEM laser module is enough
- Real-world OEM integration and cost trade-offs for industrial systems
You can treat this as a decision playbook if you are integrating Aiming Laser Technology Co., Ltd. (AimLaser) modules into measurement, alignment, or targeting systems worldwide. [made-in-china]
For most OEM customers I work with, divergence becomes a painful issue only after the prototype reaches a real production line or field test.
- A small divergence error at the source becomes a large spot size several meters away. [edmundoptics.co]
- Excessive divergence kills edge sharpness in line lasers, reduces measurement accuracy, and degrades targeting precision.
- Over-compensating with higher power increases safety concerns and component stress instead of solving the root optical problem. [edmundoptics]
In other words, if your beam profile is not engineered for distance, every downstream subsystem—sensors, optics, mechanics, and even software—has to work harder.
A laser beam expander is an afocal optical system (often based on telescope principles) that increases the incoming beam diameter and proportionally reduces its divergence. [edmundoptics.co]
From a practical OEM standpoint, a beam expander helps you:
- Achieve smaller spot sizes at long working distances
- Reduce power density on optics, increasing coating lifetime and damage threshold [edmundoptics]
- Tailor beam diameter and divergence for scanning, interferometry, remote sensing, or long-range alignment [newport]
Because the system is afocal, the beam enters and exits nearly collimated, but with different diameter and divergence characteristics. [edmundoptics.co]
A standard laser module integrates a laser diode, optics, mechanics, and drive electronics into a compact, ready-to-use package. OEM modules are engineered for easy mounting, defined electrical interfaces, and stable optical output. [rp-photonics]
Typical features of OEM laser modules include:
- Integrated driver for stable output power and lifetime control [brightlaser.com]
- Defined wavelength ranges, often from 405 nm up to 1550 nm in industrial modules [made-in-china]
- Configurable outputs: spot, line, cross, or fiber-coupled designs [rp-photonics]
- Housing and thermal design optimized for integration into instruments and automation equipment [brightlaser.com]
AimLaser, for example, manufactures diode laser modules and fiber-coupled lasers for OEM instruments with wavelengths from 405 nm to 1550 nm and power up to tens of watts, under ISO 9001 and FDA/IEC standards. [made-in-china]
Aspect | Laser Beam Expander | Standard Laser Module |
|---|---|---|
Primary role | Modify beam diameter and divergence edmundoptics | Generate and condition the laser beam rp-photonics |
Built-in light source | No | Yes – laser diode or similar emitter made-in-china |
Divergence control | Precise, tunable via expansion ratio edmundoptics | Fixed by module optics (limited adjustability) |
Integration complexity | Higher (alignment, mounting, cleanliness) edmundoptics | Lower (single housing and defined interfaces) rp-photonics |
Typical OEM use | Long-distance collimation, scanning, remote sensing edmundoptics | General targeting, sensing, alignment, illumination made-in-china |
Cost impact | Added optical assembly and alignment cost | Base cost; no extra optics required |

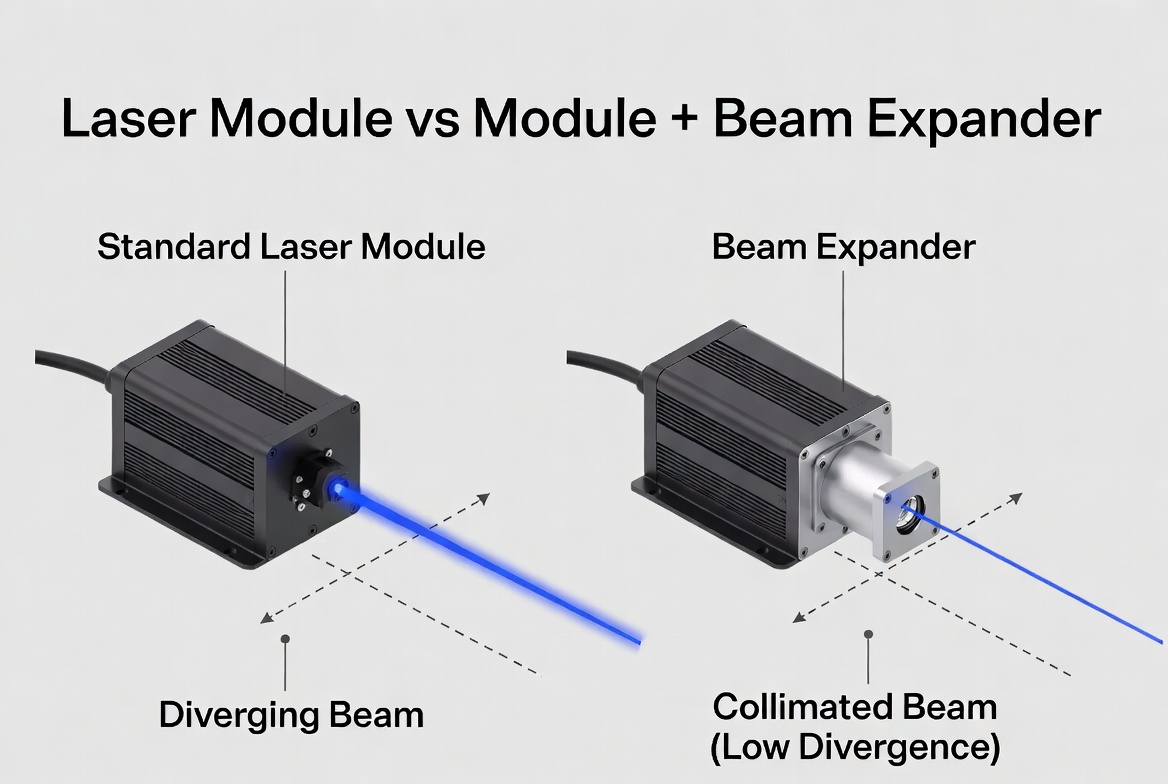

A beam expander does not replace the module—it sits in front of it and reshapes the output beam.

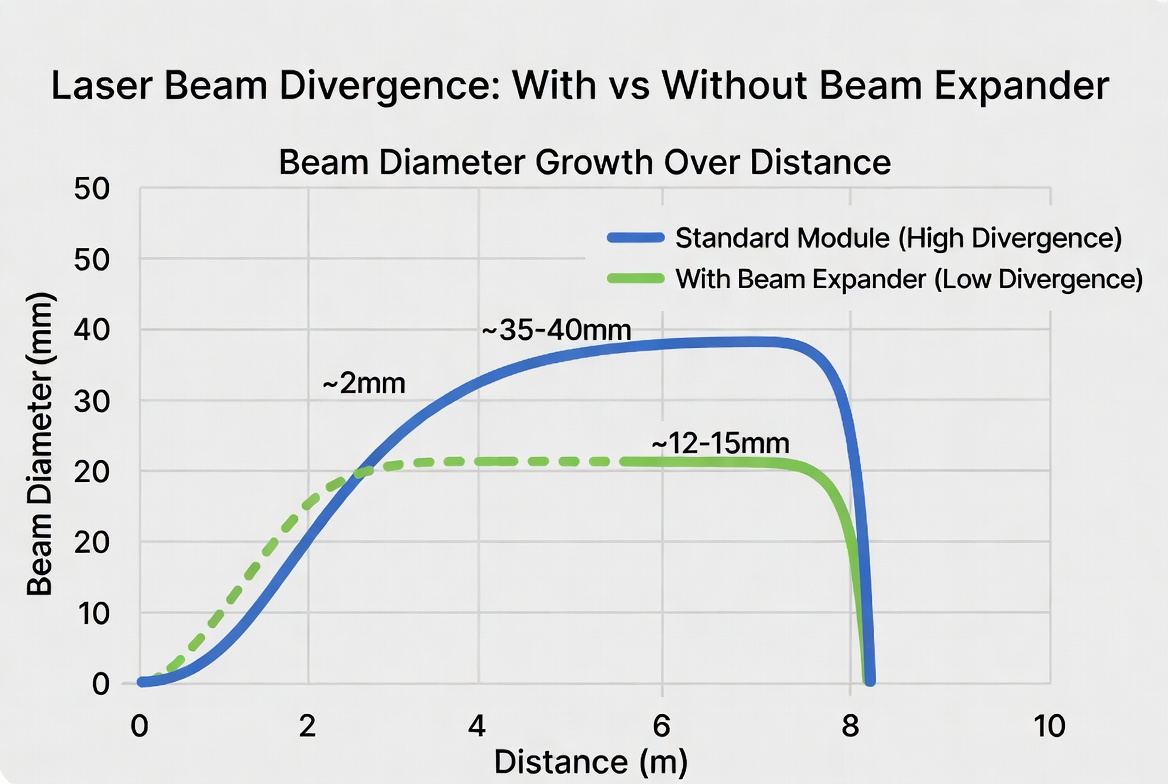

From a physics perspective, when you expand a Gaussian beam by a factor \(M\), you reduce its divergence by approximately the same factor \(M\). [edmundoptics]
For OEM engineers, this translates to three practical benefits:
- Smaller far-field spot: At 10–20 m, the beam diameter can be significantly reduced for the same source. [edmundoptics.co]

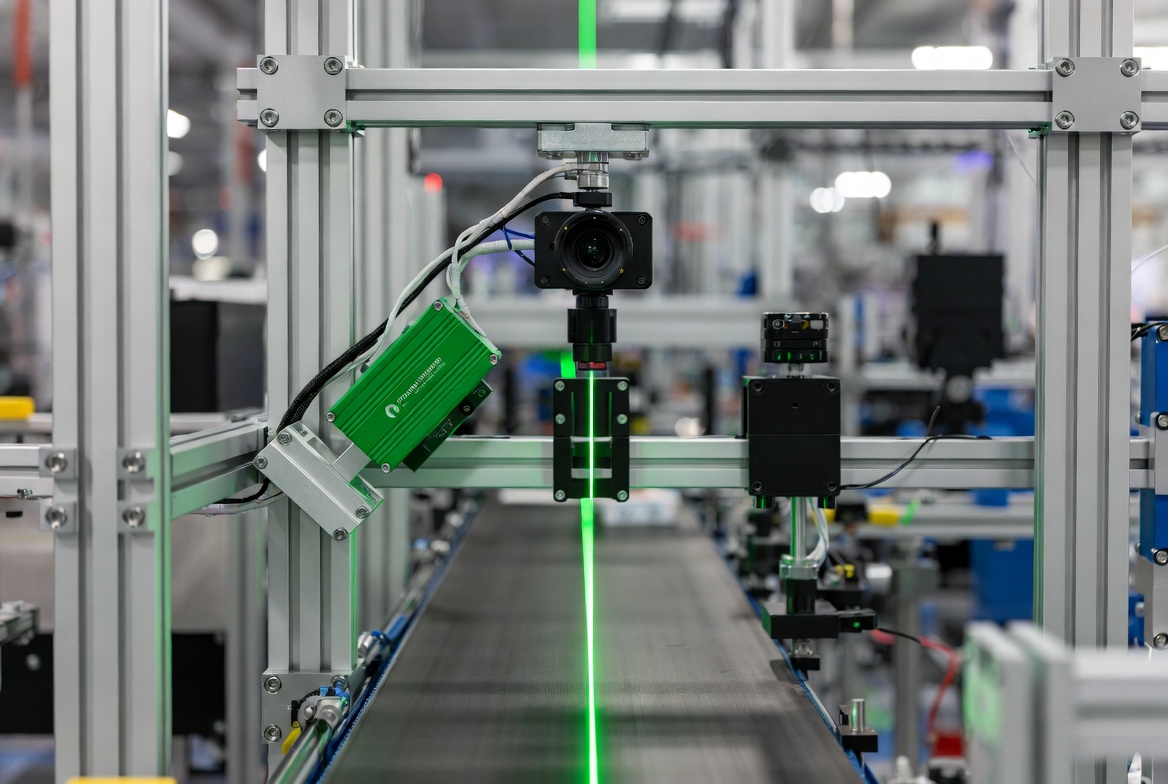

- Higher measurement resolution: In machine vision or triangulation systems, tighter spots improve edge detection and repeatability.
- Lower power density on optics: The beam expander spreads the beam at the source, reducing local irradiance and thus the risk of coating damage. [edmundoptics]
This is why high-precision laser scanning and interferometry platforms often combine a stable OEM module with a well-designed beam expander. [newport]
Not every application justifies the added complexity and cost of an external beam expander. In my experience with industrial and instrumentation OEMs, a high-quality standard module is usually enough when:
- Working distances are short to medium (for example 0.5–3 m).
- Spot size tolerances are relatively loose (e.g., simple positioning or presence detection).
- The system requires compact form factor above all else (handheld, portable, or embedded devices).
- Budget and mechanical envelope do not allow additional optics assemblies.
Modern OEM modules, especially from specialized manufacturers, are already engineered for stable beam quality, thermal management, and long-term reliability in these scenarios. [rp-photonics]
- Distance: 1–2 m
- Need: Clear visible line or cross, moderate edge sharpness
- Recommended: Standard line or cross laser module with integrated driver and appropriate wavelength, no separate beam expander.
Here, the cost and complexity of an expander rarely pay off, provided the base module has consistent beam geometry and good thermal stability. [brightlaser.com]

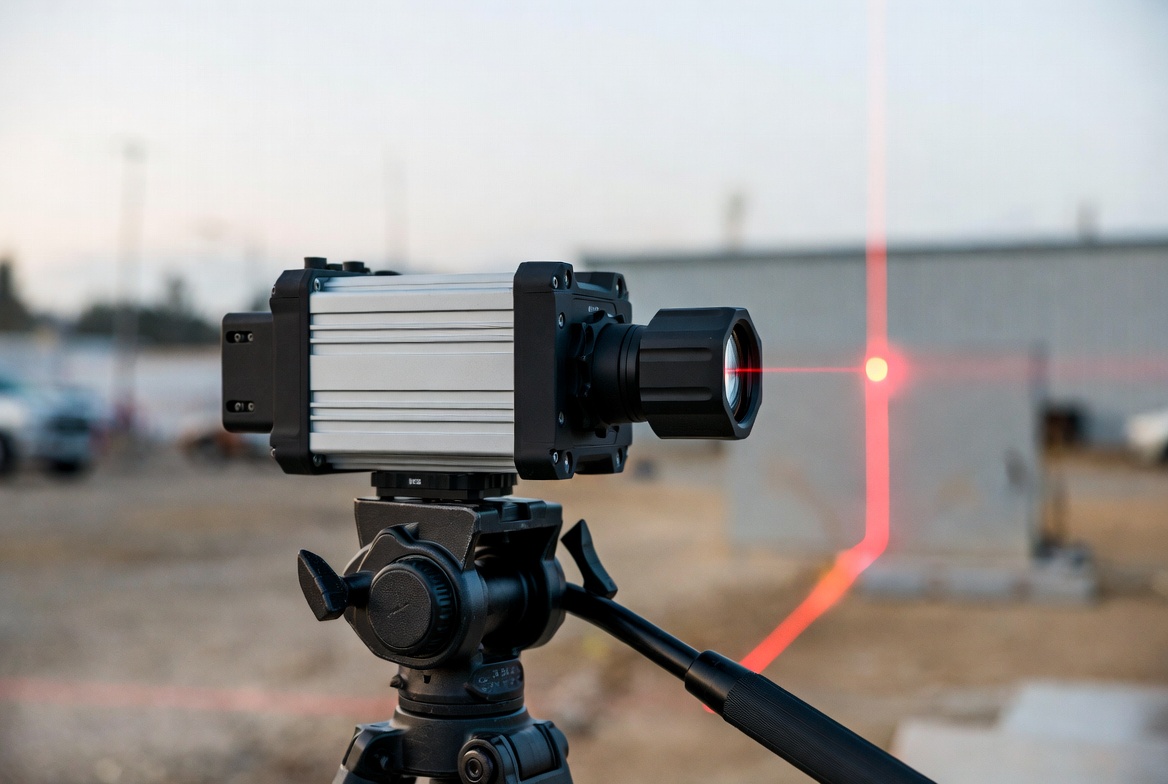

- Distance: 10–50 m or more
- Need: Tight, visible spot with minimal growth in diameter over distance
- Recommended: High-stability OEM laser module combined with a 3x–10x beam expander to reduce divergence and maintain a small spot. [newport]
In this case, a module alone cannot deliver the required far-field performance without either over-driving the laser or compromising safety.
- Distance: Variable, often with high coherence requirements
- Need: Very low wavefront distortion and carefully controlled beam diameter
- Recommended: Premium beam expanders with low wavefront error and modules optimized for stability and cleanliness in integration. [newport]
From an OEM perspective, the choice is not just optics—it is also about interfaces, supply risk, and lifecycle.
Key integration details for OEM laser modules include: [rp-photonics]
- Optical: beam radius, focus position, beam quality requirements
- Mechanical: mounting interface, housing dimensions, alignment reference surfaces
- Electrical: voltage, current, driver control, pulse triggering, safety interlock
- Thermal: heat dissipation path, base-plate temperature limits, environmental exposure
Specialist OEM suppliers design these parameters for easy integration into larger systems and can even adapt modules to custom interface requirements. [made-in-china]
Beam expanders add their own layer of integration work:
- Mounting and alignment relative to the module's optical axis
- Maintaining cleanliness to avoid scattering and artifacts
- Ensuring mechanical stability under vibration and temperature changes [edmundoptics]
This is why many OEM customers prefer to collaborate with a single manufacturer that can co-design the module and the beam conditioning optics to reduce integration risk. [brightlaser.com]
From a total cost of ownership perspective, the decision between "module only" and "module + beam expander" is rarely about the initial hardware price.
You should consider:
1. Yield and calibration cost
- Systems that rely on a bare module with marginal divergence may require more calibration time and tighter mechanical tolerances.
2. Field performance and returns
- Slightly under-engineered beams lead to inconsistent readings in metrology or automation, driving service and warranty costs.
3. Scalability across product families
- A well-defined module plus configurable beam expander gives you a platform you can reuse across multiple models and markets.
In my work with OEM teams, the most successful programs usually start with a robust industrial laser module and then selectively introduce beam expanders only for SKUs that truly require long-distance or ultra-tight spot performance.
Use this simple decision flow when you design your next system:
1. Define your critical distance range (min and max).
2. Specify acceptable spot size or line thickness at max distance.
3. Check if any existing OEM module can meet those numbers without additional optics.
4. If not, quantify the required divergence and calculate the needed expansion ratio.
5. Evaluate mechanical and budget impact of adding a beam expander assembly.
6. Work with your OEM supplier (e.g., AimLaser) to co-optimize the module and external optics for manufacturability. [made-in-china]
Documenting these steps early prevents late-stage design changes and costly re-qualification.
According to OEM laser design experts, long-term success in integration projects depends less on catalog breadth and more on engineering support throughout the lifecycle. [seocodeflies.wixsite]
An experienced OEM laser module manufacturer can help you:
- Select the right module architecture (single, dual, or multi-wavelength) for your sensing or alignment task [seocodeflies.wixsite]
- Model thermal behavior and driver requirements so the beam stays stable in real production conditions [seocodeflies.wixsite]
- Define optical, mechanical, and electronic interfaces that remain compatible across multiple suppliers and future product revisions [rp-photonics]
- Implement custom beam shaping or fiber coupling inside the module when external expanders are not desirable [rp-photonics]
AimLaser, for example, combines ISO9001-compliant manufacturing with a focus on OEM instrument applications, which is particularly important for medical, industrial, and metrology systems demanding tight consistency and timing-critical deliveries. [made-in-china]
If you are currently evaluating whether to use a laser beam expander or rely on a standard laser module, this is the right time to involve your OEM partner. Aiming Laser Technology Co., Ltd. can support you with wavelength selection, divergence targets, beam shaping options, and integration testing so you do not have to solve these trade-offs alone. [seocodeflies.wixsite]
Reach out with your distance, spot-size, and mechanical constraints, and ask for a tailored module configuration—with or without a beam expander—that meets your performance and cost targets over the entire product lifecycle.
1. Do I always need a beam expander for long-distance applications?
Not always. If your required spot size at distance is modest and your mechanical tolerances are tight, a high-quality OEM laser module alone can be sufficient. For very small spots at long distance, a beam expander becomes more attractive. [newport]
2. Will adding a beam expander make my system less robust?
It can if it is poorly integrated. A properly mounted, aligned, and sealed beam expander, designed with vibration and thermal cycles in mind, can be highly robust, but it does add components that must be kept clean and mechanically stable. [edmundoptics]
3. Can an OEM module integrate beam expansion internally?
Yes. Some OEM manufacturers can integrate additional optics or fiber coupling inside the module housing to deliver a specific divergence or spot size, reducing external alignment work. [made-in-china]
4. How do I specify divergence requirements to my supplier?
Provide distance ranges, target spot or line dimensions at those distances, wavelength, and environmental conditions. OEM specialists can translate these into divergence specs and optical designs for you. [brightlaser.com]
5. What standards should I look for in an OEM laser module supplier?
For industrial and instrumentation systems, look for ISO 9001-compliant processes, relevant safety certifications such as FDA and IEC, and experience with OEM integrations under real-world conditions. [rp-photonics]
